How Much Can a Wall Be Out of Plumb? The Definitive Guide

Have you ever hung a picture frame only to notice it looks crooked, even though your level says it’s straight? Or perhaps you’ve noticed a visible gap between your cabinet and the wall, causing a moment of panic about your home’s structural integrity. You are not alone. Many homeowners find themselves asking the critical question: how much can a wall be out of plumb before it becomes a serious issue?

Understanding the tolerance for vertical alignment in walls is essential for both aesthetic satisfaction and structural safety. While no wall is perfectly straight, knowing the acceptable limits defined by building codes and industry best practices can save you from unnecessary stress or costly repairs. In this guide, we will break down exactly what “out of plumb” means, the legal tolerances you need to know, and how to fix minor deviations like a pro.

What Does “Out of Plumb” Actually Mean?

Before diving into the numbers, let’s clarify the terminology. In construction, “plumb” refers to a vertical line that is perfectly perpendicular to the horizon (a 90-degree angle with the floor). If a wall leans inward or outward, it is considered “out of plumb.”

This is different from being “out of square,” which refers to the corners of the room not forming perfect 90-degree angles. A wall can be perfectly square but still lean slightly forward or backward. For drywall installation, cabinetry, and tiling, plumb is arguably more critical than squareness because gravity affects vertical installations directly.

Why Do Walls Go Out of Plumb?

Several factors contribute to a wall leaning:

• Settling: All homes settle over time as the foundation adjusts to the soil.
• Moisture Changes: Wood framing expands and contracts with humidity changes, potentially bowing studs.
• Poor Workmanship: Rushed framing during initial construction often leads to deviations.
• Structural Load: Heavy roofs or second stories can cause slight bowing in load-bearing walls if not properly supported.

Industry Standards: How Much Can a Wall Be Out of Plumb?

The answer to how much can a wall be out of plumb depends largely on whether you are looking at legal building code minimums or high-quality finish standards. There is a significant difference between what is “legal” and what is “acceptable” for high-end finishes.

The General Rule of Thumb

For most residential construction in the United States, the general industry standard accepted by professional framers and drywall installers is:

A wall should not be out of plumb by more than 1/4 inch in 8 feet.

This means if you place an 8-foot-long level vertically against the wall, the bubble should not deviate beyond the 1/4-inch mark. However, this is a broad guideline. Let’s look at the specific codes.

Building Code Tolerances (IRC)

The International Residential Code (IRC), which serves as the basis for most local building codes in the US, does not give a single, simple number for “plumbness” in finished walls. Instead, it focuses on structural stability. However, many local jurisdictions adopt standards from the International Building Code (IBC) or specific trade guidelines.

According to common interpretations of framing standards:

• Framing Stage: Studs are typically allowed to be out of plumb by up to 1/2 inch in 10 feet during the rough framing stage, provided they do not compromise structural integrity.
• Finished Stage: Once drywall is installed, the tolerance tightens significantly. Most inspectors and contractors aim for 1/8 inch to 1/4 inch in 8 feet.

The “High-End” Standard

If you are installing large-format tiles, custom cabinetry, or glass shower doors, the standard 1/4 inch tolerance is often too loose. High-end contractors typically strive for 1/8 inch in 8 feet or less. Anything beyond this can result in:

• Visible gaps behind baseboards.
• Difficulty aligning cabinet doors.
• Uneven grout lines in tiled areas.

Why Does It Matter? The Consequences of Ignoring Plumb

You might wonder if a slight lean really matters. After all, the house isn’t falling down. However, ignoring plumb issues can lead to frustrating cosmetic and functional problems.

1. Cabinetry and Countertops

Kitchen cabinets are built square. If your wall is out of plumb, you will see triangular gaps between the cabinet back and the wall. While scribe moldings can hide small gaps, severe deviations require shimming the entire cabinet run, which can throw off door alignments.

2. Tiling Issues

Tile is rigid. If you tile a wall that is out of plumb, the tiles will follow the wall’s lean. This causes “lippage” (where one tile edge is higher than the neighbor) and makes installing straight grout lines nearly impossible. For more on material standards, you can refer to general construction principles outlined on Wikipedia’s page on Drywall.

3. Door and Window Function

While doors are hung plumb relative to the jamb, a severely out-of-plumb rough opening can make it difficult to install pre-hung doors without excessive shimming, potentially leading to sticking doors later on.

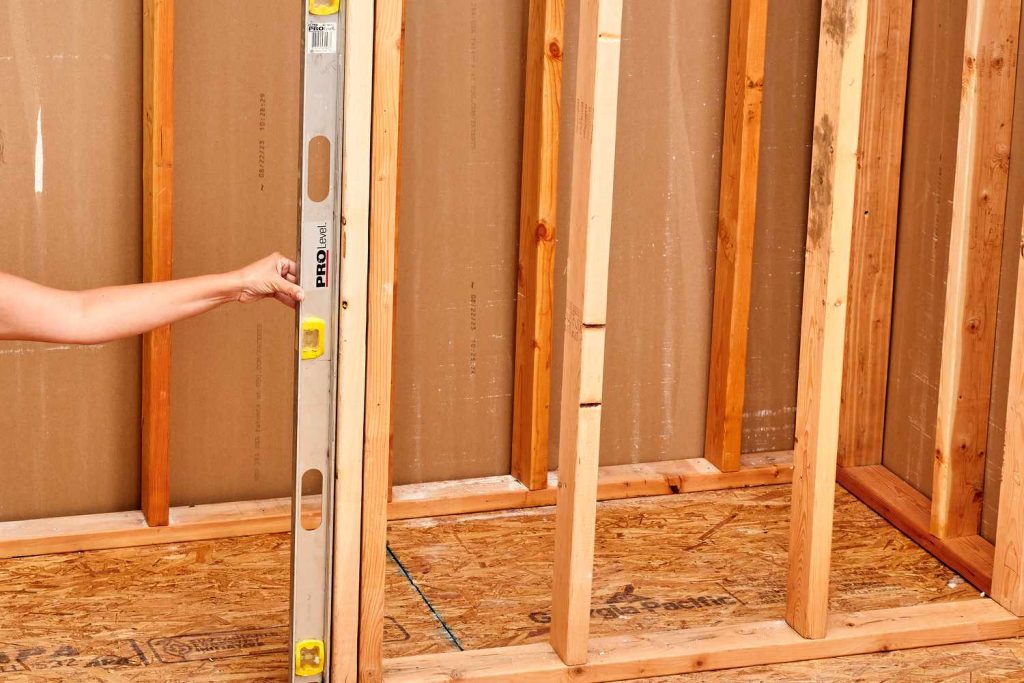

How to Measure if Your Wall Is Out of Plumb

You don’t need to be a contractor to check your walls. Here is a simple, step-by-step method using tools you likely already have.

Tools Needed:

• A 4-foot or 6-foot spirit level (a longer level is more accurate).
• A tape measure.
• A pencil.

Step-by-Step Measurement:

1. Place the Level: Hold your level vertically against the wall. Ensure it is clean and free of debris.
2. Center the Bubble: Adjust the level until the bubble is perfectly centered between the two lines. This establishes your true vertical reference.
3. Measure the Gap: Without moving the bottom of the level, look at the top. Use your tape measure to measure the distance between the edge of the level and the wall surface.
   • Note: If the wall bows in the middle, measure the deepest part of the bow.
4. Calculate the Ratio:
   • If you used a 4-foot level and measured a 1/8-inch gap, double that number to get the 8-foot equivalent (1/4 inch).
   • Formula: (Gap Measured / Length of Level) x 8 feet = Deviation per 8 feet.

Example:

• Level Length: 4 feet
• Gap at Top: 3/16 inch
• Calculation: (3/16) / 4 = 3/64 inch per foot.
• Per 8 feet: (3/64) x 8 = 24/64 = 3/8 inch.
• Verdict: This wall is 3/8 inch out of plumb in 8 feet, which exceeds the standard 1/4-inch tolerance.

How to Fix a Wall That Is Out of Plumb

Fixing a wall depends on the severity of the deviation and the stage of construction.

Scenario A: During Framing (Easiest Fix)

If the studs are exposed, you can correct the plumb by:

1. Sistering: Adding a new stud alongside the bowed one.
2. Shimming: Using wooden shims at the top or bottom plates to adjust the angle.
3. Re-nailing: Loosening the nails at the top/bottom plates, pushing the stud into plumb, and re-nailing.

Scenario B: After Drywall (Cosmetic Fix)

If the wall is already finished, you cannot easily move the studs. Instead, you must “fake” plumb using compound and shims.

1. Identify High and Low Spots: Use your long level to mark the high spots (where the level touches) and low spots (gaps).
2. Skim Coating: Apply a layer of joint compound (mud) to the low areas. For deviations up to 1/8 inch, this is standard practice.
3. Sanding: Once dry, sand the compound flush with the high spots.
4. For Larger Gaps (1/4 inch+): You may need to attach thin strips of wood (furring strips) to the wall studs (if accessible via outlets or trim removal) or build out the wall slightly with additional drywall layers, though this is invasive.

Scenario C: Installing Cabinets on Out-of-Plumb Walls

Do not try to straighten the wall. Instead:

1. Shim the Cabinets: Use wooden shims behind the cabinet frame to make the face of the cabinet plumb, regardless of the wall behind it.
2. Scribe Molding: Install scribe molding along the side of the cabinet to cover the uneven gap between the cabinet and the wall.

FAQ: Common Questions About Wall Plumb

1. Is a 1/2 inch out of plumb wall dangerous?

Not necessarily. Structurally, a 1/2 inch lean in an 8-foot wall is rarely a safety hazard unless it is accompanied by cracks in the foundation, sticking doors, or diagonal cracks in drywall. It is primarily a cosmetic issue. However, if the lean is progressive (getting worse over time), consult a structural engineer.

2. Can I hang heavy items on an out-of-plumb wall?

Yes. The plumbness of the wall does not affect its ability to hold weight. Ensure you are anchoring into studs or using appropriate drywall anchors. The angle of the wall might make the item look crooked if you use a level on the item itself, so visually adjust for the wall’s lean if necessary.

3. Does insurance cover fixing out-of-plumb walls?

Generally, no. Insurance covers sudden and accidental damage (like a storm or fire). Walls settling or being built poorly are considered maintenance or construction defects, which are not covered by standard homeowners insurance policies.

4. How much does it cost to fix an out-of-plumb wall?

If it’s a cosmetic fix involving skim coating, expect to pay $2–$5 per square foot for professional drywall finishing. If structural framing correction is needed, costs can rise significantly, ranging from $500 to $2,000+ depending on accessibility and extent.

5. Will an out-of-plumb wall fail inspection?

It depends on the inspector and the local code. Most inspectors will flag walls that are more than 1/2 inch out of plumb in the framing stage. For finished walls, they usually only flag issues that prevent the proper installation of fixtures or indicate structural failure.

6. Can I use caulk to fill gaps from an out-of-plumb wall?

Caulk is suitable for gaps up to 1/4 inch. For larger gaps, caulk will shrink, crack, or look unsightly. Use backer rod foam for deeper gaps before caulking, or better yet, use wood scribe moldings for cabinetry.

Conclusion

So, how much can a wall be out of plumb? For most practical purposes in US homes, 1/4 inch in 8 feet is the maximum acceptable deviation for a quality finish. While deviations up to 1/2 inch may be structurally safe, they will cause headaches during renovations, tiling, or cabinet installation.

By understanding these tolerances, you can better communicate with contractors, assess potential homes during inspections, and tackle DIY projects with confidence. Remember, perfection is rare in construction, but knowing the limits helps you distinguish between a “character trait” of an older home and a genuine defect.
