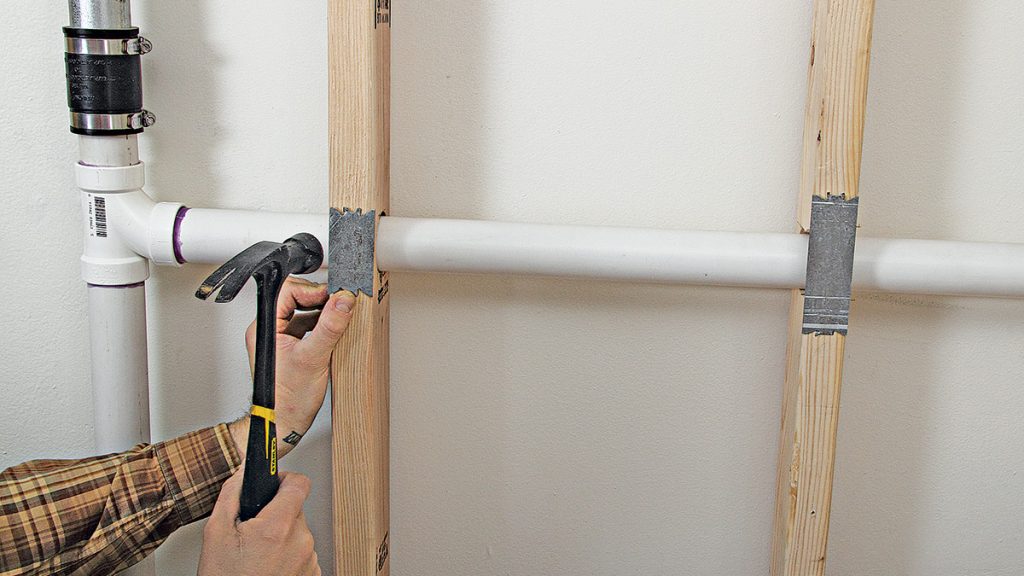

How Much Plumbing Can Run Down 3 Inch Pipes?

Have you ever stared at a bundle of PVC pipes during a renovation and wondered if that 3-inch line can actually handle the load? It’s a common concern for homeowners and DIY enthusiasts who want to avoid costly clogs or code violations. Understanding exactly how much plumbing can run down 3 inch pipes is crucial for ensuring your home’s drainage system flows smoothly and efficiently.

In this guide, we will break down the technical limits, code requirements, and practical applications of 3-inch piping. Whether you are adding a second bathroom or remodeling your kitchen, knowing these details will save you time, money, and potential headaches down the road.

What Is the Maximum Capacity of a 3-Inch Drain Pipe?

When we ask “how much plumbing can run down 3 inch pipes,” we are really asking about two things: volume (how much water) and fixture units (how many drains).

In the United States, plumbing capacity is measured in Drainage Fixture Units (DFUs). A DFU is a arbitrary measure that accounts for the volume of discharge, the rate of discharge, and the time between operations for various plumbing fixtures.

The Numbers by Code

According to the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), which are the standards adopted by most US jurisdictions:

• Horizontal Branches: A 3-inch horizontal pipe can typically handle up to 20 DFUs (depending on the slope).
• Vertical Stacks: A 3-inch vertical stack can handle significantly more, often up to 42–48 DFUs, because gravity aids the flow more effectively in a vertical drop.

Real-World Translation

What does 20 DFUs look like in your house? Here is a quick breakdown of common fixtures:

• Toilet: 4–5 DFUs
• Bathtub: 2 DFUs
• Shower: 2 DFUs
• Bathroom Sink: 1 DFU
• Kitchen Sink: 2 DFUs
• Washing Machine: 3 DFUs

Note: Values can vary slightly by local code amendments.

This means a single 3-inch horizontal line could theoretically drain two toilets and a shower simultaneously without issue. However, mixing too many high-volume fixtures on one line requires careful planning.

How Many Fixtures Can Connect to a 3-Inch Pipe?

The number of fixtures depends entirely on which fixtures you are connecting. You cannot simply count heads; you must calculate the load.

Scenario A: The Full Bathroom Group

A standard full bathroom usually includes a toilet, a sink, and a bathtub/shower combo.

• Toilet (4 DFU) + Sink (1 DFU) + Tub (2 DFU) = 7 DFUs.

You can safely connect two full bathrooms to a single 3-inch horizontal branch (7 + 7 = 14 DFUs), staying well under the 20 DFU limit. This is why 3-inch pipes are the gold standard for main bathroom drains in modern homes.

Scenario B: The Kitchen and Laundry

Kitchens and laundry rooms produce different types of waste (grease, lint, soap).

• Kitchen Sink (2 DFU) + Washing Machine (3 DFU) = 5 DFUs.

You could technically run a kitchen and a laundry room on a 3-inch line, but it is often better to keep these separate or use a 4-inch main if they feed into a long horizontal run. Grease buildup in kitchen lines can reduce effective diameter over time, so oversizing is rarely a bad idea.

Fixture Count Table

> Pro Tip: Always check your local municipal code. Some cities in California or New York have stricter amendments than the national IPC/UPC standards.

3-Inch vs. 4-Inch Pipes: Which Should You Choose?

One of the most frequent questions homeowners face is whether to upgrade from 3-inch to 4-inch pipes. While 3-inch is sufficient for most branch lines, 4-inch is the standard for the main sewer stack leaving the house.

Key Differences

1. Clog Resistance: A 4-inch pipe has roughly 78% more cross-sectional area than a 3-inch pipe. This makes it significantly more resistant to clogs from tree roots, debris, or solid waste.
2. Venting Requirements: Larger pipes require larger vents. If you use a 4-inch drain, you generally need a 2-inch vent, whereas a 3-inch drain can often use a 1.5-inch vent.
3. Cost and Space: 3-inch PVC is cheaper and easier to fit between floor joists (which are often spaced 16 inches on center). A 4-inch pipe may require notching joists, which can compromise structural integrity if not done correctly.

When to Use Which?

• Use 3-Inch For:
  • Individual bathroom groups (toilet + sink + tub).
  • Horizontal branches feeding into the main stack.
  • Remodels where space between joists is tight.
• Use 4-Inch For:
  • The main horizontal sewer line leaving the house.
  • Vertical stacks serving multiple floors (3+ stories).
  • Toilets located far from the main stack (long runs benefit from the extra diameter).

For a deeper understanding of material standards and historical context of plumbing pipes, you can refer to this Wikipedia entry on Plastic Piping.

Critical Installation Rules for 3-Inch Plumbing

Knowing the capacity is only half the battle. Improper installation can cause a perfectly sized pipe to fail. Here are the non-negotiable rules for running 3-inch drainage.

1. The Slope (Pitch) Matters

Gravity is your engine. Without the correct slope, water will pool, solids will settle, and clogs will form.

• Standard Slope: 1/4 inch per foot.
• Minimum Slope: 1/8 inch per foot (only for short runs under specific codes).
• Maximum Slope: 1/2 inch per foot. Wait, why is there a max? If the pipe is too steep, the water runs faster than the solid waste, leaving solids behind to dry out and clog the pipe. This is known as “solids separation.”

2. Venting is Mandatory

Every trap needs a vent to prevent siphoning. If a 3-inch pipe drains a toilet, the water rushing down can create a vacuum that sucks the water out of nearby sink traps, letting sewer gas into your home.

• Ensure every fixture has a vent within the maximum distance allowed by code (usually 5–6 feet for a 3-inch pipe, but varies by jurisdiction).

3. Avoid Sharp Turns

Never use a 90-degree elbow in a horizontal drainage line unless it is behind a cleanout.

• Use Two 45-Degree Elbows: This creates a smoother sweep, allowing waste to maintain momentum around the corner.
• Long Sweep Elbows: If you must turn, use a “long sweep” 90-degree fitting designed for drainage.

Step-by-Step: Planning Your 3-Inch Drain Line

If you are ready to install, follow this logical workflow to ensure compliance and functionality.

1. Map Your Fixtures: List every fixture that will connect to the line. Calculate the total DFUs.
2. Check the Limit: Ensure the total DFUs do not exceed 20 for horizontal runs or 42+ for vertical stacks.
3. Determine the Route: Identify the path to the main stack. Measure the distance to calculate the required drop (e.g., a 10-foot run needs a 2.5-inch drop).
4. Select Fittings: Gather 3-inch PVC pipes, couplings, two 45-degree elbows, and appropriate wye fittings (never use sanitary tees on their back for horizontal flow).
5. Dry Fit First: Assemble the pipes without glue to check the fit and slope. Use a level to verify the 1/4 inch per foot pitch.
6. Glue and Prime: Apply purple primer and orange PVC cement to all joints. Twist the pipe slightly when inserting to ensure an even seal.
7. Test: Before closing walls, run water through the system. Check for leaks and ensure drains flow quickly without gurgling.

FAQ: Common Questions About 3-Inch Plumbing

Can I run a toilet on a 3-inch pipe?

Yes. In fact, 3-inch pipe is the standard minimum size for a toilet drain in most modern US codes. Older homes may have 4-inch lines, but 3-inch is perfectly adequate for single-family residential use.

How far can a 3-inch pipe run horizontally?

There is no strict maximum length for a 3-inch pipe, provided you maintain the correct slope (1/4 inch per foot) and have proper venting. However, longer runs increase the risk of clogs. If your run exceeds 20–30 feet, consider upgrading to 4-inch or adding a cleanout access point every 50 feet.

Can I connect a shower and a toilet to the same 3-inch pipe?

Absolutely. This is a very common configuration. As long as the shower drain connects to the line downstream of the toilet (or via a proper wye fitting), and the total DFU load is within limits, this setup works efficiently.

Is 3-inch pipe loud?

PVC pipes can be noisy when water rushes through them. If the pipe runs through a living space or bedroom wall, consider wrapping it with acoustic insulation or using cast iron pipes for the vertical stack, which dampen sound better than plastic.

Can I use 3-inch pipe for the main sewer line to the street?

While technically possible for small homes with low fixture counts, it is not recommended. Most plumbers and codes require a minimum of 4-inch pipe for the building sewer (the line from the house to the municipal connection) to prevent blockages from tree roots and accumulated debris.

Conclusion

Understanding how much plumbing can run down 3 inch pipes is essential for any successful home renovation. For most residential applications, a 3-inch pipe is the workhorse of the drainage system, capable of handling multiple bathrooms, kitchens, and laundry lines when calculated correctly using DFU loads.

By adhering to the 1/4 inch per foot slope rule, ensuring proper venting, and respecting the 20 DFU limit for horizontal branches, you can build a drainage system that is both code-compliant and clog-resistant. Remember, when in doubt, upsizing to 4-inch for main lines is always a safer bet for long-term reliability.
