Installing a new washing machine? You’re not alone—over 8 million households in the U.S. buy a new washer each year. But here’s the catch: how should a washing machine be plumbed in correctly to avoid leaks, flooding, or costly repairs? Whether you’re a DIYer or just curious about the process, this guide walks you through everything you need to know—safely, clearly, and in plain English.
Why Proper Washing Machine Plumbing Matters
Improperly connected hoses or drains are among the top causes of household water damage. According to the Insurance Institute for Business & Home Safety, washing machine failures cause over $300 million in property damage annually in the U.S. alone.
Plumbing your machine correctly isn’t just about function—it’s about safety, efficiency, and compliance with local building codes. A well-installed washer uses water more efficiently, lasts longer, and won’t turn your laundry room into a swimming pool.
What Tools and Materials Do You Need?
Before you begin, gather the right supplies. Here’s a checklist:
Adjustable wrench
Level
Tape measure
Teflon tape (plumber’s tape)
New braided stainless steel hoses (never rubber—they degrade faster)
Drain hose (usually comes with the machine)
Hose clamps (if not pre-attached)
Bucket and towels (for spills)
💡 Pro Tip: Always replace inlet hoses every 5 years—even if they look fine. The U.S. Department of Energy recommends this to prevent burst hoses.
Step-by-Step: How to Plum a Washing Machine Correctly
Follow these steps carefully—each one ensures safety and compliance.
1. Turn Off Water Supply & Unplug Power
Locate your home’s hot and cold water shutoff valves (usually behind the washer or under a nearby sink). Turn both clockwise to shut off. Then unplug the washer or turn off its circuit at the breaker.
2. Position the Washer Properly
Place the machine on a level, stable surface—ideally a laundry pan with a drain. Leave at least 4 inches of clearance behind for hoses and ventilation. Use a bubble level to confirm it’s not tilted.

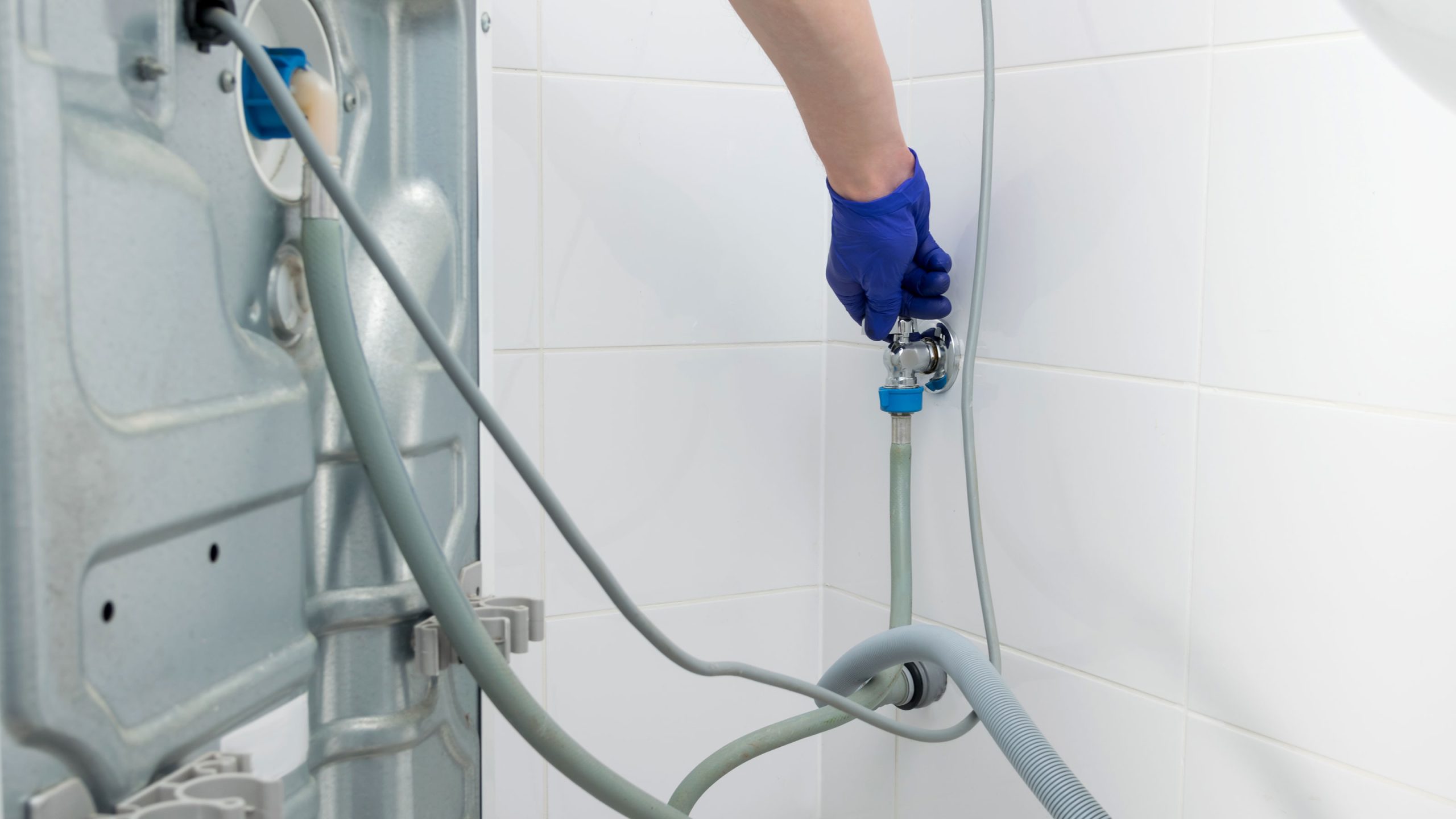

3. Connect the Inlet Hoses
Attach the blue hose to the cold water supply (usually marked “C” or blue).
Attach the red hose to the hot water supply (marked “H” or red).
Hand-tighten first, then use a wrench for ¼ turn more—do not overtighten, as this can crack fittings.
Always wrap Teflon tape around threaded connections to prevent leaks.
4. Install the Drain Hose
Insert the drain hose into the standpipe (vertical drain pipe) or utility sink.
The standpipe should be 18–30 inches high and at least 2 inches in diameter per plumbing codes.
Do not seal the connection tightly—air must enter to prevent siphoning.
Use a hose clamp or U-shaped bracket to secure it and prevent slipping.
Slowly turn water valves back on. Check all connections for drips. Run a short rinse cycle and watch the drain for backups or gurgling (a sign of poor venting).
⚠️ Warning: If you smell sewage or notice slow drainage, your vent stack may be blocked—call a plumber.
Common Mistays (& How to Avoid Them)
Mistake
Why It’s Bad
Fix
Using old rubber hoses
Prone to bursting under pressure
Replace with braided stainless steel hoses
Draining into a sealed pipe
Causes siphoning and backflow
Leave air gap or use an approved air gap fitting
Over-tightening fittings
Cracks plastic or brass connectors
Hand-tight + ¼ turn with wrench
Ignoring leveling
Causes vibration, noise, and premature wear
Use adjustable feet + level tool
Hot vs. Cold Water: Do You Really Need Both?
Most modern washers only require a cold water connection. Why? Because they heat water internally for warm/hot cycles—saving energy and simplifying plumbing.
However, if you have an older model or prefer traditional setups, dual connections are fine. Just confirm your washer’s manual: many new Energy Star models are cold-fill only.
According to ENERGY STAR, cold-water washing can save up to 90% of the energy used per load.
When to Call a Professional Plumber
While many homeowners can handle basic hookup, call a licensed plumber if:
You don’t have existing shutoff valves
Your laundry room lacks a proper drain standpipe
You’re installing in a basement or second floor (may need a laundry ejector pump)
Local codes require permits or inspections (common in NYC, Chicago, and California)
The average cost for professional washer installation: $100–$200, per HomeAdvisor (2024 data).
Yes—if you have basic tools, existing water valves, and a proper drain. Follow safety steps, use quality hoses, and test thoroughly. If unsure, hire a pro.
Q2: How high should the washing machine drain pipe be?
The standpipe must be at least 30 inches high but no more than 8 feet. Too low = siphoning; too high = pump strain.
Q3: Can I share a drain with a kitchen sink?
Yes, but only if the shared line is at least 2 inches in diameter and properly vented. Never connect directly to a garbage disposal.
Q4: Why does my washer smell like sewage?
Likely due to a dry P-trap or blocked vent pipe. Run water down the drain monthly to keep the trap filled, or call a plumber to inspect vents.
Q5: Do I need a washing machine pan?
Highly recommended—especially on upper floors. A drip pan with a drain can prevent thousands in water damage from a burst hose.
Q6: How often should I check my washing machine hoses?
Inspect every 6 months for bulges, cracks, or leaks. Replace every 5 years, even if they look fine.
Conclusion
Knowing how a washing machine should be plumbed in isn’t just handy—it’s essential for protecting your home, saving money, and ensuring your appliance runs smoothly for years. With the right tools, a bit of caution, and this guide, you’re equipped to do it right the first time.
✅ Save this guide for your next laundry room upgrade. 🔁 Share it with a friend who just moved into a new home! 💬 Got questions? Drop them in the comments—we’re here to help.
Because a properly plumbed washer doesn’t just clean clothes—it gives you peace of mind.
