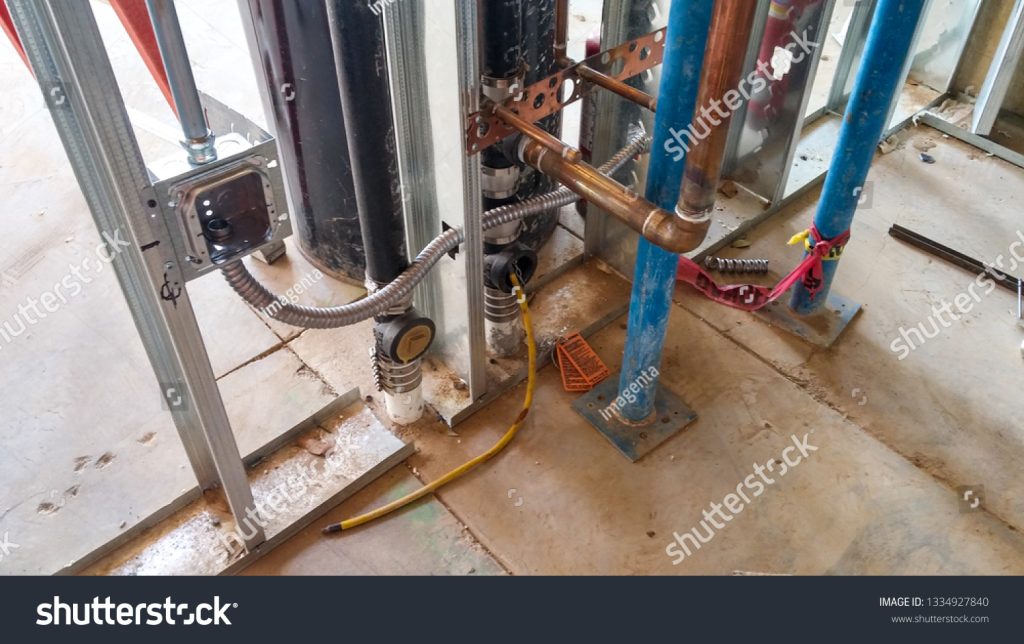

Have you ever looked at your bathroom or kitchen floor and wondered where those noisy, unsightly pipes should go? Exposed plumbing can ruin the aesthetic of a modern home and create tripping hazards during renovations. Knowing how to build a plumbing chase on the floor is the secret to achieving a sleek, professional finish while protecting your pipes from damage.
Whether you are remodeling an older home with slab foundations or adding a new bathroom suite, creating a dedicated channel for your water and waste lines is essential. This guide will walk you through the process with clarity and precision, ensuring your project meets safety standards and stands the test of time.
Why You Need a Plumbing Chase (And When to Build One)
Before grabbing your tools, it is crucial to understand why a plumbing chase is necessary. In many modern constructions, especially those with concrete slabs or second-story additions, you cannot simply cut into the structural floor joists without compromising integrity.
A plumbing chase, often referred to as a “soffit” when built up above the floor or a “trench” when cut into it, serves three main purposes:
- Protection: It shields PEX, copper, or PVC pipes from physical impact.
- Accessibility: It allows for easier repairs without tearing up entire floors.
- Aesthetics: It creates a flat, uniform surface for your final flooring material.
According to general construction principles, any time you need to route drain lines (which require gravity and slope) across a room without lowering the entire floor level, building a chase is the most effective solution.
Planning Your Layout: Measurements and Code Compliance
The most critical phase of learning how to build a plumbing chase on the floor happens before you cut any wood. Poor planning leads to leaks, code violations, and costly rework.
Understanding the Slope Requirement
Drainage pipes must slope downward to allow waste to flow away. The universal standard in the US, as outlined by the International Plumbing Code (IPC), is a slope of 1/4 inch per foot for pipes up to 3 inches in diameter.
- Example: If your toilet is 10 feet away from the main stack, your pipe needs to drop 2.5 inches vertically over that distance.
- Implication: Your plumbing chase must be deep enough to accommodate this drop plus the diameter of the pipe itself.
Checking Local Codes
While national codes provide a baseline, local municipalities may have stricter requirements regarding fire blocking, waterproofing, and access panels. Always consult your local building department. For a broader understanding of plumbing standards, you can refer to resources like Wikipedia’s overview on Plumbing Codes to familiarize yourself with the terminology used by inspectors.
Tools and Materials Checklist
To ensure a smooth workflow, gather these materials before starting. Using high-quality materials prevents future rot and structural failure.
Materials:
- Lumber: 2x4s or 2x6s (pressure-treated if near concrete/slab).
- Subfloor: 3/4-inch tongue-and-groove plywood or OSB.
- Fasteners: 3-inch structural screws or 16d nails.
- Waterproofing: Liquid membrane or sheet membrane (e.g., RedGard or Kerdi).
- Insulation: Acoustic foam or fiberglass batts (to reduce water noise).
Tools:
- Circular saw or miter saw.
- Drill/Impact driver.
- Level (4-foot level is ideal for checking slope).
- Tape measure and speed square.
- Chalk line.
Step-by-Step: How To Build A Plumbing Chase On The Floor
Follow these detailed steps to construct a sturdy, code-compliant plumbing chase.
Step 1: Frame the Perimeter Walls
The “walls” of your chase are essentially short stud walls that sit on top of your existing subfloor.
- Mark the Boundaries: Use a chalk line to mark the width of your chase on the floor. Ensure the width is at least 2 inches wider than your largest pipe bundle to allow for insulation and movement.
- Cut the Plates: Cut 2×4 lumber for the bottom and top plates.
- Install Bottom Plates: Secure the bottom plates to the existing subfloor using structural screws every 16 inches. Tip: If building on a concrete slab, use a powder-actuated tool or concrete anchors.
- Add Studs: Install vertical studs every 16 inches on center. If the chase is long, consider adding blocking between studs for added rigidity.
Step 2: Determine Depth and Height
The height of your chase depends on your pipe diameter and slope.
- Calculation: Pipe Diameter + Required Slope Drop + 1/2 inch clearance = Minimum Chase Height.
- Standard Practice: Most residential chases are built using 2×6 lumber laid flat (creating a 5.5-inch height) or 2x4s on edge (3.5 inches). For main drain lines (3-4 inches), a 2×6 framework is usually required to maintain proper slope without digging into the structural joists below.
Step 3: Install the Pipes
Once the frame is secure, it is time to lay the plumbing.
- Dry Fit First: Assemble your PVC or ABS drain lines without glue to ensure they fit within the framed channel.
- Check the Slope: Place your level on the pipe. Use shims (wooden wedges) under the pipe to achieve the exact 1/4 inch per foot slope.
- Secure the Pipes: Use plumber’s strap or hangers to secure the pipes to the wooden framing every 4 feet. This prevents the pipes from shifting when concrete or mortar is added later.
- Glue and Connect: Once the position is perfect, glue the joints according to the manufacturer’s instructions. Allow adequate cure time (usually 2–4 hours) before proceeding.
Step 4: Insulate for Sound Control
One often-overlooked step in how to build a plumbing chase on the floor is soundproofing. Water rushing through pipes can be loud, especially at night.
- Wrap drain pipes in acoustic insulation foam.
- Fill empty spaces in the chase with loose-fill insulation or fiberglass batts. This not only dampens sound but also provides minor thermal protection against freezing in extreme climates.
Step 5: Cap and Seal the Chase
Now you need to create a flat surface for your final flooring.
- Install the Cover: Screw 3/4-inch plywood or OSB over the top of the framed chase. Ensure the screws penetrate the framing studs securely.
- Seam Treatment: If the chase cover meets the existing subfloor, there will be a seam. Apply fiberglass mesh tape and thin-set mortar if you are tiling, or use wood filler if installing vinyl/hardwood.
- Waterproofing (Crucial for Wet Areas): If this chase is in a bathroom or laundry room, you must apply a waterproofing membrane over the entire chase area and extending at least 6 inches onto the surrounding floor. This prevents leaks from seeping into the wood framing.
Pros and Cons of Building a Floor Chase
| Feature | Advantages | Disadvantages |
|---|---|---|
| Installation | No need to break concrete slab; easier access for repairs. | Raises floor level slightly (step-up hazard). |
| Cost | Lower labor cost compared to slab trenching. | Requires additional materials (lumber, membrane). |
| Aesthetics | Allows for flexible layout changes. | Must be carefully finished to blend with room. |
| Inspection | Easy to inspect pipes before closing up. | Takes up vertical space (ceiling height below). |
FAQ Section
1. How wide should a plumbing chase be?
The width depends on the number and size of pipes. As a rule of thumb, allow at least 2 inches of clearance on either side of the pipe bundle. For a standard toilet drain and water supply, a width of 12–16 inches is typically sufficient.
2. Can I build a plumbing chase on a second-story floor?
Yes, but you must be careful not to cut structural joists. Building up from the subfloor (as described in this guide) is safer than cutting into joists. If you must cut joists, you will need to install header beams to redistribute the load, which requires engineering approval.
3. Do I need a permit to build a plumbing chase?
In most US jurisdictions, altering plumbing lines requires a permit. Since the chase is part of the plumbing infrastructure, it is best to check with your local building department. Failure to permit can result in fines and issues when selling your home.
4. What is the best material to cover the chase?
For bathrooms, cement board (like HardieBacker) is ideal because it is water-resistant and provides a great surface for tile. For dry areas like kitchens or hallways, standard 3/4-inch plywood is sufficient.
5. How do I prevent condensation in the chase?
Condensation occurs when cold water pipes meet warm, humid air. Insulating cold water lines with foam sleeves is the most effective prevention method. Additionally, ensuring the chase is sealed properly from room air can help mitigate moisture buildup.
Conclusion
Learning how to build a plumbing chase on the floor empowers you to take control of your home renovation projects. By following these steps—planning your slope, framing securely, insulating for sound, and waterproofing meticulously—you ensure a durable and professional result.
A well-built chase not only hides unsightly pipes but also protects your home’s structural integrity and value. Don’t rush the preparation phase; precise measurements today save you from leaked floors tomorrow.
