How to Create Electrical & Plumbing Rough-Ins in CAD

If you’re an architect, engineer, or contractor, you know that accurate rough-in drawings are the backbone of a smooth construction process. Mistakes at this stage can lead to costly rework, delays, and safety hazards. That’s why learning how to create electrical and plumbing rough-ins in CAD is essential—not just for precision, but for compliance and collaboration across trades. In this guide, we’ll walk you through the entire process, from planning to finalizing your CAD drawings, using industry best practices and real-world insights.

What Are Electrical and Plumbing Rough-Ins?

Before diving into CAD, it’s crucial to understand what “rough-ins” actually mean in construction.

A rough-in refers to the initial phase of installing electrical wiring, plumbing pipes, and HVAC ducts before walls are closed up with drywall. These systems are left “open” so inspectors can verify they meet local building codes (like the NEC for electrical or IPC for plumbing).

According to the National Association of Home Builders (NAHB), over 68% of construction rework stems from coordination errors between MEP (Mechanical, Electrical, Plumbing) systems—often due to poor or missing rough-in documentation.

💡 Pro Tip: Always coordinate with your local building department. Code requirements vary by municipality—even within the same state.

Why Use CAD for Rough-In Documentation?

While hand sketches might work for small projects, CAD (Computer-Aided Design) offers unmatched precision, scalability, and integration with modern workflows. Here’s why professionals rely on it:

• Accuracy: Exact measurements reduce clashes between systems.
• Reusability: Templates speed up future projects.
• Collaboration: Files can be shared instantly with electricians, plumbers, and inspectors.
• Compliance: Layered drawings make it easy to isolate systems for code review.

Modern tools like AutoCAD, Revit, or SketchUp with MEP plugins support intelligent object placement—so a light fixture isn’t just a symbol; it carries data like voltage, load, and circuit ID.

🔗 For more on building codes, see the International Plumbing Code (IPC) on Wikipedia.

Step-by-Step: Creating Electrical Rough-Ins in CAD

Follow these steps to draft professional-grade electrical rough-in plans:

1. Set Up Your Drawing Template

• Use a standard scale (e.g., 1/4″ = 1′-0″).
• Create layers: Electrical-Rough, Lighting, Outlets, Switches, Notes.
• Set units to architectural (feet/inches) or metric based on your region.

2. Import or Draw the Floor Plan

• Trace over an architectural base plan.
• Ensure wall thicknesses match actual construction (e.g., 2×4 = 3.5″ thick).

3. Place Electrical Fixtures per Code

Follow NEC (National Electrical Code) guidelines:

• Outlets: Every 12 feet along walls; within 6 feet of doorways.
• Switches: Typically 48″ AFF (Above Finished Floor).
• GFCI outlets: Required in kitchens, bathrooms, garages, and outdoor areas.

Example: In a 20’ x 15’ living room, you’d need at least 6 outlets spaced evenly.

4. Route Conduit and Wiring Paths

• Use dashed lines for hidden runs inside walls/floors.
• Label circuits clearly (e.g., “Circuit 5 – Living Room Receptacles”).
• Avoid running electrical near plumbing—maintain minimum 12″ separation where possible.

5. Add Annotations and Schedules

Include:

• Legend of symbols
• Circuit schedule (breaker panel layout)
• Notes on box types (e.g., “4” square box for junctions”)

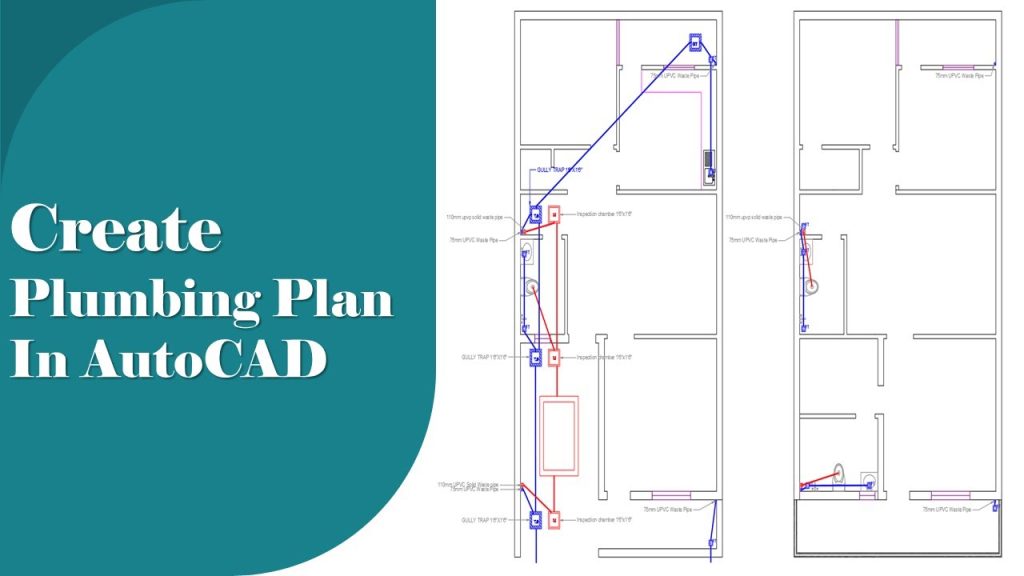

Step-by-Step: Creating Plumbing Rough-Ins in CAD

Plumbing rough-ins focus on drain, waste, vent (DWV) and supply lines. Accuracy here prevents leaks and ensures proper drainage slope.

1. Use Dedicated Plumbing Layers

Create layers like:

• Plumbing-Supply
• Plumbing-DWV
• Fixtures
• Cleanouts

2. Place Fixtures to Scale

Standard fixture locations (per IPC):

• Toilet flange: 12″ from finished wall
• Sink drain: 18–20″ AFF
• Shower valve: 48″ AFF

⚠️ Never place a toilet directly above a floor joist—it blocks access to the flange.

3. Design Drain Lines with Proper Slope

• Minimum slope: 1/4″ per foot (for 2″–3″ pipes)
• Maximum slope: 1/2″ per foot (to avoid siphoning traps)

Use CAD’s slope annotation tool or add text notes like:
2" PVC DWV @ 1/4" per ft slope →

4. Vent Stacks and Cleanouts

• Every trap must connect to a vent within 5 feet (IPC Section 907).
• Include cleanouts every 100 feet on horizontal runs or at direction changes.

5. Coordinate with Structural Elements

Run plumbing through joist bays or use notched headers—never cut structural beams without engineering approval.

Common Mistakes to Avoid

Tools & Software Recommendations

• AutoCAD: Best for 2D precision; widely used in residential drafting.
• Revit: Ideal for BIM-enabled teams; supports 3D coordination.
• SketchUp + MEP Plugins: Great for visual learners and small firms.
• Free Alternative: DraftSight (supports .DWG files).

💬 “In 80% of our projects, switching to layered CAD rough-ins reduced RFIs by half.”
— Maria Chen, Senior MEP Coordinator, Turner Construction

FAQ Section

Q1: What’s the difference between a rough-in and a final inspection?

A: A rough-in inspection occurs before walls are closed, verifying hidden systems (wiring, pipes). The final inspection happens after fixtures are installed and everything is operational.

Q2: Can I use the same CAD file for both electrical and plumbing?

A: Yes—but use separate layers for each system. This allows you to toggle visibility and avoid clutter. Never merge them into one uneditable layer.

Q3: How detailed should my rough-in drawings be?

A: Include all fixture locations, pipe/wire sizes, slopes, circuit numbers, and clear dimensions. If a plumber or electrician can’t install from your drawing alone, it’s not detailed enough.

Q4: Do I need 3D CAD for rough-ins?

A: Not necessarily. Most residential projects use 2D plans. However, 3D (BIM) is highly recommended for complex buildings to detect spatial conflicts early.

Q5: What file format should I share with contractors?

A: PDF for viewing, .DWG or .DXF for editing. Always include a cover sheet with revision dates and scale notes.

Q6: How often should I update rough-in drawings?

A: After every design change or field modification. Outdated drawings are a leading cause of construction errors.

Conclusion

Mastering how to create electrical and plumbing rough-ins in CAD isn’t just about drawing lines—it’s about preventing real-world problems before they happen. With precise documentation, you ensure safety, pass inspections on the first try, and build trust with your team and clients.

Whether you’re working on a single-family home or a multi-unit development, these CAD practices will save time, reduce waste, and elevate your professional reputation.
