How to Cut Basement Concrete for Plumbing: A Pro Guide

Adding a bathroom to your basement is one of the most valuable home improvements you can make. It increases functionality, boosts property value, and adds comfort to your lower level. However, the biggest hurdle isn’t the vanity or the toilet—it’s the floor. Specifically, figuring out how to cut basement concrete for a bathroom plumbing without causing structural damage or creating a dusty nightmare.

If you are staring at a solid slab of concrete wondering where to start, you are not alone. Many homeowners hesitate here because the stakes feel high. One wrong move can crack the foundation or hit a tension wire. But with the right tools, safety gear, and methodical approach, this task is entirely manageable. This guide will walk you through the process step-by-step, ensuring your plumbing rough-in is precise, safe, and professional.

Why Is Cutting Basement Concrete Different?

Before you fire up a saw, it is crucial to understand what lies beneath your feet. Basement slabs are not just thick layers of cement; they are engineered structures.

In many modern homes, basement floors are “post-tensioned” or reinforced with steel rebar and wire mesh. According to engineering standards, these reinforcements provide tensile strength to prevent cracking under load. Cutting through them incorrectly can compromise the slab’s integrity.

Furthermore, basement concrete is often poured directly over gravel or soil, meaning moisture control is key. When you cut into it, you are breaking the vapor barrier. Understanding these factors helps you approach the job with the respect it deserves. For more detailed information on concrete composition and structural properties, you can refer to this Wikipedia article on Concrete.

What Tools Do You Need to Cut Concrete Safely?

You cannot cut concrete with a standard wood-cutting circular saw. Doing so will ruin the blade, damage the saw, and likely cause injury. You need specialized equipment designed for masonry.

Essential Tool List

• Concrete Saw (Demo Saw or Angle Grinder): For deep cuts, a gas-powered or electric demo saw with a 14-inch blade is ideal. For smaller, shallow cuts, a large angle grinder (7-9 inches) with a diamond blade works.
• Diamond Blade: Ensure it is rated for “green concrete” if the slab is new, or “cured concrete” for older slabs. A segmented rim blade offers faster cutting, while a continuous rim offers a cleaner edge.
• Rotary Hammer Drill: Needed to break out the concrete after cutting.
• Safety Gear: This is non-negotiable. You need N95 respirators (silica dust is dangerous), safety goggles, ear protection, and heavy-duty gloves.
• Shop Vacuum: To manage dust and debris.
• Chalk Line and Tape Measure: For precision marking.

Wet vs. Dry Cutting: Which Should You Choose?

For a basement bathroom, wet cutting is generally preferred if you have a way to manage the water runoff (using a wet/dry vac simultaneously). Silica dust is a serious health hazard, and water is the best way to keep it airborne levels low. If you must dry cut, use a shroud attached to a HEPA-filter vacuum.

How to Plan and Mark Your Plumbing Layout?

Precision is everything. Once you cut that concrete, you cannot easily undo it. Therefore, planning your layout is the most critical step in learning how to cut basement concrete for a bathroom plumbing project.

Step 1: Locate Existing Utilities

Use a stud finder with AC detection to locate any electrical wires running through the slab edges. Use a pipe detector to find existing water lines or sewer pipes. Mark these clearly with red tape. Never cut within 6 inches of a marked utility line.

Step 2: Determine Pipe Slope

Drainage pipes require a slope to function. The standard code requirement in the US is a 1/4 inch drop per foot of pipe length.

• Measure the distance from your main sewer stack to the new toilet location.
• Calculate the required depth. If the distance is 10 feet, your pipe needs to drop 2.5 inches.
• Ensure your concrete slab is thick enough to accommodate the pipe diameter plus the slope without cutting into the footing.

Step 3: Mark the Cut Lines

Use a chalk line to snap straight lines where you intend to cut.

• Width: Make the trench wide enough to work comfortably. For a 3-inch or 4-inch drain pipe, a trench width of 8–10 inches is usually sufficient.
• Length: Mark the exact start and end points.
• Double Check: Measure twice, cut once. Verify that your marks align with the bathroom fixture locations (toilet flange, shower drain, sink standpipe).

Step-by-Step Guide: Cutting the Concrete Slab

Now that you are prepped and marked, it is time to cut. Follow these steps meticulously to ensure a clean result.

1. Set Up Safety and Ventilation

Open any basement windows and set up fans to blow air out of the basement. Put on your respirator, goggles, and ear protection. If using a wet saw, connect the water hose. If dry cutting, attach the vacuum shroud.

2. Make the Initial Shallow Pass

Do not try to cut through the full depth of the slab in one go. This binds the blade and causes kickback.

• Set your blade depth to 1 inch.
• Cut along both parallel chalk lines.
• Keep the saw moving at a steady pace. Let the diamond blade do the work; do not force it.

3. Deepen the Cuts Incrementally

Increase the blade depth by 1 inch for each subsequent pass.

• Pass 2: Cut to 2 inches deep.
• Pass 3: Cut to 3 inches deep.
• Continue this process until you reach the desired depth. Most basement slabs are 4 inches thick. You typically only need to cut through the slab itself, not into the gravel below, unless you need extra depth for slope.

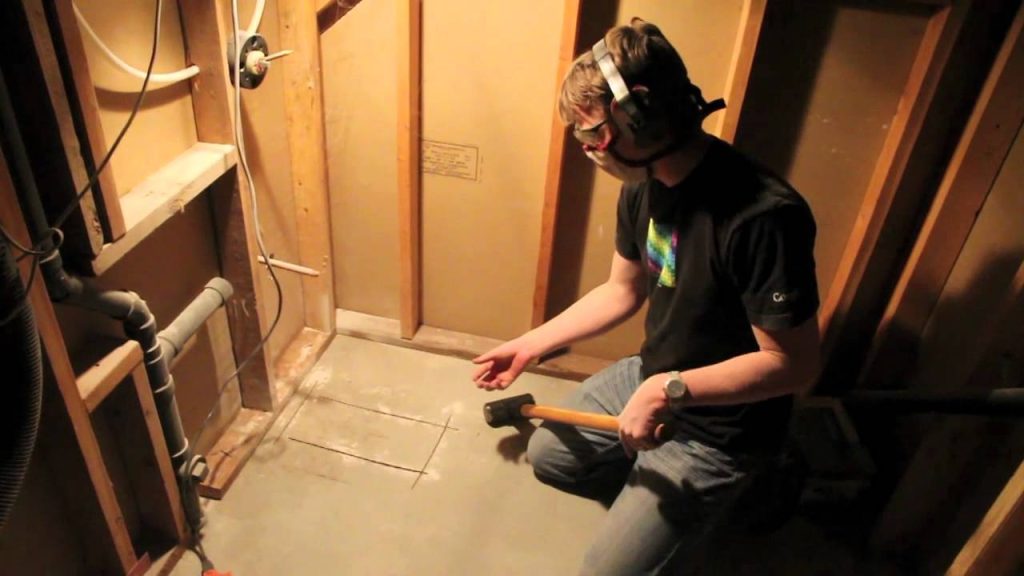

4. Break Out the Concrete

Once the parallel cuts are made to the full depth:

• Use a rotary hammer with a chisel bit or a sledgehammer and cold chisel.
• Start from the center of the trench and work outward toward the cut lines.
• The concrete between the cuts should break away relatively easily since the sides are already severed.
• Pro Tip: If the concrete is reinforced with wire mesh, you will need bolt cutters or an angle grinder with a metal-cutting disk to snip the wires as you expose them.

5. Clean and Level the Trench

Remove all loose debris, rocks, and dirt from the trench. Use a shop vac for thorough cleaning. The bottom of the trench should be relatively flat to allow for proper pipe bedding.

How to Install Plumbing in the Concrete Trench?

With the trench cut, you are ready for the rough-in.

1. Bedding: Lay down 2–3 inches of clean gravel or sand at the bottom of the trench. This provides a stable base and protects the pipe from sharp rocks.
2. Dry Fit: Assemble your PVC or ABS pipes without glue to ensure fit and slope. Use a level to check the 1/4 inch per foot gradient.
3. Glue and Assemble: Apply primer and cement to your joints. Ensure all connections are tight.
4. Secure the Pipe: Use hangers or straps to secure the pipe if necessary, though the bedding usually holds it in place.
5. Test Before Pouring: Cap the ends and perform an air or water test to check for leaks. It is much easier to fix a leak now than after pouring new concrete.

FAQ: Common Questions About Cutting Basement Concrete

1. Can I cut basement concrete without a wet saw?

Yes, you can use a dry-cutting angle grinder or demo saw. However, you must use a vacuum shroud with a HEPA filter to capture silica dust. Silica dust can cause serious lung disease (silicosis). If you cannot control the dust, do not dry cut indoors.

2. How deep should I cut the concrete for a toilet drain?

A standard toilet drain is 3 or 4 inches in diameter. You need to account for the pipe diameter plus the slope. Typically, cutting 3 to 4 inches deep is sufficient for most basement slabs. Ensure you do not cut deeper than the slab thickness to avoid undermining the foundation.

3. What happens if I cut the rebar or wire mesh?

Cutting wire mesh is generally acceptable and expected during plumbing rough-ins. However, cutting structural rebar can weaken the slab. If you encounter thick rebar (usually #4 bar or larger), consult a structural engineer. In most residential basements, the reinforcement is wire mesh or light rebar, which can be cut and replaced with new mesh during the backfill process.

4. How do I patch the concrete after plumbing installation?

Once your pipes are tested and approved, fill the trench with gravel up to 2 inches below the surface. Then, mix a concrete patching compound or fresh concrete mix. Pour it into the trench, smooth it level with the existing floor, and cure it according to the manufacturer’s instructions. Keep it moist for 3–7 days to prevent cracking.

5. Is it better to hire a professional for this task?

If you are uncomfortable using power tools, working with silica dust, or calculating slopes, hiring a professional is wise. A licensed plumber or concrete contractor can complete the job in a few hours. However, for DIYers with moderate experience, this is a manageable weekend project that saves significant labor costs.

Conclusion

Learning how to cut basement concrete for a bathroom plumbing installation is a empowering skill for any homeowner. It transforms a dark, unused space into a functional, valuable part of your home. By respecting the material, using the right safety gear, and following a methodical cutting process, you can achieve professional results.

Remember, patience is key. Rushing the cuts leads to mistakes, and mistakes in concrete are expensive to fix. Take your time, measure twice, and prioritize safety above all else.
