Dealing with main drain lines can feel intimidating, especially when gravity is your only ally. Whether you are renovating a bathroom or replacing a corroded cast-iron stack, knowing how to fit a vertical 4 inch plumbing pipe correctly is critical to preventing costly leaks and sewage backups. This guide breaks down the process into manageable steps, ensuring your installation meets US building codes and stands the test of time.
Understanding the Role of the 4-Inch Vertical Stack
Before cutting any pipe, it is essential to understand what you are installing. In residential plumbing, a 4-inch pipe is the standard diameter for the main soil stack. This vertical pipe carries waste from toilets and other fixtures down to the sewer line or septic tank.
Unlike horizontal drains that rely on slope, vertical stacks rely on gravity and proper venting. According to the International Plumbing Code (IPC), which is adopted by many US states, these pipes must be supported securely to prevent shifting that could break seals at the joints.
Why Material Choice Matters
Most modern installations use either PVC (Polyvinyl Chloride) or ABS (Acrylonitrile Butadiene Styrene).
- PVC: White, requires primer and cement. Preferred in many jurisdictions due to its fire-resistant properties.
- ABS: Black, uses only cement. Easier to install but may require a transition coupling if connecting to existing PVC.
Always check your local municipal codes before purchasing materials, as some areas strictly prohibit ABS indoors.
Tools and Materials Checklist
Success in plumbing is 90% preparation. Having the right tools prevents mid-job trips to the hardware store.
Essential Tools:
- Reciprocating saw (Sawzall) or handsaw with a miter box
- Tape measure and permanent marker
- Level (4-foot level is ideal for vertical alignment)
- Pipe deburring tool or sandpaper
- Drill with hammer bits (for concrete/masonry anchors)
- Pipe wrenches or channel locks (if dealing with existing metal pipes)
Materials:
- 4-inch Schedule 40 PVC or ABS pipe
- 4-inch couplings, wyes, or sanitary tees (as required by layout)
- PVC Primer (purple) and Cement (clear or blue) OR ABS Cement
- Stainless steel shielded couplings (no-hub couplings) if connecting to cast iron
- Metal pipe straps (every 10 feet vertically, per code)
Step-by-Step: How To Fit A Vertical 4 Inch Plumbing Pipe
Follow these precise steps to ensure a professional-grade installation.
Step 1: Safety and Preparation
Turn off the water supply to any fixtures connected to the stack. If you are cutting into an existing live stack, ensure you have a bucket and rags ready for residual waste. Wear safety glasses and N95 masks, especially if cutting old cast iron or working in confined crawl spaces.
Step 2: Measure and Cut Accurately
Measure the distance between your two connection points. For vertical runs, accuracy is vital because you cannot “push” the pipe into place like horizontal lines.
- Measure the gap.
- Subtract the depth of the fittings (couplings) from your total measurement. Typically, a 4-inch coupling adds about 2–3 inches to the length depending on how far the pipe inserts.
- Mark your cut line on the new pipe using a straight edge.
- Cut the pipe using a reciprocating saw or handsaw. Keep the cut as square (90 degrees) as possible.
Pro Tip: A jagged cut prevents the pipe from seating fully in the hub, leading to immediate leaks. Use a miter box for hand-sawing to guarantee a square cut.
Step 3: Deburr and Dry Fit
After cutting, the inside and outside edges of the pipe will have rough burrs. Use a deburring tool or sandpaper to smooth these edges. Burrs can catch debris and cause clogs later.

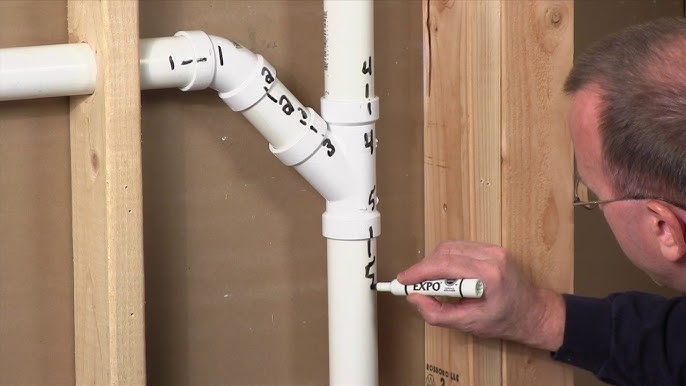

Perform a dry fit: Assemble the pipes and fittings without glue. Check the alignment with your level. Ensure the pipe is perfectly plumb (vertical). If it leans, the water flow will be uneven, potentially causing erosion on one side of the pipe wall over decades.
Step 4: Priming and Gluing (The Critical Phase)
This is where most DIYers fail. Solvent welding creates a chemical bond, not just a sticky seal.
- Clean: Wipe away any dust or moisture from the pipe ends and fitting interiors.
- Prime: Apply purple primer to the outside of the pipe end and the inside of the fitting. This softens the plastic. Let it dry for a few seconds (it should look wet but not dripping).
- Cement: Apply a liberal, even coat of cement to the primed area of the pipe. Apply a lighter coat to the fitting interior.
- Insert: Push the pipe into the fitting immediately. Twist the pipe 1/4 turn as you push. This distributes the cement evenly.
- Hold: Hold the joint firmly for 15–30 seconds to prevent it from pushing back out due to hydraulic pressure.
Note: You have roughly 10–20 seconds to make adjustments after insertion. After that, the bond sets permanently.
Step 5: Securing the Vertical Stack
A vertical pipe must be supported to handle the weight of the water and waste.
- Install metal pipe straps around the pipe.
- Anchor the straps into wall studs or masonry.
- Code Requirement: Supports should be placed at the base of the stack and at every floor interval, typically not exceeding 10 feet apart.
- Do not overtighten straps; allow slight room for thermal expansion, especially in attics or unconditioned spaces.
Step 6: Connecting to Existing Cast Iron (If Applicable)
If you are tying into an old cast-iron stack, you cannot use solvent weld. Instead, use a shielded rubber coupling (often called a no-hub coupling).
- Slide the stainless steel clamps onto the existing pipe.
- Insert the rubber sleeve.
- Insert your new PVC pipe into the other end of the sleeve.
- Tighten the clamps with a nut driver until the rubber compresses evenly. This creates a watertight, flexible seal that accommodates different material diameters.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Skipping Primer | Weak joint, eventual leak | Always use primer on PVC. It cleans and preps the surface. |
| Misaligned Cuts | Gaps in the joint, stress on fittings | Use a miter box or speed square for every cut. |
| Ignoring Venting | Siphoning traps, sewer gas entry | Ensure the stack extends through the roof or connects to an approved vent system. |
| Gluing in Cold Weather | Cement doesn’t cure properly | If temps are below 40°F (4°C), use “All-Weather” cement and keep pipes warm before installation. |
FAQ: Frequently Asked Questions
1. Can I use 3-inch pipe instead of 4-inch for a vertical stack?
Generally, no. While 3-inch pipe is acceptable for horizontal branches serving a single toilet, the main vertical stack usually requires 4-inch diameter to handle the volume from multiple fixtures and to prevent clogging. Most US plumbing codes mandate 4-inch for the main soil stack.
2. How long do I need to wait before running water?
For standard PVC cement, you should wait at least 2 hours before pressurizing the system or running water. For full cure strength, wait 24 hours. If you are using fast-set cement, follow the manufacturer’s specific instructions, but erring on the side of caution is always better.
3. Do I need a cleanout on a vertical stack?
Yes. Building codes typically require a cleanout access point at the base of the stack and at each change of direction greater than 45 degrees. This allows plumbers to snake the line if a blockage occurs in the future.
4. What is the difference between a Sanitary Tee and a Wye?
For vertical-to-horizontal connections, always use a Wye (or a Combination Wye and 1/8 Bend). A Sanitary Tee should generally only be used for vertical-to-vertical connections or venting. Using a Sanitary Tee for a horizontal drain entry can cause waste to hit the opposite wall of the pipe, leading to clogs.
5. Can I glue PVC to ABS?
No, standard PVC cement will not bond ABS to PVC. You must use a special transition cement designed for both materials, or preferably, use a mechanical shielded coupling to join the two different plastics safely.
6. How do I stop sewer smell during installation?
Plug the open ends of the pipe with ragged towels or inflatable test balls while working. Sewer gases contain methane and hydrogen sulfide, which are hazardous and smelly. Never leave an open drain line unsealed in a living space.
Conclusion
Learning how to fit a vertical 4 inch plumbing pipe is a valuable skill that empowers you to tackle major home renovations with confidence. By focusing on precise measurements, proper priming techniques, and strict adherence to support codes, you ensure a drainage system that is leak-free and durable.
Remember, plumbing is unforgiving of shortcuts. Take your time with the dry fit, respect the curing times, and always prioritize safety. If you found this guide helpful, please share it with your fellow DIY enthusiasts on social media or save it for your next project!
