How To Frame Walls Around Plumbing & Gas Lines

Renovating a bathroom or kitchen often hits a major snag when you discover pipes running exactly where your new wall needs to go. It’s a stressful moment, but knowing how to frame walls around plumbing and gas lines can save your project from costly delays and safety hazards. This guide walks you through the process with confidence, ensuring your home remains safe, compliant, and structurally sound.

Why Proper Framing Around Utilities Matters

Before you pick up a hammer, it is crucial to understand why we don’t just nail studs directly against pipes. Improper framing can lead to three major issues:

1. Structural Weakness: Cutting too many studs without proper reinforcement compromises the wall’s load-bearing capacity.
2. Pipe Damage: Nails or screws driven into the wrong spot can puncture water lines or gas pipes, leading to leaks or dangerous explosions.
3. Code Violations: The International Residential Code (IRC) has strict rules about hole sizes and spacing. Ignoring these can fail inspections and void insurance.

According to the National Association of Home Builders (NAHB), plumbing-related issues are among the top five reasons for construction rework in residential projects. Getting it right the first time saves an average of $500–$1,000 in corrective labor.

What Are the Code Requirements for Holes in Studs?

The most common question DIYers ask is: “How big of a hole can I drill in a stud?”

The answer depends on whether the wall is load-bearing or non-load-bearing. Here is the general rule of thumb based on the IRC:

• Non-Load-Bearing Walls: You can drill holes up to 60% of the stud’s width. For a standard 2×4 (which is actually 3.5 inches wide), that means a maximum hole diameter of roughly 2.1 inches.
• Load-Bearing Walls: Holes are limited to 40% of the stud’s width. For a 2×4, this is about 1.4 inches.
• Edge Distance: Holes must be at least 5/8 inch from the edge of the stud to prevent splitting.

Pro Tip: If you need a larger hole for a main drain line (usually 3–4 inches), you cannot simply drill through a single stud. You must use a technique called “boxing out” or installing a header, which we will cover below.

For more detailed regulatory standards, you can refer to the International Residential Code overview on Wikipedia.

Step-by-Step: How to Frame Around Vertical Pipes

Vertical pipes (stacks) are easier to manage than horizontal ones because they run parallel to your studs. Here is how to handle them:

1. Locate and Mark the Pipe

Use a stud finder with AC/pipe detection capabilities to locate the exact position of the pipe. Mark the center of the pipe on the floor plate and the ceiling plate.

2. Adjust Stud Spacing

Standard stud spacing is 16 inches on center (OC). If a pipe falls directly where a stud should go:

• Shift the Stud: Move the stud 1–2 inches to the side. This is acceptable for non-load-bearing partitions.
• Double Up: If the pipe is large, install two studs on either side of the pipe, creating a wider channel.

3. Use Notching (If Necessary)

If the pipe is close to the edge but not behind the stud, you may notch the stud.

• Rule: Notches cannot exceed 25% of the stud’s depth in load-bearing walls.
• Protection: Always install a steel nail plate over the notch to prevent future drywall screws from puncturing the pipe.

Step-by-Step: How to Frame Around Horizontal Pipes

Horizontal runs are trickier because they cut across multiple studs. This requires cutting into the framing, which demands careful reinforcement.

1. Determine the Pipe Size

Measure the outer diameter of the pipe. Add 1 inch for clearance and insulation. This is your required hole size.

2. Check Against Code Limits

• If the required hole is smaller than 1.4 inches (for load-bearing 2x4s), you can drill through the center of the studs.
• If the hole is larger, you must cut the studs and install headers.

3. Install Headers (The “Box-Out” Method)

For large pipes (like 3-inch drain lines), follow these steps:

1. Cut the Studs: Cut out the section of the studs where the pipe will pass. Leave enough room for the pipe plus 1 inch of clearance.
2. Install Double Headers: Place two 2x4s horizontally between the remaining vertical studs above and below the pipe hole.
   • The top header supports the load from above.
   • The bottom header provides stability.
3. Secure with Metal Connectors: Use joist hangers or metal framing anchors to connect the headers to the vertical studs. Do not rely solely on toenailing.
4. Add Blocking: Install solid wood blocking between the studs on either side of the pipe to prevent the wall from twisting.

Special Considerations for Gas Lines

Gas lines require extra caution due to the risk of fire and explosion. While the framing principles are similar to plumbing, there are critical differences:

• No Direct Contact: Gas pipes should never touch wood framing directly if they are steel, as vibration can cause wear. Use rubber or plastic pipe clamps with a spacer.
• Ventilation: If framing a chase (a small enclosed wall section) for gas lines, ensure it is not completely airtight if local codes require ventilation for leak detection.
• Labeling: Clearly mark the location of gas lines on the studs before closing the wall. Use red tape or specific “Gas Line” stickers. This is vital for future renovations.
• Shut-Off Valves: Ensure your framing allows easy access to shut-off valves. Do not frame a valve deep inside a wall where it cannot be reached without cutting drywall.

Safety Warning: Always have a licensed professional inspect gas line installations. In many US states, DIY gas work is illegal. Framing around it is fine, but moving or connecting the line is not.

How to Protect Pipes After Framing

Once the framing is complete, you must protect the utilities before installing drywall.

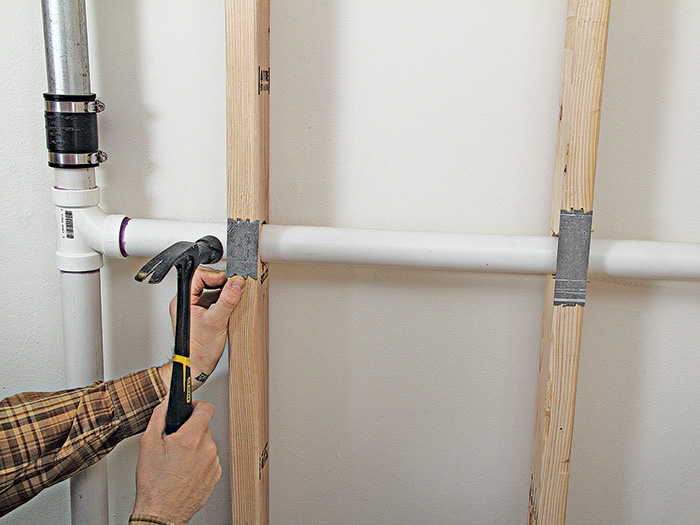

1. Install Nail Plates: Steel nail plates (also called protection plates) must be installed on any stud face where a pipe is within 1.25 inches of the surface. This prevents drywall screws from piercing the pipe.
2. Insulate Hot Water Pipes: Wrap hot water lines with foam insulation to prevent heat loss and condensation. This also reduces noise from water flow.
3. Soundproofing: For drain lines, wrap them with mass-loaded vinyl (MLV) or specialized acoustic insulation to reduce the sound of flushing toilets or running water.

FAQ: Common Questions About Framing Around Utilities

1. Can I run plumbing and electrical wires in the same stud bay?

Yes, but they should not occupy the same hole. Keep electrical wires at least 1 inch away from plumbing pipes to prevent condensation from affecting the wiring. Never drill a hole that contains both a pipe and a wire.

2. What if I accidentally nick a copper pipe?

Do not ignore it. Even a small scratch can weaken the pipe and lead to a pinhole leak later. Cut out the damaged section and install a coupling, or solder a patch if you are skilled. If unsure, call a plumber.

3. Do I need a permit to frame around existing pipes?

Generally, no. Framing is considered structural/carpentry work. However, if you are moving the pipes or adding new gas lines, you absolutely need a permit and inspection. Check with your local building department.

4. How much clearance do I need around a PEX pipe?

PEX is flexible and durable. You need at least 1 inch of clearance from the edge of the stud to avoid kinking the pipe when bending it. Use plastic guides or staples designed for PEX to secure it without crushing it.

5. Can I use 2×3 studs instead of 2x4s to save space?

Only in non-load-bearing interior walls. 2×3 studs have less width for drilling holes (only 2.5 inches actual width), which severely limits your ability to run standard 1.5-inch or 2-inch pipes without compromising structural integrity. 2x4s are recommended.

6. What is the best way to seal gaps around pipes?

Use expanding foam spray labeled for fire-blocking if the pipe passes through fire-rated assemblies (like garage walls). For standard interior walls, simple acrylic caulk is sufficient to prevent air drafts and pest entry.

Conclusion

Learning how to frame walls around plumbing and gas lines is a valuable skill that bridges the gap between rough carpentry and mechanical systems. By respecting code limits, using proper reinforcement like headers, and protecting your pipes with nail plates, you ensure a safe and durable home renovation.

Remember, while framing is a DIY-friendly task, always consult a licensed plumber or gas fitter for the actual installation of the lines. Safety first, always.
