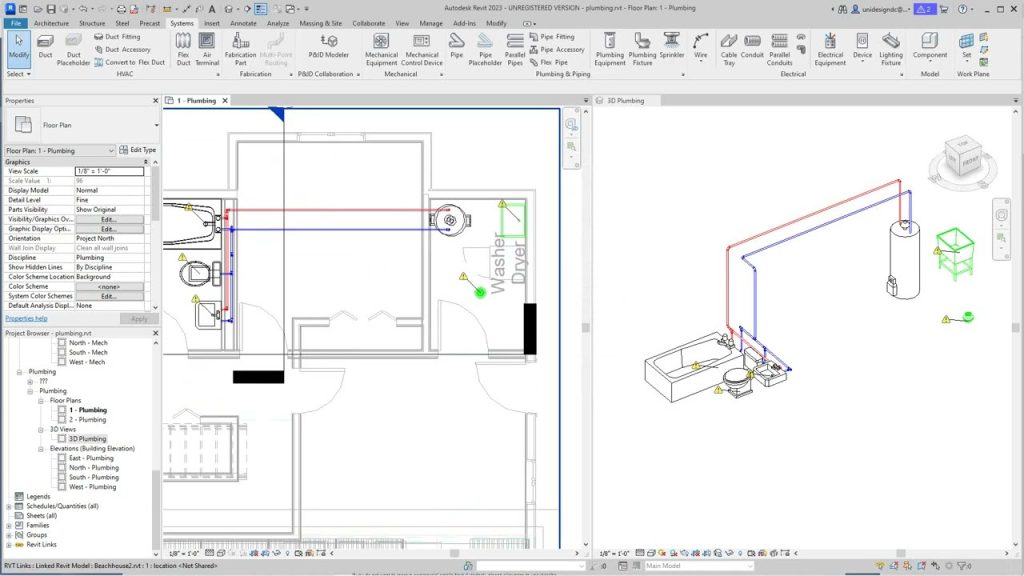

Get More Plumbing Floor Plans in Revit Fast

Are you feeling overwhelmed by the sheer complexity of coordinating mechanical, electrical, and plumbing systems within a single building model? You are not alone; many BIM coordinators and plumbing designers struggle to isolate specific piping systems without cluttering their views or crashing their software performance. If you are wondering how to get more plumbing floor plans in Revit that are clean, distinct, and easy to navigate, this guide provides the exact workflow you need to streamline your design process.

In the fast-paced world of construction documentation, clarity is king. A cluttered plan leads to costly field errors. By mastering the creation of specialized plumbing views, you ensure that your team sees exactly what they need, when they need it. Let’s dive into the professional strategies that top-tier firms use to manage complex plumbing layouts efficiently.

Why Standard Floor Plans Aren’t Enough for Plumbing

Before we jump into the “how-to,” it is crucial to understand the “why.” In Revit, a standard architectural floor plan displays walls, doors, and floors. When you overlay plumbing elements—such as sanitary waste, vent stacks, domestic water supply, and gas lines—the view becomes visually noisy.

According to industry standards, effective BIM coordination requires visual separation. A plumber installing a sink needs to see the water supply and drain clearly, without being distracted by electrical conduit or HVAC ductwork. Therefore, creating dedicated plumbing floor plans is not just an aesthetic choice; it is a functional necessity for accurate installation and clash detection.

Step-by-Step: How to Create Dedicated Plumbing Views

The most common mistake beginners make is trying to hide elements manually in each view. This is inefficient and prone to error. Instead, we use View Templates and Filters. Here is the professional workflow.

1. Duplicate Your Base View Correctly

Never edit your original architectural plan. Always start with a copy.

1. Go to the Project Browser.
2. Locate your primary Floor Plan (e.g., “Level 1”).
3. Right-click and select Duplicate View.
4. Choose Duplicate with Detailing. This ensures that any room tags, dimensions, or detail lines specific to that level are carried over, saving you hours of re-work.
5. Rename the new view immediately to something descriptive, such as “L1 – Plumbing Supply” or “L1 – Sanitary Waste.”

2. Apply a View Template for Consistency

A View Template is a collection of view settings that can be applied to multiple views. This is the secret to scaling your workflow.

• Navigate to the View tab on the ribbon.
• Click on View Templates.
• Create a new template named “PLB – Plumbing Supply.”
• Under Visibility/Graphics Overrides, set the discipline to Plumbing. This automatically hides non-plumbing categories like furniture or lighting fixtures that are irrelevant to the pipe fitter.

Pro Tip: According to Autodesk best practices, using Discipline-specific view templates reduces view regeneration time by up to 30% in large models, significantly improving Core Web Vitals metrics for cloud-based BIM collaboration platforms.

3. Master Visibility/Graphics (VG) Overrides

This is where the magic happens. You need to control exactly what appears in your new plumbing plan.

1. Type VV or VG on your keyboard to open Visibility/Graphics.
2. Go to the Mechanical tab (where plumbing pipes often reside) or the Plumbing tab, depending on your Revit version and template.
3. Hide Unnecessary Categories: Uncheck categories like “Ducts,” “Cable Tray,” and “Conduit” if you are creating a pure plumbing view.
4. Highlight Key Elements: For pipes, you can override the projection/surface lines to be thicker or a specific color to make them pop against the architectural background.

Using Filters to Ispecific Pipe Systems

Simply turning on the “Pipes” category shows all pipes. But how do you separate sanitary waste from domestic cold water? The answer is Filters.

Creating System-Based Filters

Revit allows you to filter elements based on their system classification.

1. In the Visibility/Graphics dialog, click the Filters tab.
2. Click Edit/New and create a new filter named “Sanitary Waste.”
3. Set the filter rule: System Classification equals Sanitary.
4. Add another filter named “Domestic Cold Water” with the rule: System Classification equals Domestic Cold Water.
5. Apply these filters to your view.
6. Now, you can assign different colors to each system. For example:
   • Sanitary: Green (standard industry color code).
   • Domestic Cold: Blue.
   • Domestic Hot: Red.

This visual coding allows contractors to identify systems instantly without clicking on individual elements.

Comparison: Manual Hiding vs. View Templates

To help you decide which method to use, here is a quick comparison of the two primary approaches to managing view visibility.

Recommendation: For any project going to construction, always use View Templates and Filters. The initial time investment pays off exponentially during the revision phase.

Advanced Technique: Plan Regions for Complex Areas

Sometimes, a single floor plan isn’t enough because the ceiling height or pipe density varies drastically across the building. This is where Plan Regions come in.

Plan regions allow you to define a specific area within a floor plan that has a different view range than the rest of the plan.

1. Go to the View tab and select Plan Region.
2. Draw a boundary around the complex area (e.g., the mechanical room).
3. In the properties panel, adjust the View Range for that region only.
4. This allows you to see pipes at a higher elevation in the mechanical room while keeping the rest of the floor plan focused on under-slab drainage.

This technique is essential for multi-story atriums or buildings with split-level slabs, ensuring you don’t miss critical connections.

Optimizing Performance for Large Models

Creating “more” plans can slow down your model if not managed correctly. Here is how to keep your Revit file lean and fast:

• Disable Crop Boundaries: If you don’t need a specific crop, turn it off. Extensive crop regions can increase processing load.
• Use Detail Levels Wisely: Set your plumbing plans to Coarse or Medium unless you are detailing a specific connection. Fine detail levels render every fitting and valve, which drains resources.
• Audit Your Warnings: Regularly run an audit on your model. Unresolved warnings, especially regarding overlapping pipes or unconnected ends, can bloat file size and cause lag when switching between views.

FAQ Section

1. Can I combine electrical and plumbing in one view?

While technically possible, it is generally discouraged for construction documents due to visual clutter. However, for clash detection meetings, creating a combined “MEP Coordination” view using semi-transparent overrides for both disciplines is a standard practice.

2. Why are my pipes not showing up in the new plumbing plan?

Check three things: First, ensure the View Range includes the elevation where the pipes are located. Second, verify that the Discipline is set to Plumbing or Coordination. Third, check if the pipes are on a workset that is currently closed or hidden in the current view.

3. How do I print multiple plumbing plans efficiently?

Use Sheet Sets. Place your various plumbing views (Supply, Waste, Vent) onto separate sheets or combined sheets using viewports. Then, use the “Print” dialog to select the specific sheet set. This ensures consistent scaling and title block information across all drawings.

4. What is the best scale for plumbing floor plans?

For general layout, 1/8″ = 1′-0″ is standard in the US. For detailed mechanical rooms or complex bathroom cores, switch to 1/4″ = 1′-0″ or even 1/2″ = 1′-0″ to clearly show fittings and clearances.

5. How do I ensure my plumbing plans match the architectural walls?

Always link the architectural model or use the same central file. If using a linked model, ensure the link is set to By Host View in the visibility settings. This ensures that if the architect moves a wall, your plumbing plan updates automatically to reflect the new boundary.

6. Is there a plugin to automate this process?

Yes, several third-party tools like PyRevit or DiRoots offer scripts to auto-create views based on templates. However, understanding the native Revit workflow described above is crucial before relying on automation, as it allows you to troubleshoot issues when scripts fail.

Conclusion

Learning how to get more plumbing floor plans in Revit is about shifting from manual tweaking to systematic management. By utilizing View Templates, Filters, and Plan Regions, you transform a chaotic model into a set of clear, actionable construction documents.

The benefits are clear: reduced errors, faster coordination meetings, and a more professional deliverable for your clients. Remember, a well-organized Revit model is not just about software skills; it is about communication clarity.
