How to Indicate Rough Plumbing in New Construction Plans

Building a new home is an exciting journey, but it’s also a complex puzzle where one misplaced piece can cause significant delays and budget overruns. One of the most critical, yet often misunderstood, components is the plumbing infrastructure hidden behind your walls. If you are wondering how to indicate rough plumbing in new construction plan documents correctly, you are not alone; many homeowners and junior drafters struggle with translating physical pipe needs into clear, code-compliant architectural drawings. This guide will walk you through the essential steps to ensure your blueprints communicate effectively with your contractors, saving you time, money, and stress.

Why Accurate Rough-In Plans Matter

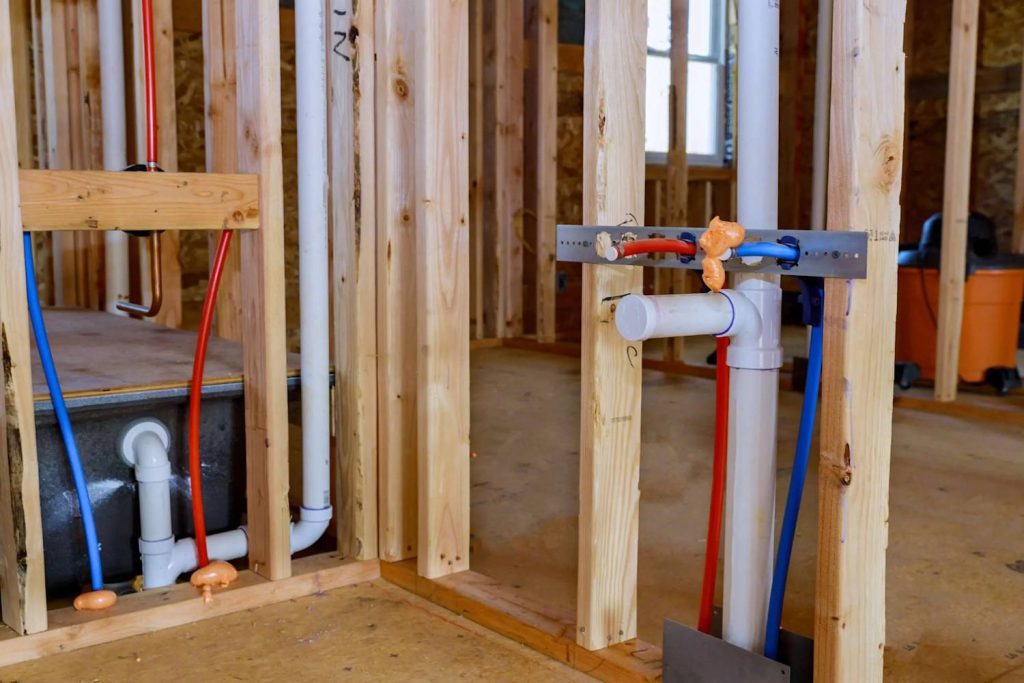

Before diving into the symbols, it is crucial to understand why precision matters. “Rough-in” refers to the stage of construction where all water supply lines, drain-waste-vent (DWV) pipes, and gas lines are installed before the drywall goes up. Unlike finish plumbing (faucets, toilets, sinks), rough-ins are invisible once the house is complete.

According to industry data, rework due to conflicting trades (e.g., a duct hitting a sewer line) accounts for nearly 5-10% of total construction costs. A clear plan prevents these clashes. When you know how to indicate rough plumbing in new construction plan layouts, you provide a roadmap that ensures:

• Code Compliance: Meeting local building codes for venting and slope.
• Structural Integrity: Avoiding excessive drilling into load-bearing studs.
• Contractor Clarity: Eliminating guesswork for plumbers, which reduces change orders.

Understanding Standard Plumbing Symbols

The first step in indicating rough plumbing is mastering the visual language of blueprints. Architects and engineers use standardized symbols to represent fixtures and pipes. While slight variations exist by region, the following are universally recognized in the US construction industry.

Common Fixture Symbols

• Toilet (WC): Usually represented by a rectangle or oval with a tank attached.
• Sink/Lavatory: A circle or oval, often with a faucet indication.
• Bathtub/Shower: A rectangle with specific markings for the drain location.
• Water Heater: A circle or square labeled “WH.”

Pipe Line Types

Differentiating between water supply and waste lines is vital. In black-and-white prints, line weights and labels distinguish them:

• Solid Lines: Typically indicate cold water supply.
• Dashed Lines: Often represent hot water supply.
• Thick/Dotted Lines: Used for DWV (Drain-Waste-Vent) systems.

Pro Tip: Always include a Legend Key on your first sheet. Never assume the contractor knows your specific shorthand. A clear legend is the hallmark of professional planning.

For a deeper understanding of technical drawing standards, you can refer to general engineering documentation principles on Wikipedia.

Step-by-Step: How to Indicate Rough Plumbing in New Construction Plan

Now, let’s get practical. Here is a systematic approach to marking up your floor plans.

1. Locate Your Fixtures First

Start by placing every plumbing fixture on your floor plan. Be precise with dimensions. Do not just place a toilet in a bathroom; indicate exactly how far it is from the side wall (usually 15 inches from the center to any obstruction) and the back wall.

• Action: Measure from finished walls, not stud faces.
• Detail: Mark the centerline of every fixture. This is where the plumber will run the vertical stack.

2. Determine the Drain Locations

The drain is the most critical part of the rough-in because gravity dictates its placement. You must indicate:

• Drain Size: Label each drain with its diameter (e.g., 3″ for toilets, 1.5″ for sinks, 2″ for showers).
• Slope Direction: Use arrows to show the direction of flow. DWV pipes require a slope of 1/4 inch per foot for proper drainage.

3. Map the Water Supply Lines

Indicate where the hot and cold water lines will emerge.

• Height Matters: Specify the height above the finished floor (AFF). For example, sink valves are typically 20-22 inches AFF, while shower valves are 48-60 inches AFF.
• Spacing: For bathtubs, standard spacing is 6 inches on center for the tub spout and valve.

4. Venting Requirements

Every trap needs a vent. Indicate vent stacks on your plan. These usually go straight up through the roof.

• Rule of Thumb: A vent must be within a certain distance of the trap it serves (e.g., a 1.5-inch drain needs a vent within 3.5 feet). Check your local IPC (International Plumbing Code) or UPC (Uniform Plumbing Code) amendments.

5. Gas Lines (If Applicable)

If you have a gas fireplace, stove, or dryer, mark these clearly. Gas lines require different materials (black iron or CSST) and strict leak-testing protocols. Use a distinct line style, such as a double-dashed line, labeled “GAS.”

Critical Dimensions Cheat Sheet

To help you visualize the requirements, here is a quick reference table for standard rough-in heights and distances. Note that these are general US standards; always verify with your local inspector.

AFF = Above Finished Floor

Common Mistakes to Avoid

Even experienced drafters make mistakes. Here are the top three errors to watch out for when learning how to indicate rough plumbing in new construction plan layouts:

1. Ignoring Stud Bays: Placing a 3-inch toilet drain in a 2×4 wall without specifying a framed offset or using a specialized shallow-profile toilet. A 3-inch pipe generally requires a 2×6 wall or a chase.
2. Conflicting Trades: Running a plumbing vent directly through a beam or an HVAC duct. Always overlay your plumbing plan with your structural and mechanical plans.
3. Vague Labels: Writing “sink” instead of “Kitchen Sink – Hot/Cold/Drain/Garbage Disposal.” Specificity prevents the plumber from forgetting the dedicated circuit for a garbage disposal or dishwasher.

FAQ Section

1. What is the difference between rough-in and finish plumbing?

Rough-in involves installing all the piping (water supply, drains, vents) inside the walls and floors before insulation and drywall. Finish plumbing happens after the walls are painted and involves connecting the visible fixtures like faucets, toilets, and showerheads.

2. Do I need an architect to draw plumbing plans?

While not legally required in all jurisdictions for single-family homes, it is highly recommended. Many local building departments require stamped drawings for permit approval. A professional ensures code compliance, which protects your investment.

3. How deep should water lines be buried in a slab?

If you are building on a concrete slab, water lines are typically embedded in the concrete or run under the slab in sand. They should be protected from corrosion and freezing. In freeze-prone areas, insulation or deeper burial below the frost line is critical.

4. Can I move plumbing fixtures after the rough-in is done?

Technically, yes, but it is expensive and destructive. Once the concrete is poured or the walls are closed up, moving a drain requires breaking through floors or walls. It is much cheaper to adjust the plan on paper than to move a pipe in concrete.

5. What does “12-inch rough-in” mean for a toilet?

This refers to the distance from the finished wall behind the toilet to the center of the closet flange (the drain pipe). Most US homes use a 12-inch rough-in, but 10-inch and 14-inch options exist for older homes or specific designs.

6. How do I indicate a cleanout on the plan?

Cleanouts are access points for clearing clogs. Indicate them with a specific symbol (often a circle with a plug icon) on the DWV line. They are typically required at the base of stacks and at changes in direction greater than 45 degrees.

Conclusion

Learning how to indicate rough plumbing in new construction plan documents is a skill that pays dividends throughout the building process. By using standardized symbols, providing precise dimensions, and clearly distinguishing between supply and waste lines, you create a blueprint that builders respect and follow accurately.

Remember, a well-detailed plan is your best defense against costly change orders and construction delays. Take the time to review your layouts with your plumber before breaking ground. Their practical experience combined with your detailed planning will result in a smooth, efficient build.
