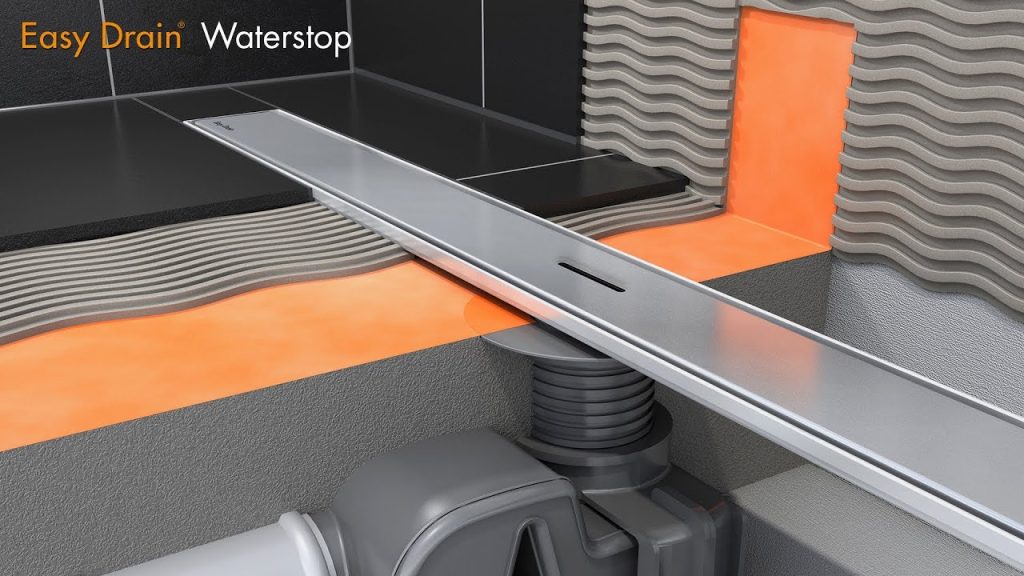

How to Install a Linear Shower Drain: A Pro Guide

Are you dreaming of a sleek, spa-like bathroom but worried that the plumbing complexity is out of your reach? You are not alone; many homeowners hesitate because they believe installing a modern drainage system requires a master plumber’s license. However, with the right preparation and tools, learning how to install a linear shower drain to plumbing is an achievable DIY project that can transform your space.

This guide breaks down the technical jargon into simple, actionable steps. We will walk you through everything from preparing the subfloor to sealing the final tile, ensuring your new drain is not only beautiful but also completely watertight. Let’s dive in and get your project flowing in the right direction.

Why Choose a Linear Drain Over a Traditional Center Drain?

Before we pick up a wrench, it is essential to understand why you are making this switch. Linear drains have surged in popularity in the US market, growing by over 15% annually in residential renovations according to recent industry trends.

Unlike traditional center drains that require a four-way slope (pitching the floor toward the middle), linear drains allow for a single-plane slope. This means you only need to pitch the floor in one direction toward the wall where the drain is located.

Key Benefits at a Glance

For more detailed historical context on drainage systems, you can refer to Wikipedia’s article on Shower Drains, which outlines the evolution of bathroom sanitation standards.

Tools and Materials You Will Need

Success in plumbing relies heavily on having the right gear before you start. Do not attempt to improvise with subpar materials, as water damage is costly to repair.

Essential Tools:

• Tape measure and laser level (crucial for accurate sloping)
• Circular saw or jigsaw (for cutting subfloor)
• Drill and screwdriver set
• Notched trowel (size depends on your thinset manufacturer)
• Rubber mallet
• Caulking gun

Materials:

• Linear drain kit (ensure it matches your plumbing rough-in)
• Waterproofing membrane (liquid or sheet)
• Thinset mortar (modified for your tile type)
• PVC or ABS cement (depending on your existing pipes)
• Silicone sealant (100% silicone, mold-resistant)

Step 1: Preparing the Subfloor and Rough-In

The foundation of a leak-free shower is the subfloor preparation. If you are replacing an old tub or shower, you must remove all existing flooring down to the joists.

1. Check the Joists: Ensure your floor joists are sturdy. If there is any bounce, reinforce them first. A moving floor will crack your tile and break the waterproof seal.
2. Position the Drain: Dry-fit your linear drain unit. The outlet of the drain must align perfectly with your existing waste pipe. If you are moving the drain location, you will need to extend the PVC piping using appropriate fittings and primer/cement.
3. Secure the Unit: Once aligned, secure the drain body to the subfloor using the screws provided in the kit. Note: Do not overtighten, as this can warp the plastic housing.

Pro Tip: Use a laser level to mark the exact height of the drain flange on the surrounding walls. This line will be your reference point for the slope of the floor.

Step 2: Creating the Single-Plane Slope

This is the most critical step in learning how to install a linear shower drain to plumbing. The goal is to create a consistent slope of 1/4 inch per foot toward the drain.

1. Install the Backer Board: Cut your cement backer board to fit the shower pan area. Leave a 1/8-inch gap between boards for expansion.
2. Screwing Down: Secure the backer board with corrosion-resistant screws every 6–8 inches.
3. Building the Slope:
   • If using a pre-sloped foam tray: Simply place it over the drain and secure it.
   • If building a mud bed: Mix your deck mud (dry pack mortar) to a consistency where it holds its shape when squeezed. Pack it firmly, starting from the far wall and working toward the drain. Use a straight edge to screed the mud, ensuring it drops 1/4 inch for every foot of distance from the wall to the drain.

Use your laser level to constantly check your pitch. An uneven slope will result in standing water, which is a breeding ground for bacteria and mold.

Step 3: Waterproofing the System

In the US, building codes (such as the IPC and UPC) strictly require continuous waterproofing in wet areas. Skipping this step is the number one cause of shower failures.

1. Seal the Joints: Apply a band of waterproofing fabric over all seams between the backer board and the drain flange. Use the specific liquid membrane recommended by your drain manufacturer.
2. Apply Liquid Membrane: Roll or brush on your liquid waterproofing membrane over the entire floor and up the walls at least 6 inches (or higher if your code requires).
3. Layering: Most products require two coats. Apply the second coat perpendicular to the first once the first is tacky dry.
4. Flood Test: Before tiling, plug the drain and fill the shower pan with 2 liters of water. Let it sit for 24 hours. Check the ceiling below for leaks. If it holds, you are ready to tile.

Step 4: Installing the Tile and Grout

Now that the “guts” of the system are secure, you can focus on aesthetics.

1. Dry Fit Tiles: Lay out your tiles to ensure minimal cuts near the drain. Large-format tiles work best with linear drains because they emphasize the clean lines.
2. Apply Thinset: Use the notched trowel to apply thinset to the back of the tile (back-buttering) and the floor. Press firmly to remove air pockets.
3. Cutting Around the Drain: Measure carefully. You may need to cut a channel in the tile to allow water to flow into the drain grate. Some linear drains come with a tile-in insert, allowing you to place a strip of tile directly into the drain frame for a seamless look.
4. Grouting: Wait 24–48 hours for the thinset to cure. Then, apply your grout. For showers, epoxy grout is highly recommended as it is impermeable to water and resistant to staining, though it is harder to work with than cement-based grout.

Step 5: Final Assembly and Sealing

The final step connects the visible part of the drain to the plumbing beneath.

1. Clean the Channel: Remove all debris, dried thinset, and dust from the drain channel. Any obstruction can cause slow drainage.
2. Insert the Grate: Place the stainless steel or decorative grate into the channel. Ensure it sits flush with the tile surface.
3. Silicone Seal: Apply a thin bead of 100% silicone sealant around the perimeter where the grate meets the tile. This prevents water from seeping under the grate and into the thinset layer.
4. Cure Time: Allow the silicone to cure for at least 24 hours before using the shower.

FAQ Section

1. Can I install a linear drain on a concrete slab?

Yes, but the process differs slightly. You cannot screw the drain to a concrete slab easily. Instead, you will need to use a clamping ring drain designed for concrete applications or build up the floor using sleeper walls and wood framing to create the necessary slope and cavity for the plumbing.

2. What is the ideal slope for a linear shower drain?

The standard building code requirement in the US is a minimum slope of 1/4 inch per foot. While steeper slopes drain faster, they can be uncomfortable to stand on and may cause tiles to slip during installation. Stick to the 1/4 inch rule for the best balance of function and comfort.

3. Do I need a professional plumber for this installation?

If you are comfortable with basic DIY tasks and your existing plumbing rough-in is already in the correct location, you can do this yourself. However, if you need to move the main waste pipe or vent lines, hiring a licensed plumber is recommended to ensure compliance with local codes.

4. How do I clean a linear shower drain?

Linear drains are easier to clean than center drains. Simply remove the grate (most clip in or unscrew). Rinse the channel with hot water and use a soft brush to remove hair and soap scum. Avoid harsh chemicals that can corrode the stainless steel finish.

5. What happens if my linear drain leaks?

If you performed the flood test (Step 3) correctly, leaks should be rare. If a leak occurs after tiling, it is usually due to a failed seal at the drain flange or cracked grout. Repairing this often requires removing the tile around the drain, which is why proper waterproofing and testing before tiling are non-negotiable.

Conclusion

Learning how to install a linear shower drain to plumbing is a rewarding project that adds significant value and modern appeal to your bathroom. By following these steps—preparing the subfloor, creating a precise single-plane slope, applying rigorous waterproofing, and sealing correctly—you can achieve a professional-grade result.

Remember, patience is key. Rushing the drying times for thinset, membrane, or silicone is the fastest way to compromise your hard work. Take your time, double-check your measurements, and enjoy your new, luxurious shower experience.
