How to Install a Washing Machine Trap: Easy DIY Guide

Is your laundry room smelling like rotten eggs, or is water backing up every time you run a spin cycle? These are classic signs that your washing machine drainage system is missing a critical component: the P-trap. Many homeowners overlook this simple U-shaped pipe, but it is the first line of defense against harmful sewer gases and pesky pests entering your home.

If you are wondering how to install a plumbing trap for washing machine systems correctly, you have come to the right place. This guide will walk you through the process with clarity and confidence, ensuring your laundry setup is safe, compliant, and efficient. You don’t need to be a master plumber to fix this; you just need the right tools and a little guidance.

Why Your Washing Machine Needs a P-Trap

Before we dive into the tools and steps, it is crucial to understand why this installation matters. A P-trap is not just an optional accessory; in most US jurisdictions, it is a code requirement for any fixture connected to the sanitary sewer system.

The Science Behind the Seal

The P-trap holds a small amount of water in its curved bottom section. This water acts as a liquid seal. According to basic plumbing physics, this seal prevents methane and hydrogen sulfide (sewer gases) from traveling back up the drain pipe and into your living space. Without it, your home is essentially open to the sewer line.

Furthermore, the trap catches lint, coins, and debris before they travel deep into your main sewage line, potentially saving you from expensive professional unclogging services later. For more detailed information on residential drainage standards, you can refer to general plumbing principles outlined on Wikipedia’s page on Plumbing Traps.

Common Signs You Need a Trap Installation

• Foul Odors: A persistent sewage smell near the washer.
• Slow Drainage: Water pools around the standpipe during the drain cycle.
• Gurgling Sounds: Air being pulled through the drain due to improper venting or trapping.
• Pest Issues: Small insects or rodents appearing near the drain outlet.

Tools and Materials You Will Need

Preparation is half the battle in any DIY project. Having the right materials on hand ensures a smooth installation process. Most of these items are available at local hardware stores like Home Depot, Lowe’s, or Ace Hardware.

Essential Tools

• Adjustable Wrench or Channel Locks: For tightening slip nuts.
• Hacksaw or PVC Pipe Cutter: To trim pipes to the correct length.
• Deburring Tool or Sandpaper: To smooth cut edges.
• Tape Measure: For precise measurements.
• Bucket and Rags: To catch residual water and clean up spills.

Materials List

• 1.5-inch or 2-inch P-Trap Kit: Ensure it matches your existing drain pipe diameter. Note: Check your local building codes; many modern codes require 2-inch drains for washing machines to handle high-volume discharge.
• PVC Primer and Cement: If using glued connections (though slip-joint traps are common for washer boxes).
• Tailpiece Adapter: If connecting to a flexible hose.
• Plumber’s Putty or Teflon Tape: For threaded connections.

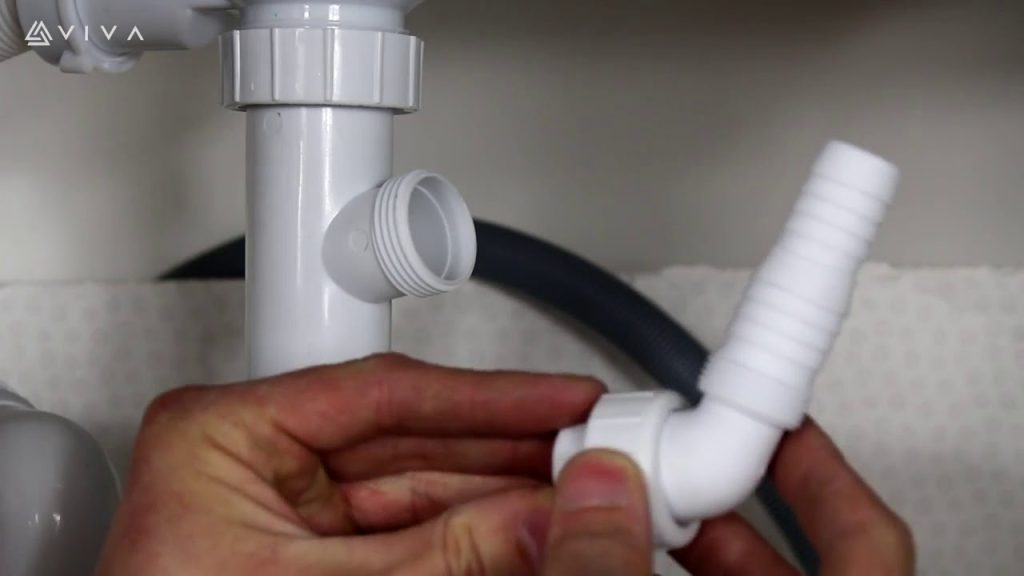

Step-by-Step: How to Install a Plumbing Trap for Washing Machine

Follow these steps carefully. Safety first: always ensure the washing machine is turned off and unplugged before beginning work.

Step 1: Assess the Existing Drain Configuration

Look at your current setup. Most US homes have a “washer box” recessed into the wall with two hoses (hot/cold) and one drain standpipe.

• Scenario A: You have an open standpipe with no trap visible underneath.
• Scenario B: You have an old, cracked, or leaking trap that needs replacement.

Measure the diameter of the existing drain pipe. Standard sizes are 1.5 inches (older homes) or 2 inches (newer builds). Buy a P-trap kit that matches this size.

Step 2: Remove the Old Assembly (If Applicable)

If you are replacing an old trap:

1. Place a bucket under the trap to catch dirty water.
2. Loosen the slip nuts on both ends of the old trap using your wrench.
3. Remove the old trap and discard it.
4. Clean the existing pipe ends thoroughly. Remove any old plumber’s tape, glue, or debris. A clean surface ensures a watertight seal.

Step 3: Dry-Fit the New P-Trap

Never glue or tighten immediately. Always dry-fit first.

1. Insert the trap arm into the wall drain pipe.
2. Connect the vertical tailpiece to the top of the P-trap.
3. Ensure the curve of the “P” faces downward.
4. Check the alignment. The trap should sit naturally without stress on the joints. If the pipes are misaligned, you may need to adjust the length of the tailpiece or use adjustable slip joints.

Step 4: Cut and Prepare Pipes

If the existing pipes are too long:

1. Mark the cutting line with a pencil.
2. Use a hacksaw or PVC cutter to make a straight, clean cut.
3. Crucial Step: Use sandpaper or a deburring tool to smooth the inside and outside edges of the cut. Rough edges can catch lint and cause clogs over time.

Step 5: Assemble and Connect

Now, put it all together.

1. Slide the slip nut onto the pipe, followed by the rubber washer (gasket). Ensure the tapered side of the washer faces the nut.
2. Insert the pipe into the fitting until it bottoms out.
3. Slide the nut up and hand-tighten it.
4. Repeat for all connections.

Pro Tip: Do not overtighten! Hand-tight plus a quarter-turn with pliers is usually sufficient. Overtightening can crack the plastic nuts or distort the rubber washers, leading to leaks.

Step 6: Test for Leaks

1. Remove the bucket.
2. Plug the washing machine back in.
3. Run a short “Drain/Spin” cycle or pour about 2 liters of water directly into the standpipe.
4. Inspect every joint closely. Look for drips or moisture.
5. If you see a leak, tighten the nut slightly. If it persists, disassemble and check if the washer is seated correctly.

Troubleshooting Common Installation Issues

Even with careful planning, issues can arise. Here is how to handle them.

FAQ: Frequently Asked Questions

1. Can I install a washing machine drain without a P-trap?

No. It is highly discouraged and likely illegal under local plumbing codes. Without a P-trap, sewer gases will enter your home, posing health risks and creating unpleasant odors. Always install a trap.

2. What is the correct height for a washing machine standpipe?

According to the International Plumbing Code (IPC), the standpipe should extend between 18 and 30 inches above the trap weir. The trap itself should be located within 6 to 18 inches of the standpipe. Keeping within these ranges ensures proper drainage and venting.

3. Should I use glue or slip-joint connections?

For the connection between the washing machine hose and the trap, slip-joint connections are preferred because they allow for easy maintenance and cleaning. However, the connection from the trap arm into the wall drain may require PVC cement depending on your local code and pipe type. Always check local regulations.

4. Why does my washing machine make a gurgling sound when draining?

Gurgling usually indicates a venting issue, not necessarily a trap issue. If the vent pipe on your roof is blocked, air cannot escape, causing suction that pulls water out of the trap or creates noise. Ensure your vents are clear before assuming the trap is installed incorrectly.

5. How often should I clean the P-trap?

It is good practice to inspect and clean the P-trap once a year. Lint and sediment can accumulate over time, slowing drainage. Simply unscrew the slip nuts, remove the trap, flush it with water, and reinstall.

6. Can I use a flexible hose instead of a rigid P-trap?

While flexible corrugated pipes exist, they are prone to sagging and creating secondary traps (S-traps), which can siphon dry and fail. Rigid PVC or ABS P-traps are strongly recommended for reliability and code compliance.

Conclusion

Learning how to install a plumbing trap for washing machine setups is a valuable skill that protects your home’s air quality and plumbing integrity. By following this step-by-step guide, you can ensure a leak-free, odor-free laundry room. Remember, the key to success lies in proper measurement, clean cuts, and avoiding overtightened connections.

Not only does this DIY project save you money on plumber fees, but it also gives you peace of mind knowing your home is safe from sewer gases. If you found this guide helpful, please share it with your friends and family on social media. Someone else might be struggling with a smelly laundry room right now!
