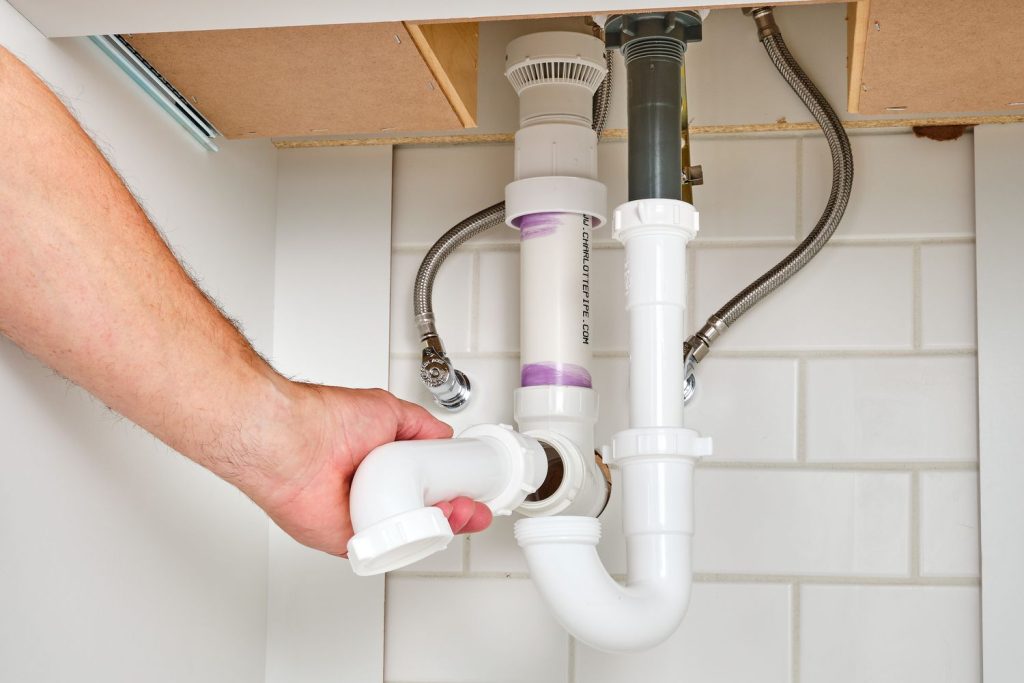

Install Air Admittance Valve in Tight Plumbing

Have you ever stared at a cramped cabinet under your sink, knowing you need a vent but having zero room for traditional piping? It is a frustrating scenario that many homeowners face during renovations or when adding new fixtures in older homes. Knowing how to install air admittance device in tight plumbing can save you from demolishing walls and significantly reduce labor costs.

This guide will walk you through the process with precision, ensuring your plumbing system breathes correctly while adhering to safety standards. Whether you are dealing with a powder room addition or a kitchen island retrofit, this solution is often the key to a successful, code-compliant project.

What Is an Air Admittance Valve and Why Use It?

Before we pick up any tools, it is crucial to understand what we are installing. An Air Admittance Valve (AAV), often referred to by the brand name Studor Vent, is a one-way mechanical valve. It allows air to enter the plumbing drainage system when negative pressure develops due to wastewater flowing down the pipes.

The Problem with Traditional Vents

Traditional plumbing vents require pipes to extend through the roofline. This involves:

• Cutting through roof shingles and flashing.
• Running long vertical pipes through wall studs.
• Significant labor and material costs.

In tight spaces, such as between floor joists or behind finished drywall, running a traditional vent pipe is physically impossible without major demolition.

The AAV Advantage

An AAV solves this by sitting locally at the fixture. When water flows down the drain, it creates a vacuum. The AAV opens to let air in, equalizing the pressure and allowing water to flow smoothly. When the flow stops, gravity closes the valve, preventing sewer gases from escaping into your home.

According to general plumbing principles, proper venting is essential to prevent trap siphonage. You can read more about the mechanics of drainage systems on Wikipedia’s page on Drain-Waste-Vent systems.

Is It Legal to Install an AAV in Your Area?

One of the most common questions homeowners ask is, “Is this code-compliant?” The answer is generally yes, but with caveats.

• IPC (International Plumbing Code): AAVs have been recognized since 1995. They are widely accepted in states adopting the IPC.
• UPC (Uniform Plumbing Code): Acceptance varies. Some jurisdictions allow them only for island fixtures or specific renovations.
• Local Amendments: Always check with your local building department. Some older municipalities may still restrict their use.

Pro Tip: Never assume. A quick call to your local building inspector can save you from failing an inspection later. In most US residential contexts, especially for retrofits, they are permitted if installed correctly.

Tools and Materials You Will Need

Working in tight plumbing spaces requires the right gear. You do not want to start a job and realize you are missing a critical adapter.

Step-by-Step: How To Install Air Admittance Device In Tight Plumbing

Follow these steps carefully. Precision is vital because correcting mistakes in tight spaces is difficult.

Step 1: Identify the Installation Point

Locate the drain line for the fixture you are venting. The AAV must be installed above the flood level rim of the highest fixture served. For a standard sink, this means at least 4 inches above the P-trap inlet.

• Why? If the AAV is below the flood level, wastewater could back up into the valve, causing it to fail and leak sewer gas.

Step 2: Prepare the Pipe

Turn off any nearby water sources to avoid accidental splashes. Using your pipe cutter, cut into the vertical drain stack or the horizontal branch where the vent will connect.

• In Tight Spaces: If you cannot use a saw, a ratcheting PVC cutter is your best friend. It requires minimal swing radius.
• Clean the cut edges with sandpaper. Remove all burrs to ensure a smooth flow and a tight seal.

Step 3: Dry Fit the Components

Before applying any glue, assemble the pieces. This usually involves:

1. A sanitary tee or wye fitting on the drain line.
2. A short vertical piece of PVC pipe.
3. The AAV unit on top.

Check the clearance. Ensure the AAV has enough room around it for air intake. Most manufacturers recommend at least 1 inch of clearance from walls or insulation.

Step 4: Prime and Glue

Once the dry fit is perfect, disassemble the pieces.

1. Apply purple primer to the outside of the pipe ends and the inside of the fittings. This cleans and softens the plastic.
2. Wait a few seconds for it to dry slightly.
3. Apply PVC cement to the same areas.
4. Push the pieces together firmly and give them a quarter-turn twist to distribute the glue.
5. Hold for 15–30 seconds to prevent push-out.

Note: Work quickly. PVC cement sets fast, especially in warm temperatures.

Step 5: Secure the AAV

Screw the Air Admittance Valve onto the threaded adapter or glue it if it is a slip-fit model (though most are threaded for easy replacement). Hand-tighten it, then give it an additional quarter-turn with pliers if necessary. Do not overtighten, as this can crack the housing.

Step 6: Test the Installation

Run water down the drain. Listen closely. You should hear a slight “hiss” or click as the valve opens to admit air. Let the water run for a minute, then stop. The valve should close silently.

Check for leaks at the glued joints. If you smell sewer gas, the valve may be defective or installed upside down.

Common Mistakes to Avoid

Even experienced DIYers make errors when working in confined areas. Here is what to watch out for:

• Installing Below the Trap: This is the most critical error. The AAV must be higher than the P-trap.
• Blocking Air Intake: Do not wrap the AAV in insulation or stuff it into a box without ventilation. It needs to breathe.
• Using the Wrong Size: A 1.5-inch valve cannot properly vent a 3-inch toilet drain. Match the valve size to the fixture unit load.
• Ignoring Access Panels: While AAVs are durable, they are mechanical devices. Install them behind an access panel or in a cabinet where they can be replaced if they fail in 10–15 years.

AAV vs. Traditional Roof Vent: A Quick Comparison

FAQ Section

1. Can I install an AAV horizontally?

No. AAVs must be installed vertically. Installing them horizontally can cause the internal mechanism to stick open or closed, leading to sewer gas leaks or slow drainage. Gravity is essential for the valve’s operation.

2. How long do Air Admittance Valves last?

Most high-quality AAVs are rated for approximately 500,000 cycles, which translates to roughly 20–25 years of typical residential use. However, it is wise to inspect them every few years or if you notice slow draining.

3. Can I use an AAV for a toilet?

Generally, no. Toilets require substantial venting due to the large volume of waste. Most codes require a traditional vent for toilets. AAVs are best suited for sinks, lavatories, washing machines, and island fixtures.

4. Will an AAV freeze in winter?

If installed indoors, freezing is not an issue. If you must install one in an unheated attic or crawlspace, ensure it is rated for outdoor/exterior use and insulated properly, though indoor installation is always preferred.

5. Do AAVs really prevent sewer gas smells?

Yes, when installed correctly. The valve remains closed under normal conditions, creating a sealed system. Sewer gas can only enter if the valve fails or is installed incorrectly. If you smell gas, replace the unit immediately.

Conclusion

Learning how to install air admittance device in tight plumbing empowers you to solve complex venting issues without major demolition. It is a cost-effective, code-compliant solution for modernizing older homes or adding new fixtures in constrained spaces. By following the steps above—ensuring proper height, using the right materials, and verifying local codes—you can ensure a safe and efficient plumbing system.
