Are you staring at a pile of pipes under your new double-basin sink, feeling overwhelmed by the complexity of the connections? You are not alone; many homeowners hesitate to tackle this project due to fear of leaks or incorrect assembly. However, learning how to install double kitchen sink plumbing with disposal is a manageable DIY task that can save you hundreds of dollars in plumber fees. With the right tools and a clear plan, you can achieve a professional, leak-free result that stands the test of time.
Why Choose a Double Sink with a Disposal?
Before diving into the wrenches and gaskets, it is essential to understand why this setup is the gold standard for modern American kitchens. A double-basin sink offers versatility, allowing you to soak dishes in one side while rinsing in the other. Adding a garbage disposal to one side enhances hygiene and convenience, reducing food waste in your trash bin.
According to industry standards, a properly installed disposal unit can last between 8 to 15 years. However, this longevity depends heavily on the initial installation quality. Poorly connected plumbing leads to frequent clogs and unpleasant odors, which is exactly what we aim to avoid with this guide.
Tools and Materials You Will Need
Preparation is half the battle. Gathering all necessary items before you start prevents mid-project trips to the hardware store.
Essential Tools:
- Adjustable wrenches (two are recommended)
- Screwdriver set (flathead and Phillips)
- Plumber’s putty or silicone caulk
- Hacksaw (for cutting PVC pipes if needed)
- Bucket and old towels (for water spillage)
- Teflon tape
Materials:
- Double-basin kitchen sink strainers
- Garbage disposal unit (with mounting assembly)
- P-trap kit (1.5-inch slip-joint fittings)
- Tailpiece extension tubes
- Dishwasher drain hose (if applicable)
- Pipe strap or hanger
Step 1: Removing the Old Sink and Plumbing
If you are replacing an existing setup, safety comes first. Turn off the water supply valves under the sink. If there are no individual shut-off valves, turn off the main water supply to your house.
- Disconnect the water supply lines from the faucet using an adjustable wrench. Have a bucket ready to catch residual water.
- Disconnect the drain pipes. Loosen the slip nuts on the P-trap and remove it.
- If removing an old disposal, ensure the power is disconnected at the circuit breaker. Unplug the unit or disconnect the wiring.
- Remove the old sink mounting clips and lift the old sink out. Clean the countertop surface thoroughly to ensure a smooth seal for the new sink.
Step 2: Installing the New Sink Strainers
The strainers are the connection point between the sink basin and the drain pipes. A proper seal here is critical to prevent leaks into your cabinet.
- Apply a generous rope of plumber’s putty around the underside of the flange of the new strainer. Alternatively, you can use silicone caulk for a longer-lasting seal, especially on stainless steel sinks.
- Insert the strainer body through the drain hole from the top.
- From underneath, slide the rubber gasket, followed by the friction ring, and then the locking nut onto the strainer body.
- Tighten the locking nut firmly. Wipe away any excess putty that squeezes out from the top. Note: Do not overtighten, as this can crack the sink material or distort the gasket.
For more detailed information on plumbing fixtures and standards, you can refer to Wikipedia’s entry on Plumbing.
Step 3: Mounting the Garbage Disposal
This is often the most intimidating part, but modern disposals come with user-friendly mounting systems, typically a “three-bolt” mount or a quick-lock system.
- Prepare the Mounting Assembly: Follow the manufacturer’s instructions to attach the mounting ring to the sink flange. This usually involves snapping a metal support ring into place and tightening three screws evenly.
- Install the Disposal: Lift the disposal unit and align it with the mounting ring. Twist it into place until it locks. You should hear a click or feel it seat firmly.
- Secure the Unit: If your model uses a mounting bracket, ensure it is tightly secured to the sink flange. The weight of the disposal should be supported by the sink, not the pipes.
Expert Tip: Ensure the discharge outlet of the disposal is aligned correctly with where your drain pipe will connect. Misalignment here causes stress on the pipes and potential leaks.

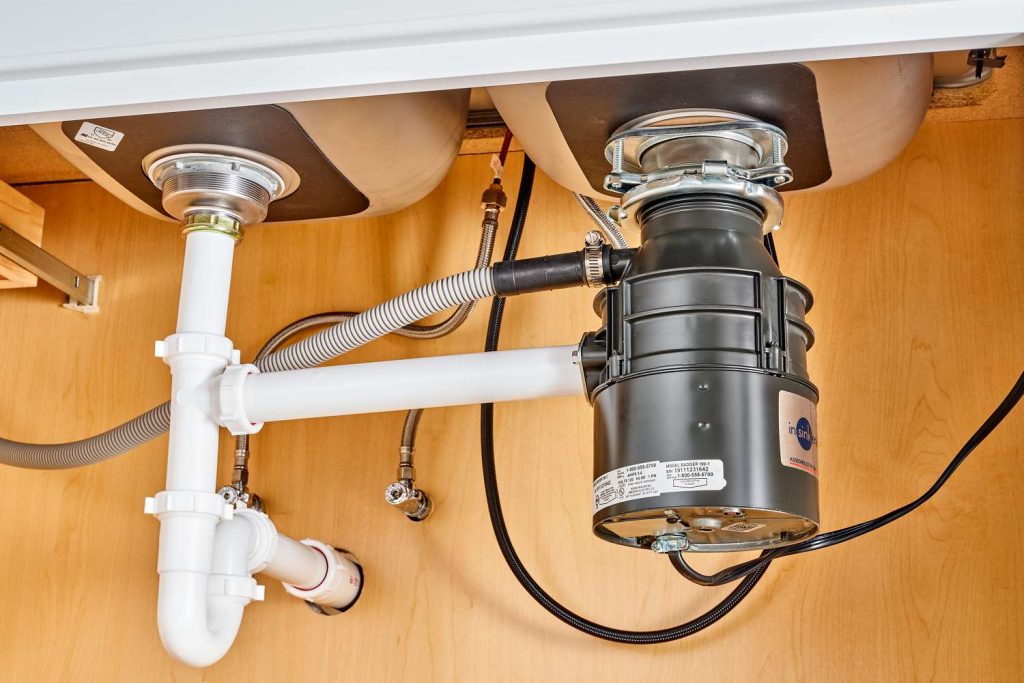

Step 4: Connecting the Drain Pipes (The Double Sink Setup)
This is the core of learning how to install double kitchen sink plumbing with disposal. The goal is to connect both basins to a single P-trap that leads to the wall drain.
The Configuration:
- Side A (With Disposal): The disposal unit has a discharge outlet. You will connect a short piece of PVC pipe or a flexible connector from the disposal outlet to the inlet of the P-trap.
- Side B (Without Disposal): This side uses a standard tailpiece extending down from the strainer.
- The Tee Connection: You need a “sanitary tee” or a specialized baffle tee. The tailpiece from Side B connects to the top of the tee. The discharge from the disposal (Side A) connects to the side of the tee. The bottom of the tee connects to the P-trap.
Step-by-Step Connection:
- Attach a tailpiece to the strainer of the non-disposal side (Side B). Cut it to length if necessary so it aligns with the inlet of your sanitary tee.
- Connect the discharge tube from the garbage disposal to the side inlet of the sanitary tee. Use slip-joint nuts and washers. Ensure the beveled side of the washer faces the nut.
- Connect the bottom of the sanitary tee to the P-trap.
- Connect the other end of the P-trap to the drain pipe coming out of the wall.
Important: All connections should be hand-tightened first, then given a quarter-turn with pliers. Over-tightening can crack the plastic nuts.
Step 5: Connecting the Dishwasher (If Applicable)
Most modern kitchens have a dishwasher that drains into the garbage disposal.
- Locate the dishwasher inlet port on the side of the disposal unit.
- If it is a new disposal, you may need to knock out the plastic plug inside the inlet using a screwdriver and hammer. Remember to remove the plastic debris from inside the disposal chamber.
- Attach the dishwasher drain hose to the inlet port and secure it with a hose clamp.
- Create a “high loop” with the dishwasher hose under the sink, securing it to the underside of the countertop. This prevents dirty sink water from backflowing into the dishwasher.
Step 6: Testing for Leaks
Never skip this step. A small drip now can cause major water damage later.
- Turn the water supply back on.
- Plug the sink basins and fill them with a few inches of water.
- Place a dry paper towel under each connection point (strainers, P-trap, disposal mounts).
- Release the plugs and let the water drain. Watch the paper towels for any wet spots.
- Run the garbage disposal with cold water flowing. Check for vibrations or leaks at the mounting assembly.
- If you find a leak, tighten the corresponding nut slightly. If it persists, disassemble and check the washer alignment.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Missing Washers | Immediate Leaks | Always ensure slip-joint washers are present and seated correctly. |
| Over-tightening Nuts | Cracked Pipes | Hand-tighten first, then use tools sparingly. |
| Ignoring the High Loop | Dishwasher Backflow | Secure the dishwasher hose high under the counter. |
| Wrong Pipe Slope | Poor Drainage/Clogs | Ensure pipes slope downward toward the wall drain (1/4 inch per foot). |
FAQ Section
Q1: Can I install a garbage disposal on both sides of a double sink? A: Technically, yes, but it is rarely necessary and requires complex electrical and plumbing work. Standard practice is to install one disposal on the larger basin and use a baffle tee to connect the second basin’s drain to the disposal’s discharge line.
Q2: Why is my double sink gurgling when the disposal runs? A: Gurgling usually indicates a venting issue or a partial clog. Ensure your air gap (if installed) is clean and that the P-trap is not obstructed. If the problem persists, check the main vent stack on your roof for blockages.
Q3: What size P-trap do I need for a double kitchen sink? A: Standard kitchen sinks use a 1.5-inch diameter P-trap. Ensure all your slip-joint fittings and tailpieces match this size for a seamless connection.
Q4: Do I need a plumber to install a garbage disposal? A: No, if you are comfortable with basic tools and following instructions, it is a viable DIY project. However, if you encounter old, corroded pipes or complex electrical wiring issues, hiring a professional is recommended for safety.
Q5: How do I prevent smells from the disposal? A: Regular maintenance is key. Run cold water while using the disposal, and occasionally grind ice cubes and citrus peels to clean the blades. Avoid putting grease or fibrous foods like celery down the drain.
Conclusion
Mastering how to install double kitchen sink plumbing with disposal empowers you to upgrade your kitchen with confidence. By following these steps—preparing the site, sealing strainers correctly, mounting the disposal securely, and configuring the P-trap accurately—you ensure a functional and durable system. Remember, patience and attention to detail during the leak-testing phase are what separate a amateur job from a professional one.
