How to Install Plumbing for a Bathroom Sink – DIY Guide

Replacing or installing a new bathroom sink can feel overwhelming—especially when it comes to the plumbing. But with the right tools, a clear plan, and a little patience, how to install plumbing for a bathroom sink is a manageable weekend project for most homeowners. Whether you’re upgrading your vanity or fixing a leaky faucet, this guide walks you through every step safely and correctly—so you avoid costly mistakes and water damage.

Why Proper Sink Plumbing Matters

A poorly installed sink doesn’t just drip—it can lead to mold, structural damage, and even failed home inspections. According to the Insurance Institute for Business & Home Safety, water damage from plumbing failures costs U.S. homeowners over $13 billion annually. That’s why getting the drain, supply lines, and P-trap right the first time is crucial.

The good news? Most bathroom sink plumbing follows a standard layout. Once you understand the components and sequence, you’ll gain confidence—and save $150–$300 in plumber fees.

Tools & Materials You’ll Need

Before you start, gather these essentials:

• Adjustable wrench or basin wrench
• Pipe wrench
• Plumber’s putty or silicone sealant
• Teflon tape (for threaded connections)
• Bucket and towels (for spills)
• Measuring tape
• Hacksaw (if cutting pipes)
• New faucet, drain assembly, P-trap kit, and supply lines

💡 Pro Tip: Always shut off the water supply valves under the sink before beginning. If there are none, turn off the main house valve.

Step-by-Step: How to Install Plumbing for a Bathroom Sink

Step 1: Remove the Old Sink (If Applicable)

1. Turn off hot and cold water valves.
2. Open the faucet to drain residual water.
3. Place a bucket under the P-trap and loosen the slip nuts to disconnect the drain.
4. Unscrew supply lines from the faucet tailpieces.
5. Remove mounting hardware and lift out the old sink.

⚠️ Caution: Older homes may have corroded or seized connections. Use penetrating oil and gentle force to avoid damaging pipes.

Step 2: Install the New Faucet

Most faucets are installed before the sink is set in place (especially for drop-in or vessel sinks).

1. Insert faucet tailpieces through the mounting holes on the sink.
2. From underneath, secure with mounting nuts and washers.
3. Apply plumber’s putty (for non-porous surfaces) or silicone (for stone or delicate materials) around the base to create a watertight seal.
4. Wipe away excess before it dries.

📌 Note: For vessel sinks, ensure the faucet spout is tall enough to clear the bowl rim—typically 6–8 inches.

Step 3: Set the Sink in Place

1. Apply a continuous bead of silicone caulk along the countertop edge where the sink will sit.
2. Carefully lower the sink into position.
3. Secure with mounting clips or brackets (follow manufacturer instructions).
4. Wipe away excess caulk immediately with a damp cloth.

Allow silicone to cure for at least 24 hours before using the sink.

Step 4: Connect the Drain Assembly

1. Insert the drain flange into the sink drain hole.
2. From below, attach the rubber gasket and metal washer, then thread on the locknut.
3. Tighten with a wrench—but don’t overtighten, or you’ll crack the sink.
4. Connect the tailpiece to the flange using a slip nut and washer.

For pop-up drains, attach the lift rod to the pivot rod according to your faucet’s instructions.

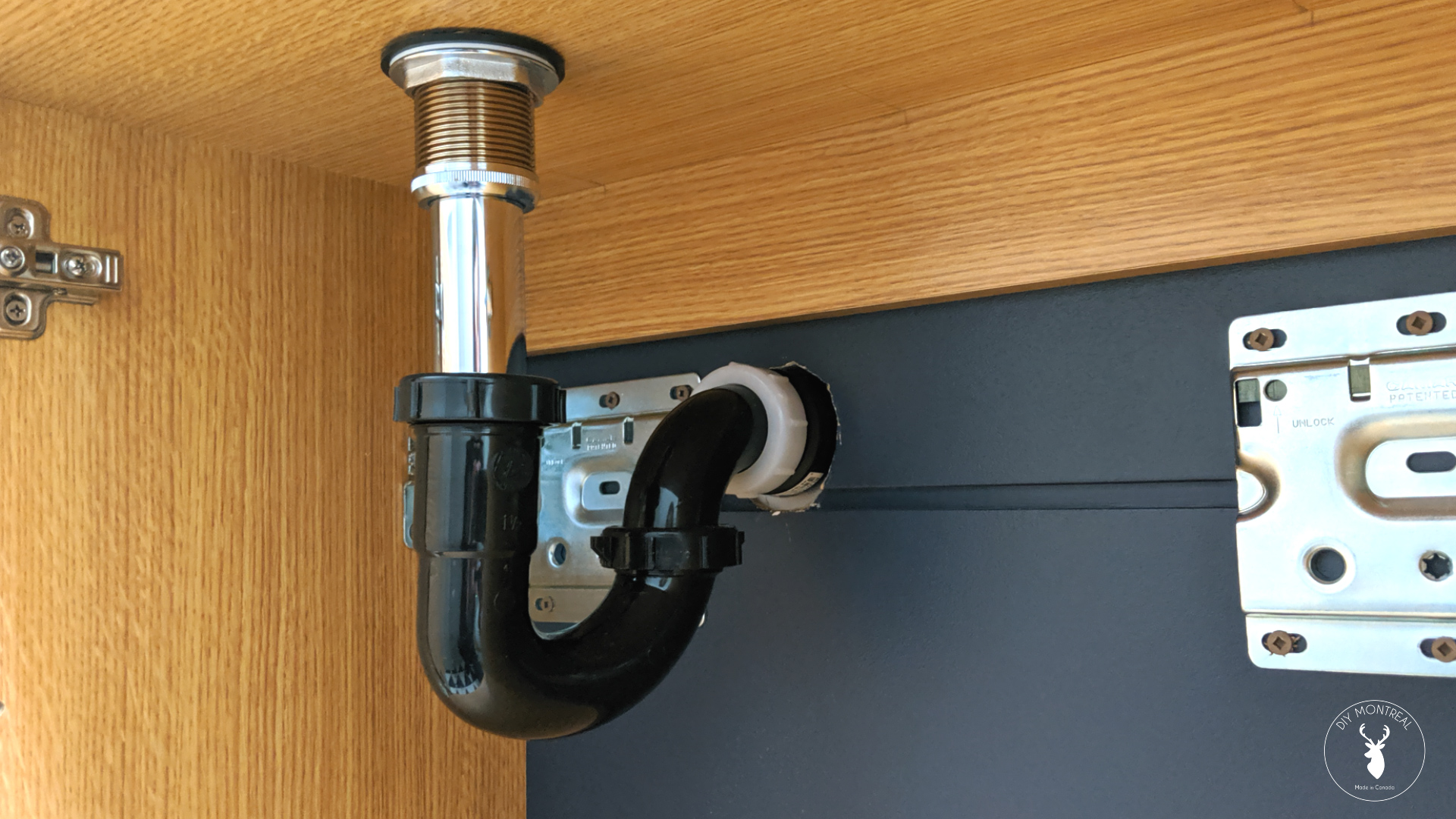

Step 5: Install the P-Trap

The P-trap is critical—it holds water to block sewer gases from entering your home (learn more about plumbing traps on Wikipedia ).

1. Measure the distance from the tailpiece to the wall drainpipe.
2. Cut the P-trap extension tube if needed (use a hacksaw; file sharp edges smooth).
3. Assemble the P-trap: connect the tailpiece to the trap bend, then the trap arm to the wall stub-out.
4. Hand-tighten all slip nuts, then give a quarter-turn with pliers—no more.

✅ Test for Leaks: Turn on water, run the faucet for 30 seconds, and check all joints. Tighten only if dripping occurs.

Step 6: Connect Water Supply Lines

1. Attach flexible braided stainless steel supply lines to the faucet tailpieces (hot and cold).
2. Wrap Teflon tape clockwise around the shutoff valve threads (3–4 wraps).
3. Screw supply lines onto valves and hand-tighten, then use a wrench for a final ¼ turn.

🔧 Best Practice: Replace old shutoff valves if they’re stiff or leaking—they’re inexpensive and prevent future headaches.

Common Mistakes to Avoid

When to Call a Professional

While this project is DIY-friendly, call a licensed plumber if:

• You lack shutoff valves under the sink
• Pipes are corroded or made of galvanized steel
• You smell sewer gas after installation
• Local codes require permits for plumbing work

The U.S. Department of Housing and Urban Development (HUD) recommends professional help for any modification to main drain lines or if you’re unsure about code compliance.

FAQ: How to Install Plumbing for a Bathroom Sink

Q1: How long does it take to install bathroom sink plumbing?

A: For a beginner, 2–4 hours. Experienced DIYers can finish in under 2 hours. Allow extra time if replacing valves or cutting pipes.

Q2: Can I reuse the old P-trap?

A: Only if it’s in perfect condition—no cracks, corrosion, or warping. Most experts recommend new P-trap kits ($10–$20) for reliability.

Q3: What’s the difference between a P-trap and an S-trap?

A: A P-trap has a horizontal outlet that connects to a wall drain and is code-compliant. An S-trap exits downward into the floor and is banned in most U.S. building codes because it can siphon water and release sewer gases.

Q4: Do I need plumber’s putty or silicone?

A: Use plumber’s putty for porcelain, metal, or composite sinks. Use 100% silicone for natural stone (like granite or marble), as putty can stain.

Q5: Why is my sink draining slowly after installation?

A: Likely causes: misaligned P-trap, insufficient slope, or debris in the tailpiece. Disassemble and check for blockages or kinks.

Q6: Are flexible supply lines safe?

A: Yes—modern braided stainless steel lines are durable and code-approved. Avoid cheap plastic or non-braided hoses, which can burst.

Conclusion

Now you know how to install plumbing for a bathroom sink like a pro! With the right prep, tools, and attention to detail, you’ll enjoy a leak-free, functional sink that adds value to your home. Not only will you save money, but you’ll also gain the satisfaction of a job well done.

If this guide helped you, share it on Pinterest or Facebook to help other DIYers! Got questions? Drop them in the comments—we’re happy to help.

🛠️ Remember: Great plumbing isn’t just about function—it’s about peace of mind. Take your time, double-check connections, and never skip the leak test!
