Are you tired of struggling with a cramped single basin while washing large pots or trying to rinse vegetables? Upgrading to a double bowl setup can transform your kitchen workflow, but the prospect of dealing with pipes and fittings often intimidates homeowners. You are not alone; many DIY enthusiasts hesitate because they fear causing leaks or damaging their cabinets. However, learning how to install plumbing for a double kitchen sink is a manageable project that can save you hundreds of dollars in plumber fees. With the right tools and a clear plan, you can achieve a professional, leak-free result this weekend.
Why Choose a Double Bowl Sink?
Before diving into the pipes, it is worth understanding why this upgrade is so popular among US homeowners. A double sink provides distinct zones for washing and rinsing, or for soaking dirty dishes while keeping the other side free for food prep. According to recent housing trends, kitchens with double basins remain a top request for home buyers, potentially increasing your property’s resale value.
While the aesthetic appeal is obvious, the functional benefit is paramount. It allows for better organization and hygiene. However, the complexity lies beneath the countertop. Unlike a single sink, a double sink requires a specific configuration of drains and traps to ensure both bowls empty efficiently without backing up into each other.
Tools and Materials You Will Need
Success in any DIY project starts with preparation. Gathering the right materials before you begin prevents mid-project trips to the hardware store. Here is a comprehensive checklist:
Essential Tools:
- Adjustable wrenches (two are recommended)
- Pipe cutter or hacksaw
- Screwdriver set (flathead and Phillips)
- Plumber’s putty or silicone caulk
- Teflon tape (plumber’s tape)
- Bucket and rags (for spill management)
Materials:
- Double bowl kitchen sink
- Basket strainers (usually included with the sink)
- Tailpiece extensions
- P-trap kit (specifically designed for double sinks)
- PVC or ABS piping (depending on local code)
- Pipe hangers or straps
Pro Tip: Always check your local building codes. Some regions have specific requirements for pipe materials (PVC vs. ABS) and venting standards.
Step 1: Removing the Old Sink and Plumbing
If you are replacing an existing sink, start by turning off the water supply valves under the sink. Open the faucet to relieve any remaining pressure. Place a bucket under the P-trap to catch residual water.
Use slip-joint pliers to loosen the nuts on the P-trap. Once disconnected, remove the old trap and the tailpiece. If you are removing the old sink entirely, cut the caulk seal around the rim with a utility knife. Lift the old sink out carefully. Clean the countertop surface thoroughly to ensure a smooth base for the new installation.
Step 2: Installing the New Sink and Strainers
Place the new double sink into the countertop cutout. Ensure it sits evenly. If your sink uses mounting clips, secure them according to the manufacturer’s instructions. Apply a bead of plumber’s putty or silicone around the underside of the basket strainer flanges. Insert the strainers into the drain holes of each bowl.
From underneath, screw on the locking nut and tighten it firmly. Wipe away any excess putty that squeezes out from the top. This step is critical; a poor seal here is the most common cause of leaks into the cabinet below. Allow the silicone to cure if used, typically for 24 hours, before proceeding.
Step 3: Understanding the Double Sink Drain Configuration
This is the core of learning how to install plumbing for a double kitchen sink. The goal is to connect two separate drain outlets into a single waste line. This is achieved using a “tee” fitting and a shared P-trap.
The general flow is as follows:
- Water exits each bowl through its respective basket strainer.
- It travels down two separate tailpieces.
- These tailpieces connect to a horizontal branch tailpiece or a tee fitting.
- The combined flow enters the P-trap.
- The P-trap connects to the wall drain pipe.
For a deeper understanding of drainage systems and sanitary standards, you can refer to the general principles outlined on Wikipedia’s page on Drain-Waste-Vent systems. This resource provides excellent background on why proper venting and trapping are essential for health and safety.

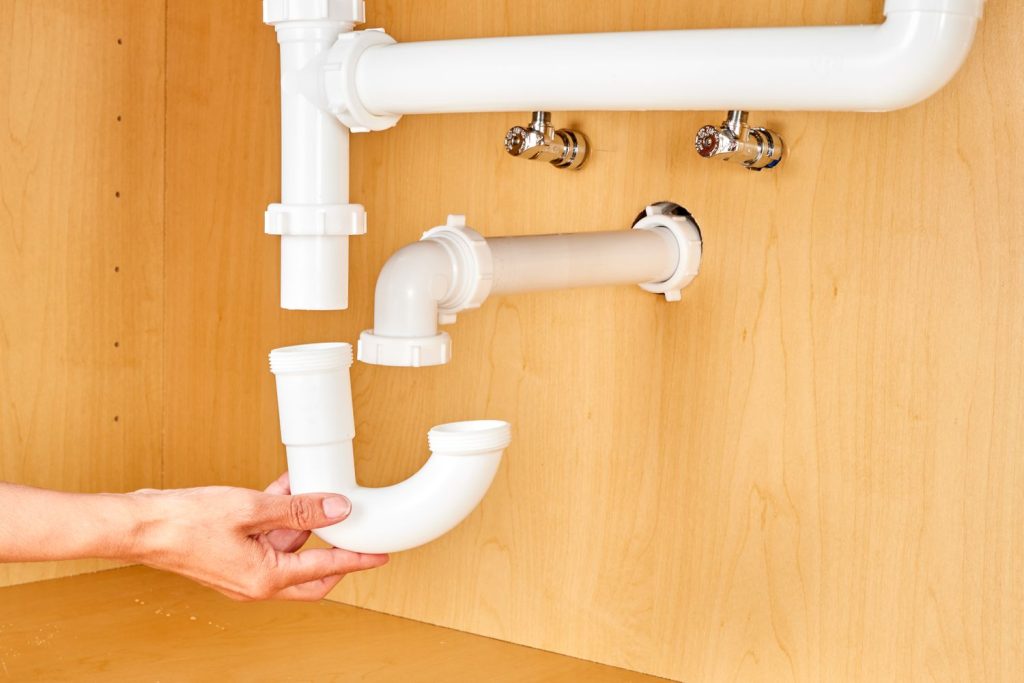

Step 4: Assembling the P-Trap and Connections
Now, let’s connect the pipes. Most modern kits use slip-nut connections, which are hand-tightened and then given a quarter-turn with pliers. Do not overtighten, as this can crack the plastic nuts or distort the washers, leading to leaks.
- Attach Tailpieces: Connect the vertical tailpieces to the bottom of each basket strainer. Use extension tubes if the sink is deep.
- Install the Tee: Connect the two tailpieces to a sanitary tee. The outlet of the tee should face downward.
- Connect the P-Trap: Attach the curved section of the P-trap to the bottom of the tee. Ensure the slip joint washers are seated correctly—tapered side facing the nut.
- Connect to Wall Drain: Extend the arm of the P-trap to meet the drain pipe coming out of the wall. You may need to cut the pipe to the exact length using a hacksaw. Deburr the cut edges to ensure a smooth fit.
Common Mistake to Avoid: Ensure there is a slight downward slope (about 1/4 inch per foot) from the sink drains toward the P-trap and then toward the wall. Poor slope can cause standing water and slow drainage.
Step 5: Testing for Leaks
Once all connections are made, it is time to test. Remove the bucket and rags. Turn the water supply back on.
- Visual Inspection: Check every connection point for dryness.
- The Paper Test: Wrap dry paper towels around each joint. Run water in both sinks simultaneously. If the paper gets wet, you have a leak.
- Tightening: If a leak occurs, tighten the nut slightly. If it persists, disassemble the joint, check the washer for twists or damage, and reassemble.
Run hot water for a minute to expand the pipes slightly, then check again. Thermal expansion can sometimes reveal loose fittings that cold water did not.
Troubleshooting Common Issues
Even with careful installation, issues can arise. Here is a quick reference table for common problems:
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Drainage | Clogged pipe or poor slope | Check for debris; ensure proper downward pitch. |
| Leak at Nut | Misaligned washer or cross-threading | Disassemble, realign washer, and retighten. |
| Gurgling Sounds | Venting issue | Check air admittance valve or consult a pro for vent stack issues. |
| Water Backs Up | Blockage in main line | Use a plunger or drain snake; avoid chemical cleaners. |
FAQ Section
Q: Do I need a permit to install a double kitchen sink? A: In most US jurisdictions, simple like-for-like replacements or minor plumbing adjustments do not require a permit. However, if you are moving the drain location significantly or altering the venting, check with your local building department.
Q: Can I use flexible pipes for the P-trap? A: While flexible corrugated pipes are available, they are generally discouraged by professional plumbers. They can sag, create traps for debris, and are more prone to clogging. Rigid PVC or ABS pipes are preferred for longevity and code compliance.
Q: Why is my new double sink draining slowly? A: Slow drainage is often due to an improper slope in the horizontal pipes or a blockage in the P-trap. Ensure that the pipes slope downward toward the wall drain. Also, verify that no plumber’s putty has obstructed the inside of the drain pipe.
Q: What is the standard height for a kitchen sink drain? A: The standard height for a kitchen sink drain stub-out is typically between 18 and 20 inches from the finished floor. However, this can vary based on cabinet design and sink depth. Measure your specific setup before cutting pipes.
Q: Should I use plumber’s putty or silicone for the strainers? A: Both are acceptable. Plumber’s putty is traditional and easier to work with, but it can stain porous stones like granite or marble. For stone countertops, use 100% silicone caulk to prevent staining.
Q: How do I prevent odors from coming up the drain? A: The P-trap holds a small amount of water that acts as a seal against sewer gases. Ensure the P-trap is installed correctly and always retains water. If you rarely use one side of the sink, run water periodically to keep the trap filled.
Conclusion
Learning how to install plumbing for a double kitchen sink empowers you to upgrade your kitchen with confidence. By following these steps—preparing the right tools, installing the strainers securely, configuring the P-trap correctly, and testing for leaks—you can ensure a functional and durable installation. Not only will you enjoy the convenience of a double basin, but you will also gain the satisfaction of a job well done.
