How to Install Plumbing From a Well to a Shop – Step-by-Step Guide

Running plumbing from a well to a detached shop or outbuilding might seem daunting—but it’s a common need for farmers, homesteaders, and rural property owners. Whether you’re setting up a workshop, barn, or storage shed, reliable water access boosts functionality and convenience. In this guide, you’ll learn exactly how to install plumbing from a well to a shop, with clear steps, safety tips, and real-world insights—even if you’ve never touched a pipe before.

Why Would You Need Plumbing from a Well to a Shop?

Many rural properties rely on private wells instead of municipal water systems. If your shop is separate from your main house, extending plumbing becomes essential for tasks like washing tools, mixing concrete, or even installing a utility sink. According to the U.S. Geological Survey, over 13 million households in the U.S. use private wells—many of which require custom plumbing solutions for outbuildings.

Without proper planning, you risk low water pressure, freezing pipes, or contamination. That’s why understanding the full process—from pump selection to pipe burial depth—is critical.

What Tools and Materials Do You Need?

Before digging a single trench, gather these essentials:

• Submersible or jet pump (depending on well depth)
• PEX or PVC piping (PEX is freeze-resistant and flexible; ideal for buried lines)
• Pipe insulation (for cold climates)
• Trenching shovel or mini-excavator

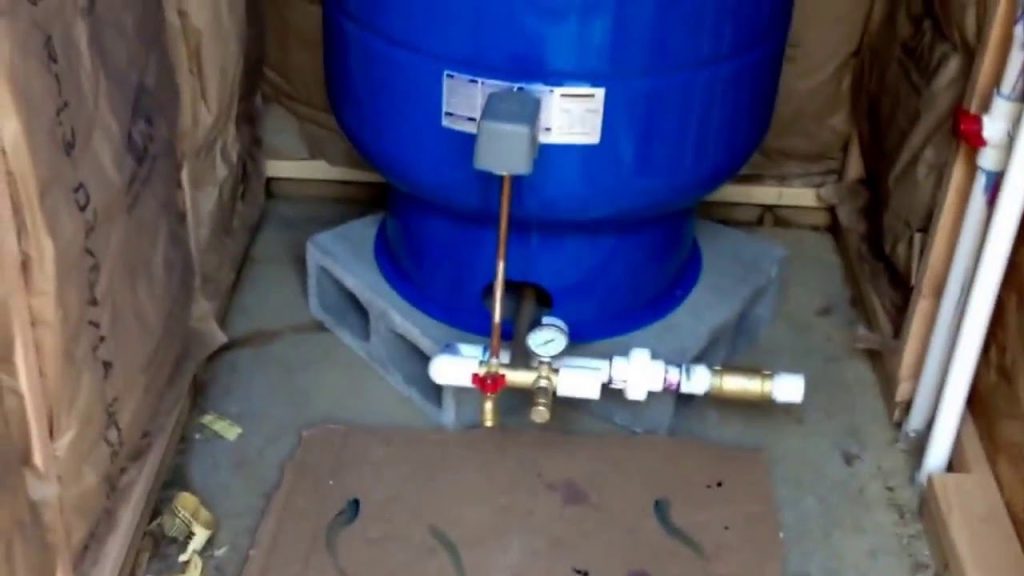

• Pressure tank (to maintain consistent water pressure)
• Backflow preventer (required by most plumbing codes)
• Pipe cutter, crimping tool, fittings, and clamps

💡 Pro Tip: Use ½-inch or ¾-inch PEX-A tubing for runs under 100 feet. For longer distances, upgrade to 1-inch to avoid pressure drop.

Step-by-Step: How to Install Plumbing From a Well to a Shop

Step 1: Check Local Codes and Permits

Contact your local building department. Many counties require permits for new water lines—even on private property. Some also mandate inspections for backflow prevention and trench depth.

Step 2: Plan Your Route

Map the shortest, most direct path from the well head (or pressure tank near the house) to the shop. Avoid tree roots, septic lines, and rocky areas. Maintain a minimum depth of 18–24 inches below the frost line in your region (check USDA Plant Hardiness Zone Map for guidance).

Step 3: Install or Tap Into the Existing System

If your well already supplies your home:

• Locate the main water line near the pressure tank.
• Install a tee fitting with a shut-off valve to branch off toward the shop.

If the well serves only the shop:

• Connect the pump directly to a new pressure tank inside or near the shop (not recommended in freezing temps—better to keep it indoors).

⚠️ Never connect directly to the well casing without a pressure tank—it can damage the pump.

Step 4: Dig the Trench

Use a trencher or shovel to dig a straight, sloped trench (¼ inch per foot) away from structures to prevent water pooling. Remove rocks and debris to avoid puncturing pipes.

Step 5: Lay and Insulate the Pipe

• Unroll PEX tubing (it’s coiled, so fewer joints = fewer leaks).
• Wrap it in closed-cell foam insulation if you’re in USDA Zones 6 or colder.
• For added protection, run the pipe through conduit or use sand bedding beneath it.

Step 6: Connect to the Shop

Inside the shop:

• Install a shut-off valve near the entry point.
• Add a pressure regulator if your system exceeds 60 PSI.
• Terminate with a hose bibb or sink fixture as needed.

Step 7: Pressure Test and Flush

• Cap the end and pressurize the line to 80 PSI.
• Hold for 2 hours—if pressure drops, check for leaks.
• Once confirmed, flush the system for 5–10 minutes to remove debris.

PEX vs. PVC: Which Pipe Should You Use?

📌 Verdict: Use PEX for buried lines—its flexibility and freeze tolerance make it ideal. Only use PVC above ground or in non-freezing zones.

For more on piping materials, see Wikipedia’s overview of plumbing systems.

Common Mistakes to Avoid

• Skipping insulation → Frozen pipes in winter = costly repairs.
• Ignoring slope → Water pools and causes corrosion or bacterial growth.
• Using improper fittings → Brass or stainless steel only—avoid cheap plastic in pressurized lines.
• No shut-off valve → Makes future repairs a nightmare.

According to a 2023 study by the National Association of Home Builders (NAHB), 68% of DIY plumbing failures stem from poor material selection or inadequate burial depth.

How Deep Should You Bury the Water Line?

Depth depends on your climate:

Always call 811 (USA) before digging to locate underground utilities—free and required by law.

FAQ Section

Q1: Can I run plumbing directly from the well to the shop without a pressure tank?

A: Technically yes, but it’s not advisable. Without a pressure tank, the pump cycles on/off constantly, leading to premature failure. A small 20-gallon tank near the shop (or at the well) stabilizes pressure and extends pump life.

Q2: Do I need a separate pump for the shop?

A: Not usually. If your existing well pump and pressure tank can handle the extra demand (check GPM—gallons per minute), one system suffices. Most residential pumps deliver 5–10 GPM, enough for a sink or hose.

Q3: How do I prevent the line from freezing in winter?

A: Bury below the frost line, insulate with foam sleeves, and consider heat tape for above-ground sections. In extremely cold areas, install a drain valve to empty the line during prolonged freezes.

Q4: Is a backflow preventer really necessary?

A: Yes. It stops contaminated water (e.g., from a garden hose submerged in a chemical bucket) from siphoning back into your well. Most health departments require it by code.

Q5: Can I use my shop’s plumbing for drinking water?

A: Only if your well water is tested and treated. Wells can contain bacteria, nitrates, or heavy metals. Get an annual water test from a certified lab (find one via EPA’s website).

Q6: How much does this project cost?

A: DIY costs range from $300–$1,200, depending on distance, materials, and terrain. Hiring a pro typically costs $1,500–$4,000.

Conclusion

Installing plumbing from a well to a shop is a smart investment that adds utility, value, and convenience to your property. By following this step-by-step guide—choosing the right pipe, burying it deep enough, and including key safety components—you’ll build a reliable, long-lasting system that meets both code and practical needs.
