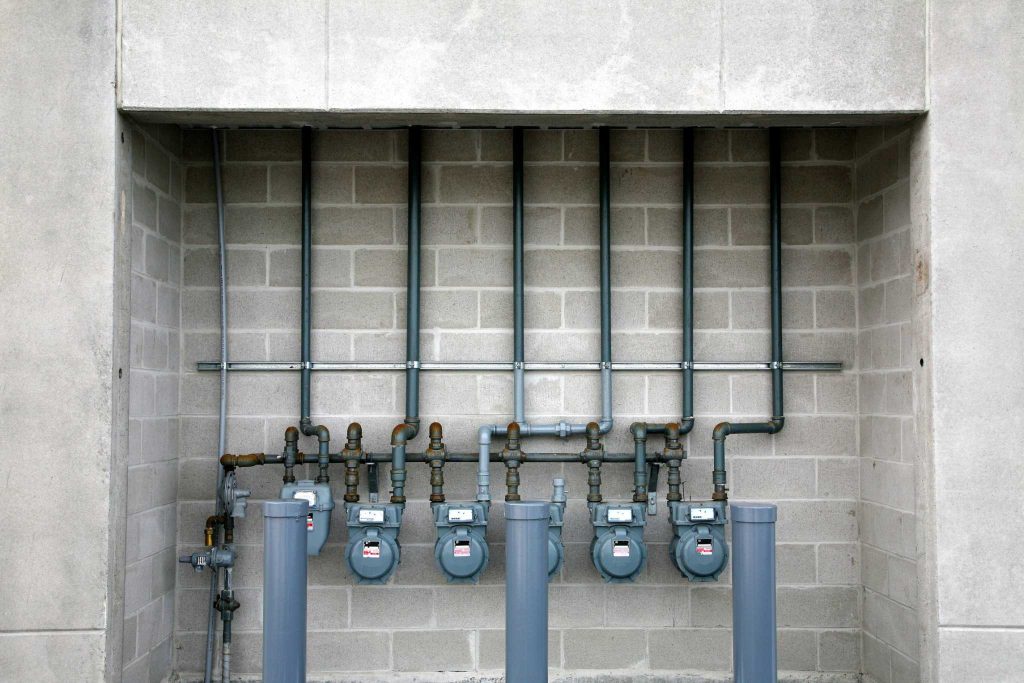

Install Plumbing in Cinder Block Walls: The Pro Guide

Have you ever stared at a solid cinder block wall, wondering how on earth you’re supposed to run water lines through it without turning your basement into a construction zone? You are not alone. Many homeowners face this daunting task during renovations, often fearing that one wrong move could compromise the structural integrity of their home.

The good news is that with the right tools and knowledge, you can master how to install plumbing in a cinder block wall efficiently and safely. This guide will walk you through every step, ensuring your project meets US building codes and stands the test of time. Let’s turn that intimidation into confidence.

Why Choose Cinder Block Walls for Plumbing?

Before we dive into the “how,” it is essential to understand the “why.” Cinder blocks (also known as Concrete Masonry Units or CMUs) are ubiquitous in US basements and commercial structures. Unlike wood framing, which allows easy access between studs, cinder blocks present a solid, dense barrier.

However, they offer unique advantages:

• Durability: They are resistant to rot, termites, and fire.
• Soundproofing: They provide excellent sound dampening for running water noise.
• Thermal Mass: They help regulate temperature in utility spaces.

According to industry standards, proper installation in masonry requires precise planning because corrections are difficult once the concrete is set. Note: Always check local building codes before starting, as regulations vary by state and municipality.

What Tools and Materials Do You Need?

You cannot wing it when working with concrete. Having the right gear is half the battle. Here is a checklist of essentials for any US homeowner tackling this project.

Essential Tools

1. Rotary Hammer Drill: A standard drill will not suffice. You need a hammer drill with a SDS-Plus bit for efficient drilling.
2. Masonry Chisel and Hammer: For manual adjustments and breaking out small sections.
3. Angle Grinder with Diamond Blade: For cutting clean channels (chases) in the block.
4. Level and Tape Measure: Precision is key to ensuring proper drainage slope.
5. Safety Gear: N95 mask (silica dust is dangerous), safety goggles, and heavy-duty gloves.

Materials

• PEX Tubing: Highly recommended over copper for masonry due to its flexibility and resistance to freezing expansion.
• Pipe Insulation: Critical for preventing condensation and freezing.
• Hydraulic Cement: For patching holes quickly and effectively.
• Masonry Anchors/Clips: To secure pipes firmly within the chase.

Pro Tip: PEX-A tubing is generally preferred in colder US climates because it has the highest expansion memory, reducing the risk of burst pipes if water freezes inside the wall.

How Do You Plan the Pipe Route?

Planning is where most DIYers fail. You must map out your route before making a single cut.

1. Identify Studs and Rebar: Use a stud finder capable of detecting metal. Cinder blocks often contain vertical rebar (steel reinforcement bars). Drilling into rebar can damage your bits and weaken the wall.
2. Determine Slope: For drain lines, you need a slope of 1/4 inch per foot. Mark this line clearly on the wall with a chalk line.
3. Choose the Path: Whenever possible, run pipes vertically through the hollow cores of the blocks rather than horizontally chasing into the solid web. This preserves structural strength.

For more detailed information on masonry structures, you can refer to Wikipedia’s article on Concrete Masonry Units to understand the composition and structural limits of your walls.

Step-by-Step: How to Install Plumbing in a Cinder Block Wall

Follow these concrete steps to ensure a professional-grade installation.

Step 1: Mark and Cut the Chase

If you must run pipes horizontally, you need to create a “chase” (a groove) in the block.

• Put on your N95 mask and goggles. Silica dust from concrete is a serious health hazard.
• Use an angle grinder with a diamond blade to cut two parallel lines along your marked path. Keep the depth shallow—never cut more than 1/3 of the wall’s thickness.
• Use a hammer and chisel to remove the concrete between the cuts. Clean the debris thoroughly.

Step 2: Drill Through Cores (Vertical Runs)

For vertical lines, utilize the hollow centers of the blocks.

• Use a rotary hammer with a large masonry bit (usually 2–4 inches depending on pipe size) to drill through the top and bottom webs of the block.
• Ensure the holes align perfectly. Misaligned holes can kink PEX tubing or make copper installation impossible.

Step 3: Install the Piping

• Fit the Pipes: Insert your PEX or copper pipes into the chase or cores.
• Secure Them: Use masonry clips every 4 feet for horizontal runs and every 6 feet for vertical runs. This prevents vibration and noise (“water hammer”).
• Insulate: Wrap all cold water lines with foam pipe insulation. This prevents condensation from dripping onto your floor and protects against freezing in unheated basements.

Step 4: Pressure Test Before Closing

Never patch the wall before testing.

• Cap off the ends and pressurize the system to 80 PSI (or as per manufacturer specs).
• Let it sit for 24 hours. If the pressure drops, you have a leak. Fix it now while the pipes are exposed.

Step 5: Patch and Finish

• Once tested, fill the chases with hydraulic cement. It sets fast and bonds well with old concrete.
• Smooth the surface with a trowel.
• If desired, cover the area with drywall or paneling for a finished look.

What Are the Common Mistakes to Avoid?

Even experienced plumbers make mistakes. Here is what you must avoid:

• Cutting Too Deep: Never cut deeper than one-third of the block’s width. This compromises the load-bearing capacity of the wall.
• Ignoring Expansion: Copper expands and contracts with temperature changes. In tight masonry chases, this can cause stress fractures. PEX is more forgiving but still needs room to breathe.
• Skipping Insulation: In many US states, uninsulated pipes in exterior masonry walls will freeze and burst during winter.
• Poor Venting: Ensure your drain lines are properly vented to prevent siphoning of trap seals.

FAQ Section

1. Can I run sewer lines through a cinder block wall?

Yes, but it is challenging. Sewer lines are large (3–4 inches) and require significant slope. It is often better to run sewer lines outside the foundation or under the slab rather than chasing them into a cinder block wall, which could severely weaken the structure.

2. Is PEX better than copper for cinder block walls?

For most DIYers and modern installations, yes. PEX is flexible, resistant to scale buildup, and less likely to burst if frozen. It is also easier to install in tight masonry chases because it can bend slightly around minor obstacles.

3. Do I need a permit to install plumbing in my basement?

In most US jurisdictions, yes. Any new plumbing installation or major modification requires a permit and inspection. Check with your local building department. Unpermitted work can lead to fines and issues when selling your home.

4. How do I prevent pipes from freezing in a cinder block wall?

Insulation is your first line of defense. Use closed-cell foam insulation with a high R-value. Additionally, ensure the basement is heated or sealed against drafts. In extreme climates, consider installing heat tape on vulnerable sections.

5. What is the best way to seal holes after plumbing installation?

Use hydraulic cement for immediate, watertight seals in active leaks or deep holes. For general patching of chases, a mortar mix compatible with concrete blocks works well. Always clean the surface of dust before applying any patching material.

6. Can I drill into the corner of a cinder block?

Avoid drilling into the corners or edges of blocks. These areas are critical for structural stability. Always aim for the center of the block’s web or the hollow core.

Conclusion

Learning how to install plumbing in a cinder block wall is a valuable skill that can save you thousands in labor costs. By respecting the structural limits of masonry, using the right tools like rotary hammers and PEX tubing, and adhering to strict safety and code guidelines, you can achieve a professional result.

Remember, patience and precision are your best friends. Rushing the cutting or skipping the pressure test can lead to costly repairs down the road.
