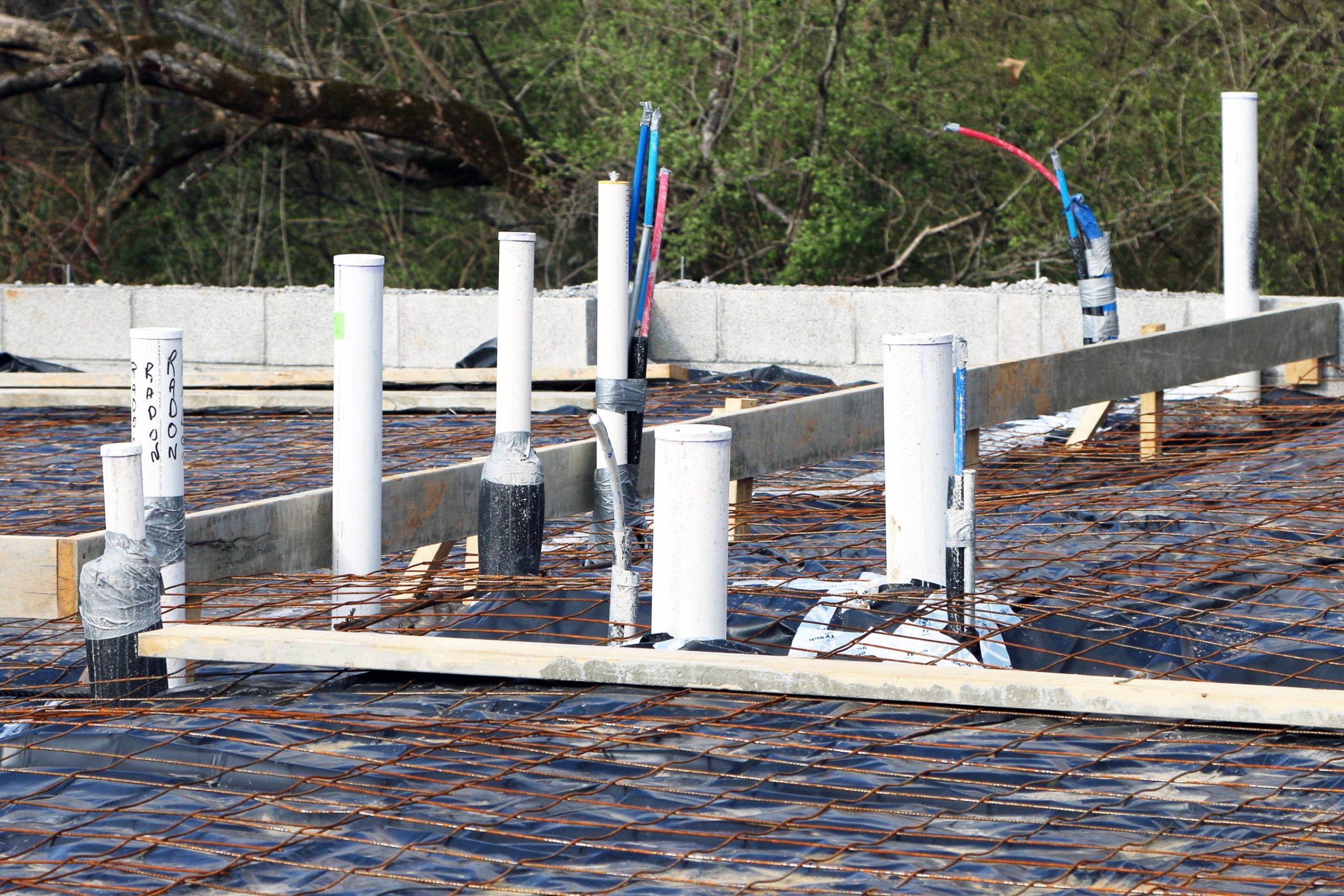

How to Install Plumbing in a Concrete Slab: Step-by-Step Guide

Installing plumbing in a concrete slab might sound intimidating—but it’s a common necessity in many modern homes, especially in regions like the southern U.S. where slab foundations dominate. If you’re planning a new build or a major renovation, knowing how to install plumbing in a concrete slab correctly can save you thousands in future repairs and prevent leaks that compromise your home’s integrity. This guide walks you through the entire process with clarity, safety, and precision—whether you’re a DIYer or just want to understand what your contractor should be doing.

Why Is Plumbing Installed Under Concrete Slabs?

Slab-on-grade foundations are cost-effective, energy-efficient, and resistant to pests—making them popular in states like Texas, Florida, and Arizona. But unlike homes with crawl spaces or basements, plumbing must be embedded before the concrete is poured. Once the slab cures, accessing pipes becomes extremely difficult and expensive.

According to the U.S. Department of Housing and Urban Development (HUD), over 60% of new single-family homes built in the South use slab foundations—highlighting the importance of getting plumbing right the first time.

💡 Pro Tip: Always consult local building codes. Requirements for pipe depth, slope, and materials vary by municipality.

What Types of Pipes Are Used in Slab Plumbing?

Not all pipes are created equal—especially when buried under 4–6 inches of concrete. The most common materials include:

For most residential slab installations, PEX for supply lines and PVC for drainage is the industry standard due to cost, durability, and ease of installation.

Step-by-Step: How to Install Plumbing in a Concrete Slab

Follow these precise steps to ensure a leak-free, code-compliant system. Never skip pressure testing—it’s your last chance to fix errors before the concrete seals everything in.

Step 1: Plan the Layout (Before Digging)

• Use architectural blueprints or create a scaled sketch.
• Mark locations for toilets, sinks, showers, water heaters, and cleanouts.
• Maintain proper drain slope: ¼ inch per foot (per International Plumbing Code).
• Keep supply and drain lines at least 6 inches apart to prevent condensation issues.

Step 2: Prepare the Subgrade

• Excavate to the required depth (typically 12–18 inches below finish grade).
• Compact the soil and add 4–6 inches of gravel for drainage and pipe support.
• Lay a vapor barrier (6-mil polyethylene) over the gravel to prevent moisture wicking.

Step 3: Install Drain, Waste, and Vent (DWV) Lines

• Use 3-inch or 4-inch PVC for main sewer lines; 2-inch for showers/sinks.
• Dry-fit all joints first, then glue with PVC primer and cement.
• Secure pipes with rebar chairs or plastic saddles to hold them 2–3 inches above the gravel.
• Include cleanouts every 50–100 feet and at directional changes.

📏 Critical Detail: Toilet flanges must be set exactly 12 inches from the finished wall (standard rough-in distance).

Step 4: Install Water Supply Lines

• Use ½-inch or ¾-inch PEX tubing (Type A or B).
• Run lines from the main shutoff to each fixture.
• Leave 12–18 inches of extra PEX coiled at each stub-out for future connections.
• Protect PEX from concrete abrasion with sleeves or conduit where it penetrates the slab edge.

Step 5: Pressure Test All Lines

• Drain lines: Perform a water or air test (per local code). Fill the system and check for drops over 15 minutes.
• Supply lines: Pressurize to 80–100 PSI with air or water. Hold for 2+ hours with no pressure loss.
• Document the test—many inspectors require proof before allowing the pour.

⚠️ Warning: Skipping this step risks hidden leaks that can cause slab heave, mold, or structural damage.

Step 6: Coordinate with Concrete Pour

• Notify your plumber and concrete contractor 48 hours in advance.
• Double-check pipe locations—once concrete is poured, changes are nearly impossible.
• Ensure no heavy equipment drives over pipes before the pour.

For more on foundation types and their plumbing implications, see Wikipedia’s overview of slab foundations .

Common Mistakes to Avoid

Even experienced builders make these errors:

• Insufficient slope on drains → leads to slow drainage and clogs.
• PEX exposed to sunlight before pour → degrades pipe integrity.
• No expansion loops for PEX → thermal expansion can crack fittings.
• Forgetting future access points → always install cleanouts and service boxes.

A 2022 study by the National Association of Home Builders (NAHB) found that 32% of slab leak claims stemmed from improper slope or poor pressure testing—both 100% preventable.

Should You DIY or Hire a Pro?

While ambitious homeowners can assist with layout and prep, licensed plumbers must handle final connections, pressure tests, and inspections in most U.S. jurisdictions. Why?

• Permits are required.
• Insurance won’t cover DIY plumbing failures.
• One mistake can cost $5,000–$15,000 to repair post-pour.

If you’re learning, shadow a pro—but don’t skip certification for critical work.

FAQ: How to Install Plumbing in a Concrete Slab

Q1: Can you add plumbing to an existing concrete slab?

A: Yes, but it’s expensive and disruptive. Options include:

• Tunneling under the slab (for sewer lines).
• Jackhammering sections (risks structural damage).
• Running lines overhead (common in retrofits, but affects ceiling height). Most experts recommend avoiding slab additions unless absolutely necessary.

Q2: How deep should plumbing be under a slab?

A: Drain lines are typically 12–18 inches below the surface, while supply lines sit 6–10 inches deep. Local frost lines and soil conditions may require adjustments—always check with your building department.

Q3: What causes slab leaks?

A: Common causes include:

• Pipe corrosion (especially with older copper).
• Ground shifting or soil erosion.
• Poor installation (sharp bends, inadequate support).
• High water pressure (>80 PSI) stressing joints over time.

Q4: How long does slab plumbing last?

A:

• PEX: 40–50 years
• PVC: 50–70 years
• Copper: 20–50 years (prone to pinhole leaks in aggressive soils)
  Proper installation dramatically extends lifespan.

Q5: Do I need a permit to install plumbing in a slab?

A: Yes, in all 50 states. Permits ensure inspections at key stages (rough-in, pressure test, final). Skipping this voids insurance and complicates future home sales.

Q6: Can tree roots damage slab plumbing?

A: Absolutely. Roots seek moisture and can infiltrate cracked or poorly sealed joints—especially in older clay or cast iron pipes. Keep trees at least 10 feet away from sewer lines.

Conclusion

Knowing how to install plumbing in a concrete slab isn’t just about pipes and concrete—it’s about protecting your home’s value, safety, and comfort for decades. By planning meticulously, using the right materials, and never skipping pressure tests, you’ll avoid the #1 cause of slab foundation regrets: hidden leaks.

If this guide helped you, share it with a friend building their dream home—or pin it for your next project! Got questions? Drop them in the comments below. 🛠️💧

Remember: Great plumbing is invisible—until it fails. Do it right the first time.
