Are you dreaming of a sleek, modern walk-in shower but feel intimidated by the complex network of pipes behind the walls? You are not alone; many homeowners hesitate to tackle bathroom renovations because they fear making costly plumbing mistakes. However, understanding how to install plumbing in a shower no tub is easier than you think when you break it down into manageable steps. This guide will walk you through the process with clarity and confidence, ensuring your new shower is both beautiful and functional.
Understanding the Basics: Walk-In Shower vs. Tub/Shower Combo
Before picking up a wrench, it is crucial to understand what makes a “shower no tub” (often called a walk-in shower) different from a standard combination unit. The primary difference lies in the drainage slope and the valve configuration.
In a tub/shower combo, the drain is centered, and the walls are vertical until they hit the tub ledge. In a walk-in shower, the floor must slope toward the drain (usually 1/4 inch per foot) to prevent water pooling. Furthermore, since there is no tub spout to divert water, your plumbing setup focuses entirely on the showerhead and any additional body jets or hand showers.
According to general construction standards, proper waterproofing is just as critical as the piping itself. While this guide focuses on the plumbing, remember that the International Residential Code (IRC) mandates specific requirements for moisture barriers to prevent structural damage. Ignoring these codes can lead to mold growth and costly repairs down the line.
Step 1: Planning Your Layout and Rough-In Dimensions
Successful plumbing starts with a precise plan. You cannot simply guess where the pipes go; they must align perfectly with your chosen shower fixtures.
Key Measurements to Remember
- Shower Valve Height: Typically installed between 48 and 52 inches from the finished floor. This ensures easy access for adjusting temperature.
- Showerhead Arm: Standard height is 72 to 78 inches from the finished floor. If you are tall, consider going higher.
- Niche Placement: If you plan to have a shampoo niche, ensure no plumbing lines run through that section of the stud wall.
Pro Tip: Always check the manufacturer’s installation manual for your specific shower valve. Brands like Moen, Delta, and Kohler have slightly different rough-in dimensions.
Step 2: Shutting Off Water and Demolition
Safety first. Before cutting into any walls, locate your main water shut-off valve and turn it off. Open the lowest faucet in your house to drain remaining pressure from the lines.
If you are replacing an existing tub, remove it carefully. Inspect the existing studs for water damage or rot. Replace any compromised wood before proceeding. If you are building a new partition wall, ensure it is framed with 2×4 or 2×6 lumber, spaced 16 inches on center, to provide adequate support for heavy tile and glass enclosures.
Step 3: Installing the Shower Valve (The Heart of the System)
The shower valve is the most critical component. It controls the mix of hot and cold water. For a shower-no-tub setup, you will typically use a pressure-balancing valve or a thermostatic valve.
Installation Steps:
- Cut the Studs: Create an opening between two studs where the valve will sit. Use a header and cripple studs if necessary to maintain structural integrity.
- Run Supply Lines: Connect 1/2-inch copper PEX or CPVC lines to the hot and cold inputs of the valve. Ensure you use the correct fittings for your pipe type.
- Secure the Valve: Mount the valve body securely to the stud. It must be perfectly plumb (vertical). If it is tilted, your handle trim kit will not sit flush against the wall later.
- Install the Drop Ear Elbow: This is where the shower arm will connect. It should be positioned directly above the valve, centered horizontally.
Expert Insight: “Always solder or crimp connections away from the valve body if using copper. Excessive heat can damage the internal seals of the valve cartridge.” – Senior Plumber, Home Improvement Weekly.

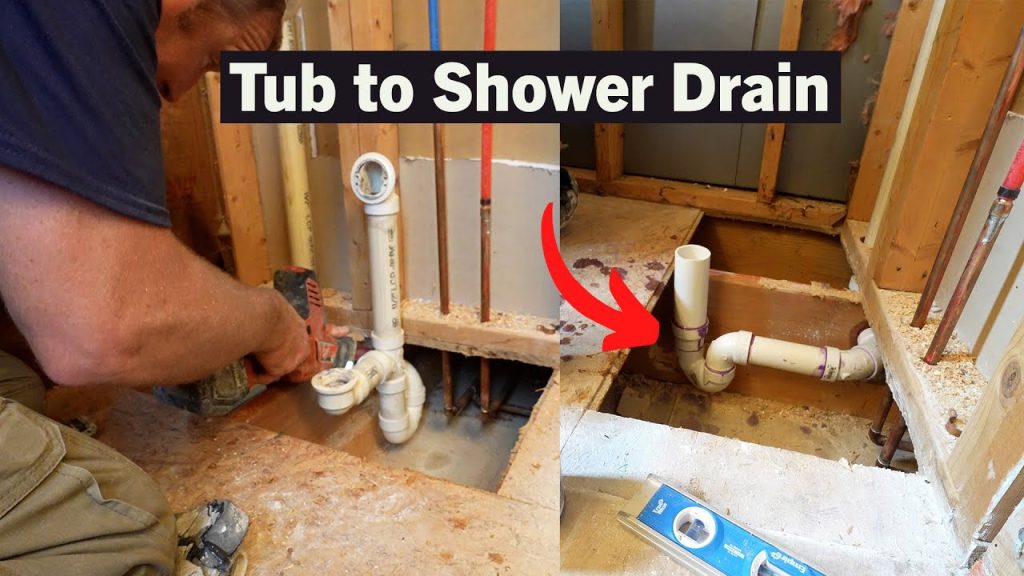

Step 4: Setting the Drain and Slope
Unlike a tub drain, a shower drain requires a precise slope in the subfloor. This is often the trickiest part for DIYers.
Choosing the Right Drain
For a tiled floor, a clamping ring drain is standard. It allows the waterproofing membrane to be clamped tightly, preventing leaks into the subfloor.
Creating the Slope
- Dry Fit the Drain: Place the drain assembly in the hole.
- Pre-Slope the Subfloor: Use a deck mud (dry pack mortar) mix to create a slope of 1/4 inch per foot toward the drain. For a standard 3×3 foot shower, the edge of the shower floor should be about 3/4 inch higher than the drain flange.
- Test the Fit: Ensure the drain flange sits level with the top of your pre-slope layer.
| Feature | Standard Tub Drain | Walk-In Shower Drain |
|---|---|---|
| Slope Requirement | Minimal (tub holds water) | Critical (1/4″ per foot) |
| Waterproofing | Tub apron acts as barrier | Membrane required over entire floor/walls |
| Pipe Size | Usually 1.5 inches | Minimum 2 inches (recommended for flow) |
Step 5: Connecting the Shower Arm and Head
Once the valve is set, you need to connect the water outlet to the showerhead.
- Install the Shower Arm: Screw the shower arm into the drop ear elbow inside the wall. Use Teflon tape (at least 3 wraps) on the threads to ensure a watertight seal.
- Attach the Elbow: Connect the 90-degree elbow to the end of the arm that will protrude from the wall.
- Cap It Off: Place a temporary cap on the end to protect the threads during drywall and tiling work.
Note: Do not install the final showerhead yet. Wait until the very end of the project to avoid damage or clogging from construction debris.
Step 6: Pressure Testing and Inspection
Before closing up the walls, you must test for leaks. This is non-negotiable.
- Pressurize the Lines: Turn the main water supply back on slowly.
- Check Connections: Inspect every joint, especially the valve inputs and the shower arm connection. Look for even the smallest drip.
- Cap Test: If possible, cap the ends and let the system sit under pressure for 2–4 hours. Check the pressure gauge (if installed) or visually inspect for moisture.
If you find a leak, fix it now. Fixing a leak after tiling costs ten times more in labor and materials.
Common Mistakes to Avoid
- Ignoring Venting: Every drain needs a vent to prevent siphoning. Ensure your shower drain is properly vented according to local code, usually within a certain distance of the trap.
- Using the Wrong Pipe Material: Do not mix incompatible metals (like copper and galvanized steel) without a dielectric union, as this causes corrosion.
- Skipping the Waterproofing Test: After installing the liner or membrane, perform a flood test. Plug the drain and fill the shower pan with water. Let it sit for 24 hours to ensure no water escapes into the room below.
FAQ Section
Q1: Can I convert my existing tub into a walk-in shower easily?
A: It is possible but involves significant work. You must remove the tub, adjust the drain location (sometimes), re-frame the walls, and completely redo the waterproofing. It is not just a cosmetic swap; it is a structural renovation.
Q2: What is the best pipe material for shower plumbing?
A: PEX (cross-linked polyethylene) is currently the most popular choice for DIYers and pros alike due to its flexibility and ease of installation. Copper is durable but requires soldering skills. CPVC is another option but can become brittle over time.
Q3: Do I need a permit to install a shower?
A: In most US jurisdictions, yes. Plumbing and structural changes usually require a permit. Check with your local building department. Unpermitted work can cause issues when selling your home.
Q4: How high should the shower valve be installed?
A: The standard height is 48 to 52 inches from the finished floor. However, you should adjust this based on the height of the primary users. Accessibility guidelines (ADA) suggest lower placements for wheelchair access.
Q5: Why is my new shower draining slowly?
A: Slow drainage is often due to an improper slope in the pre-pan or a clogged drain during construction. Ensure the slope is consistent at 1/4 inch per foot. If the slope is correct, check for debris in the trap.
Q6: Can I install a rain showerhead with standard plumbing?
A: Yes, but rain showerheads often require higher water pressure to feel effective. Ensure your home’s water pressure is at least 45 PSI. You may also need a larger diameter supply line (3/4 inch) if you experience flow issues.
Conclusion
Learning how to install plumbing in a shower no tub empowers you to create a spa-like retreat in your own home. By carefully planning your layout, securing the valve, ensuring proper drainage slope, and rigorously testing for leaks, you can achieve professional results. Remember, patience and precision are your best tools.
