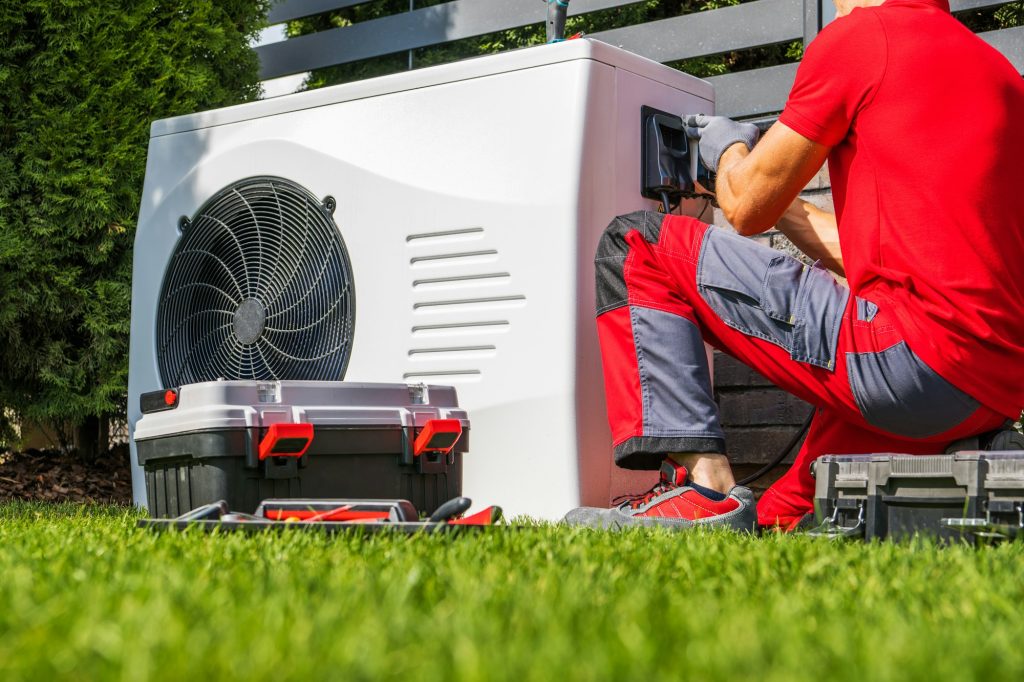

How To Install Plumbing On Pool With Heat Pump

Are you tired of shivering during early morning swims or watching your energy bills skyrocket because your pool heater is inefficient? You are not alone. Many pool owners struggle with complex piping systems that fail to maximize heating potential. Knowing how to install plumbing on pool with heat pump correctly is the single most important factor in ensuring your system runs efficiently, lasts longer, and keeps your water at the perfect temperature without breaking the bank.

In this guide, we will walk you through the exact steps to configure your pool plumbing for optimal heat pump performance. We’ll cut through the technical jargon and provide clear, actionable instructions that even a motivated DIYer can follow, while highlighting when it’s crucial to call a professional.

Why Proper Plumbing Configuration Matters for Heat Pumps

Before diving into the wrenches and PVC glue, it is vital to understand why the plumbing layout dictates success. Unlike gas heaters, which generate intense heat quickly, heat pumps work by extracting ambient heat from the air and transferring it to the water. This process requires a specific water flow rate to function correctly.

If the water flows too slowly, the heat exchanger can freeze or overheat, triggering safety shutdowns. If it flows too fast, the water doesn’t stay in the unit long enough to absorb sufficient heat. According to industry standards, maintaining the correct gallons per minute (GPM) is non-negotiable for efficiency.

Expert Insight: “A improperly plumbed heat pump can lose up to 30% of its efficiency due to poor hydraulic balance,” notes data from various HVAC studies. Ensuring your bypass valves and pipe diameters are correct is not just about installation; it’s about long-term savings.

For a deeper understanding of thermodynamic principles in heating systems, you can refer to the general concepts outlined on Wikipedia’s Heat Pump page.

Essential Tools and Materials Checklist

Preparation is half the battle. Gathering the right materials before you start prevents mid-project trips to the hardware store.

Tools Required:

• PVC Pipe Cutter or Hacksaw
• Deburring Tool or Sandpaper
• Tape Measure
• Marker/Pencil
• Adjustable Wrenches (2)
• Teflon Tape (for threaded connections)

Materials Required:

• PVC Pipes: Schedule 40 PVC (typically 2-inch diameter, but check your unit’s manual).
• Fittings: 90-degree elbows, couplings, and unions (unions are critical for future maintenance).
• Valves: Two ball valves (isolation) and one three-way diverter valve (for bypass).
• Primer and Cement: Purple primer and clear PVC cement.
• Teflon Tape: For all threaded male/female connections.

Step-by-Step Guide: How To Install Plumbing On Pool With Heat Pump

Follow these steps meticulously. Remember, local codes vary, so always check with your municipality regarding permits and inspection requirements.

Step 1: Turn Off Power and Water Flow

Safety first. Switch off the circuit breaker for the pool pump and the heat pump. Close any existing valves to stop water flow. Relieve pressure in the lines by opening a bleed valve if available.

Step 2: Determine the Installation Location

Place the heat pump at least 12–18 inches away from walls or fences to ensure adequate airflow. The unit should be level to prevent internal damage. Ensure it is within 5–10 feet of the existing filter system to minimize heat loss through long pipe runs.

Step 3: Install the Bypass Loop (The Critical Step)

This is the core of learning how to install plumbing on pool with heat pump. A bypass loop allows you to regulate the amount of water flowing through the heater.

1. Cut the Existing Line: Identify the return line coming from your filter. Cut a section out where the heat pump will be inserted.
2. Install Unions: Glue unions on both ends of the cut section. Unions allow you to disconnect the heat pump easily for winterization or repairs without cutting pipes again.
3. Create the Loop: Construct a rectangular loop using PVC pipes and elbows.
   • The bottom of the rectangle connects to the main return line.
   • The top of the rectangle will house the heat pump.
4. Install Valves:
   • Install a ball valve on the inlet pipe (before the heat pump).
   • Install a ball valve on the outlet pipe (after the heat pump).
   • Install a three-way diverter valve or a second ball valve on the bypass line (the parallel pipe that skips the heater).

Step 4: Connect the Heat Pump

1. Attach flexible hose connectors or rigid PVC to the heat pump’s inlet and outlet ports. Note: Many manufacturers recommend flexible connectors to reduce vibration stress on the unit.
2. Connect the inlet side to the pipe coming from the pump/filter.
3. Connect the outlet side to the pipe returning to the pool.
4. Use Teflon tape on all threaded connections to prevent leaks. Hand-tighten first, then use wrenches to secure—do not overtighten, as this can crack the plastic headers.

Step 5: Prime and Glue All Joints

Clean all PVC ends with primer. Apply a generous layer of PVC cement to both the pipe end and the inside of the fitting. Push them together firmly and hold for 15 seconds. Wipe away excess cement. Let it cure for at least 2–4 hours before introducing water pressure.

Understanding Flow Rates and Valve Adjustment

Once the physical plumbing is complete, you must adjust the valves to achieve the correct flow rate. This is where many installations fail.

How to Adjust:

1. Turn on the pool pump.
2. Check the heat pump display for flow errors.
3. If the flow is too low (error code), open the bypass valve slightly.
4. If the flow is too high (water isn’t heating well), close the bypass valve slightly.
5. Aim for the manufacturer’s specified GPM (usually between 30–50 GPM for residential units).

Common Mistakes to Avoid

• Ignoring Union Fittings: Skipping unions makes future maintenance a nightmare. Always include them.
• Wrong Pipe Diameter: Using 1.5-inch pipes on a unit requiring 2-inch pipes restricts flow and strains the pump. Always match the unit’s port size.
• No Check Valve: If your heat pump is installed below the water level of the pool, install a check valve on the outlet to prevent back-siphoning.
• Poor Airflow: Placing the unit in a confined corner. Heat pumps need to exhaust cold air; if it recirculates, efficiency drops drastically.

FAQ Section

1. Do I need a professional plumber to install a pool heat pump?

While a handy DIYer can handle the PVC plumbing, electrical connections must be done by a licensed electrician. Additionally, if you are unsure about hydraulic balancing, consulting a professional ensures warranty validity and safety.

2. Can I install the heat pump vertically?

Most residential pool heat pumps are designed for horizontal installation only. Vertical installation can cause oil logging in the compressor, leading to premature failure. Always check your specific model’s manual.

3. What size pipe should I use for my heat pump?

Refer to your owner’s manual. Generally, units under 100,000 BTU use 2-inch PVC, while larger commercial units may require 2.5-inch or 3-inch PVC. Never reduce the pipe size below the unit’s inlet/outlet diameter.

4. Why is my heat pump freezing up?

Freezing is usually caused by low water flow. Check your filter cleanliness, ensure the bypass valve isn’t closed too much, and verify that the ambient temperature hasn’t dropped below the unit’s operating range (usually 50°F/10°C).

5. Should I use flexible hoses or rigid PVC?

Flexible hoses are highly recommended for the final connection to the heat pump. They absorb vibrations from the compressor and prevent stress cracks in the unit’s titanium heat exchanger headers.

6. How long does it take to install the plumbing?

For an experienced DIYer, the plumbing portion typically takes 4–6 hours. However, allow 24 hours for the PVC cement to fully cure before running the system at full pressure.

Conclusion

Learning how to install plumbing on pool with heat pump is a rewarding project that can significantly enhance your swimming experience. By following the steps above—focusing on the bypass loop, using proper unions, and balancing your flow rates—you ensure your system operates at peak efficiency.

Remember, the key to a successful installation is patience and precision. Take your time with the measurements, double-check your valve orientations, and never skip the curing time for your PVC glue.
