Installing a toilet in a basement with a concrete floor can feel overwhelming—especially if you’re working below grade with no existing drain line. But don’t worry: even without modern ejector pumps or fancy tools, how to install a toilet in a basement concrete floor old plumber techniques still work reliably today. This guide blends time-tested methods with current plumbing codes to help you get it right the first time—safely, legally, and without costly mistakes.
Why Is Basement Toilet Installation So Tricky?
Basements sit below your home’s main sewer line. Gravity won’t pull waste away like it does upstairs. That’s why traditional toilets often fail here unless you address drainage properly.
According to the International Residential Code (IRC), any plumbing fixture installed below the sewer line must use either:
- A sewer ejector pump, or
- A gravity-fed system tied into an existing below-grade drain (rare in older homes)
Most “old plumber” approaches assume you’re retrofitting into an existing rough-in or using a macerating toilet system—but we’ll cover both scenarios.
💡 Pro Tip: Before breaking concrete, confirm your local building department allows your planned method. Permits are often required for below-grade plumbing.
Do You Really Need to Break the Concrete?
Short answer: It depends.
If your basement was prepped for a bathroom during original construction, there may already be a stubbed-out 3- or 4-inch PVC drain pipe capped beneath the slab. Many older homes (built 1950s–1980s) included this for future expansion.
How to check:
- Look for a circular patch in the concrete (often near the furnace or utility room).
- Use a stud finder with AC detection or ground-penetrating radar (rentable at hardware stores).
- Drill a small 1/4″ test hole—if you hit PVC within 6–12 inches, you’re in luck.
If no drain exists, you have two realistic options:
| Option | Pros | Cons |
|---|---|---|
| Break concrete & tie into main sewer | Permanent, quiet, code-compliant | Labor-intensive, expensive ($2,000–$5,000+) |
| Install a macerating toilet (e.g., Saniflo) | No concrete cutting, DIY-friendly | Audible pump noise, maintenance every 5–10 years |
📌 Note: Macerating systems are accepted by most U.S. plumbing codes when installed per manufacturer specs (see EPA guidelines on alternative plumbing).
Step-by-Step: Installing a Toilet on Concrete (Old-School Method)
Assumption: You’ve confirmed a 3-inch or 4-inch drain stub is present under the slab.
Tools & Materials Needed
- Wax ring (with or without horn—use horned for uneven floors)
- Closet flange (PVC or stainless steel)
- Concrete drill + masonry bit (½” diameter)
- Hammer drill or rotary hammer
- PVC primer & cement
- Level, tape measure, screwdriver
- Silicone caulk (optional, for sealing base)

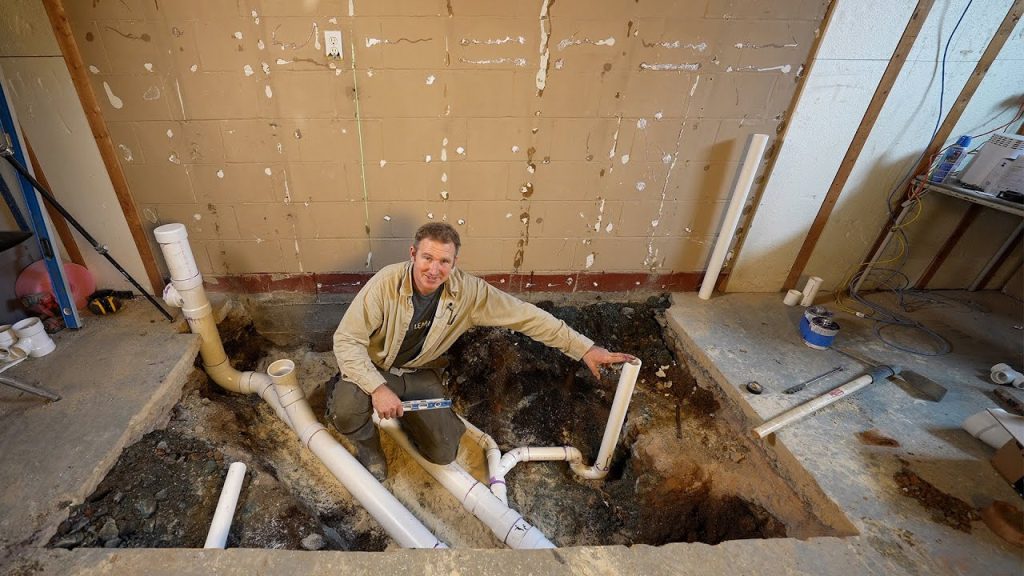

Step 1: Locate and Expose the Drain Pipe
- Mark a 6″x6″ square over the suspected drain location.
- Use a hammer drill to carefully break through the concrete (wear safety goggles!).
- Chip away until you expose the top of the PVC pipe (usually 2–4 inches below surface).
Step 2: Cut Pipe Flush & Clean Edges
- Use a PVC pipe cutter to trim the pipe so it’s level with the finished floor.
- Deburr edges to ensure a clean seal.
Step 3: Install the Closet Flange
- Slide a PVC closet flange over the pipe.
- If the pipe is 3″, use a 3″ flange; if 4″, reduce it with a 4″x3″ adapter first.
- Glue the flange to the pipe using PVC primer and cement. Let cure 15–30 mins.
- Secure flange to concrete using tapcon screws (at least 2.5″ long). Pre-drill holes to avoid cracking.
✅ Old Plumber Wisdom: “A loose flange wobbles, leaks, and ruins wax rings. Anchor it like it owes you money.”
Step 4: Test for Level & Alignment
- Place your toilet bowl (without wax) on the flange.
- Check with a level front-to-back and side-to-side.
- If uneven, use plastic shims—not wood (it rots). Trim shims flush after installation.
Step 5: Set the Wax Ring & Mount Toilet
- Place wax ring on flange (horn facing down into pipe).
- Lower toilet straight down—do not twist. Apply even pressure until base touches floor.
- Bolt down with closet bolts, tightening alternately (left, then right) to avoid cracking porcelain.
- Final torque: snug, not overtightened (≈15 ft-lbs).
Step 6: Seal & Connect Water
- Caulk around base (optional but recommended for hygiene and stability).
- Attach supply line, turn on water, and flush 3–5 times to test for leaks.
What If There’s NO Drain Pipe? The Macerating Solution
When no drain exists, veteran plumbers often recommend macerating toilets—a smart workaround that grinds waste and pumps it upward.
Top Pick: Saniflo Sanicompact (self-contained unit) or Sanitop (for standard toilets).
Installation Steps:
- Place unit against wall (needs 110V outlet and vent access).
- Connect toilet to macerator inlet.
- Run ¾” discharge pipe upward to main drain (max 150 ft horizontal, 15 ft vertical).
- Vent per code—usually through roof or air admittance valve (check local rules).
⚠️ Warning: Never vent a macerator into a sink P-trap—that’s a code violation and health hazard.
These systems cost $800–$1,500 but save thousands in concrete demolition. Lifespan: 10–15 years with proper care.
Common Mistakes (And How to Avoid Them)
| Mistake | Consequence | Fix |
|---|---|---|
| Skipping the flange anchor | Toilet rocks → wax ring fails | Use tapcon screws into concrete |
| Using double wax rings | Compression failure → sewage leak | One quality ring only |
| Ignoring venting | Gurgling, slow flush, sewer gas | Ensure proper vent per IRC P3105 |
| Not checking slope | Waste backs up | Drain pipe must slope ¼” per foot |
For deeper insight into plumbing venting principles, see Wikipedia’s overview on Drain-Waste-Vent systems.
FAQ Section
Q1: Can I install a regular toilet in a basement without a pump?
Only if you have a gravity-fed drain below the sewer line—which is rare. Most basements require an ejector or macerator system.
Q2: How deep do I need to dig to find the drain pipe?
Typically 6–12 inches below the slab surface. Older homes may have cast iron pipes deeper—call 811 before digging to avoid utilities.
Q3: Do I need a permit to install a basement toilet?
Yes, in nearly all U.S. jurisdictions. Permits ensure your work meets health and safety codes. Fines for unpermitted work can exceed $1,000.
Q4: Can I reuse an old wax ring?
Never. Wax deforms permanently after compression. Always use a new ring—costs under $5.
Q5: Why does my basement toilet smell after installation?
Likely causes: broken wax seal, missing vent, or dry P-trap. Pour water down nearby floor drains monthly to keep traps sealed.
Q6: How long does the whole process take?
With a pre-existing drain: 4–6 hours. With concrete cutting: 1–2 days. Macerating toilet: 2–3 hours.
Conclusion
Learning how to install a toilet in a basement concrete floor old plumber style isn’t just about nostalgia—it’s about reliability, simplicity, and respecting the physics of drainage. Whether you’re tying into an existing stub-out or using a modern macerator, doing it right means no leaks, no odors, and peace of mind.
Got a finished basement bathroom now? Share your success story on social media to inspire fellow DIYers! 🛠️🚽
Tag #BasementBathroomBuild or #OldPlumberWisdom—we’d love to see your setup!
Remember: When in doubt, consult a licensed plumber. Your health—and your home’s resale value—depends on it.
