How to Find Your Home’s Plumbing Layout Fast

Have you ever stared at a damp patch on your ceiling, wondering exactly which pipe is responsible for the mess? Or perhaps you are planning a bathroom remodel and feel overwhelmed by the mystery of what lies behind your walls? You are not alone. Understanding how to know the plumbing layout of my house is one of the most valuable skills a homeowner can possess. It saves you from costly guesswork, prevents accidental damage during renovations, and empowers you to handle minor emergencies with confidence. In this guide, we will walk you through practical, proven methods to map out your home’s water and waste systems without needing a degree in engineering.

Why Knowing Your Plumbing Layout Matters

Before we dive into the “how,” let’s briefly address the “why.” Many homeowners assume plumbing is only a concern when something breaks. However, having a mental (or physical) map of your pipes offers significant advantages:

• Emergency Response: When a pipe bursts, knowing where the main shut-off valve is located relative to the leak can prevent thousands of dollars in water damage.
• Renovation Accuracy: Drilling into a wall without knowing where the pipes are can lead to catastrophic accidents.
• Cost Savings: Plumbers charge by the hour. If you can provide them with a basic layout, they spend less time diagnosing and more time fixing, reducing your bill.

According to the Insurance Information Institute, water damage and freezing account for nearly 24% of all home insurance claims. Being proactive about your plumbing knowledge is a direct investment in your home’s safety.

Step 1: Start with the “Heart” – The Main Water Shut-Off

To understand the body, you must first find the heart. Every home has a main water shut-off valve where water enters from the municipal supply or well.

Where to Look:

• Basements or Crawlspaces: Usually near the front foundation wall.
• Utility Rooms: Near the water heater or washing machine hookups.
• Exterior Walls: In warmer climates, it may be outside near an spigot.

Action Item: Locate this valve immediately. Turn it off and on gently to ensure it works. Tag it with a bright label. This is the starting point of your supply line map. All major pipes branch out from this central entry point.

Step 2: Trace the Supply Lines (The “Fresh” Water)

Supply lines bring fresh water to your fixtures. In most modern US homes, these are under pressure, meaning they are always full of water waiting to be used.

The Logic of Layouts: Plumbers follow the path of least resistance. Supply lines typically run in straight lines from the main source to fixtures.

• Vertical Stacks: In two-story homes, look for vertical pipes running through walls that align bathrooms or kitchens stacked on top of each other.
• Horizontal Runs: In slab foundations or crawlspaces, lines run horizontally under the floor or through joists.

How to Map Them:

1. Identify Fixture Groups: Group your sinks, toilets, and showers. Are your kitchen and guest bath back-to-back? They likely share a common wall chase.
2. Use a Stud Finder with AC/Metal Detection: Advanced stud finders can detect metal pipes or PEX manifolds behind drywall. Note: This works best for copper or steel, not plastic PEX.
3. Check the Manifold: If you have a PEX plumbing system (common in homes built after 2000), you may have a central manifold. This is a huge advantage. The manifold acts as a hub, with individual colored tubes (red for hot, blue for cold) running directly to each fixture. Taking a photo of this manifold gives you 80% of your layout information instantly.

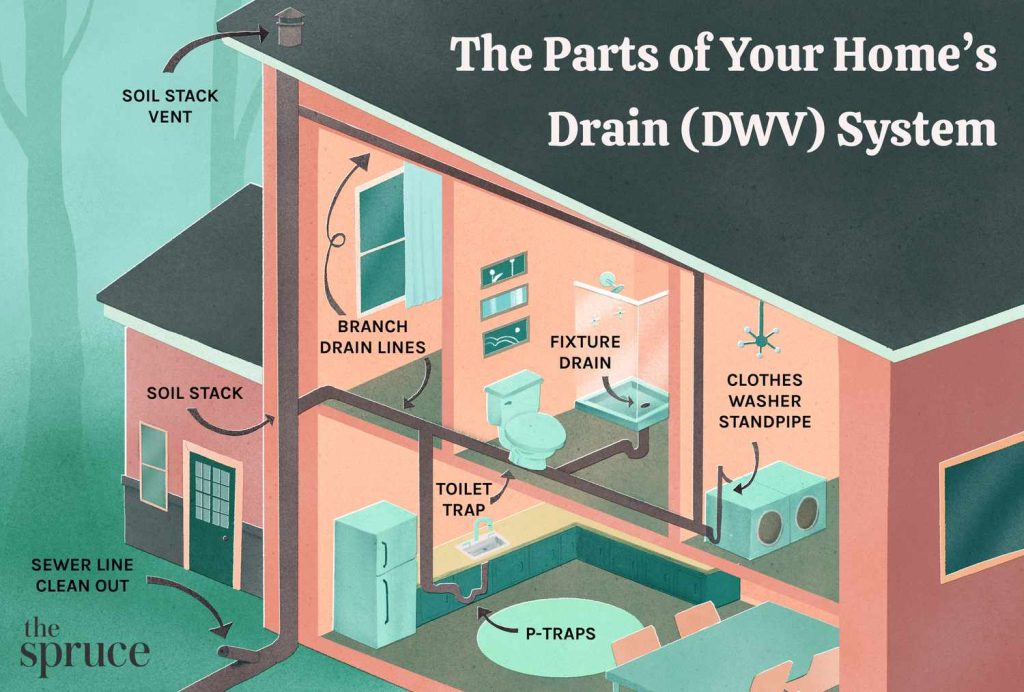

Step 3: Map the Drain-Waste-Vent (DWV) System

While supply lines are under pressure, the DWV system relies on gravity. This means the layout is strictly dictated by physics: water must flow downward.

Key Components to Identify:

• Soil Stack: The largest vertical pipe (usually 3–4 inches in diameter). It carries waste from toilets to the sewer or septic tank. You can often hear water rushing through this when a toilet flushes.
• Vent Pipes: These extend through the roof. They allow air into the system to prevent vacuum locks, ensuring water flows smoothly.
• Trap Arms: The curved pipe under every sink and tub. It holds water to block sewer gases.

Visual Clues for DWV: Look for cleanout plugs. These are capped pipes accessible from the basement, crawlspace, or exterior yard. They provide direct access to the main drain line. Tracing a line from a cleanout plug back into the house often reveals the main path of your waste system.

For a deeper technical understanding of how these systems are standardized, you can refer to the Uniform Plumbing Code overview on Wikipedia, which outlines the general principles governing residential plumbing layouts in the US.

Step 4: Utilize Existing Documentation and Tools

You do not always need to play detective. Sometimes, the answers are already on file.

Check These Sources:

1. Home Inspection Report: If you bought the house recently, your inspection report likely includes photos of the water heater, manifold, and main shut-off.
2. Building Permits: Visit your local county clerk’s office or website. Search for permits filed for previous renovations. Approved plans often include detailed plumbing diagrams.
3. As-Built Drawings: For newer constructions (post-2010), builders sometimes leave a set of “as-built” plans in a drawer near the electrical panel or in the attic.

Tech-Assisted Mapping: If you are tech-savvy, consider using a thermal imaging camera (available for rent at many hardware stores).

• Hot Water Test: Run hot water in a shower for 5 minutes.
• Scan the Wall: Use the thermal camera to see the heat signature through the drywall. This reveals the exact path of the hot water pipe.
• Cold Water Test: Repeat with cold water (though this is harder to detect thermally, the contrast can sometimes help if ambient temperatures differ).

Comparison: Common Pipe Materials and Visibility

Understanding what your pipes are made of helps you detect them. Here is a quick reference guide:

Note: If you have PEX, visual inspection at endpoints (under sinks, behind toilet tanks) is your best bet for tracing lines.

Step 5: Create Your Own Diagram

Once you have gathered data, put it on paper. You don’t need CAD software; a simple graph paper sketch works wonders.

1. Draw the Footprint: Sketch the outline of your home’s rooms.
2. Mark Fixtures: Place X marks where every sink, toilet, shower, and appliance is located.
3. Connect the Dots: Draw lines connecting fixtures that share walls. Assume straight lines (90-degree angles) unless you see evidence otherwise.
4. Label Directions: Indicate which way is “North” to help future plumbers orient themselves.
5. Note Valves: Mark the location of every shut-off valve (individual fixture valves and the main).

Store this diagram in a waterproof folder near your main electrical panel or save it as a PDF on your phone.

FAQ Section

Q1: Can I use an app to see pipes inside my walls? A: Currently, no smartphone app can “see” through walls using just the phone’s camera. Apps that claim to do this are often gimmicks. However, some apps allow you to overlay AR (Augmented Reality) models if you input manual measurements, but they do not detect existing pipes physically. You still need a stud finder or thermal camera for detection.

Q2: What if my house has no basement or crawlspace? A: Slab-on-grade foundations make tracing harder. In this case, rely heavily on exterior cleanouts and the location of the water heater. Supply lines usually run through the attic in slab homes. Inspecting the attic insulation for tube paths is a highly effective strategy for these structures.

Q3: How accurate are old blueprints? A: Old blueprints show the intended layout, not necessarily the actual layout. Contractors often make field changes during construction without updating the plans. Use blueprints as a general guide, but verify with physical inspection.

Q4: Is it safe to drill into drywall if I think I know where the pipes are? A: Never assume. Always use a multi-scanner tool that detects wood, metal, and live AC wires. Even if you think a pipe is 2 inches to the left, drill a small pilot hole first or use an endoscope camera to peek inside the wall cavity before making large cuts.

Q5: Should I hire a professional to map my plumbing? A: For simple mapping, DIY is sufficient. However, if you are planning a major renovation involving moving walls or adding bathrooms, hiring a licensed plumber to create a professional schematic is worth the investment. It ensures code compliance and prevents expensive errors.

Q6: How often should I update my plumbing map? A: Update it every time you perform a renovation, replace a major appliance, or repair a leak. An outdated map can be more dangerous than no map at all.

Conclusion

Learning how to know the plumbing layout of my house is not just about satisfying curiosity; it is about taking control of your home’s health. By starting with the main shut-off, tracing supply and waste lines, and utilizing simple tools like stud finders or thermal cameras, you can create a reliable map of your system. This knowledge empowers you to act quickly in emergencies and plan renovations with precision.

Don’t wait for a leak to start investigating. Take this weekend to trace your lines and sketch your diagram. Your future self—and your wallet—will thank you.
