Adding a guest bath to a detached structure, such as a pool house or garden studio, significantly boosts your property’s value and convenience. However, the most daunting part of this project is often figuring out how to lay plumbing underground for a guest bath without causing structural damage or code violations.
It is completely normal to feel overwhelmed by the thought of digging trenches and managing slope ratios. Many homeowners worry about freezing pipes in winter or sewage backups due to improper grading. This guide simplifies the process, breaking down complex engineering concepts into manageable, actionable steps so you can approach your project with confidence and clarity.
Understanding Local Codes and Permits
Before you pick up a shovel, you must understand the legal framework. Plumbing is not just about connecting pipes; it is about public health and safety. In the United States, most jurisdictions follow the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC), but local amendments vary widely.
Why Permits Matter
Skipping permits can lead to hefty fines and issues when selling your home. More importantly, an inspector ensures your work won’t contaminate groundwater or collapse under soil pressure. According to industry standards, any new water supply or sanitary drainage system typically requires a permit.
Pro Tip: Contact your local building department early. Ask specifically about “detached structure plumbing requirements.” Some areas require heated trenches or specific insulation R-values for lines buried in frost-prone zones.
For a broader understanding of plumbing standards, you can reference general infrastructure guidelines on Wikipedia’s Plumbing page, which outlines the historical and technical evolution of modern systems.
Choosing the Right Materials for Buried Lines
Not all pipes are created equal. Using the wrong material can lead to cracks from soil shifting or corrosion over time. For underground applications, durability and resistance to environmental stress are key.
Water Supply Lines
For cold water lines, HDPE (High-Density Polyethylene) is often superior to copper or PEX for direct burial. It is flexible, resistant to freezing expansion, and comes in long coils, reducing the number of fittings (which are potential leak points). If you prefer PEX, ensure it is rated for direct burial (usually PEX-A or PEX-B with a protective sleeve).
Drain-Waste-Vent (DWV) Lines
For sewage and waste, Schedule 40 PVC is the standard for residential underground use. It is rigid, smooth (allowing waste to flow easily), and highly resistant to chemical corrosion. Avoid using ABS pipe unless your local code explicitly allows it for underground use, as some jurisdictions restrict it due to brittleness in cold temperatures.
| Material | Best Use | Pros | Cons |
|---|---|---|---|
| HDPE | Water Supply | Flexible, freeze-resistant, few joints | Requires special crimping tools |
| PEX | Water Supply | Easy to install, cheap | Must be protected from UV and rodents |
| Sch 40 PVC | Drainage | Rigid, high flow rate, affordable | Glue joints require cure time |
| Cast Iron | Drainage | Soundproof, durable | Heavy, expensive, hard to cut |
Step-by-Step: How to Lay Plumbing Underground
This section details the physical process. Accuracy here prevents costly repairs later.
Step 1: Call 811 Before You Dig
In the US, dialing 811 connects you to the “Call Before You Dig” service. Utility companies will mark gas, electric, and water lines for free. This is not optional; striking a gas line can be fatal, and hitting a fiber optic cable can cost thousands in damages. Wait the required time (usually 2–3 business days) before breaking ground.
Step 2: Determine Trench Depth and Slope
The depth of your trench depends on the frost line in your area.
- Water Lines: Must be buried below the frost line to prevent freezing. In northern states, this could be 4–6 feet deep. In southern states, 12–18 inches may suffice.
- Drain Lines: These rely on gravity. The standard slope is 1/4 inch per foot of run. Too steep, and water outruns solids, causing clogs. Too flat, and waste stagnates.
Use a string line and a line level to mark your slope stakes every 5 feet along the trench path.
Step 3: Excavating the Trench
Dig the trench slightly wider than the pipe diameter to allow room for bedding material.
- Width: Approximately 6–8 inches wide for single lines.
- Bedding: Place 2–3 inches of sand or fine gravel at the bottom. This creates a uniform base that prevents rocks from puncturing the pipe.
Safety Note: If your trench is deeper than 5 feet, OSHA regulations may require shoring or shielding to prevent cave-ins. For typical residential guest bath depths (under 4 feet), careful sloping of the trench walls is usually sufficient.

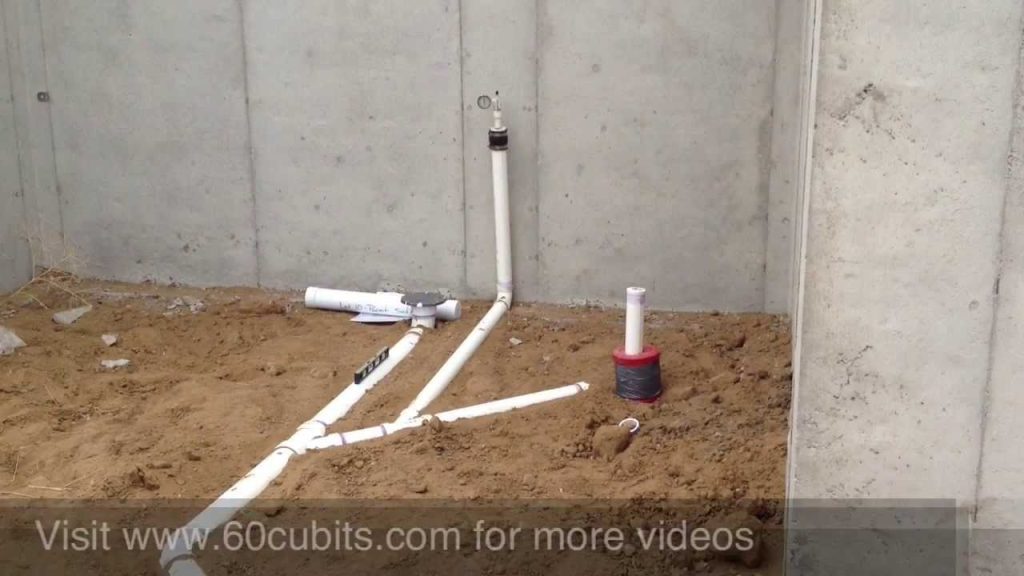

Step 4: Laying the Pipe
Lay your PVC drain pipes on the sand bed. Apply PVC primer and cement to each joint, giving the pipe a quarter-turn as you push it into the fitting to distribute the glue evenly. Let it cure for at least 15 minutes before moving.
For water lines, if using HDPE, uncoil it carefully to avoid kinks. If using PEX, slide it through a protective conduit if rodent activity is a concern in your area.
Step 5: Backfilling Carefully
Once the pipe is laid and inspected (if required by your local code):
- Cover the pipe with another 2–3 inches of sand or sifted soil. Do not use large rocks or debris directly against the pipe.
- Fill the rest of the trench with native soil, tamping it down every 6–8 inches to prevent future settling.
- Leave the ends of the pipes capped and labeled until you are ready to connect them to the main house and the guest bath fixture.
Insulation and Freeze Protection
Even if you bury lines below the frost line, extreme weather events can shift soil temperatures. Adding an extra layer of protection is a wise investment.
- Foam Sleeves: Use closed-cell foam pipe insulation on water lines. It adds thermal resistance and protects against minor abrasion.
- Heat Tape: In marginal climates, self-regulating heat tape can be wrapped around water lines. Ensure it is rated for underground use if it will be in contact with soil moisture.
- Venting: Proper venting is crucial for drains. Ensure your vent stack extends above the roofline of the guest bath to prevent siphonage and allow sewer gases to escape safely.
Common Mistakes to Avoid
Even experienced DIYers make errors. Here are the most frequent pitfalls:
- Ignoring the “Bellies”: A belly is a low spot in the drain pipe where waste collects. Always check your slope with a level during installation.
- Using Wrong Glue: Standard PVC cement does not work well in wet conditions. Use “wet set” glue if there is any moisture in the trench.
- Sharp Turns: Avoid using 90-degree elbows in drain lines underground. Use two 45-degree angles instead. This reduces resistance and makes it easier to snake a clog if one occurs.
- Skipping the Cleanout: Install a cleanout access point at the beginning of the underground run. If a clog happens near the house, you don’t want to dig up your entire yard to fix it.
FAQ Section
1. How deep do I need to bury plumbing for a guest bath?
Water supply lines must be below the local frost line (check with your building department, typically 12–48+ inches). Drain lines generally need a minimum cover of 12 inches to protect from surface loads, but deeper is better for insulation.
2. Can I use PEX pipe for underground water lines?
Yes, but it must be rated for direct burial. It is highly recommended to run PEX inside a larger conduit or protective sleeve to protect it from rocks, shifting soil, and pests.
3. What is the ideal slope for underground drain pipes?
The universal standard is a 1/4 inch drop per foot of horizontal run. For pipes larger than 3 inches in diameter, some codes allow a 1/8 inch per foot slope, but 1/4 inch is safer for consistent flow in residential applications.
4. Do I need a pump if the guest bath is lower than the main sewer line?
If the guest bath’s drain outlet is below the elevation of the main sewer or septic tank, gravity will not work. You will need to install a sewage ejector pump system to lift the waste up to the main line.
5. How do I prevent tree roots from damaging underground pipes?
Keep plumbing lines at least 10 feet away from large trees. Use root-resistant piping like Schedule 40 PVC with tightly glued joints. Avoid old clay or cast iron pipes which have seams that roots easily penetrate.
Conclusion
Learning how to lay plumbing underground for a guest bath is a challenging but rewarding DIY project. By respecting local codes, choosing the right materials like HDPE and Schedule 40 PVC, and maintaining precise slope gradients, you ensure a system that lasts for decades. Remember, patience during the trenching and bedding phases pays off in reliability.
