Adding a bathroom to your unfinished basement can significantly increase your home’s value and comfort, but it presents a unique engineering challenge: gravity. Unlike upper floors where waste flows down naturally, basement fixtures often sit below the main sewer line. If you are wondering how to layout plumbing for bathroom in the basement, you are not alone. Many homeowners feel overwhelmed by the prospect of breaking concrete and dealing with complex drainage systems.
This guide simplifies the process. We will walk you through the critical steps of planning your pipe routes, selecting the right pump system, and ensuring your project meets strict US building codes. By understanding the physics of wastewater and the local regulations, you can avoid costly mistakes and create a functional, safe space.
Understanding the Gravity Challenge
The primary obstacle in basement plumbing is elevation. Municipal sewer lines or septic tanks are typically buried deep underground. For water and waste to flow freely, pipes must maintain a downward slope, known as “fall” or “pitch.”
In a standard upstairs bathroom, gravity does the work for you. In a basement, your floor drain or toilet flange might be lower than the main exit pipe leaving your house. When this happens, you cannot rely on gravity alone. You must either raise the fixtures or mechanically pump the waste upward.
The Rule of Thumb for Slope
According to the International Plumbing Code (IPC), which is adopted by most US states, horizontal drainage pipes must have a uniform slope.
- For pipes 3 inches in diameter or smaller: The slope must be at least 1/4 inch per foot.
- For pipes 4 inches in diameter or larger: The slope can be reduced to 1/8 inch per foot.
If your basement floor is too low to achieve this slope toward the main stack, you will need a sewage ejector pump. Ignoring this requirement leads to frequent clogs and stagnant water, which creates health hazards.

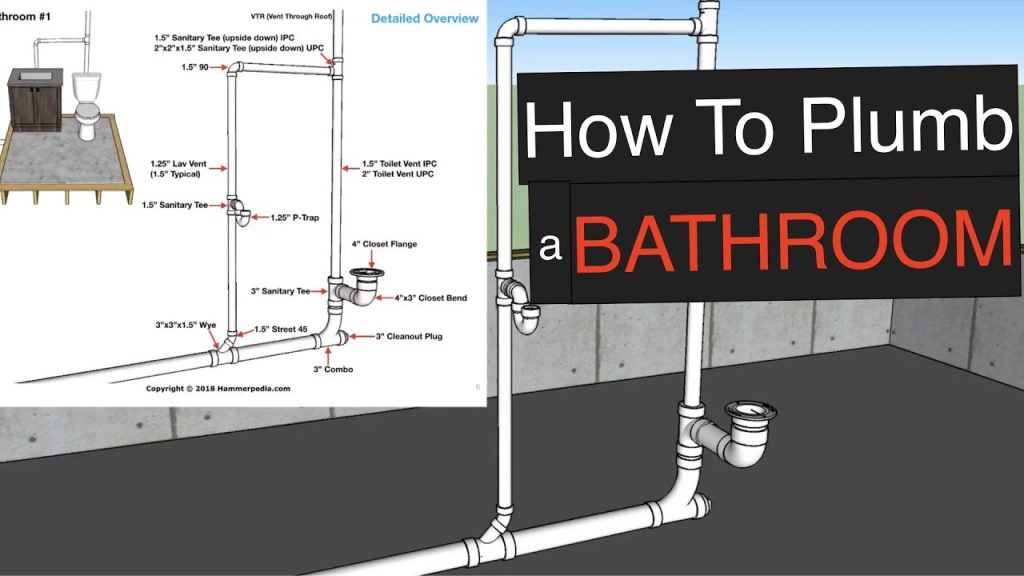

Step-by-Step: How to Layout Plumbing for Bathroom in The Basement
Planning your layout requires precision. Before you cut into any concrete, you must map out every fixture. Here is a logical workflow to ensure a successful installation.
1. Locate the Main Soil Stack
Your first task is to find the main vertical waste pipe (soil stack) in your home. This is usually a 3-inch or 4-inch cast iron or PVC pipe running from the roof down through the basement floor.
- Action: Trace the pipe from your upstairs bathrooms down to the basement.
- Why it matters: The closer your new bathroom is to this stack, the easier and cheaper the installation will be. Long horizontal runs require more precise sloping and increase the risk of blockages.
2. Determine Fixture Placement
Decide where your toilet, sink, shower, and laundry (if applicable) will go. Keep the toilet as close to the main stack as possible.
- Toilet: Requires a 3-inch or 4-inch waste line. It is the most critical fixture regarding slope and venting.
- Shower/Tub: Requires a 2-inch drain line.
- Sink: Requires a 1.5-inch drain line.
Grouping fixtures together on a single “wet wall” can simplify your layout and reduce material costs.
3. Choose Your Drainage Method
You generally have two options for getting waste out of the basement:
| Method | Best For | Pros | Cons |
|---|---|---|---|
| Gravity Feed | Basements where the floor is high enough above the main sewer line. | No moving parts; silent; low maintenance. | Requires extensive concrete breaking to achieve slope; limited fixture placement. |
| Sewage Ejector Pump | Basements below the main sewer line. | Flexible fixture placement; less concrete demolition. | Requires electricity; mechanical parts can fail; noise during operation. |
Note: For detailed technical definitions of sewage systems, you can refer to general engineering principles on Wikipedia.
4. Calculate the Pit Location (If Using a Pump)
If you opt for a sewage ejector pump, you need to install a sump pit. This is a basin buried in the concrete floor that collects waste from all fixtures before pumping it up to the main sewer line.
- Placement: Ideally, place the pit close to the main stack to minimize the length of the discharge pipe.
- Size: A standard pit is 18–24 inches in diameter and 24–30 inches deep. Ensure it is large enough to hold the pump and allow for proper inlet connections.
5. Plan the Venting System
Venting is often overlooked by DIYers, but it is crucial. Vents allow air to enter the plumbing system, equalizing pressure and preventing water traps from being sucked dry. Without proper venting, you will hear gurgling sounds and smell sewer gas.
- Requirement: Every fixture trap must be vented.
- Strategy: You can connect individual vents to a common vent pipe that ties back into the main stack above the flood level rim of the highest fixture.
Critical Components and Materials
Using the right materials ensures longevity and code compliance. In the US, PVC (Polyvinyl Chloride) and ABS (Acrylonitrile Butadiene Styrene) are the standard materials for residential drainage.
Pipe Sizing Guide
- Toilet Waste Line: 3 inches or 4 inches. (4 inches is preferred for main lines to prevent clogging).
- Shower/Tub Drain: 2 inches.
- Lavatory (Sink) Drain: 1.5 inches.
- Vent Pipes: Typically 1.5 inches or 2 inches, depending on the number of fixtures served.
The Sewage Ejector Pump
If gravity isn’t an option, invest in a high-quality pump. Look for features such as:
- Cast Iron Construction: More durable than plastic.
- Vertical Float Switch: Less prone to jamming than tethered floats.
- Alarm System: Alerts you if the water level gets too high, indicating a pump failure.
Common Mistakes to Avoid
Even experienced handymen can stumble when learning how to layout plumbing for bathroom in the basement. Here are the most frequent errors:
- Insufficient Slope: A slope that is too flat causes waste to settle and clog. A slope that is too steep allows water to outrun solid waste, leaving solids behind to cause blockages. Stick to the 1/4 inch per foot rule.
- Improper Venting: Failing to vent the toilet or shower properly will lead to slow draining and foul odors. Always ensure your vent pipe exits through the roof or connects to an existing vent stack above the highest fixture.
- Ignoring Cleanouts: Install cleanout plugs at strategic points, especially at the base of the stack and before the pump pit. These allow you to clear clogs without tearing apart walls or floors.
- Wrong Glue Usage: Use primer and cement specifically designed for your pipe material (PVC or ABS). Mixing them incorrectly can lead to joint failures and leaks inside your slab.
FAQ Section
Q1: Can I install a basement bathroom without a sewage pump?
A: Yes, but only if your basement floor is high enough to allow for a 1/4-inch-per-foot slope from the fixture to the main sewer line. You may need to raise the bathroom floor using a platform to achieve this height. If the main sewer line is higher than your basement floor, a pump is mandatory.
Q2: How deep should the sewage ejector pit be?
A: The depth depends on the inlet height of your fixtures and the pump specifications. Generally, the pit should be deep enough so that the inlet pipes from your toilet and shower can enter the pit with the required downward slope. A typical depth is 24 to 30 inches below the finished floor.
Q3: Do I need a permit for basement plumbing?
A: In almost all US jurisdictions, yes. Plumbing work involves health and safety codes. You will likely need a permit for installing new drains, vents, and water supply lines. Failure to obtain a permit can result in fines and issues when selling your home. Always check with your local building department.
Q4: What is the minimum ceiling height for a basement bathroom?
A: According to the International Residential Code (IRC), habitable spaces and bathrooms must have a minimum ceiling height of 7 feet. However, under beams, ducts, or obstructions, the height can drop to 6 feet 4 inches. Check your local codes, as some areas may have stricter requirements.
Q5: Can I use a macerating toilet instead of a sewage pump?
A: Yes, a macerating toilet (upflush toilet) grinds waste into a slurry and pumps it out through a small-diameter pipe (usually 3/4 inch or 1 inch). This is easier to install than a traditional sewage ejector system because it requires less demolition. However, they are generally more expensive to repair and can be noisier.
Q6: How do I prevent sewer gas smells in my basement bathroom?
A: Sewer gas enters when trap seals are broken. Ensure every fixture has a P-trap. Additionally, verify that your venting system is unobstructed and properly connected to the main stack. If a fixture is rarely used, pour water down the drain occasionally to keep the trap sealed.
Conclusion
Learning how to layout plumbing for bathroom in the basement is a rewarding project that blends practical engineering with home improvement. By respecting the laws of gravity, choosing the right pump system, and adhering to local codes, you can create a fully functional bathroom that adds significant value to your property.
Remember, patience and planning are your best tools. Measure twice, cut once, and never skip the venting. If you are unsure about any step, particularly connecting to the main sewer line, consult a licensed plumber.
