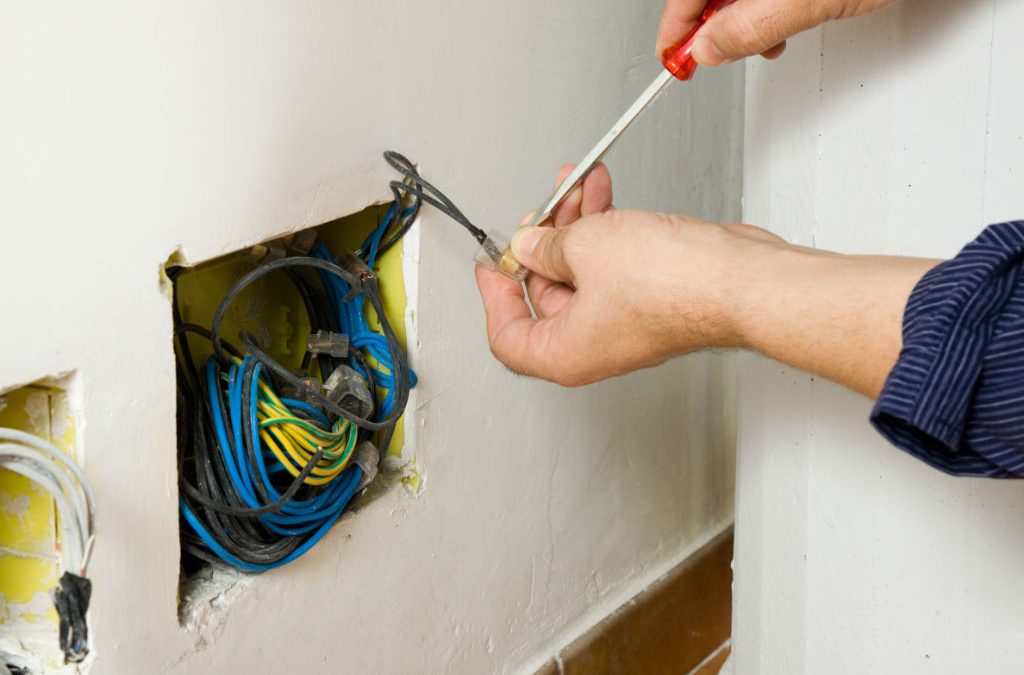

How to Locate Electrical Lines and Plumbing in a Wall Safely

Drilling into a wall only to hit a live wire or water pipe is every DIYer’s worst nightmare—and it happens more often than you think. According to the U.S. Consumer Product Safety Commission, over 400 home electrocutions occur annually, many linked to improper wall modifications. Whether you’re hanging shelves, mounting a TV, or renovating your kitchen, knowing how to locate electrical lines and plumbing in a wall is essential for safety, cost savings, and peace of mind. In this guide, we’ll walk you through proven, beginner-friendly methods backed by industry experts.

Why Is It Critical to Locate Wires and Pipes Before Drilling?

Before grabbing your drill, understand what’s behind that drywall. Hidden hazards include:

• Electrical wires: Typically run horizontally (12–18 inches above floor) or vertically from outlets/switches.
• Water pipes: Often found near sinks, toilets, or along exterior walls (especially in colder climates).
• HVAC ducts or gas lines: Less common but equally dangerous if punctured.

A 2023 study by HomeAdvisor found that 68% of homeowners who damaged hidden utilities during DIY projects faced repair costs exceeding $500—and 12% required emergency services. Don’t gamble. Always scan first.

What Tools Can Help You Detect Wires and Pipes?

Not all detection tools are created equal. Here’s a quick comparison:

💡 Pro Tip: The Bosch GMS120 or DeWalt Wall Scanner are top-rated for DIYers. They detect live AC wiring, metal pipes, and wood studs in one pass.

For deeper insight into electromagnetic detection principles, see Wikipedia’s entry on stud finders.

Step-by-Step: How to Locate Electrical Lines and Plumbing in a Wall

Follow this foolproof 6-step process before making a single hole:

Step 1: Turn Off Power (Safety First!)

Go to your circuit breaker and shut off power to the room you’re working in. Use a non-contact voltage tester ($10 at hardware stores) to confirm wires are dead—even if you plan to use a scanner.

Step 2: Map Known Fixtures

Mark all outlets, switches, faucets, and appliances on your wall. Electrical lines usually run:

• Vertically from outlets upward/downward.
• Horizontally at standard heights (e.g., 12″, 48″, or 72″ for light switches).

Plumbing typically runs:

• Vertically from sinks/toilets downward into floor joists.
• Horizontally within 6–12 inches of fixtures.

Step 3: Use a Multi-Sensor Wall Scanner

1. Calibrate the device per manufacturer instructions (usually on a clear wall section).
2. Slowly glide it horizontally across the area—at 1 inch per second.
3. Note beeps, lights, or screen alerts indicating metal (pipes), live wires, or studs.
4. Mark edges with painter’s tape—not pencil (to avoid confusion).

📏 Precision Tip: Scan both horizontally and vertically to triangulate object depth and orientation.

Step 4: Confirm with a Borescope (Optional but Smart)

For high-risk zones (e.g., near bathrooms), drill a tiny 1/8-inch pilot hole and insert a flexible inspection camera ($30–$80). This lets you see copper pipes, PVC, or Romex cables directly.

Step 5: Cross-Check with Building Plans (If Available)

Older homes? Check municipal records—many cities offer digital access to original blueprints. New builds often include rough-in photos from contractors.

Step 6: Test Before Final Drilling

Even after scanning, start with a short drill bit (1/2 inch). If resistance feels unusual (e.g., sudden give = hollow space; gritty = concrete; rubbery = pipe), stop immediately.

Common Mistakes to Avoid

• ❌ Assuming wires/pipes follow “standard” paths – Renovations often reroute them unpredictably.
• ❌ Using magnetic stud finders for pipes – They only detect ferrous metal, missing PEX or PVC.
• ❌ Ignoring ceiling/floor proximity – Pipes and wires often run through top/bottom plates of walls.
• ❌ Rushing the scan – Moving too fast causes missed detections.

⚠️ Real-World Case: A Colorado homeowner drilled into a wall to mount a mirror—hitting a ½-inch PEX line. Water flooded two floors, causing $18,000 in damage. A $40 scanner would’ve prevented it.

Advanced Techniques for Pros (and Keen DIYers)

• Thermal Imaging: Run hot water for 2 minutes, then scan the wall. Warm streaks reveal pipe locations.
• Tone Generators: Attach to a de-energized wire; use a receiver to trace its path through walls.
• Ground Penetrating Radar (GPR): Used by contractors for deep scans (effective up to 18 inches)—but overkill for most homes.

FAQ Section

Q1: Can I use my smartphone to detect wires or pipes?

No. While some apps claim detection using magnetometers, they lack precision and reliability. Dedicated hardware uses calibrated sensors—your phone cannot match that accuracy.

Q2: Are plastic (PVC/PEX) pipes detectable?

Standard stud finders cannot detect non-metallic pipes. However, high-end wall scanners (like the Walabot) use radar-like tech to spot voids or moisture patterns that suggest plastic lines.

Q3: How deep do electrical wires typically run in walls?

In standard ½-inch drywall, wires sit inside wall cavities, usually ½ to 1½ inches deep. Never assume—they can be closer if improperly installed.

Q4: What if I accidentally nick a wire or pipe?

Stop immediately. For wires: turn off power and call an electrician. For pipes: shut off main water valve and contact a plumber. Even small leaks or frayed insulation pose fire/contamination risks.

Q5: Do building codes require specific wire or pipe depths?

Yes. Per the National Electrical Code (NEC) Article 300.4, cables must be at least 1¼ inches from the edge of studs—or protected by a steel plate if shallower. Plumbing follows similar guidelines under IPC (International Plumbing Code).

Q6: Can I scan walls with tile or plaster?

Yes—but accuracy drops. Tile may block signals; old plaster with lath (wood/metal mesh) causes false positives. Use slower scanning speeds and verify with multiple methods.

Conclusion

Knowing how to locate electrical lines and plumbing in a wall isn’t just about avoiding messes—it’s about protecting your home, your family, and your wallet. With the right tools, a methodical approach, and respect for hidden systems, you can tackle any wall project with confidence.

✅ Key Takeaways:

• Always turn off power before scanning or drilling.
• Invest in a multi-sensor wall scanner—it pays for itself in avoided disasters.
• When in doubt, consult a licensed electrician or plumber.

Found this guide helpful? Share it on Pinterest, Facebook, or X (Twitter) to help fellow DIYers stay safe! Got questions? Drop them in the comments—we read every one.

Stay curious. Stay safe. And never drill blind again.
