How to Lookup the Plumbing Plat for an Apartment Complex

If you’re dealing with a plumbing issue in an apartment complex—or planning renovations—you’ve probably asked yourself: “How do I lookup the plumbing plat for an apartment complex?” Whether you’re a property manager, contractor, or even a curious tenant, accessing these technical documents can save time, money, and prevent costly mistakes. In this guide, we’ll walk you through exactly how to find them—legally, efficiently, and without unnecessary hassle.

What Is a Plumbing Plat (or Plumbing Plan)?

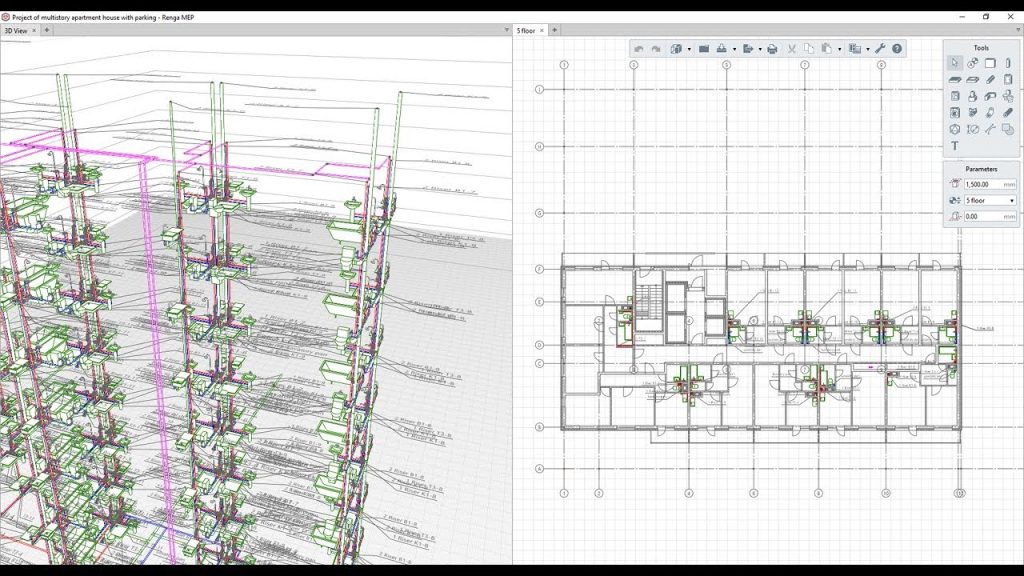

Before diving into the “how,” let’s clarify the “what.” A plumbing plat—more accurately called a plumbing plan or plumbing schematic—is a detailed technical drawing that shows the layout of all water supply lines, drainage pipes, vents, fixtures, and connections within a building.

⚠️ Note: The term “plat” usually refers to land subdivision maps (like lot boundaries). For plumbing systems inside buildings, professionals use terms like blueprints, mechanical plans, or as-built drawings. But many people colloquially say “plumbing plat,” so we’ll use it here for search intent alignment.

These documents are typically created during original construction and updated after major renovations. They’re crucial for:

• Emergency repairs (e.g., burst pipes)
• Renovations or unit remodels
• Compliance with local building codes
• Insurance or legal disputes

According to the International Code Council, all commercial and multi-family residential buildings must maintain accurate mechanical and plumbing documentation on file.

Why Would You Need the Plumbing Plan?

You might need access to plumbing schematics for several valid reasons:

• Leak detection: Pinpoint hidden pipe routes behind walls.
• Adding fixtures: Installing a new sink or washer? You’ll need to tie into existing lines correctly.
• Code compliance: Local inspectors often require proof of compliant plumbing layouts.
• Property purchase: Due diligence before buying a complex may include reviewing infrastructure.
• Tenant disputes: Clarify whether a clog is due to building-wide issues or unit-specific misuse.

A 2023 study by the National Association of Home Builders (NAHB) found that 68% of plumbing-related delays in multi-family projects stemmed from missing or outdated schematics—highlighting just how vital these documents are.

Step-by-Step: How to Lookup the Plumbing Plat for an Apartment Complex

Follow these concrete steps to locate official plumbing plans:

1. Contact the Building Management or Owner

Start with the simplest route. If you’re a tenant or contractor working on-site, ask the property manager or building owner. Most are legally required to keep as-built drawings on file, especially in complexes with 5+ units.

💡 Pro Tip: Submit your request in writing (email counts). Cite safety or maintenance reasons—it increases your chances of a prompt reply.

2. Check With the Local Building Department

Every city or county maintains a permit and plan archive. Since plumbing work requires permits, the original plans were likely submitted here.

How to do it:

• Visit your city/county’s official website (e.g., “Los Angeles Building Department”).
• Look for “Permit Records,” “Plan Review,” or “Public Records Request.”
• Search by address or parcel number (find your parcel number via the county assessor’s site).
• Request “as-built plumbing plans” or “mechanical drawings.”

🕒 Processing Time: Varies by jurisdiction—some cities (like Austin, TX) offer same-day digital access; others may take 3–10 business days.

3. Search Online Public Records Portals

Many municipalities now offer digital archives. Examples:

• New York City: DOB NOW: Build
• Chicago: CHICAGO Building Permit Search
• California: Use CalGOLD for environmental and building records

Enter the apartment complex’s address and filter for “plumbing” or “mechanical” permits issued during construction or major remodels.

4. Hire a Licensed Professional (If Stuck)

If public records are incomplete or redacted, consider hiring a:

• Plumbing engineer
• Building inspector
• Title or records retrieval service

These experts can file formal requests under public records laws (like FOIA at the federal level or state equivalents). Costs range from $75–$300, but it’s often worth it for accuracy.

🔗 For background on public access to building records, see the Wikipedia entry on Freedom of Information Laws.

5. Use On-Site Detection Tools (Last Resort)

If no documents exist, contractors often use pipe locators or thermal imaging cameras to map systems non-invasively. While not a “plat,” this creates a functional substitute.

Common Challenges & How to Overcome Them

Who Legally Has the Right to Access These Plans?

Access depends on your role:

• Property owners: Full access.
• Tenants: Limited—but can request for health/safety reasons (e.g., recurring sewage backups).
• Contractors: Must be hired by the owner or management; often need signed authorization.
• General public: May view redacted versions, but sensitive details (like security systems) are often removed.

Always comply with local privacy and building laws. Unauthorized use of schematics can violate regulations like the International Building Code (IBC) or state-specific landlord-tenant acts.

FAQ Section

Q1: Is a “plumbing plat” the same as a site plat map?

No. A site plat shows property boundaries, easements, and lot dimensions. A plumbing plan shows internal pipe routing. Confusing the two could lead you to the wrong department.

Q2: Can I get plumbing plans for free?

Often, yes—especially from city building departments. Some charge nominal fees for printing or digital copies ($5–$25). Private firms or expedited services cost more.

Q3: What if the apartment was built without permits?

Unpermitted construction complicates things. You may need to commission new as-built drawings via a licensed engineer. This is common in older or informally converted buildings.

Q4: How recent do the plans need to be?

For accuracy, look for plans updated within the last 10 years. Older ones may not reflect renovations. Always ask for the most recent as-built version.

Q5: Can I use these plans for DIY plumbing?

Not recommended. Plumbing work in multi-family buildings almost always requires a licensed professional due to health codes and cross-connection risks. Use the plat for planning—not execution—unless you’re certified.

Q6: Are digital copies legally valid?

Yes! Most jurisdictions accept PDFs or digital blueprints as long as they’re certified by the issuing authority or stamped by a licensed engineer.

Conclusion

Knowing how to lookup the plumbing plat for an apartment complex empowers you to act swiftly during emergencies, plan renovations confidently, and ensure compliance with local codes. Whether you go through building management, your city’s permit office, or a licensed pro, the key is persistence and knowing where to look.

Don’t let outdated or missing plans stall your project. With the steps above, you’re equipped to find what you need—legally and efficiently.

👉 Found this guide helpful? Share it on Facebook, LinkedIn, or X (Twitter) to help fellow property managers, landlords, and contractors save time and avoid plumbing headaches!
