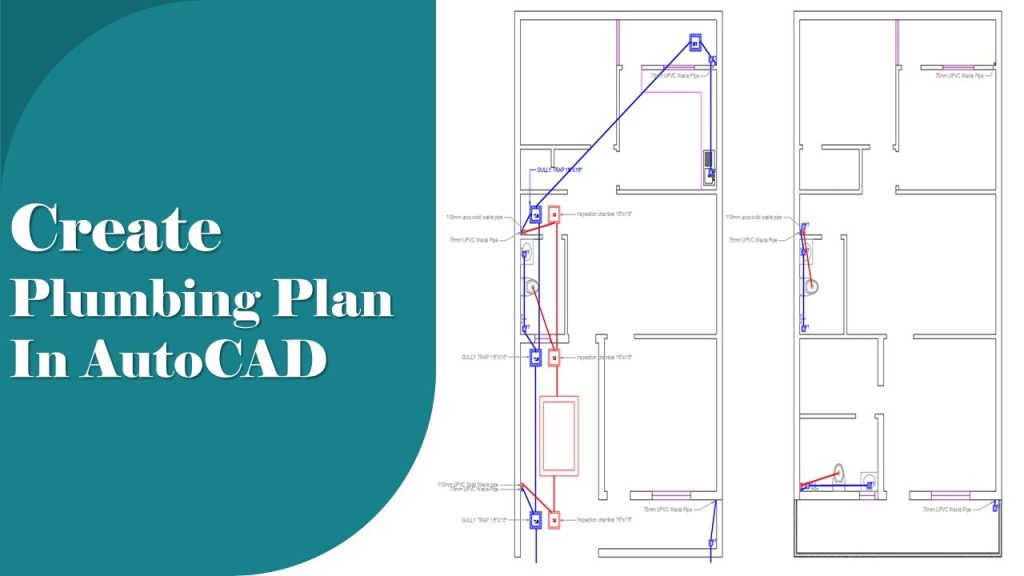

How to Make a Plumbing Plan for a House in AutoCAD 2016

Designing a plumbing system for a residential building might seem overwhelming—especially if you’re new to CAD software. But with the right guidance, how to make a plumbing plan for a house in AutoCAD 2016 becomes a manageable and even rewarding task. Whether you’re an architecture student, a DIY enthusiast, or a junior engineer, this guide will walk you through every essential step while keeping your design accurate, code-compliant, and efficient.

Why Use AutoCAD 2016 for Plumbing Plans?

AutoCAD 2016 remains a trusted tool in the AEC (Architecture, Engineering, and Construction) industry due to its precision, layer management, and compatibility with older systems. While newer versions exist, many firms and educators still rely on AutoCAD 2016—especially in regions where software licensing costs are a concern.

According to Autodesk’s 2015 user survey (the last full report before 2016’s release), over 68% of civil and MEP engineers used AutoCAD as their primary drafting tool. Its robust 2D drafting capabilities make it ideal for creating detailed plumbing schematics—even without advanced BIM features.

💡 Pro Tip: AutoCAD 2016 supports DWG files that are backward- and forward-compatible, ensuring your plumbing plans can be shared across teams using different versions.

What Is a Plumbing Plan? (And Why It Matters)

A plumbing plan is a technical drawing that shows the layout of all water supply, drainage, venting, and fixture connections in a building. It’s not just about pipes—it’s about safety, efficiency, and compliance with local plumbing codes (like the IPC—International Plumbing Code).

Without a proper plan:

• You risk costly rework during construction.
• Fixtures may be poorly placed, reducing usability.
• Drainage slopes could be incorrect, leading to clogs or backups.

For reference, the International Plumbing Code (IPC) sets minimum standards for pipe sizing, venting, and fixture spacing—always consult your local authority, as codes vary by state.

Step-by-Step: How to Make a Plumbing Plan for a House in AutoCAD 2016

Follow these concrete steps to create a professional-grade plumbing plan:

Step 1: Set Up Your Drawing Environment

1. Open AutoCAD 2016 and start a new drawing (File > New > acad.dwt).
2. Set units: Type UNITS → Choose Decimal, Feet or Inches (U.S. standard), and set precision to 0.00.
3. Create layers (critical for organization):
   • PLUMB-WATER (color: blue)
   • PLUMB-DRAIN (color: red)
   • PLUMB-VENT (color: green)
   • FIXTURES (color: magenta)
   • ANNOTATIONS (color: white)

📌 Why layers matter: The National Institute of Building Sciences reports that projects using organized layer standards reduce errors by up to 30%.

Step 2: Import or Draw the Architectural Floor Plan

• If you have an existing floor plan (PDF or DWG), use INSERT > PDF Underlay or XREF to trace over it.
• If starting from scratch, draw walls using the LINE or PLINE command at standard residential thickness (e.g., 6″ or 0.5 ft).

Step 3: Place Plumbing Fixtures

Use blocks or draw manually:

• Toilets: Standard rough-in distance = 12″ from wall to center of flange.
• Sinks: Typically 20–24″ wide; place near water supply lines.
• Showers/Tubs: Minimum 36″x36″ for showers; tubs usually 60″x32″.

✅ Best Practice: Keep fixtures aligned with structural elements (e.g., avoid placing a toilet above a garage unless supported).

Step 4: Draw Water Supply Lines

• Use blue lines on the PLUMB-WATER layer.
• Cold water: solid line. Hot water: dashed line (create a custom linetype if needed).
• Pipe sizes (typical U.S. residential):
  • Main supply: ¾” or 1″
  • Branch lines to fixtures: ½”

⚠️ Maintain minimum 10 psi pressure at all fixtures—oversizing pipes isn’t always better.

Step 5: Design Drain-Waste-Vent (DWV) System

• Drain pipes (red): Slope at ¼” per foot (2% gradient) toward the main sewer.
• Vent pipes (green): Must extend above roofline; tie into drain within 5 ft of trap (per IPC).
• Use sanitary tees, not regular tees, for vertical-to-horizontal transitions.

(Source: IPC Chapter 7 & 9)

Step 6: Add Annotations and Dimensions

• Use MLEADER for fixture labels (e.g., “LAV” for lavatory).
• Dimension pipe runs and fixture locations with DIMLINEAR.
• Include a legend and notes (e.g., “All slopes ¼”/ft”).

Step 7: Check & Export

• Run AUDIT and PURGE to clean the file.
• Save as .DWG and export a PDF via PLOT (choose monochrome.ctb for printing).

Common Mistakes to Avoid

Even experienced drafters slip up. Here’s what to watch for:

• ❌ Ignoring slope requirements → leads to slow drainage.
• ❌ Mixing supply and drain layers → causes confusion during construction.
• ❌ Placing vents too far from traps → risks siphoning and sewer gas entry.
• ❌ Not labeling pipe sizes → contractors may guess incorrectly.

🛠️ Real-world example: A 2019 case in Texas required $12,000 in rework because vent pipes were omitted from the plan—highlighting why detail matters.

Tools & Resources to Speed Up Your Workflow

• AutoCAD Tool Palettes: Save fixture blocks for reuse.
• Express Tools: Use TCASE to change text case quickly in labels.
• Online Symbol Libraries: Search for “AutoCAD plumbing symbols dwg free” (ensure they’re IPC-compliant).

While AutoCAD 2016 lacks built-in plumbing design tools (unlike AutoCAD MEP), disciplined layering and block usage compensate effectively.

FAQ Section

Q1: Can I create a plumbing plan in AutoCAD 2016 without AutoCAD MEP?

A: Yes! AutoCAD 2016’s core 2D drafting tools are sufficient for basic to intermediate plumbing plans. AutoCAD MEP adds automation (like pipe routing), but it’s not required for residential projects.

Q2: What scale should I use for a residential plumbing plan?

A: Use 1/4″ = 1’–0″ (1:48) for most single-family homes. This provides enough detail without overcrowding the sheet.

Q3: Do I need to show both supply and drainage on the same plan?

A: Typically, yes—residential plans combine both on one sheet. For large buildings, separate sheets are used, but for houses, a combined plan is standard and clearer.

Q4: How do I indicate pipe materials in AutoCAD 2016?

A: Use layer colors, linetypes, or add a material column in your legend (e.g., “CPVC – Blue”, “PVC – White”). You can also use text notes near key runs.

Q5: Is AutoCAD 2016 still supported by Autodesk?

A: No—mainstream support ended in 2020. However, it remains fully functional for drafting. Just ensure your OS is compatible (Windows 10 is the last officially supported version).

Q6: Can I convert my plumbing plan to a 3D model later?

A: Not directly in AutoCAD 2016. But you can import your 2D plan into Revit or AutoCAD MEP for 3D coordination if needed.

Conclusion

Mastering how to make a plumbing plan for a house in AutoCAD 2016 empowers you to contribute meaningfully to construction projects—whether you’re in school, freelancing, or working at a firm. With clear layers, code-aware design, and attention to slope and fixture placement, your drawings will stand out for their clarity and professionalism.

✅ You’ve now got a battle-tested workflow—from setup to export—that aligns with industry standards and real-world expectations.
