If you’ve ever struggled with airflow direction in a pneumatic system or irrigation setup, you’re not alone. Many DIYers and technicians face confusion when installing a 3-way 2-position air valve—especially if it’s your first time. Getting the plumbing right is crucial for performance, safety, and longevity. In this guide, we’ll walk you through exactly how to plumb a 3-way 2-pos air valve, step by step, so you can avoid common mistakes and get reliable results.
What Is a 3-Way 2-Position Air Valve?

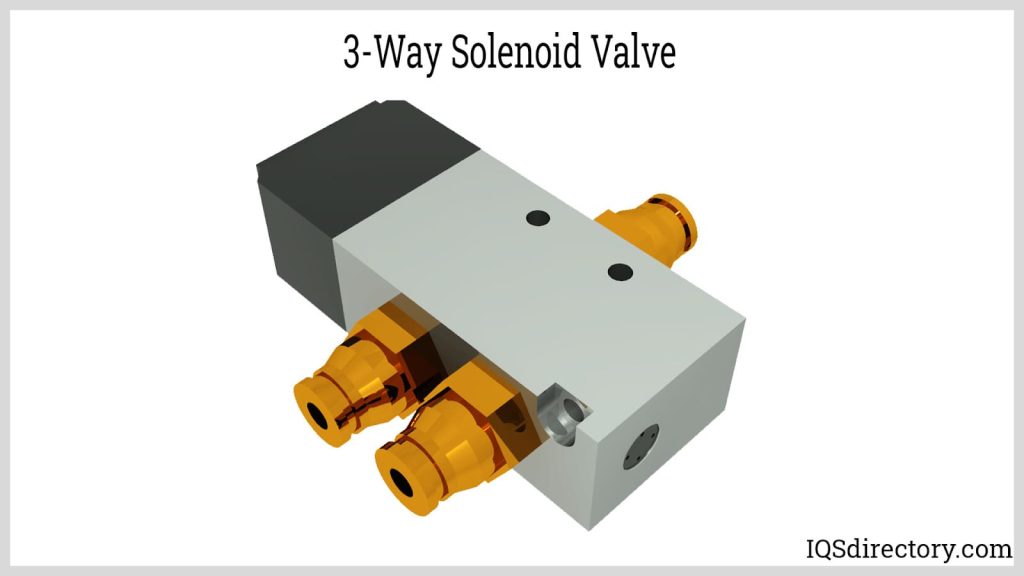

A 3-way 2-position (3/2) air valve is a directional control valve with three ports and two operational states. It’s commonly used in pneumatic systems to control the flow of compressed air to actuators, cylinders, or other components.
Three ports: Typically labeled as P (Pressure/Inlet), A (Outlet/Actuator), and R or E (Exhaust/Return).
Two positions: The valve shifts between two states—often “open” and “closed”—via manual, solenoid, or mechanical actuation.
According to Fluid Power Journal, over 68% of industrial pneumatic failures stem from improper valve installation or misplumbing. That’s why understanding your valve’s function is the first step toward success.
💡 Pro Tip: Always check your valve’s schematic (usually printed on the body or in the manual). A 3/2 valve can be normally open (NO) or normally closed (NC)—this affects how you connect it.
Compressed air source (regulated to 60–90 PSI for testing)
⚠️ Safety First: Always depressurize your system before working on it. Wear safety glasses.
Step-by-Step: How to Plumb a 3-Way 2-Pos Air Valve
Follow these steps carefully—even small errors can cause big problems.
Step 1: Identify the Valve Ports
Locate and label the three ports:
P (Pressure): Connects to your air supply.
A (Actuator): Goes to your cylinder or device.
R/E (Exhaust): Vents air to atmosphere (may have a muffler).
Example: On a normally closed (NC) 3/2 valve:
De-energized state: P is blocked; A vents to R.
Energized state: P connects to A; R is closed.
Step 2: Prepare the Tubing
Cut tubing cleanly with a tubing cutter.
Deburr the ends to prevent airflow restriction.
Slide fittings onto tubing before inserting into valve ports.
Step 3: Apply Thread Sealant (If Needed)
For NPT (tapered) threaded ports, wrap 2–3 layers of Teflon tape clockwise.
For push-to-connect or metric ports, no sealant is needed—just insert tubing firmly.
Step 4: Connect the Lines
Port
Connection
P
To regulated air supply (60–90 PSI typical)
A
To the cylinder’s single port (for single-acting cylinders)
R/E
Leave open to atmosphere or attach a silencer
📌 Note: In single-acting cylinder setups, the spring returns the piston—so you only need air in one direction. That’s where a 3/2 valve shines.
Step 5: Test the System
Slowly pressurize the system.
Actuate the valve (manually or electrically).
Observe:
Does the cylinder extend/retract smoothly?
Is there hissing at exhaust? (Normal—but excessive noise may mean a leak.)
Check for pressure drops using a gauge.
If the cylinder doesn’t move, double-check port orientation and power supply (for solenoid valves).
Common Mistakes to Avoid
Mistake
Consequence
Fix
Reversing P and A ports
Cylinder won’t operate
Swap lines; verify schematic
Blocking the exhaust port
Trapped air, slow return
Never cap the R/E port
Over-tightening fittings
Cracked ports or leaks
Hand-tight + ¼ turn with wrench
Using wrong tubing size
Flow restriction
Match OD to valve specs (e.g., 6mm)
When to Use a 3/2 Valve vs Other Types
Not all valves are equal. Here’s a quick comparison:
Valve Type
Ports/Positions
Best For
2/2
2 ports, 2 positions
Simple on/off (e.g., blowing air)
3/2
3 ports, 2 positions
Single-acting cylinders, blow-off circuits
4/2 or 5/2
4–5 ports, 2 positions
Double-acting cylinders
✅ Use a 3/2 valve when: You need to power a device in one direction and let a spring (or gravity) return it.
Real-World Example: Automating a Door Closer
A small workshop installed a 3/2 solenoid valve to automate a safety gate.
P → Shop air line (80 PSI)
A → Single-acting cylinder on gate hinge
R → Fitted with a foam muffler
Result: The gate opens on command and closes automatically via spring. No leaks, no delays—just reliable operation.
FAQ Section
Q1: Can I use a 3-way 2-pos valve for water instead of air?
A: Generally, no. Most 3/2 air valves are designed for dry, clean compressed air. Water can cause corrosion, seal swelling, or failure. Use a fluid-rated valve (e.g., brass or stainless steel with EPDM seals) if plumbing liquids.
Q2: What’s the difference between “normally open” and “normally closed”?
A:
Normally Closed (NC): Air flows only when actuated (most common).
Normally Open (NO): Air flows by default; stops when actuated. Choose based on safety—if power fails, do you want the cylinder to retract (NC) or stay extended (NO)?
Q3: Do I need a regulator before the valve?
A: Yes, highly recommended. Unregulated shop air (often 100+ PSI) can damage valves rated for 80–90 PSI max. A regulator also improves consistency.
Q4: Why is my valve making a loud clicking noise?
A: Solenoid valves click during switching—that’s normal. But if it’s excessively loud or chattering, check:
Voltage (must match valve rating, e.g., 24V DC)
Dirt in the spool (clean or replace)
Loose mounting
Q5: Can I daisy-chain multiple 3/2 valves?
A: Yes, but ensure your air compressor can handle the total CFM demand. Oversizing the main line (e.g., ½” tubing) helps maintain pressure.
Q6: How often should I maintain the valve?
A: Inspect every 6 months. Replace filters, drain moisture traps, and check for worn seals. In dirty environments, maintenance may be needed quarterly.
Conclusion
Now you know exactly how to plumb a 3-way 2-pos air valve—safely, efficiently, and correctly. Whether you’re automating a hobby project or maintaining industrial equipment, proper installation saves time, energy, and money.
✅ Key takeaways:
Match port labels to your system’s needs
Never block the exhaust
Test under low pressure first
