If you’re working on a pneumatic system—whether for industrial automation, DIY robotics, or custom machinery—you’ve likely encountered the 4-way 2-position (4/2) air valve. But how to plumb a 4-way 2-pos air valve correctly? One wrong connection can cause system failure, wasted energy, or even safety hazards. Don’t worry—this guide walks you through every step clearly, safely, and efficiently, even if you’re new to pneumatics.
What Is a 4-Way 2-Position Air Valve?
A4-way 2-position (4/2) air valve is a directional control valve that manages airflow to double-acting pneumatic actuators (like cylinders). It has:
4 ports:
P (Pressure/Inlet)
A and B (Outlet to actuator ends)
R and S (Exhaust ports—sometimes combined as one)
2 positions: The valve shifts between two states (e.g., “extend” and “retract”) via manual, solenoid, or pneumatic actuation.
These valves are essential in systems where you need controlled linear motion—think factory assembly lines, packaging machines, or automated doors.
💡 Fun Fact: According to the Fluid Power Journal, over 70% of industrial pneumatic systems use 4/2 or 5/2 valves due to their reliability and simplicity.
Air leaks → wasted energy (compressed air costs ~$0.25–$0.30 per 1,000 SCF)
Premature valve wear
System downtime
A study by the U.S. Department of Energy found that up to 30% of compressed air is lost to leaks and poor design—much of it preventable with proper valve installation.
Tools & Materials You’ll Need
Before you start, gather:
4-way 2-pos air valve (e.g., Norgren, SMC, or Festo model)
Teflon tape or pipe thread sealant
Air tubing (polyurethane or nylon, sized to your system—commonly 4mm, 6mm, or 1/4″)
Push-to-connect or NPT fittings
Adjustable wrench or pliers
Compressed air source (regulated to 60–90 PSI for testing)
Safety glasses
✅ Pro Tip: Always depressurize the system before working on it. Safety first!
Step-by-Step: How to Plumb a 4-Way 2-Pos Air Valve
Follow these steps carefully. We’ll assume a solenoid-operated, spring-return 4/2 valve (most common type).

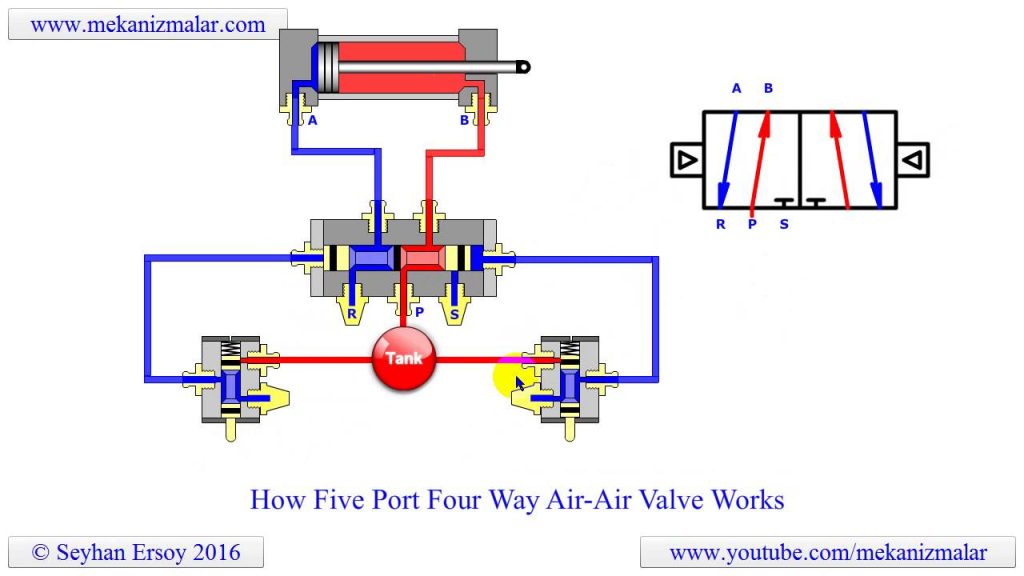

Step 1: Identify the Ports
Check the valve body for labels:
P = Air supply inlet
A and B = Cylinder ports
R = Exhaust for A side
S = Exhaust for B side
Note: Some valves combine R and S into a single exhaust port.
Step 2: Connect the Air Supply
Attach your regulated air line (60–90 PSI typical) to the P port.
Use Teflon tape on NPT threads or push-to-connect fittings for tube connections.
Ensure no kinks in the supply line.
Step 3: Connect to the Double-Acting Cylinder
Connect Port A to one end of the cylinder (e.g., rod-end).
Connect Port B to the other end (cap-end).
Important: Reversing A and B will reverse cylinder motion—but won’t damage the system. Test and adjust if needed.
Step 4: Handle Exhaust Ports
R and S should vent to atmosphere.
In noisy environments, attach exhaust silencers to reduce sound.
Never cap exhaust ports—this traps pressure and prevents movement.
Step 5: Power & Test
Energize the solenoid (if electric) or shift the lever (if manual).
Observe cylinder movement:
De-energized: Spring returns valve to default position (e.g., cylinder retracts)
Energized: Air flows to extend cylinder
Listen for hissing (indicates leaks). Tighten fittings if needed.
🔧 Real-World Example: A Midwest auto parts plant reduced downtime by 40% after retraining staff on proper 4/2 valve plumbing—fixing chronic miswiring and reversed A/B lines.
Common Mistakes to Avoid
Mistake
Consequence
Fix
Capping exhaust ports
Cylinder won’t move
Leave exhaust open or add silencer
Reversed A/B lines
Cylinder moves opposite direction
Swap A and B tubing
Over-tightening fittings
Cracked ports or leaks
Hand-tight + 1/4 turn with wrench
Using wrong tube size
Restricted airflow
Match tube OD to valve specs (e.g., 6mm)
Maintenance Tips for Longevity
Drain air filters weekly to prevent moisture damage.
Inspect seals every 6 months—replace if cracked.
Lubricate if using non-lubricated air (check valve specs).
Cycle the valve monthly if unused to prevent sticking.
FAQ Section
Q1: Can I use a 4-way 2-pos valve with a single-acting cylinder?
A: Technically yes, but it’s inefficient. Single-acting cylinders only need 3 ports (supply, actuator, exhaust). A 3/2 valve is better suited and cheaper. Using a 4/2 wastes one outlet and adds unnecessary complexity.
Q2: What’s the difference between a 4/2 and a 5/2 valve?
A: A 5/2 valve has two separate exhaust ports (one for each cylinder side), allowing independent exhaust flow control (e.g., with flow control valves). A 4/2 often shares or combines exhausts. For precise speed control, choose 5/2.
Q3: My cylinder moves slowly—what’s wrong?
A: Likely causes:
Undersized tubing restricting airflow
Low system pressure (<60 PSI)
Partially blocked exhaust port
Worn cylinder seals
Check airflow path and pressure at the valve inlet.
Q4: Do I need a regulator on the valve?
A: Not directly on the valve—but your main air line should be regulated (typically 60–90 PSI). Excessive pressure (>100 PSI) can damage standard valves and actuators.
Q5: Can I plumb multiple valves from one air source?
A: Yes! Use a manifold or air distribution block. Just ensure your compressor can handle the total CFM demand. Oversizing the supply line prevents pressure drops.
Q6: Are 4/2 valves suitable for food-grade applications?
A: Only if rated for it. Look for stainless steel bodies, FDA-approved seals, and IP65+ ratings. Brands like Parker and Bürkert offer hygienic pneumatic valves.
Conclusion
Now you know exactly how to plumb a 4-way 2-pos air valve—safely, efficiently, and correctly. Whether you’re automating a garage project or maintaining factory equipment, proper installation saves time, energy, and money.
✅ Key Takeaways:
Match ports correctly (P, A, B, R/S)
Never block exhausts
Test at low pressure first
Maintain regularly
