How To Plumb A Drain For A Bathroom Sink: Easy DIY Guide

Is your bathroom sink draining slowly, or are you installing a new vanity and feeling overwhelmed by the pipes underneath? You are not alone. Plumbing issues are among the most common home maintenance challenges, but fixing them doesn’t always require calling an expensive professional. Understanding how to plumb a drain for a bathroom sink can save you hundreds of dollars and give you the confidence to tackle future repairs. In this guide, we will walk you through the process with clarity and precision, ensuring a leak-free result.

Why Proper Drainage Matters More Than You Think

Before we pick up a wrench, it is crucial to understand why getting this right is essential. A poorly installed drain isn’t just an eyesore; it is a health hazard. According to the Centers for Disease Control and Prevention (CDC), proper plumbing prevents the backflow of sewage gases and contaminants into your living space.

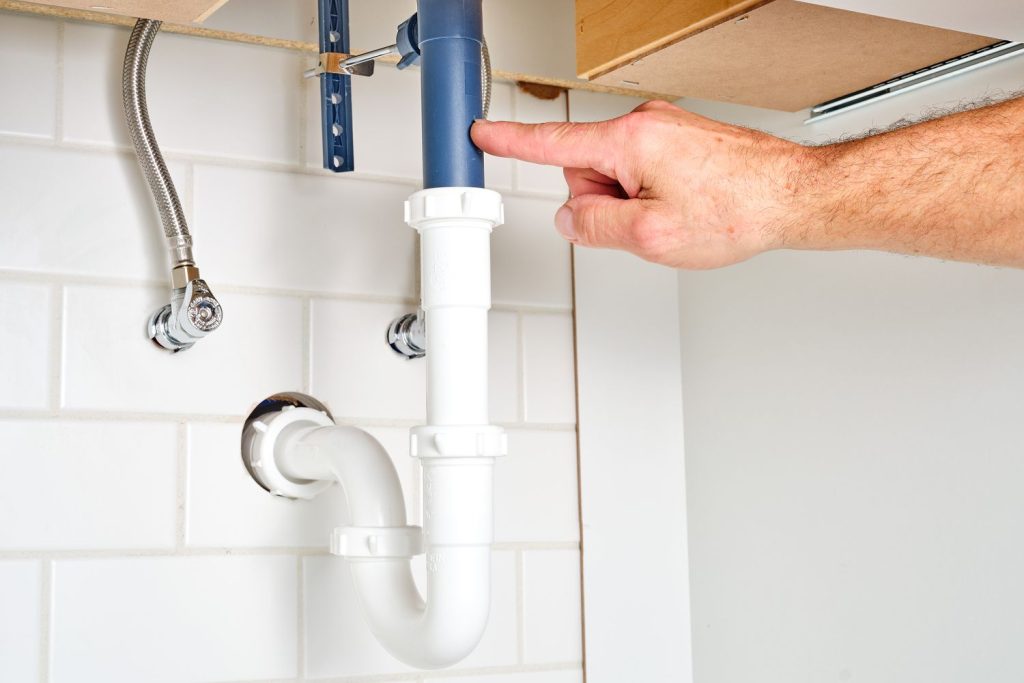

The core component of this system is the P-trap. This U-shaped pipe holds a small amount of water that acts as a seal, blocking sewer gases from entering your home while allowing waste water to flow out. If installed incorrectly, you risk foul odors, slow drainage, and potential water damage to your cabinetry.

Tools and Materials You Will Need

Preparation is half the battle. Having the right tools on hand prevents mid-project trips to the hardware store. Here is your checklist:

• Adjustable Wrenches (2): One for holding nuts steady, one for tightening.
• Pipe Cutter or Hacksaw: For trimming PVC or ABS pipes to length.
• Teflon Tape (Plumber’s Tape): Essential for creating watertight threads.
• Slip-Joint Washers: Usually included in drain kits, but have spares.
• Bucket and Towels: To catch residual water and protect your floor.
• New Drain Kit: Ensure it matches your sink type (pop-up vs. grid strainer).

Pro Tip: Always buy a high-quality chrome or brass drain kit. Cheap plastic fittings may crack over time due to temperature changes from hot water usage.

Step 1: Removing the Old Drain Assembly

If you are replacing an existing drain, safety and cleanliness come first.

1. Clear the Area: Remove all items from under the sink. Place your bucket directly beneath the P-trap.
2. Loosen the Slip Nuts: Using your adjustable wrench, loosen the slip nuts connecting the P-trap to the tailpiece (the vertical pipe coming from the sink) and the wall drain. Note: Turn counter-clockwise.
3. Remove the P-Trap: Once loose, unscrew them by hand. Water will spill into your bucket—this is normal.
4. Detach the Old Drain: From above the sink, unscrew the old drain flange. You may need pliers if it is corroded. Clean the area around the sink hole thoroughly with a rag and mild cleaner.

Step 2: Installing the New Drain Body

This step requires precision from both above and below the sink.

1. Apply Plumber’s Putty or Silicone: Roll a rope-sized amount of plumber’s putty around the underside of the new drain flange. Alternatively, use silicone sealant for stone or composite sinks where putty might stain.
2. Insert the Flange: Drop the flange into the sink hole from the top.
3. Secure from Below: From underneath, slide the rubber gasket onto the threaded body, followed by the metal friction ring and the locking nut.
4. Tighten Evenly: Hold the flange steady from the top so it doesn’t spin. Tighten the locking nut from below until snug. Do not overtighten, as this can crack the sink or distort the gasket, causing leaks. Wipe away excess putty that squeezes out.

Step 3: Connecting the Tailpiece and P-Trap

Now we connect the internal plumbing. This is where most DIYers make mistakes, so pay close attention to the orientation of the washers.

The Importance of Washer Orientation

A common error is installing slip-joint washers backward. The tapered side of the washer must face toward the nut, not toward the pipe joint. This ensures a tight seal when compressed.

1. Attach the Tailpiece: Slide a slip nut and washer onto the tailpiece. Insert the tailpiece into the bottom of the new drain body. Tighten the nut by hand, then give it a quarter-turn with pliers.
2. Measure and Cut: Measure the distance from the bottom of the tailpiece to the wall drain pipe. You may need to cut the PVC pipe to fit. Use a hacksaw for a clean cut and deburr the edges with sandpaper.
3. Assemble the P-Trap: Connect the curved P-trap piece to the tailpiece and the wall arm. Ensure the “U” shape faces downward to hold water. Hand-tighten all slip nuts first.

Step 4: Final Adjustments and Leak Testing

Never assume the job is done until you have tested it.

1. Align Everything: Ensure all pipes are aligned naturally. Do not force pipes into place; if they don’t line up, you may need to adjust the length of the tailpiece or wall arm. Forced alignment leads to stress cracks and leaks later.
2. Tighten Securely: Once aligned, tighten all slip nuts firmly. Remember, plastic nuts do not need excessive force. Snug is sufficient.
3. The Water Test: Plug the sink and fill it with about 2 liters of water. Place a dry paper towel under each connection.
4. Release and Observe: Pull the plug. Watch the joints closely. Check the paper towels for any moisture.
5. Run Hot Water: Run hot water for 30 seconds. Heat expands materials, which can sometimes reveal leaks that cold water misses.

If you see a drip, tighten that specific nut slightly. If it persists, disassemble, check the washer orientation, and reassemble.

Troubleshooting Common Issues

Even with careful work, issues can arise. Here is how to handle them:

• Slow Drainage: This usually indicates a blockage or an improperly vented pipe. Ensure no debris fell into the pipe during installation. If the problem persists, check your home’s main vent stack.
• Gurgling Sounds: This suggests air is being pulled through the trap, breaking the water seal. It often points to a venting issue in the main plumbing system rather than the sink itself.
• Persistent Leaks: If tightening doesn’t stop the leak, the washer may be defective or the pipe threads may be stripped. Replace the washer and ensure the threads are clean.

FAQ Section

Q1: Can I use flexible P-traps instead of rigid ones?

A: While flexible P-traps are easier to install because they bend to fit awkward spaces, they are more prone to clogging. Debris can get caught in the ridges of the flexible tubing. Rigid PVC or ABS pipes are recommended for better long-term performance and easier cleaning.

Q2: How tight should I make the plastic slip nuts?

A: Plastic nuts should be tightened by hand until they are snug, then given an additional quarter to half turn with a wrench. Overtightening can crack the plastic or deform the washer, leading to leaks. If it feels like you are using significant force, you are likely going too far.

Q3: What is the standard height for a bathroom sink drain?

A: The standard height for the drain outlet in the wall is typically between 18 and 20 inches from the finished floor. However, this can vary based on the vanity design. Always measure your specific setup before cutting pipes.

Q4: Do I need to use Teflon tape on slip-joint connections?

A: No. Slip-joint connections rely on the compression of the rubber or plastic washer against the pipe to create a seal. Teflon tape is used for threaded iron or brass connections, not for slip nuts. Using tape here can actually prevent the washer from seating properly.

Q5: Why does my sink smell like sewer gas after installation?

A: This indicates the P-trap is not holding water. Check if the trap was installed upside down or if there is a crack in the assembly. Also, ensure the vent pipe is not blocked, as negative pressure can siphon the water out of the trap.

Q6: Is it necessary to replace the pop-up assembly?

A: If your old pop-up mechanism is corroded or stiff, yes. It is much easier to replace it while the sink is accessible. Modern pop-up assemblies are inexpensive and significantly improve the usability of your sink.

Conclusion

Learning how to plumb a drain for a bathroom sink is a valuable skill that empowers you to maintain your home efficiently. By following these steps—preparing the right tools, respecting washer orientation, and testing thoroughly—you can achieve a professional-grade result without the professional price tag.

Remember, patience is key. Rushing the tightening process or ignoring minor misalignments can lead to costly water damage later. Take your time, double-check your work, and enjoy the satisfaction of a job well done.
