Remodeling a bathroom can feel overwhelming, especially when you are dealing with tight spaces and complex water lines. Many homeowners worry that installing a sleek, modern enclosure in a cramped area requires a massive budget or professional intervention from day one. However, knowing how to plumb a glass shower in a corner can empower you to plan effectively, avoid costly mistakes, and achieve a spa-like aesthetic without the stress. This guide breaks down the process into manageable steps, ensuring your new shower is both beautiful and leak-free.
Why Choose a Corner Glass Shower?
Before diving into the pipes and fittings, it is essential to understand why this specific configuration is a top choice for US homeowners. Corner showers maximize floor space, making them ideal for smaller bathrooms or master suites where every square foot counts.
According to recent housing trends, open-concept bathrooms with frameless glass elements increase perceived space by up to 30%. Unlike bulky acrylic units, glass allows light to flow freely, creating an airy atmosphere. However, the plumbing complexity increases because you are working with two walls instead of one. Proper planning here is the difference between a dream bathroom and a maintenance nightmare.
Step 1: Assessing Your Space and Rough-In Requirements
The first step in learning how to plumb a glass shower in a corner is evaluating your existing infrastructure. You cannot simply place a glass panel anywhere; the water supply and drain must align perfectly with your design.
Key Measurements to Take
- Wall Angle: Most corners are 90 degrees, but older homes may have slight variations. Use a digital angle finder to confirm.
- Drain Location: Is your drain centered, offset, or in the corner? This dictates the type of base you can use.
- Water Pressure: Ensure your home’s water pressure is between 40–60 PSI. High pressure can stress glass seals over time.
Pro Tip: If you are moving the drain, consult local building codes. In many US states, moving a drain requires a permit and inspection to ensure proper slope and venting.
Step 2: Choosing the Right Valve and Fixtures
The heart of your shower is the valve. For a corner installation, you have two primary options: a standard single-handle mixer or a thermostatic valve.
| Feature | Standard Mixer Valve | Thermostatic Valve |
|---|---|---|
| Cost | $50 – $150 | $150 – $400+ |
| Temperature Control | Manual adjustment | Automatic stabilization |
| Safety | Basic | Prevents scalding |
| Best For | Budget remodels | Luxury & family safety |
For a high-end glass shower, we recommend a thermostatic valve. It maintains a consistent temperature even if someone flushes a toilet elsewhere in the house. This stability reduces thermal shock to the glass seals and provides a safer experience.
When selecting fixtures, consider a corner-mounted shower arm. This allows the showerhead to extend into the center of the stall, providing better coverage than a wall-mounted unit tucked into the angle.
Step 3: Preparing the Walls for Glass Installation
Glass panels are heavy and require solid backing. You cannot mount tempered glass directly onto drywall or thin tile backer board without reinforcement.
Reinforcement Strategy
- Install Blocking: Before tiling, install 2×4 wooden blocking between the studs exactly where the glass clamps will sit. This should be at least 1.5 inches thick.
- Waterproofing: Apply a liquid waterproofing membrane (such as RedGard) over the cement board. Pay extra attention to the corner seams. Use fiberglass mesh tape to reinforce these joints.
- Tile Selection: Choose tiles that are flat and uniform. Large-format tiles can be tricky in corners due to lippage. Rectified porcelain is often the best choice for a clean, modern look.
For more detailed information on construction standards and material safety, you can refer to general building guidelines on Wikipedia.
Step 4: The Plumbing Process – Step-by-Step
Now, let’s get into the technical details of how to plumb a glass shower in a corner. Follow these steps carefully to ensure a watertight system.
1. Shut Off Water and Demolition
Turn off the main water supply. Remove old fixtures and inspect the existing pipes for corrosion. If you see green buildup on copper pipes, replace that section.
2. Install the Valve Body
Cut into the stud bay where the valve will go. Connect the hot and cold water lines to the valve body using soldered copper or PEX crimp connections. Ensure the valve is level.
- Detail: Use Teflon tape on all threaded connections. Wrap it clockwise, 3–4 times, to prevent leaks.
3. Run the Shower Arm
Extend a pipe from the valve up to the desired height for the showerhead. In a corner, this pipe usually comes out of one wall. Use a 90-degree elbow to direct the arm outward.
- Height Standard: The standard height for a showerhead is 72–78 inches from the floor.
4. Pressure Test
Before closing the walls with tile backer board, turn the water back on and check for leaks. Let the water run for 10 minutes. Inspect every joint. If you see even a small drip, fix it now. Fixing a leak behind tiled walls later is exponentially more expensive.
5. Install the Drain Assembly
Connect the drain shoe to the waste pipe. Use plumber’s putty or a rubber gasket (depending on the manufacturer’s instructions) to seal the drain flange to the shower base. Tighten the locking nut securely but do not overtighten, as this can crack the PVC.
Step 5: Installing the Glass Enclosure
Once the plumbing is tested and the tiles are grouted and cured (wait at least 48–72 hours), you can install the glass.
Types of Corner Configurations
- Neo-Angle: A three-sided unit with a diagonal front door. Best for very small corners.

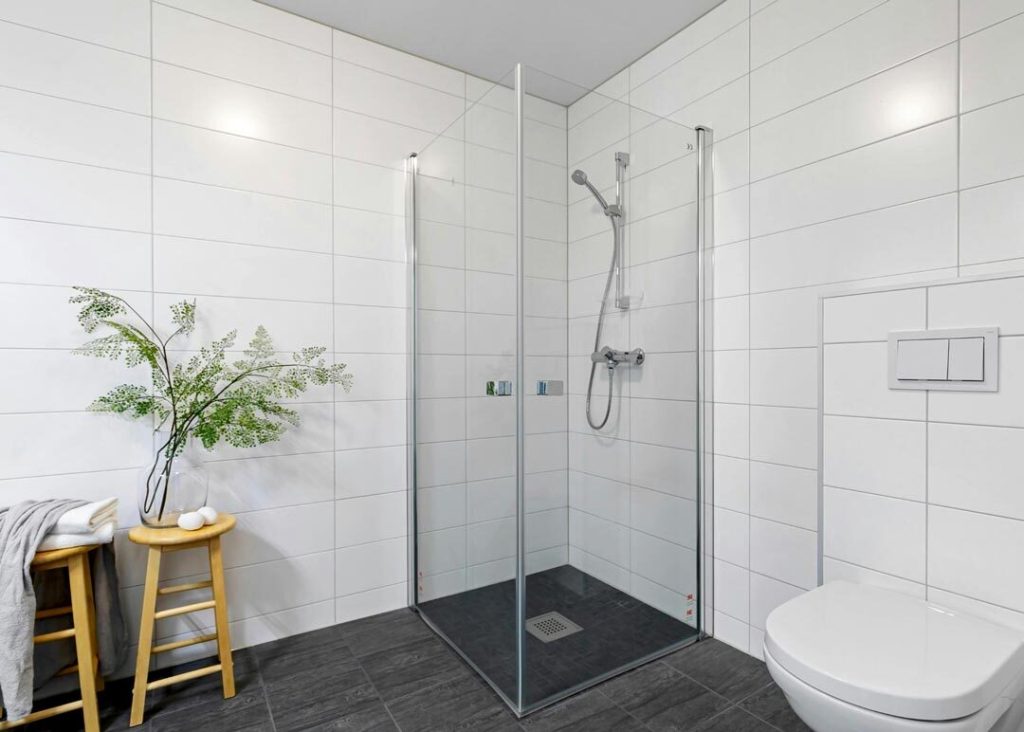

- Square Corner: Two fixed glass panels meeting at 90 degrees with a sliding or pivot door. Offers a more luxurious, spacious feel.
Installation Tips
- Use Shims: Glass panels must be perfectly plumb. Use plastic shims under the base channels to adjust the height.
- Silicone Sealant: Use 100% silicone sealant rated for bathrooms. Apply a continuous bead along the inside edges where the glass meets the tile. Smooth it with a wet finger or tool for a professional finish.
- Clamp Alignment: Ensure the metal clamps are aligned symmetrically. Uneven clamps can create stress points that may cause the tempered glass to shatter.
Common Mistakes to Avoid
Even experienced DIYers make errors. Here are the most common pitfalls when figuring out how to plumb a glass shower in a corner:
- Ignoring the Slope: The shower floor must slope toward the drain at a rate of 1/4 inch per foot. If the slope is incorrect, water will pool, leading to mold and mildew.
- Using the Wrong Silicone: Never use acrylic caulk in a shower. It will peel and mold within months. Always use 100% silicone.
- Skipping the Blocking: Mounting glass directly to tile without wood backing is a recipe for disaster. The screws will pull out over time due to the weight and vibration of the door.
FAQ Section
Q: Can I install a glass shower in a corner if my drain is not in the corner?
A: Yes, but it requires careful planning. You may need to use a linear drain along one wall or extend the existing drain pipe. If the drain is too far away, you might need to raise the shower floor to accommodate the necessary slope, which could require a step-up entry.
Q: Do I need a permit to plumb a shower?
A: In most US jurisdictions, yes. Moving water lines or drains typically requires a plumbing permit. Check with your local building department. Failure to obtain a permit can void your home insurance and cause issues when selling your home.
Q: What is the minimum size for a corner glass shower?
A: The International Residential Code (IRC) requires a minimum interior dimension of 30×30 inches for a shower stall. However, for comfort and ease of cleaning, a 36×36 inch or larger neo-angle shower is recommended.
Q: How thick should the glass be?
A: For frameless or semi-frameless corner showers, use tempered glass that is at least 3/8-inch (10mm) thick. Thinner glass (1/4-inch) is less stable and more prone to flexing, which can compromise the seals.
Q: Can I do this project myself, or should I hire a plumber?
A: If you have experience with soldering copper or crimping PEX, you can handle the plumbing. However, if you are unsure about code compliance or leak testing, hiring a licensed plumber for the rough-in phase is a wise investment. You can then install the glass yourself to save on labor costs.
Conclusion
Learning how to plumb a glass shower in a corner is a rewarding challenge that combines technical precision with design flair. By focusing on proper reinforcement, accurate measurements, and high-quality materials, you can create a stunning focal point in your bathroom. Remember, the key to longevity is in the details: waterproofing thoroughly, testing for leaks before tiling, and using the right sealants.
If you found this guide helpful, please share it with your friends on social media who are planning their own bathroom renovations. A well-plumbed shower is not just a fixture; it’s a daily sanctuary. Happy remodeling!
