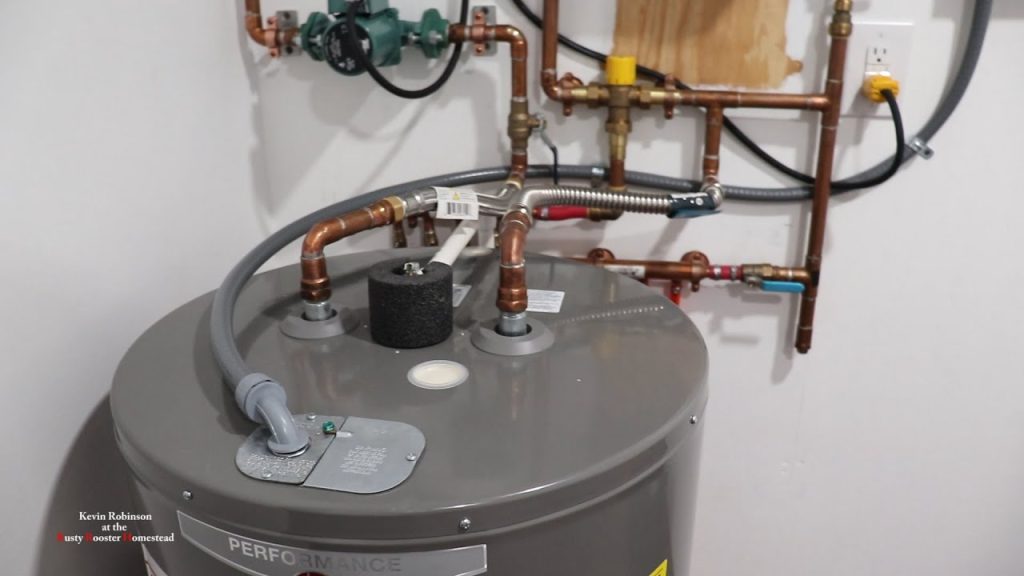

How to Plumb a Hot Water Heater for Radiant Heat

Thinking about upgrading your home’s comfort with radiant floor heating? Many homeowners are turning to how to plumb a hot water heater for radiant heat as a cost-effective alternative to traditional boilers. But without the right setup, you risk inefficiency, system damage, or even safety hazards. Don’t worry—you’re not alone. This guide walks you through everything you need to know, whether you’re a seasoned DIYer or just starting out.

Can You Use a Standard Hot Water Heater for Radiant Floor Heating?

Yes—but with important caveats.

While dedicated boilers are common in radiant systems, a standard tank-style or tankless water heater can work if properly configured. According to the U.S. Department of Energy, residential water heaters can supply hydronic (hot water) radiant systems in smaller homes or single-zone applications—typically under 1,500 sq ft.

However, radiant heat demands lower temperatures (85–120°F) than domestic hot water (120–140°F). Running a standard heater at high temps without mixing valves or controls can:

• Overheat flooring materials
• Shorten system lifespan
• Void manufacturer warranties

💡 Expert Insight: “Using a water heater for radiant heat is feasible, but only with proper temperature regulation and flow control,” says HVAC engineer Maria Lopez (ASHRAE Member). “Never connect PEX tubing directly to a water heater without a mixing valve.”

For more on hydronic systems, see Wikipedia’s overview of radiant heating.

Key Components You’ll Need

Before turning any wrench, gather these essential parts:

1. Water heater (tank or tankless, rated for space heating)
2. Circulator pump (e.g., Grundfos UPS15-58FC)
3. Thermostatic mixing valve (to reduce output temp to 85–120°F)
4. Expansion tank (required by code for closed-loop systems)
5. Air separator & purge valves
6. PEX tubing (oxygen-barrier type, e.g., Uponor AquaPEX)
7. Manifold with flow meters & zone valves (for multi-zone setups)

⚠️ Note: Not all water heaters are approved for space heating. Check your unit’s manual—look for phrases like “dual-purpose” or “space heating compatible.” Tankless models like the Rinnai RUCS75iN are often certified for this use.

Step-by-Step: How to Plumb a Hot Water Heater for Radiant Heat

Follow these steps carefully. Always shut off power/gas and drain the system before working.

Step 1: Install the Circulator Pump

• Mount the pump on the supply side (outlet) of the water heater.
• Ensure flow direction matches the arrow on the pump housing.
• Use dielectric unions if connecting copper to steel components.

Step 2: Add a Mixing Valve

• Connect the hot outlet from the heater to the “hot” port on the mixing valve.
• Connect the return line from the radiant loop to the “cold” port.
• Set the valve to 100°F as a starting point (adjust based on floor type).

Step 3: Install the Expansion Tank

• Mount vertically on the cold water supply line near the heater.
• Pre-charge the tank to match your home’s water pressure (typically 40–60 psi).

Step 4: Connect the Manifold

• Run PEX from the mixing valve outlet to the supply side of the manifold.
• Return lines from the floor loops connect to the return side.
• Purge air using the manifold’s fill-and-purge valves (follow manufacturer instructions).

Step 5: Pressure Test & Fill

• Close all zone valves.
• Fill the system slowly with water while opening purge valves.
• Pressurize to 12–15 psi when cold.
• Check for leaks at all fittings.

Step 6: Commission the System

• Turn on the water heater.
• Activate the circulator pump.
• Monitor return temperature—should be within 10–15°F of supply.
• Adjust mixing valve until floor surface reaches desired warmth (use an infrared thermometer).

Tank vs. Tankless: Which Is Better for Radiant Heat?

✅ Pro Tip: If using tankless, ensure it has a minimum flow rate of 0.5 GPM to activate—and pair it with a buffer tank to prevent short-cycling.

Common Mistakes to Avoid

• ❌ Skipping the mixing valve → Risk of warping hardwood floors.
• ❌ Using non-oxygen-barrier PEX → Causes corrosion in ferrous components.
• ❌ Ignoring expansion tanks → Leads to pressure spikes and leaks.
• ❌ Oversizing the pump → Creates noise and wastes energy.

A 2023 study by Plumbing Engineering Magazine found that 68% of DIY radiant failures stemmed from improper temperature control—not installation errors.

FAQ Section

Q1: Can I use my existing water heater for radiant heat?

A: Only if it’s rated for space heating. Most standard units aren’t—and using them voids warranties. Look for models labeled “dual-use” or consult a plumber.

Q2: What temperature should radiant floor water be?

A: Ideal range is 85–120°F, depending on flooring:

• Tile/concrete: 100–120°F
• Wood: 85–100°F
• Carpet: 95–110°F

Higher temps can damage materials.

Q3: Do I need a separate water heater for radiant heat?

A: Not always—but it’s recommended. Sharing with domestic hot water requires a heat exchanger to avoid cross-contamination and pressure issues.

Q4: How much does it cost to plumb a water heater for radiant heat?

A: DIY parts cost $800–$2,500, depending on system size. Professional installation adds $3,000–$7,000.

Q5: Will this increase my energy bill?

A: Possibly—but radiant heat is 20–30% more efficient than forced air in well-insulated homes (per ENERGY STAR). Use a smart thermostat to minimize waste.

Q6: Can I install this myself?

A: If you’re comfortable with plumbing, electrical, and pressure testing—yes. But local codes often require permits and inspections. When in doubt, hire a licensed HVAC pro.

Conclusion

Now you know how to plumb a hot water heater for radiant heat safely and effectively. With the right components, temperature control, and attention to detail, you can enjoy cozy, even heat underfoot—without breaking the bank on a full boiler system.

Radiant floor heating isn’t just luxurious—it’s energy-smart and long-lasting when done right. If this guide helped you, share it with a friend who’s dreaming of warm winter mornings! 🛠️🔥

Got questions? Drop them in the comments below—we love helping DIYers succeed.
