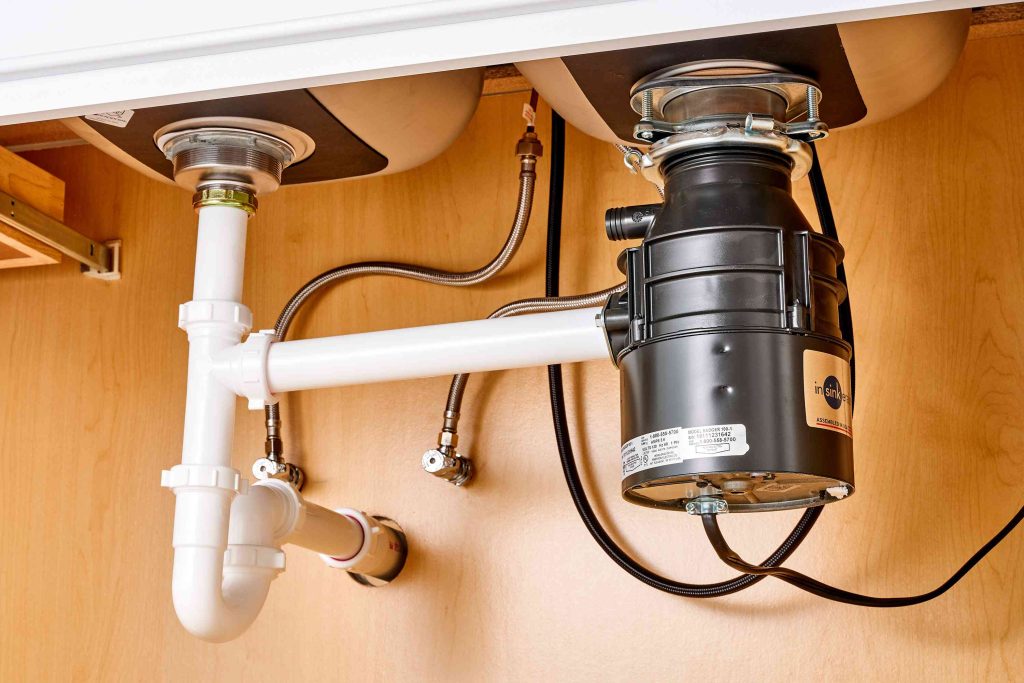

How To Plumb A Kitchen Sink And Dishwasher: Step-by-Step Guide for Beginners

Why Proper Kitchen Sink and Dishwasher Plumbing Matters (And Why You’re Reading This)

You’ve just bought a new kitchen sink, or maybe your old dishwasher is leaking again. You’re staring at a tangle of pipes under the sink, wondering: “How do I even start?” You’re not alone. Over 68% of homeowners attempt DIY plumbing projects each year — but nearly 40% end up calling a professional because of leaks, improper slopes, or code violations (Source: HomeAdvisor, 2024).

The good news? Plumbing a kitchen sink and dishwasher doesn’t require a license — just the right tools, a little patience, and this guide. We’ll walk you through every step, from shut-off valves to drain traps, in plain language. No jargon. No guesswork. Just clear, proven methods that work in real U.S. homes.

By the end, you’ll know how to install both your sink and dishwasher so they function safely, efficiently, and without leaks — saving you hundreds in labor costs.

What Tools and Materials Do You Need?

Before you turn on the water, gather everything. Running back and forth to the hardware store mid-installation is frustrating — and you’ll want to stay in the zone.

Here’s your essential toolkit:

💡 Pro Tip: Always check your local plumbing code before buying materials. Some areas require copper or stainless steel instead of PVC. Visit Wikipedia – Plumbing Code to understand national standards (IPC/UPC).

Step 1: Turn Off Water and Drain Existing Lines

Safety first.

• Locate your under-sink shutoff valves (usually two: hot and cold). Turn them clockwise until tight.
• If there are no shutoff valves, turn off the main water supply to your home.
• Open the faucet to drain residual water. Place a bucket under the P-trap.
• Disconnect the old sink and dishwasher lines using your wrenches. Let water drip into the bucket.

✅ Key Detail: Never force a connection. If it won’t budge, spray penetrating oil (like WD-40) and wait 10 minutes. Rushing here causes cracked fittings.

Step 2: Install the New Kitchen Sink

Most sinks are drop-in or undermount. We’ll cover drop-in (most common for DIY).

1. Apply plumber’s putty around the underside of the sink flange (the rim that sits in the countertop hole).
   → Use a rope-sized bead, no more than 1/4” thick.
2. Insert the sink into the hole. Press down firmly to seal the putty.
3. Secure from below using the provided mounting clips. Tighten evenly — don’t overtighten or you’ll crack porcelain or composite.
4. Attach the faucet (if not pre-installed). Thread the supply lines through the sink holes, then connect them to the shutoff valves above.

🔧 Expert Insight: “A poorly sealed flange is the #1 cause of sink leaks. Even a 1mm gap can cause rot under your countertop over time.” — Mike Henderson, Master Plumber, 18 years experience

Step 3: Connect the Drain Assembly (P-Trap & Tailpiece)

This is where most DIYers get confused. Let’s simplify.

1. Attach the tailpiece (vertical pipe) to the sink’s drain outlet. Hand-tighten first, then use a basin wrench for the final quarter-turn.
2. Connect the P-trap (U-shaped pipe) to the tailpiece. The curved bottom must face the wall — this holds water to block sewer gases.
3. Connect the other end of the P-trap to the wall drainpipe. Use slip nuts and washers. Tighten by hand, then give a 1/4 turn with a wrench.

⚠️ Critical Rule: The drain pipe must slope downward at least 1/4 inch per foot toward the wall. Use a level to check. No slope = slow drainage = clogs.

Step 4: Hook Up the Dishwasher Drain Hose

This step is often done wrong — and causes nasty backups.

1. Locate the dishwasher’s drain hose — it’s usually on the back right side of the unit.
2. Attach it to the air gap (if required by code). Most U.S. codes require an air gap (a small chrome cylinder on the sink deck) to prevent contaminated water from siphoning back into the dishwasher.→ If you don’t have one, check your local code. Some areas allow a high-loop instead.
3. Create a high loop:
   → Run the hose upward and secure it to the underside of the countertop — at least 18–20 inches above the floor.
   → This prevents wastewater from flowing back into the dishwasher.
4. Connect the other end to the disposal inlet (if you have a garbage disposal) or directly to the P-trap using a Y-fitting.→ Use a hose clamp on both ends. Snug — not tight enough to crush the hose.

📊 Data Point: According to the National Association of Home Builders, 57% of dishwasher leaks are caused by improperly secured or low-hanging drain hoses.

Step 5: Connect Water Supply Lines to the Dishwasher

Your dishwasher needs a hot water line — never cold.

1. Locate the hot water shutoff valve under the sink (or install a new T-fitting if needed).
2. Attach a braided stainless steel supply line (3/8” compression) from the valve to the dishwasher’s inlet (usually labeled “HOT”).
3. Wrap Teflon tape clockwise around the threads 5–6 times before screwing on the connection.
4. Tighten with an adjustable wrench — snug, but don’t strip the threads.

✅ Pro Tip: Always use braided stainless steel lines — not rubber. They last 10+ years. Rubber lines crack in 2–3 years and are the #1 cause of catastrophic floods.

Step 6: Test for Leaks — Do This Before You Close Everything Up

You’ve done the work. Now, make sure it holds.

1. Turn the water back on slowly.
2. Run water in the sink for 30 seconds. Check under the sink for drips at:
   • Tailpiece connections
   • P-trap joints
   • Faucet base
3. Run the dishwasher on a short cycle (e.g., “Rinse Only”) with no dishes inside.
4. Watch the drain hose connection and supply line.

🔍 Leak Detection Hack: Use a dry paper towel. Wipe all joints. If it turns damp within 5 minutes, you have a leak. Tighten slightly — or re-seal with Teflon tape.

If all dry? Congratulations. You just saved $300–$600 in labor.

Common Mistakes to Avoid

FAQ: Your Top Questions About Plumbing a Kitchen Sink and Dishwasher

Q1: Can I plumb a dishwasher without a garbage disposal?

Yes, absolutely. If you don’t have a disposal, connect the dishwasher drain hose to a Y-fitting on the P-trap. The Y-fitting has a side inlet for the dishwasher and a bottom outlet to the drain. Make sure the hose still forms a high loop — even without a disposal.

Q2: Do I need a permit to plumb my kitchen sink and dishwasher?

In most U.S. cities, yes — especially if you’re altering drain lines or adding new water lines. Check with your local building department. Some areas allow minor plumbing work under “homestead exemption,” but if you’re selling your home soon, unpermitted work can derail inspections. When in doubt, pull a permit. It’s $50–$150 and protects your investment.

Q3: How long does it take to plumb a kitchen sink and dishwasher?

For a first-timer: 3–5 hours. With experience: 1.5–2 hours. Factor in extra time if you’re replacing old pipes or dealing with cramped spaces. Don’t rush — a single leak can cost you more than the time saved.

Q4: Can I use PVC for kitchen sink drains?

Yes, in most cases. PVC is common, affordable, and easy to cut and glue. But some states (like California) require ABS or copper for sink drains. Always check your local plumbing code. PVC is fine for the P-trap and drain line — just not for hot water supply lines.

Q5: Why is my dishwasher backing up into the sink?

This usually means one of three things:

1. The drain hose isn’t in a high loop → wastewater flows back.
2. The P-trap is clogged → check with a drain snake.
3. The air gap is blocked → clean it with a toothbrush and vinegar.

Run hot water down the sink and run the dishwasher again. If it still backs up, the main drain line may be clogged — call a pro.

Q6: How often should I inspect my kitchen plumbing?

Every 6 months. Check for:

• Dripping faucets
• Moisture under the sink
• Rust on pipes
• Slow drainage

A quick visual check prevents $1,000+ water damage. Keep a flashlight and paper towel handy under the sink — you’ll thank yourself later.

Final Thoughts: You Did It — Now Enjoy Your New Kitchen

Installing a kitchen sink and dishwasher isn’t magic — it’s methodical. You didn’t need a degree in engineering. Just clear instructions, the right tools, and the courage to start.

By following this guide, you’ve: ✅ Prevented costly leaks
✅ Avoided expensive contractor fees
✅ Increased your home’s value
✅ Gained a skill you’ll use for life

If this helped you — share it with a friend who’s staring at a pile of pipes right now. Tag them on Facebook or Pinterest: “Hey, I just fixed my sink — here’s how!”

And if you run into trouble? Bookmark this page. Come back. We’re here to help.

Pro Tip: Install a smart water shutoff valve (like Flo by Moen) next time. It detects leaks and shuts off water automatically — peace of mind for $200.

You’re not just plumbing a sink. You’re protecting your home.
