Dealing with waste management on a boat is rarely the highlight of a captain’s day, but getting it right is crucial for comfort, hygiene, and legal compliance. Many boat owners struggle with confusing diagrams and fear of leaks when upgrading or installing their sanitation systems. If you are wondering how to plumb a macerator pump on a boat, you are not alone; this guide will walk you through the process with clarity and confidence, ensuring your system runs smoothly for years to come.
Why Choose a Macerator Pump for Your Marine Head?
Before diving into the wrenches and hoses, it is essential to understand why a macerator pump is the standard choice for modern recreational vessels. Unlike traditional gravity-fed systems that require large holding tanks positioned low in the hull, macerator pumps grind waste into a fine slurry. This allows for smaller diameter hoses (typically 1-inch or 1.5-inch) and greater flexibility in tank placement.
According to marine industry standards, macerator systems are preferred because they can pump waste uphill and over longer distances. This is particularly useful for larger yachts where the head (bathroom) is located far from the holding tank or discharge point. By understanding the mechanics, you can better appreciate the importance of precise plumbing during installation.
Essential Tools and Materials Checklist
Preparation is half the battle in marine plumbing. Having the right tools on hand prevents mid-job trips to the chandlery.
Tools Required:
- Adjustable wrenches (two are recommended)
- Hose clamps (stainless steel, double-screw type preferred)
- Pipe cutter or sharp utility knife
- Drill with hole saw kit (for mounting the pump)
- Teflon tape or marine-grade thread sealant
- Multimeter (for electrical testing)
Materials Needed:
- Macerator pump unit (ensure it matches your voltage: 12V or 24V)
- Marine-grade sanitation hose (smooth bore interior to prevent clogging)
- Stainless steel hose clamps
- Check valve (critical for preventing backflow)
- Y-valve (if connecting to both deck pump-out and overboard discharge)
- Wiring kit (marine-grade tinned copper wire, fuse holder, and switch)

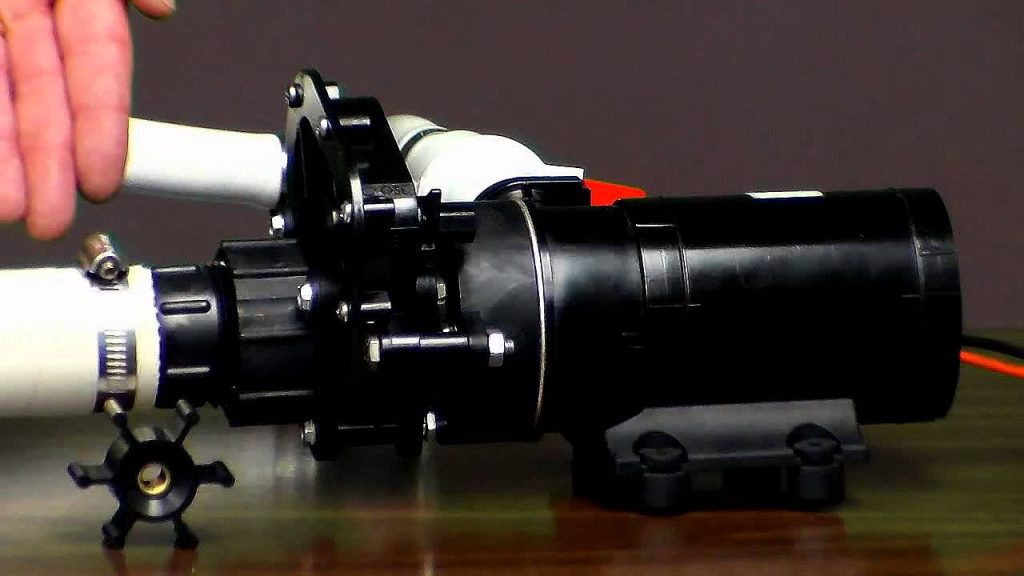

Step-by-Step: How To Plumb A Macerator Pump On A Boat
Installing a macerator pump requires attention to detail. A single loose clamp or improper slope can lead to costly leaks and unpleasant odors. Follow these steps carefully.
Step 1: Planning the Layout and Positioning
The first rule of marine plumbing is accessibility. You must be able to reach the pump for maintenance without dismantling the entire cabinetry. Ideally, mount the pump as close to the holding tank outlet as possible. However, ensure it is mounted above the waterline if it involves any through-hull fittings, or in a dry bilge area if it is strictly for internal transfer.
Check the manufacturer’s manual for specific clearance requirements. Most pumps need at least 6 inches of clearance around them for heat dissipation and vibration isolation.
Step 2: Installing the Inlet Line from the Holding Tank
The inlet line connects the holding tank to the macerator pump. This section operates under suction, so it must be airtight.
- Measure and Cut: Measure the distance from the tank outlet to the pump inlet. Cut your sanitation hose to length, ensuring a clean, square cut.
- Connect to Tank: Attach one end of the hose to the holding tank outlet using a stainless steel hose clamp. Tighten securely but do not overtighten, which can crack plastic fittings.
- Connect to Pump: Attach the other end to the pump’s inlet port. Use a hose clamp here as well.
- Support the Hose: Ensure the hose has a slight downward slope toward the pump to aid gravity flow. Use P-clips or straps to secure the hose every 18–24 inches to prevent sagging and vibration damage.
Step 3: Installing the Outlet Line and Check Valve
The outlet line carries the macerated waste away from the pump. This section is under pressure, making leak prevention critical.
- Install the Check Valve: A check valve is mandatory. It prevents waste from flowing back into the pump when it is off, which can cause jamming and motor burnout. Install the check valve immediately after the pump outlet, observing the flow direction arrow.
- Route the Discharge Hose: Connect the hose from the check valve to your destination. This could be a Y-valve leading to a deck pump-out fitting or an overboard discharge (where legally permitted).
- Avoid High Loops: Try to avoid creating “high loops” in the discharge line unless necessary for siphon breaking. If a high loop is required, install an anti-siphon valve at the highest point.
Step 4: Electrical Connections
Macerator pumps draw significant current, especially during startup. Proper wiring is essential for safety and performance.
- Power Source: Connect the positive wire to a dedicated circuit breaker or fuse panel. Use a fuse rated slightly higher than the pump’s amp draw (check the manual, usually 10–15 amps).
- Grounding: Connect the negative wire to the boat’s common ground bus bar.
- Switch Installation: Install a heavy-duty marine switch in a convenient location. Label it clearly.
- Test the Circuit: Before connecting the pump, use a multimeter to ensure there are no short circuits. Once verified, connect the wires to the pump terminals, ensuring polarity is correct.
Step 5: Testing and Commissioning
Never skip the testing phase.
- Dry Test: Turn on the pump briefly without water to ensure it spins freely. Listen for unusual noises.
- Water Test: Fill the holding tank with fresh water (add a little blue dye for visibility). Run the pump and check all connections for leaks.
- Flow Check: Ensure the waste is moving efficiently through the system. If the flow is weak, check for kinks in the hose or a blocked impeller.
Common Mistakes to Avoid
Even experienced DIYers make errors. Here are the most frequent pitfalls:
| Mistake | Consequence | Solution |
|---|---|---|
| Using standard garden hose | Permeates odors, collapses under suction | Always use USCG-approved sanitation hose |
| Skipping the check valve | Backflow jams the pump, causes leaks | Install a high-quality marine check valve |
| Overtightening clamps | Cracks plastic fittings, cuts hose | Tighten until snug, then a quarter turn more |
| Ignoring ventilation | Air locks prevent proper pumping | Ensure tank vent line is clear and unobstructed |
Legal and Environmental Considerations
Understanding the legal framework is as important as the mechanical installation. In the United States, the Clean Water Act prohibits the discharge of untreated sewage within three miles of shore. Most states have stricter “No Discharge Zones” (NDZs) where any discharge is illegal.
For a deeper understanding of federal regulations, you can refer to the Environmental Protection Agency’s guidelines on Vessel Sewage. Always install a Y-valve with a lockable handle if you have an overboard discharge option, and familiarize yourself with local marina rules regarding pump-out stations.
FAQ Section
1. Can I use a regular water pump instead of a macerator pump?
No. Regular water pumps are not designed to handle solids. A macerator pump has a cutting mechanism that grinds waste into a slurry. Using a standard pump will result in immediate clogging and motor failure.
2. How often does a macerator pump need maintenance?
With proper use, a macerator pump can last 5–10 years. However, you should inspect the impeller annually and flush the system with fresh water after each use to prevent salt buildup and odor. If you notice reduced flow, it may be time to clean the blades.
3. Why is my macerator pump humming but not pumping?
This usually indicates a jammed impeller. Turn off the power immediately. Most macerator pumps have a manual reverse switch or a hex key slot on the bottom to manually free the blades. Check for foreign objects like wipes or excessive toilet paper.
4. Can I install a macerator pump myself, or do I need a professional?
If you are comfortable with basic plumbing and electrical work, you can install it yourself. However, if you are unsure about electrical codes or through-hull fittings, hiring a certified marine technician is recommended to ensure safety and compliance.
5. What size hose should I use for a macerator pump?
Most residential-style marine macerator pumps use 1-inch or 1.5-inch ID (inner diameter) hose. Always check your specific pump model’s manual. Using a hose that is too small will restrict flow and strain the motor.
Conclusion
Learning how to plumb a macerator pump on a boat empowers you to maintain a hygienic and efficient sanitation system. By following the steps outlined above—planning carefully, using the right materials, and adhering to legal standards—you can avoid common pitfalls and enjoy peace of mind on the water. Remember, a well-installed system is not just about convenience; it is about respecting the marine environment and ensuring your vessel remains a comfortable home away from home.
