How to Plumb a Recirculating Hot Water System (Step-by-Step Guide)

Tired of waiting 30 seconds—or longer—for hot water to reach your shower or kitchen sink? You’re not alone. The average U.S. household wastes up to 12,000 gallons of water per year just waiting for hot water to arrive. A recirculating hot water system solves this problem by keeping hot water circulating through your pipes, so it’s ready when you need it. In this guide, you’ll learn exactly how to plumb a recirculating hot water system, whether you’re retrofitting an existing home or building new. We’ll walk you through every step with clarity, safety tips, and expert-backed best practices.

What Is a Recirculating Hot Water System?

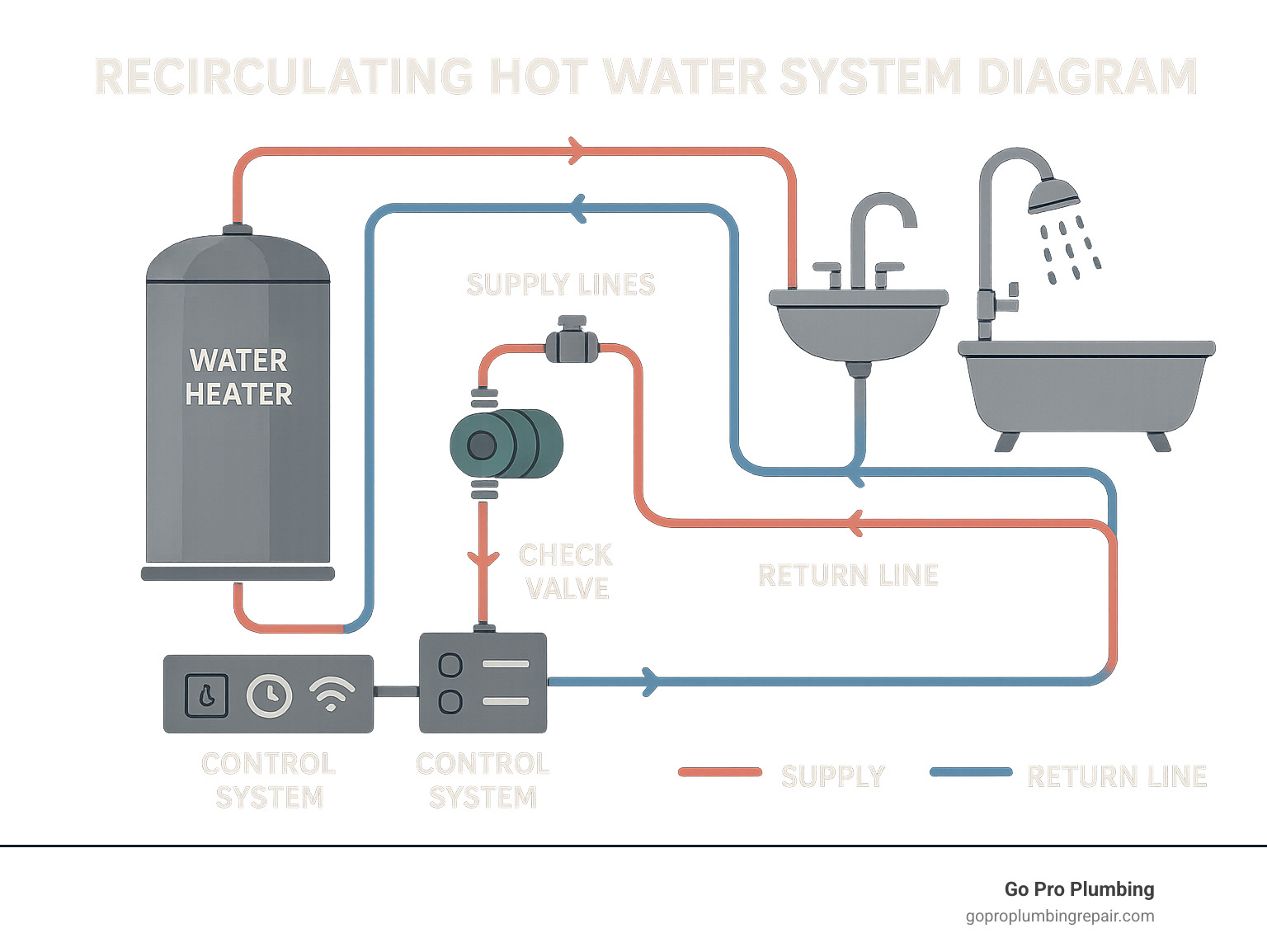

A recirculating hot water system uses a pump and a return line (or a crossover valve in demand-based systems) to continuously circulate hot water from your water heater through your home’s plumbing and back again. This eliminates the “cold slug” of water that normally sits in pipes between uses.

There are two main types:

1. Traditional (Dedicated Return Line) Systems
   Require a dedicated return pipe from the farthest fixture back to the water heater. Best for new construction.
2. Demand-Controlled (Crossover Valve) Systems
   Use a valve under the sink to temporarily create a loop. Ideal for retrofits—no extra piping needed.

According to the U.S. Department of Energy, properly installed recirculation systems can reduce water waste by up to 90% in homes with long pipe runs.

Why Install a Recirculating Hot Water System?

Beyond convenience, there are compelling reasons to install one:

• Save water: No more running the tap while waiting.
• Save energy: Less reheating of cooled water in pipes (in well-insulated systems).
• Improve comfort: Instant hot water in showers, kitchens, and bathrooms.
• Increase home value: Modern plumbing features appeal to buyers.

💡 Pro Tip: Pair your system with pipe insulation (R-3 or higher) to minimize standby heat loss—this boosts efficiency by up to 25%.

Tools & Materials You’ll Need

Before you begin, gather these essentials:

• Recirculation pump (e.g., Grundfos, Taco, or Watts)
• Check valve
• Timer or thermostat (for traditional systems)
• Crossover valve (for demand systems)
• PEX or copper piping (½” diameter typical)
• Pipe insulation
• Pipe cutter, crimping tool (for PEX), or soldering kit (for copper)
• Teflon tape
• Adjustable wrenches
• Shut-off valves

Note: Always turn off water and power to your water heater before starting.

Step-by-Step: How to Plumb a Recirculating Hot Water System

Option 1: Installing a Traditional System (With Dedicated Return Line)

Best for: New builds or major renovations.

1. Plan the Loop
   Identify the farthest hot water fixture (usually a bathroom). Run a dedicated ½-inch return line from that point back to the cold water inlet of your water heater.
2. Install the Recirculation Pump
   Mount the pump on the return line near the water heater. Ensure flow direction matches the arrow on the pump housing.
3. Add a Check Valve
   Install a spring-loaded check valve after the pump to prevent backflow into the hot water line.
4. Connect to Water Heater
   Tie the return line into the cold water inlet using a tee fitting. This creates a closed loop.
5. Add Controls
   Install a timer (e.g., run 6 AM–10 PM) or a temperature-sensing aquastat (shuts off at 105°F) to avoid overheating and save energy.
6. Insulate All Hot & Return Pipes
   Use foam pipe insulation (min. ½” thick) on all hot water and return lines to reduce heat loss.

Option 2: Installing a Demand-Controlled System (No Return Line)

Best for: Existing homes—minimal plumbing changes.

1. Install a Crossover Valve
   Under the sink farthest from the water heater, replace the hot and cold shutoff valves with a thermostatic crossover valve (e.g., Metlund D’MAND or Taco SmartPlus).
2. Mount the Pump Near Water Heater
   Connect the pump between the hot water outlet and cold water inlet using a bypass kit.
3. Wire the System
   Most demand pumps activate via button, motion sensor, or smartphone app. Wire according to manufacturer instructions.
4. Test the Loop
   Press the activation button—the pump runs for 30–90 seconds, pulling hot water through the cold line via the crossover valve until hot water arrives.

⚠️ Safety Note: Never use a crossover valve with a tankless water heater unless explicitly approved by the manufacturer—pressure imbalances can damage the unit.

Recirculating System: Pros vs. Cons

For more on water heating efficiency, see the U.S. Energy Information Administration’s guide on residential water heating .

Common Mistakes to Avoid

• Skipping pipe insulation → leads to 20–30% heat loss.
• Oversizing the pump → causes water hammer and noise.
• Ignoring local codes → some jurisdictions require backflow preventers.
• Using galvanized pipe → corrodes over time; use PEX or copper instead.

According to a 2022 study by the American Society of Plumbing Engineers, homes with insulated recirculation loops used 18% less energy than non-insulated counterparts over a 6-month period.

Maintenance Tips for Longevity

• Clean the pump’s inlet strainer every 6 months.
• Flush the system annually to remove sediment.
• Replace crossover valves every 5–7 years (they wear out).
• Check for leaks at fittings quarterly.

FAQ: Recirculating Hot Water Systems

Q1: Can I install a recirculating system myself?

A: Yes—if you’re comfortable with basic plumbing. Demand-controlled systems are DIY-friendly. Traditional systems may require professional help for return-line installation, especially in finished walls.

Q2: Will this increase my energy bill?

A: Slightly—but smart controls minimize impact. A timer running 8 hours/day adds ~$10–$20/month. Insulation and thermostatic controls reduce this significantly.

Q3: Do recirculating pumps work with tankless water heaters?

A: Only with compatible models and specific kits. Most tankless units require a minimum flow rate to activate—recirc pumps may not provide enough. Always consult your heater’s manual first.

Q4: How much water can I really save?

A: The EPA estimates households waste 9–12 gallons per person daily waiting for hot water. A recirculation system can eliminate nearly all of that—saving 10,000+ gallons annually for a family of four.

Q5: What’s the lifespan of a recirculation pump?

A: Most last 8–12 years with proper maintenance. Brands like Grundfos offer 3–5 year warranties.

Q6: Is a recirculating system worth it?

A: If you have long pipe runs (>20 ft from heater to fixture) or value convenience and sustainability, yes. ROI comes in water savings, comfort, and potential home resale appeal.

Conclusion

Learning how to plumb a recirculating hot water system is a smart investment in comfort, conservation, and modern home efficiency. Whether you choose a full-loop traditional setup or a simple demand-controlled retrofit, the result is the same: hot water on demand, zero waste, and peace of mind.
