Are you struggling with a cramped workspace or outdated fixtures in your kitchen? Many homeowners face the challenge of upgrading their layout, specifically when they need to know how to plumb a sink going from double kitchen configurations to a single large basin or vice versa. This guide will walk you through the process with clarity and confidence, ensuring your project is done right the first time.
Understanding the Basics of Double Sink Plumbing
Before picking up a wrench, it is crucial to understand what makes a double kitchen sink unique. Unlike a single basin, a double sink requires a specialized drainage system to handle water from two separate bowls while preventing backflow and odors.
The core component here is the basket strainer. Each bowl has its own strainer, which connects to a tailpiece. These tailpieces then merge into a central trap system. If you are moving from a double to a single sink, or replumbing an existing double setup, the principle remains the same: efficient water flow and airtight seals are non-negotiable.
According to general plumbing standards, the drain pipe must maintain a specific slope to ensure gravity does its job. A common mistake DIYers make is ignoring the venting requirements, which can lead to slow draining and gurgling noises.
Tools and Materials You Will Need
Having the right tools ready before you start can save you hours of frustration. Here is a checklist of essentials:
- Adjustable Wrenches: For tightening nuts without stripping them.
- Pipe Cutter or Hacksaw: To trim PVC or ABS pipes to the correct length.
- Plumber’s Putty or Silicone Sealant: For creating watertight seals around the strainers.
- P-Traps and Tailpieces: Ensure they match your sink’s outlet size (usually 1.5 inches).
- Teflon Tape: For threading connections to prevent leaks.
- Bucket and Towels: To catch residual water and clean up spills.
Pro Tip: Always buy high-quality brass or stainless steel fittings if possible. Plastic fittings are cheaper but can crack over time due to temperature changes and chemical exposure from cleaning agents.
Step-by-Step Guide: How to Plumb a Sink Going From Double Kitchen
Follow these detailed steps to ensure a professional-grade installation.
Step 1: Remove the Old Sink and Drainage
Turn off the water supply valves under the sink. Open the faucet to release any remaining pressure. Place a bucket under the P-trap to catch water. Loosen the slip nuts on the P-trap and remove it. Disconnect the tailpieces from the basket strainers. If you are removing the entire sink, cut the caulk seal around the edges and lift the sink out carefully.
Step 2: Prepare the New Sink Area
Clean the countertop surface thoroughly. If you are installing a new double sink, dry-fit the sink into the cutout to ensure it sits flush. Apply a bead of silicone sealant or plumber’s putty around the rim, depending on the manufacturer’s instructions. Press the sink firmly into place and wipe away any excess sealant.
Step 3: Install the Basket Strainers
Apply a rope of plumber’s putty around the underside of the flange of each basket strainer. Insert the strainer into the drain hole of each bowl. From underneath, screw on the locking nut and tighten it securely. Wipe away any putty that squeezes out. This step is critical for preventing leaks into the cabinet below.
Step 4: Connect the Tailpieces and Tee Fitting
Attach the tailpieces to the bottom of each basket strainer. For a double sink, you will need a tee fitting to connect the two tailpieces. Measure the distance between the two drain holes and cut the horizontal pipe accordingly. Use slip nuts and washers to connect the tailpieces to the tee. Ensure the washers are oriented correctly (tapered side facing the nut) to create a proper seal.

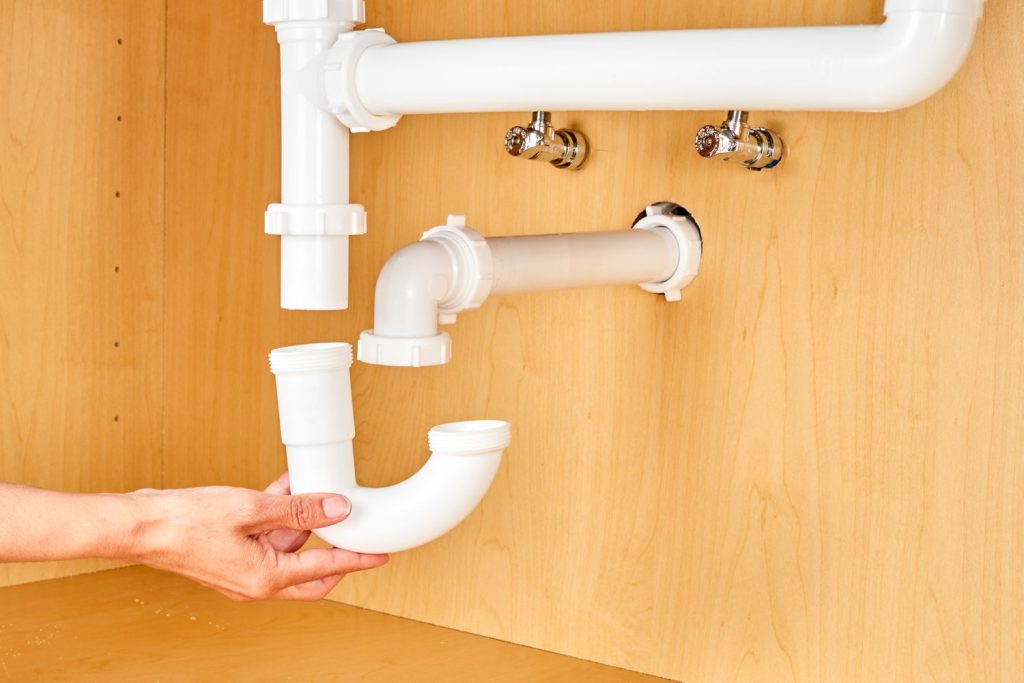

Step 5: Install the P-Trap
Connect the outlet of the tee fitting to the inlet of the P-trap. The P-trap should curve downward to hold water, which acts as a barrier against sewer gases. Connect the other end of the P-trap to the wall drain pipe. You may need to use an extension tube if the wall pipe is too far away. Tighten all slip nuts by hand first, then give them a quarter-turn with a wrench. Do not overtighten, as this can crack the plastic nuts.
Step 6: Test for Leaks
Turn the water supply back on. Run water in both sinks simultaneously. Check every connection for drips. If you see a leak, tighten the corresponding nut slightly. If the leak persists, disassemble the joint, check the washer for damage, and reassemble.
Common Challenges and Solutions
Even with careful planning, issues can arise. Here are some common problems and how to fix them:
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Draining | Clogged pipe or improper slope | Check for debris; ensure pipes slope downward toward the wall. |
| Gurgling Noises | Poor venting | Install an air admittance valve (AAV) if adding a vent is not feasible. |
| Leaking at Strainer | Insufficient putty or loose nut | Reapply plumber’s putty and tighten the locking nut evenly. |
| Bad Odor | Dry P-trap or loose connection | Run water to fill the trap; tighten all slip nuts. |
For more detailed information on plumbing codes and standards, you can refer to Wikipedia’s article on Plumbing, which provides a broad overview of global practices and historical context.
Why Proper Ventilation Matters
When learning how to plumb a sink going from double kitchen setups, many people overlook ventilation. Every drain needs a vent to allow air to enter the system. Without it, a vacuum can form, slowing down drainage and potentially siphoning water out of the P-trap.
If your current setup lacks adequate venting, consider installing an Air Admittance Valve (AAV). These devices allow air to enter the drain line when negative pressure occurs but close to prevent sewer gases from escaping. They are easier to install than running a new vent pipe through the roof.
Maintenance Tips for Long-Lasting Performance
Once your new double sink is plumbed, regular maintenance will keep it functioning smoothly:
- Avoid Pouring Grease Down the Drain: Grease solidifies in pipes, causing clogs. Dispose of it in the trash instead.
- Use Sink Strainers: Catch food particles before they enter the drain.
- Clean the P-Trap Annually: Remove and clean the P-trap to remove buildup.
- Check for Leaks Regularly: Inspect the connections under the sink every few months.
FAQ Section
Q1: Can I convert a double sink to a single sink easily?
A: Yes, but it requires modifying the countertop cutout and adjusting the plumbing. You will need to cap off one of the drain lines or reconfigure the tee fitting to accommodate a single tailpiece. Ensure the new sink fits the existing hole or be prepared to resize the countertop opening.
Q2: What size pipe should I use for a double kitchen sink?
A: Standard kitchen sink drains use 1.5-inch diameter pipes. This size is sufficient for handling the volume of water from two basins. Ensure all fittings, including the P-trap and tailpieces, match this diameter.
Q3: Why is my double sink backing up into the other bowl?
A: This usually indicates a clog in the main drain line after the tee fitting where the two bowls merge. Use a plunger or a drain snake to clear the blockage. If the problem persists, there may be a deeper issue in the main sewer line.
Q4: Do I need a professional plumber for this job?
A: If you are comfortable with basic DIY tasks and have the right tools, you can do it yourself. However, if you encounter complex venting issues or need to move gas lines for a nearby stove, it is best to hire a licensed plumber to ensure safety and code compliance.
Q5: How often should I replace the P-trap?
A: P-traps do not have a fixed lifespan. Replace them only if they are cracked, corroded, or leaking despite tightening. High-quality plastic or metal traps can last for many years with proper care.
Q6: Is plumber’s putty better than silicone sealant?
A: It depends on the surface. Plumber’s putty is ideal for porous surfaces like stone or composite sinks. Silicone sealant is better for non-porous surfaces like stainless steel or fireclay. Always check the sink manufacturer’s recommendations.
Conclusion
Mastering how to plumb a sink going from double kitchen configurations empowers you to upgrade your home with confidence. By following the steps outlined above, using quality materials, and paying attention to details like venting and sealing, you can achieve a leak-free and efficient drainage system.
Remember, patience is key. Take your time to measure twice and cut once. If you found this guide helpful, please share it with your friends and family on social media who might be tackling similar home improvement projects. Happy plumbing!
