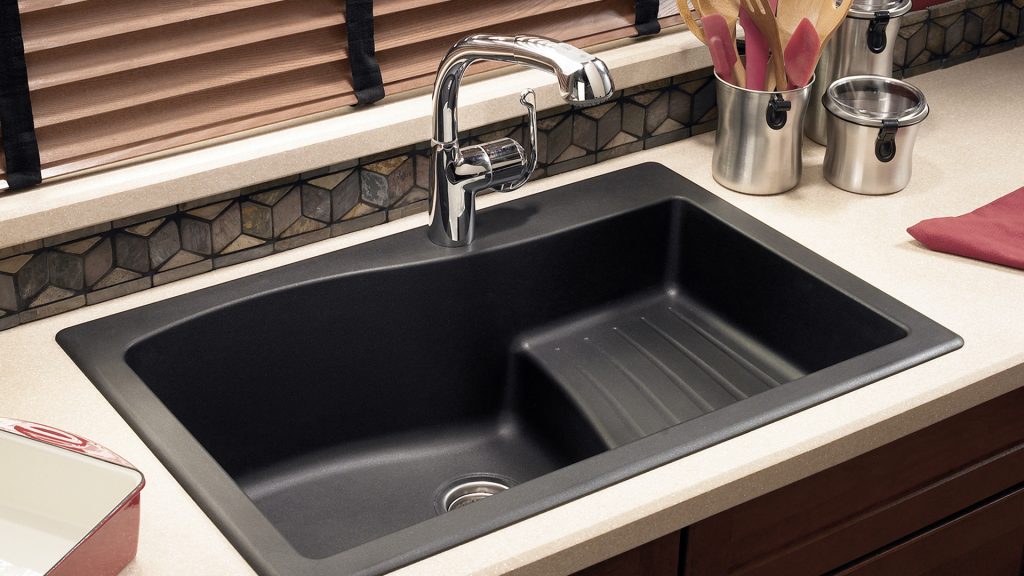

Are you staring at your new kitchen sink, wondering if you can handle the plumbing yourself without calling an expensive contractor? You are not alone. Many homeowners feel intimidated by the idea of connecting water lines and drains, especially when dealing with a versatile model like the Swan drop-in undermount 33 inch sink.
The good news is that with the right tools and a clear plan, this project is entirely manageable. This guide will walk you through every step, ensuring your new sink is secure, leak-free, and fully functional. Whether you are replacing an old unit or upgrading your kitchen’s aesthetic, mastering how to plumb a Swan drop-in undermount 33 inch fixture will save you money and give you a sense of accomplishment.
Understanding Your Swan 33-Inch Sink
Before picking up a wrench, it is crucial to understand what makes the Swan 33-inch model unique. Swan Industries is renowned for its composite granite and acrylic materials, which offer durability and resistance to stains. However, the “drop-in undermount” designation implies versatility in installation methods, though most 33-inch models are designed primarily as drop-in (top-mount) sinks with rims that rest on the countertop.
Note: True undermount sinks require specific countertop materials like granite or quartz. If your Swan model is a hybrid or you are attempting an undermount style on a compatible counter, the sealing process differs slightly from standard drop-ins.
Key Specifications to Check
- Basin Depth: Typically 8–10 inches, affecting trap placement.
- Material: Composite granite or acrylic, requiring non-abrasive cleaners.
- Mounting Type: Confirm if your specific SKU is strictly drop-in or convertible. Most 33-inch Swan sinks use a top-mount rim with clips for security.
According to Wikipedia’s entry on kitchen sinks, proper installation is critical for hygiene and structural integrity, as poor sealing can lead to water damage beneath cabinetry.
Tools and Materials You Will Need
Gathering the right tools before starting prevents mid-project frustration. Here is a checklist for a smooth installation:
Essential Tools
- Adjustable wrenches (two are recommended)
- Basin wrench (for tight spaces behind the faucet)
- Screwdriver set (Phillips and flathead)
- Caulking gun
- Hacksaw (if pipe adjustments are needed)
- Tape measure
Materials
- Plumber’s Putty or Silicone Sealant (Silicone is preferred for composite materials)
- Teflon tape (PTFE tape)
- Supply lines (braided stainless steel recommended)
- P-trap kit (1.5-inch diameter)
- Mounting clips (usually included with Swan sinks)
Step-by-Step Guide: How to Plumb a Swan Drop-In Undermount 33 Inch
Follow these steps carefully to ensure a professional-grade finish.
Step 1: Prepare the Countertop Cutout
If you are replacing an old sink, remove it completely and clean the countertop surface. Any old putty or silicone must be scraped away to ensure a flat, clean surface.
- Measure the cutout dimensions. A standard 33-inch sink usually requires a cutout of approximately 31.5 x 20.5 inches, but always check your specific model’s template.
- Dry-fit the sink into the hole to ensure it sits flush. It should not rock or gap.
Step 2: Apply the Sealant
This is the most critical step for preventing leaks.
- For Drop-In Installation: Run a continuous bead of 100% silicone sealant around the underside of the sink’s rim. Alternatively, you can use plumber’s putty, but silicone bonds better with composite materials.
- For Undermount Installation: If your countertop supports undermounting, apply silicone to the top edge of the countertop cutout, not the sink.
Tip: Do not skimp on the sealant. A consistent bead ensures water cannot seep between the sink and the counter.
Step 3: Secure the Sink
Lower the sink into the cutout. Press down firmly to spread the sealant evenly.
- Install the mounting clips provided by Swan. These usually hook under the countertop lip and tighten against the sink’s rim.
- Tighten the screws evenly. Do not overtighten, as this can crack composite materials.
- Wipe away any excess sealant that squeezes out with a damp cloth.
Step 4: Install the Faucet
While some prefer installing the faucet after the sink is plumbed, doing it now is often easier.
- Insert the faucet gasket onto the base of the faucet.
- Feed the supply lines and mounting hardware through the designated hole in the sink.
- From underneath, secure the faucet using the provided nuts and washers. Use a basin wrench if space is tight.
- Connect the hot and cold supply lines to the faucet tails. Hand-tighten first, then give a quarter-turn with a wrench.
Step 5: Connect the Drain Assembly
The drain assembly connects the sink basin to the P-trap.
- Apply plumber’s putty around the flange of the drain basket.
- Insert the drain basket into the sink hole.
- From underneath, screw on the locknut and rubber gasket. Tighten securely.
- Attach the tailpiece to the bottom of the drain basket.
Step 6: Plumb the P-Trap and Water Lines
Now, connect the sink to your home’s plumbing system.
- Connect Supply Lines: Attach the other end of your braided supply lines to the shut-off valves under the sink. Use Teflon tape on the threads if they are not compression fittings.
- Install the P-Trap: Connect the tailpiece from the drain to the P-trap. Ensure the slip nuts have rubber washers inside. Hand-tighten all connections.
- Connect to Wall Pipe: Attach the other end of the P-trap to the waste arm coming from the wall.
Critical Detail: Ensure the P-trap is aligned correctly. It should form a “U” shape to hold water, which blocks sewer gases from entering your home.
Testing for Leaks
Never skip this step. Once everything is connected:
- Turn on the water supply valves slowly.
- Run both hot and cold water for two minutes.
- Check all connections: faucet base, supply line joints, drain flange, and P-trap slips.
- Fill the sink halfway and let it drain. Watch for leaks under heavy flow.
If you see drips, tighten the corresponding nut slightly. If leaks persist, disassemble, check the washer alignment, and reassemble.
Common Mistakes to Avoid
| Mistake | Consequence | Solution |
|---|---|---|
| Overtightening Nuts | Cracked sink or stripped threads | Hand-tighten first, then use tools sparingly. |
| Skipping Sealant | Water damage to cabinets | Always use high-quality silicone or putty. |
| Misaligned P-Trap | Persistent leaks and clogs | Ensure pipes are straight before tightening nuts. |
| Using Old Supply Lines | Burst hoses and flooding | Replace lines if they are older than 5 years. |
FAQ Section
Q1: Can I install a Swan 33-inch sink as a true undermount?
A: Most Swan 33-inch sinks are designed as drop-in models with a visible rim. While some composite sinks can be undermounted, it requires a solid surface countertop (like granite) and specific undermount clips. Check your model’s manual; if it has a prominent lip, it is intended for drop-in installation.
Q2: What type of sealant is best for composite granite sinks?
A: 100% Silicone sealant is highly recommended for composite granite sinks like Swan. It provides a flexible, waterproof bond that adheres well to both the sink material and the countertop. Plumber’s putty can sometimes stain lighter-colored composite materials over time.
Q3: Do I need a professional plumber for this installation?
A: Not necessarily. If you are comfortable using basic hand tools and following instructions, you can install a Swan sink yourself. However, if your existing plumbing is old, corroded, or requires moving pipes, hiring a professional is advisable.
Q4: How do I clean my new Swan sink without damaging it?
A: Use mild dish soap and a soft sponge. Avoid abrasive scrubbers or harsh chemicals like bleach or ammonia, which can dull the finish. For tough stains, a paste of baking soda and water works wonders.
Q5: Why is my P-trap leaking even after tightening?
A: This is often due to misaligned washers. Disassemble the connection, ensure the rubber washer is seated correctly and not pinched, and reassemble. Ensure the pipes are not under stress or forced into position.
Q6: What is the standard height for kitchen sink plumbing?
A: The standard height for the drain outlet in the wall is typically between 20 and 24 inches from the floor. The P-trap should align comfortably with this outlet without requiring excessive angled piping.
Conclusion
Learning how to plumb a Swan drop-in undermount 33 inch sink is a rewarding DIY project that enhances your kitchen’s functionality and value. By following these steps—preparing the surface, sealing correctly, and testing thoroughly—you can achieve a professional result. Remember, patience is key. Take your time with the sealant and connections to avoid future leaks.
If you found this guide helpful, please share it with your friends on social media who might be planning their own kitchen upgrades. Happy plumbing!
