How to Plumb a Two-Line Wet Kit – Step-by-Step Guide

If you’re a trucker, fleet manager, or heavy-duty vehicle technician, you know that a properly plumbed two-line wet kit is essential for safe and reliable trailer braking. Yet, many struggle with leaks, inconsistent brake response, or even complete system failure due to incorrect installation. In this guide, we’ll walk you through how to plumb a two-line wet kit the right way—step by step—with expert-backed advice, safety checks, and real-world best practices.

What Is a Two-Line Wet Kit?

A two-line wet kit is a hydraulic or air-powered system used primarily in dump trucks, refuse haulers, and other vocational vehicles to control trailer-mounted hydraulic functions—most commonly, the dump bed. Unlike dry kits (which only supply air), wet kits deliver both air pressure and hydraulic fluid through two dedicated lines:

• Control line: Carries air signal to activate the hydraulic pump.
• Supply line: Delivers hydraulic fluid from the tractor’s reservoir to the trailer’s hydraulic cylinder.

According to the American Trucking Associations (ATA), over 70% of vocational trucks in the U.S. rely on wet kits for dump or lift operations. Getting the plumbing right isn’t just about performance—it’s a safety and compliance issue.

💡 Fun fact: The term “wet” comes from the fact that hydraulic fluid flows through the lines—unlike “dry” air-only systems.

For more on air brake fundamentals, see the U.S. Department of Transportation’s overview on commercial vehicle braking systems .

Why Proper Plumbing Matters

Improperly plumbed wet kits can lead to:

• Delayed or failed dump cycles
• Hydraulic fluid leaks (costing $50–$150 per gallon in specialized fluid)
• Contamination of air brake systems
• DOT violations during roadside inspections

A 2022 study by the Commercial Vehicle Safety Alliance (CVSA) found that 12% of out-of-service violations in vocational trucks were linked to faulty auxiliary air or hydraulic systems—including wet kits.

Tools & Materials You’ll Need

Before you begin, gather these essentials:

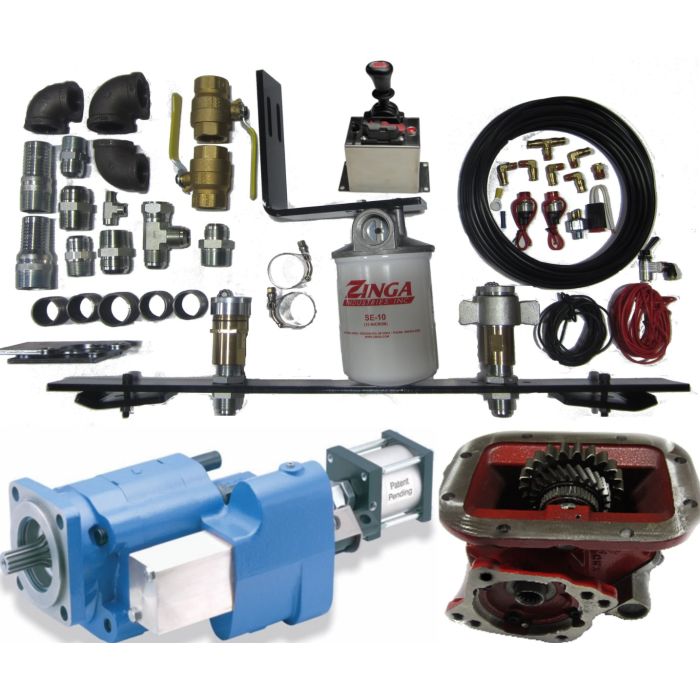

• Two-line wet kit (OEM or DOT-compliant aftermarket)
• ½” or ¾” hydraulic hose (SAE 100R2 rated)
• Air line tubing (typically ¼” or 3/8″ nylon or polyurethane)
• JIC or ORFS hydraulic fittings (avoid compression fittings)
• Torque wrench (for precise fitting tightness)
• Thread sealant (Teflon tape for air lines; hydraulic-rated sealant for fluid lines)
• Safety glasses and gloves
• Fluid catch pan

✅ Pro Tip: Always use hoses and fittings rated for at least 3,000 PSI—dump cylinders often operate between 2,000–2,500 PSI.

Step-by-Step: How to Plumb a Two-Line Wet Kit

Follow these steps carefully. Rushing can cause leaks or system failure.

Step 1: Mount the Wet Kit Components

• Install the hydraulic pump on the tractor frame near the PTO (Power Take-Off).
• Secure the air control valve within easy reach of the driver (often near the gladhand area).
• Ensure all mounts are vibration-resistant—use rubber isolators if needed.

Step 2: Connect the Air Control Line

• Run a ¼” air line from the tractor’s secondary air tank (not the primary brake tank!) to the control valve inlet.
• Use DOT-approved nylon tubing with push-to-connect or threaded fittings.
• Apply Teflon tape to male threads—never use on female fittings.
• Torque fittings to 15–20 ft-lbs (check manufacturer specs).

⚠️ Warning: Tapping into the primary brake circuit can compromise stopping power. Always use a dedicated auxiliary air source.

Step 3: Plumb the Hydraulic Supply Line

• Connect a high-pressure hydraulic hose from the tractor’s hydraulic reservoir (or PTO pump outlet) to the wet kit’s supply port.
• Route the hose away from exhaust manifolds, sharp edges, and moving parts.
• Use hose clamps or brackets every 18 inches to prevent whipping or abrasion.
• Fill the system with ISO VG 46 hydraulic fluid (or as specified by your pump manufacturer).

Step 4: Connect Trailer Lines

• At the rear of the tractor, install gladhand-style hydraulic and air couplers (often color-coded: red for air, blue for hydraulic).
• Ensure couplers are ISO 16028-compliant for interchangeability.
• Test connections by manually engaging the control valve—fluid should flow only when air is applied.

Step 5: Bleed and Test the System

1. Start the engine and engage the PTO.
2. Activate the control valve for 10–15 seconds to purge air from hydraulic lines.
3. Check for leaks at all fittings—even a small drip can cause system failure.
4. Cycle the dump bed 3–5 times to verify smooth operation.

📊 Performance Benchmark: A properly plumbed system should raise a 20-ton load in under 25 seconds at 1,800 RPM engine speed.

Common Mistakes to Avoid

Two-Line vs. Three-Line Wet Kits: Which Is Right?

While this guide focuses on two-line systems, some applications use three-line kits (adding a return line for faster cylinder retraction). Here’s a quick comparison:

For most owner-operators, a two-line wet kit offers the best balance of cost, reliability, and ease of maintenance.

FAQ Section

Q1: Can I install a wet kit myself, or do I need a certified technician?

A: While DIY installation is possible for experienced mechanics, the FMCSA recommends that any modification to a commercial vehicle’s air or hydraulic system be performed by a certified technician. Incorrect plumbing can lead to brake failure or DOT violations.

Q2: What type of hydraulic fluid should I use?

A: Most manufacturers specify ISO VG 46 anti-wear hydraulic oil. Never use motor oil or transmission fluid—they lack the necessary viscosity and anti-foaming properties.

Q3: How often should I inspect my wet kit?

A: Inspect hoses, fittings, and couplers weekly for cracks, leaks, or corrosion. Replace hydraulic fluid every 12 months or 15,000 miles, whichever comes first.

Q4: Why is my dump bed slow to raise?

A: Common causes include: low hydraulic fluid, air in the system, clogged filter, or undersized hose. Bleed the system and verify fluid level first.

Q5: Are wet kits DOT legal?

A: Yes—if installed correctly and using DOT-compliant components. The system must not interfere with the primary braking system and must meet FMVSS 121 standards.

Q6: Can I convert a dry kit to a wet kit?

A: Yes, but it requires adding a hydraulic reservoir, pump, and fluid lines. It’s often more cost-effective to install a complete wet kit from the start.

Conclusion

Knowing how to plumb a two-line wet kit correctly keeps your rig running safely, legally, and efficiently. With the right tools, attention to detail, and adherence to best practices, you’ll avoid costly downtime and ensure reliable dump operations every time.

If this guide helped you, share it with your fellow truckers on Facebook, LinkedIn, or your fleet’s group chat—because when one of us gets it right, we all stay safer on the road.

🛠️ Remember: When in doubt, consult your vehicle manufacturer’s manual or a certified heavy-duty technician. Safety isn’t just smart—it’s mandatory.
