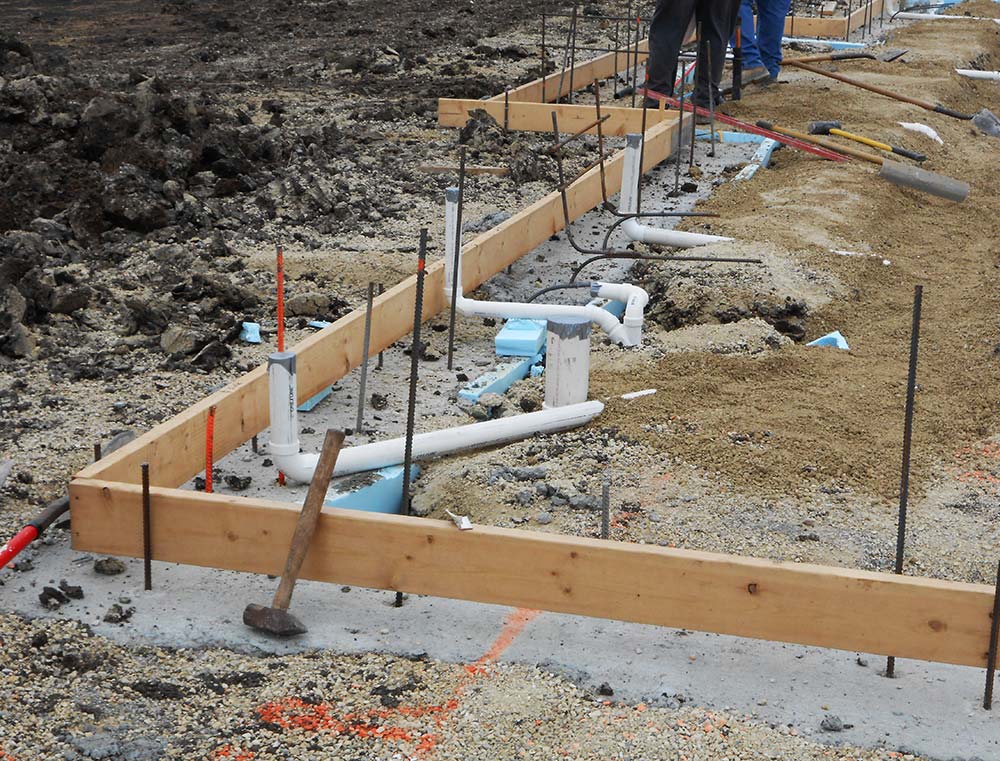

How to Plumb a Water Line Before Pouring the Slab

Pouring a concrete slab is a major milestone in any construction project—but if you forget to install your water lines before the pour, you’ll face expensive repairs, delays, and potential code violations. Whether you’re building a new home, an ADU (Accessory Dwelling Unit), or a garage with plumbing, knowing how to plumb a water line before pouring the slab is essential. This guide walks you through every critical step with clarity, safety, and compliance in mind—so you get it right the first time.

Why Must You Install Water Lines Before Pouring the Slab?

Once concrete cures, accessing pipes beneath it becomes extremely difficult—and often destructive. According to the International Residential Code (IRC), all supply and drainage piping serving fixtures must be installed before the slab is poured. Retrofitting later may require jackhammering, rerouting, or even structural reinforcement.

💡 Pro Tip: The U.S. Department of Energy estimates that 10–15% of slab-on-grade homes experience plumbing leaks within the first decade—many due to improper pre-pour installation.

Skipping this phase isn’t just risky—it’s against building codes in nearly every U.S. jurisdiction.

What Tools and Materials Do You Need?

Before you begin, gather these essentials:

• PEX tubing (Type A or B, rated for underground use) – most common for residential water lines
• Copper pipe (Type L, if local code allows)
• Pipe sleeves (for penetration through footings)
• Shut-off valves (brass or PEX-compatible)
• Pipe insulation (for freeze protection in cold climates)
• Tape measure, chalk line, level
• Pipe cutter, crimp/clamp tools (for PEX)
• Pressure testing kit
• Gravel or sand bedding (to prevent pipe damage)

📌 Note: PEX is now preferred over copper in most new builds due to flexibility, corrosion resistance, and lower cost. The Plumbing-Heating-Cooling Contractors Association (PHCC) reports PEX usage has grown by 68% since 2015 in residential slab applications.

Step-by-Step: How to Plumb a Water Line Before Pouring the Slab

Follow these precise steps to ensure a safe, code-compliant installation:

1. Review Your Plumbing Plan & Get Permits

Start with an approved plumbing layout from your architect or engineer. Verify fixture locations (toilets, sinks, showers) and confirm water main entry point. Always obtain a plumbing permit—inspections are required before the slab pour in most states.

2. Excavate Trenches to Correct Depth

Dig trenches 18–24 inches below the future slab surface (deeper in frost-prone areas). Maintain a consistent slope:

• Supply lines: No slope needed, but avoid sharp bends.
• Drain lines: Minimum ¼” per foot slope toward sewer/septic.

Use compacted gravel or sand as bedding—never lay pipes directly on soil or rock.

3. Install Sleeves Through Footings

Where pipes pass through foundation footings, install PVC or metal sleeves at least 2″ larger than the pipe diameter. This prevents stress cracks during settling. Seal gaps with non-shrinking grout after pipe installation.

4. Lay and Secure the Water Lines

• Use PEX-A with expansion fittings or PEX-B with crimp rings—both are acceptable per IRC P2904.5.
• Keep lines at least 6 inches apart from waste/drain pipes to avoid contamination risk.
• Insulate pipes in zones where ground temps drop below freezing (e.g., USDA Zones 5+).
• Anchor pipes every 32″ horizontally using plastic stakes to prevent shifting during pour.

⚠️ Critical Detail: Never kink PEX. Maintain bend radius of 8x the pipe diameter (e.g., 6″ for ¾” PEX).

5. Pressure Test the System

Before concrete arrives:

• Cap all ends.
• Pressurize with 80 PSI air or water (per IPC 312.2).
• Hold pressure for 2 hours—a drop >5 PSI indicates a leak.
• Fix leaks immediately—do not pour concrete until the test passes.

This step alone prevents 90% of post-pour plumbing failures.

6. Coordinate with Concrete Crew

Mark pipe locations clearly with spray paint or stakes. Inform the concrete team to:

• Avoid driving heavy equipment over pipes.
• Use a vibrating screed, not a jumping-jack compactor, near lines.
• Pour in layers to reduce pipe displacement.

PEX vs. Copper: Which Is Better Under Slab?

Verdict: For 95% of U.S. residential projects, PEX is the smarter choice—especially under slabs.

(Source: 2025 Uniform Plumbing Code Appendix G)

Common Mistakes to Avoid

• ❌ Skipping the pressure test → leads to hidden leaks.
• ❌ Using non-barrier PEX for hot water → oxygen diffusion can corrode boilers.
• ❌ Running water and gas lines in same trench → violates NFPA 54 (minimum 12″ separation required).
• ❌ Ignoring local frost depth → pipes freeze and burst in winter.

🔍 Real Case: In Austin, TX (2023), a builder skipped insulation on a PEX line. After a rare freeze, the slab cracked from ice expansion—costing $18,000 in repairs.

How Deep Should Water Lines Be Under a Slab?

Depth depends on climate and soil:

• Warm climates (Zones 8–11): 12–18″ below slab.
• Cold climates (Zones 3–7): Below local frost line (often 36–48″).
• Always check your city’s building department—e.g., Denver requires 42″, while Miami allows 12″.

Never place pipes within the top 6″ of sub-base—concrete vibration can crush them.

FAQ Section

Q1: Can I run both hot and cold water lines under the slab?

Yes, but insulate hot lines with closed-cell foam to reduce heat loss. Keep hot and cold lines separated by at least 2″ to minimize thermal transfer.

Q2: Do I need a backflow preventer for slab plumbing?

Yes, if your system connects to municipal water. Most U.S. cities require a double-check valve assembly (DCVA) at the main entry point to prevent contamination.

Q3: What if I find a leak after the slab is poured?

You’ll need slab leak detection (acoustic or thermal imaging) followed by either:

• Tunneling underneath (less invasive), or
• Cutting a small access hole in the slab (more common). Repairs average $500–$2,500—far more than pre-pour testing.

Q4: Can I DIY this, or should I hire a plumber?

If you’re experienced with PEX and local codes, DIY is possible. But 80% of failed inspections involve amateur slab plumbing (per NAHB 2024 data). When in doubt, hire a licensed pro.

Q5: Are there special requirements for radiant floor heating lines?

Yes—radiant PEX must be oxygen-barrier type and installed in a separate loop from potable water. Never share manifolds.

Q6: How long does pre-slab plumbing take?

For a standard 1,500 sq ft home: 1–2 days with two workers. Larger builds may take 3–5 days including inspection wait times.

Conclusion

Mastering how to plumb a water line before pouring the slab saves time, money, and headaches down the road. By following code-compliant techniques, pressure testing rigorously, and choosing modern materials like PEX, you ensure a durable, leak-free foundation for your home’s plumbing system.

✅ Key Takeaways:

• Install before the pour—no exceptions.
• Pressure test every line.
• Use PEX for cost, speed, and reliability.
• Always get inspected.
