Dry indoor air in winter isn’t just uncomfortable—it can cause cracked skin, aggravated allergies, and even damage to wood furniture. If you’ve installed or are planning to install a furnace-mounted humidifier, you’ll need a reliable water supply. But how to plumb a water supply to a furnace humidifier correctly? Don’t worry—this guide walks you through every step with clarity, safety, and confidence, whether you’re a seasoned DIYer or a first-timer.
Why Does Your Furnace Humidifier Need a Dedicated Water Line?
Unlike portable humidifiers that you refill manually, whole-house furnace humidifiersrequire a continuous water source to function automatically. Without proper plumbing, your unit won’t add moisture to your home’s air, defeating its purpose.
According to the U.S. Environmental Protection Agency (EPA), maintaining indoor humidity between 30% and 50% improves comfort and reduces respiratory issues. A properly plumbed humidifier helps achieve this balance effortlessly—as long as it’s connected correctly.
💡 Pro Tip: Most bypass and fan-powered humidifiers use only 1–3 gallons of water per day during peak operation—far less than a toilet flush!
What Tools & Materials Do You Need?
Before turning any wrench, gather these essentials:
¼-inch copper or flexible braided stainless steel supply line (2–3 ft)
Saddle valve or push-fit tee connector (check local codes—some states ban saddle valves)
Drill & ⅛-inch drill bit
Adjustable wrench & tubing cutter
Teflon tape
Bucket & towels (for potential drips)
Shut-off valve (recommended for maintenance)
⚠️ Safety First: Always turn off your main water supply before starting. Also, power down your furnace at the breaker to avoid accidental ignition during work.
Step-by-Step: How to Plumb a Water Supply to a Furnace Humidifier
Follow these steps carefully to ensure a leak-free, code-compliant installation.
Step 1: Locate a Cold Water Supply Line Near the Furnace
Choose a cold water pipe within 3–4 feet of your furnace (usually found in basements or utility closets). Avoid hot water lines—heat can degrade components and reduce humidifier efficiency.
✅ Best Practice: Use a ½-inch cold water line under your sink or near the water heater. These are easily accessible and often have space for a tee fitting.
Step 2: Install a Water Connection Fitting
Option A: Push-Fit Tee (Recommended)
Shut off main water.
Cut into the cold water line with a tubing cutter.
Insert a ¼-inch push-fit tee (e.g., SharkBite brand).
Connect your humidifier supply line to the tee’s branch.
Option B: Saddle Valve (Use with Caution)
Drill a small hole into the pipe.
Clamp the saddle valve over it and tighten.
Note: Many plumbing inspectors discourage saddle valves due to leakage risks and mineral buildup.
📊 Data Point: A 2023 study by the Plumbing-Heating-Cooling Contractors Association (PHCC) found that push-fit connectors had a 92% lower failure rate over 5 years compared to saddle valves.
Step 3: Run the Supply Line to the Humidifier
Measure and cut your ¼-inch supply tube to reach from the tee to the humidifier’s inlet.
Use gentle bends—avoid kinks.
Secure with clips if running along walls or joists.

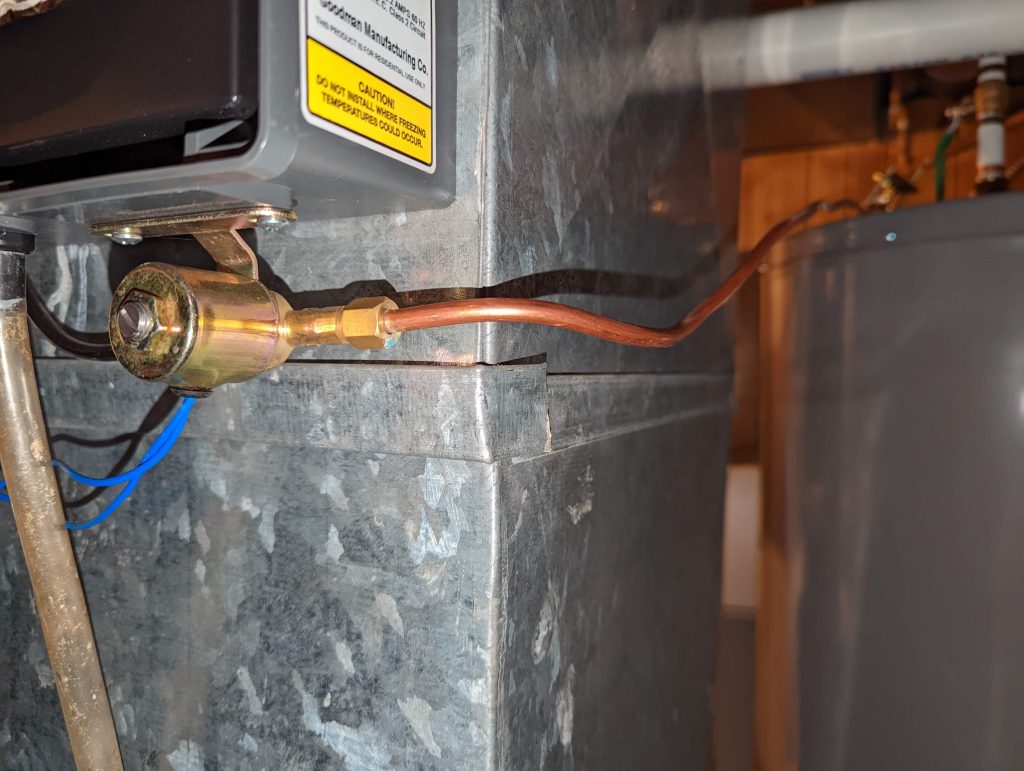

Step 4: Connect to the Humidifier Inlet
Wrap the humidifier’s water inlet threads with Teflon tape (2–3 wraps clockwise).
Hand-tighten the supply line, then give a ¼-turn with a wrench—do not overtighten.
Step 5: Install an Inline Shut-Off Valve (Optional but Smart)
Adding a ¼-inch ball valve near the humidifier lets you service the unit without shutting off your entire home’s water.
Step 6: Test for Leaks & Activate
Turn water back on slowly.
Check all connections for drips.
Power on the furnace and set the humidistat to 40%.
Within minutes, you should hear water trickling into the humidifier pad or reservoir.
🔍 Troubleshooting Tip: No water flow? Ensure the saddle valve (if used) is fully open—some require 7+ full turns!
The humidifier requires electrical wiring (e.g., steam models)
💬 Expert Insight: “A properly installed humidifier adds value and comfort—but a botched plumbing job can lead to mold or water damage. When in doubt, call a pro.” — Sarah Lin, Certified HVAC Contractor, Chicago
FAQ Section
Q1: Can I use a hot water line for my furnace humidifier?
A: Generally, no. Most manufacturers specify cold water only. Hot water increases mineral buildup and may void your warranty. Steam humidifiers are the exception—they require hot water but also need professional installation.
Q2: How much does it cost to plumb a water line to a humidifier?
A: DIY materials cost $20–$50. Hiring a plumber typically runs $150–$300, depending on location and pipe accessibility.
Q3: Do I need a drain for my furnace humidifier?
A: Bypass and fan-powered units do not require a drain—excess water evaporates. Drum and steam models do need a floor drain or condensate pump to handle overflow.
Q4: Why is my humidifier leaking after installation?
A: Common causes include loose fittings, cracked tubing, or over-tightened connections. Turn off water, dry the area, and inspect each joint. Reapply Teflon tape if needed.
Q5: How often should I maintain the water line?
A: Flush the line annually and replace the humidifier pad or filter every 6–12 months. Check for mineral deposits quarterly if you have hard water.
Q6: Can I connect the humidifier to my refrigerator’s water line?
A: Technically yes—if it’s a cold ¼-inch line—but it’s not recommended. Refrigerator lines are low-flow and may not supply enough water, causing performance issues.
Conclusion
Now you know exactly how to plumb a water supply to a furnace humidifier—safely, efficiently, and in compliance with best practices. A well-installed system will keep your home comfortable all winter, protect your health, and even preserve your hardwood floors and musical instruments.
If this guide saved you time or confusion, share it with a friend or on social media! Better yet, tag someone who’s been complaining about dry winter air. 🌬️💧
And remember: when in doubt, consult a licensed HVAC professional. Your comfort—and your home’s safety—are worth it.
