Are you struggling with uneven heating in your workshop, garage, or home addition? Installing a water-to-air heat exchanger can be a game-changer, turning your existing hot water source into a powerful forced-air heating system. However, getting the piping right is critical for efficiency and safety. In this guide, we will walk you through exactly how to plumb a water to air heat exchanger, ensuring you get maximum heat output without the risk of leaks or pressure issues.
Understanding the Basics: What Is a Water-to-Air Heat Exchanger?

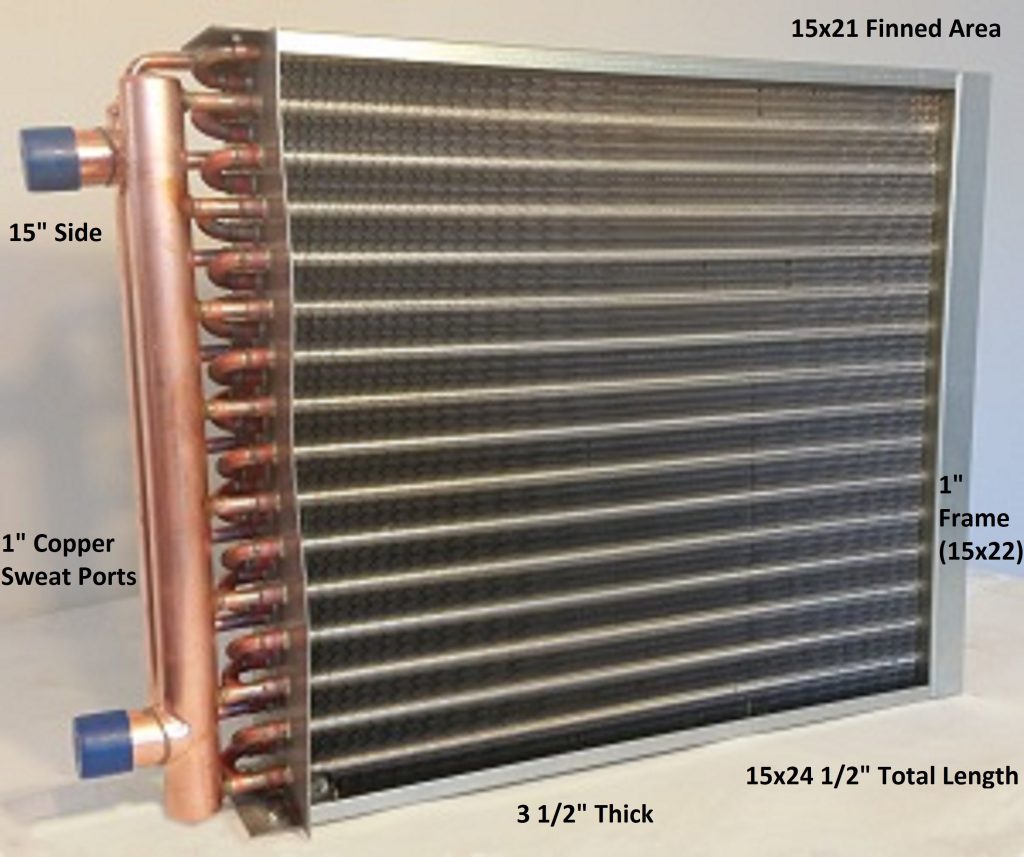

Before picking up a wrench, it is essential to understand what you are installing. A water-to-air heat exchanger (often called a hydronic coil) transfers thermal energy from hot water to air. As a fan blows air across the heated coils, the warm air is distributed throughout your space.
This system is popular because it leverages existing heat sources, such as:
- Outdoor wood furnaces
- Boiler systems
- Solar thermal collectors
- Geothermal loops
According to the U.S. Department of Energy, properly installed hydronic systems can be significantly more efficient than standard electric resistance heating, especially in colder climates.
Tools and Materials You Will Need
Proper preparation prevents poor performance. Gather these items before starting:
- Copper or PEX piping (depending on your local code and preference)
- Pipe cutter and deburring tool
- Adjustable wrenches (two are recommended)
- Teflon tape or pipe dope (for threaded connections)
- Isolation valves (ball valves for supply and return)
- Air bleed valve (automatic or manual)
- Circulator pump (if not already present in the loop)
- Expansion tank (critical for closed-loop systems)
- Pressure gauge
Step-by-Step: How To Plumb A Water To Air Heat Exchanger
Plumbing this unit requires precision. Follow these steps to ensure a leak-free and efficient installation.
1. Plan Your Layout and Shut Off Power
Safety first. Turn off the power to your existing heat source and the blower fan of the heat exchanger. Decide where the unit will sit. Ensure there is enough clearance for maintenance and airflow.
Pro Tip: Keep the supply and return lines as short and straight as possible to minimize pressure drop.
2. Install Isolation Valves
You must install shut-off valves on both the inlet (supply) and outlet (return) pipes. Why? If the coil develops a leak or needs cleaning, you can isolate it without draining your entire boiler or furnace system.
- Install a ball valve on the hot water supply line.
- Install a ball valve on the return line.
3. Connect the Supply Line
The supply line carries hot water into the heat exchanger. Most units have specific markings for “Supply” and “Return.” Do not guess; check the manufacturer’s label.
- Cut your piping to size.
- Use appropriate fittings (elbows, couplings) to connect the supply pipe to the inlet port.
- Apply Teflon tape clockwise on threaded connections to prevent leaks.
- Tighten securely but avoid over-tightening, which can crack brass fittings.
4. Connect the Return Line
The return line carries cooled water back to the heat source.
- Connect the outlet port of the heat exchanger to the return piping.
- Ensure the slope of the pipe allows for proper drainage if needed.
5. Install an Air Bleed Valve
Air pockets are the enemy of hydronic systems. They cause noise, reduce efficiency, and can lead to cold spots in the coil.
- Install an automatic air vent at the highest point of the heat exchanger loop.
- Alternatively, use a manual bleed valve if you prefer hands-on maintenance.
6. Integrate the Circulator Pump
If your existing system does not have a dedicated pump for this zone, you must install one. The pump should typically be placed on the supply side (pushing water into the coil) or the return side (pulling water out), depending on the system design. Consult your pump’s manual, but generally, pumping away from the expansion tank is the gold standard.
7. Pressure Test and Flush
Before turning on the heat:
- Open the isolation valves.
- Fill the system with water.
- Check all connections for leaks.
- Bleed the air out of the system until a steady stream of water comes from the bleed valve.
- Pressurize the system to the recommended PSI (usually 12–15 PSI for residential systems).
Common Mistakes to Avoid
Even experienced DIYers make errors. Here is what to watch out for:
| Mistake | Consequence | Solution |
|---|---|---|
| Reverse Plumbing | Reduced efficiency, potential damage | Always follow flow arrows on the unit |
| No Isolation Valves | Must drain whole system for repairs | Always install shut-offs on both lines |
| Ignoring Air Bleeds | Noisy operation, cold spots | Install automatic air vents |
| Undersized Piping | Poor water flow, low heat output | Match pipe diameter to unit specs |
Maintenance Tips for Longevity
Once you know how to plumb a water to air heat exchanger, keeping it running smoothly is the next step.
- Annual Flushing: Over time, mineral deposits can build up inside the coils. Flush the system annually with a descaling solution if you have hard water.
- Check the Blower Fan: Dust accumulation on the fan blades reduces airflow. Clean them every six months.
- Inspect for Leaks: Visually check connections during the heating season. Look for white residue (mineral deposits) which indicates a slow leak.
FAQ Section
1. Can I plumb a water-to-air heat exchanger myself?
Yes, if you have basic plumbing skills and understand hydronic systems. However, always check local building codes. Some jurisdictions require a licensed plumber or HVAC technician for final inspection, especially when connecting to a boiler.
2. What is the best water temperature for these units?
Most water-to-air heat exchangers operate efficiently with water temperatures between 140°F and 180°F (60°C–82°C). Lower temperatures may result in insufficient heat output, while excessively high temperatures can stress the components.
3. Do I need an expansion tank?
If you are connecting to a closed-loop boiler system, yes. An expansion tank accommodates the increase in water volume as it heats up, preventing excessive pressure buildup that could trigger the pressure relief valve.
4. How do I know if my heat exchanger is clogged?
Signs of a clog include reduced airflow, lukewarm air coming from the vents despite hot water in the lines, and unusual noises from the pump. If you suspect a clog, try flushing the coil with a vinegar solution or a commercial descaler.
5. Can I use antifreeze in the system?
Yes, if the heat exchanger is located in an unheated space prone to freezing, you must use a propylene glycol mixture. Never use automotive ethylene glycol, as it is toxic and can damage certain seals.
6. What size pump do I need?
The pump size depends on the head pressure (vertical height and pipe length) and the flow rate required by the heat exchanger. Refer to the manufacturer’s specifications for the required GPM (gallons per minute) and calculate the head loss to select the correct circulator.
Conclusion
Learning how to plumb a water to air heat exchanger empowers you to take control of your home’s heating efficiency. By following the steps outlined above—installing isolation valves, bleeding air correctly, and ensuring proper flow—you can enjoy consistent, cost-effective warmth for years to come.
Remember, patience and precision are key. Take your time during the planning phase, double-check your connections, and never skip the pressure test.
