If you’re setting up a private water system or repairing an existing one, knowing how to plumb a well pump and tank is essential for consistent, clean water flow. Many homeowners tackle this project to save money or gain self-reliance—but improper installation can lead to leaks, pressure issues, or even system failure. This guide walks you through the entire process with clarity, safety, and best practices backed by industry standards.
What Equipment Do You Need to Plumb a Well Pump and Tank?
Before turning a single wrench, gather the right tools and components. A successful installation hinges on preparation.
Essential Tools & Materials:
- Submersible or jet well pump (depending on well depth)
- Pressure tank (typically 20–80 gallons for residential use)
- Pressure switch (usually 30/50 or 40/60 psi setting)
- Check valve
- Gate or ball valves (for shutoff control)
- Pipe fittings (PVC, CPVC, or copper—check local codes)
- Teflon tape and pipe thread sealant
- Wrenches, pipe cutter, and pipe threader
- Multimeter (for electrical testing)
💡 Pro Tip: Always verify local plumbing and electrical codes before starting. In many U.S. states, well work requires a licensed contractor—especially for deep wells or electrical connections.
According to the U.S. Geological Survey, over 13 million households rely on private wells for drinking water. Proper plumbing ensures your system lasts 10–15 years or more.
Step-by-Step: How to Plumb a Well Pump and Tank
Step 1: Turn Off Power and Water Supply
Safety first! Disconnect power at the breaker box. If you’re replacing an existing system, drain all water from pipes and the tank.

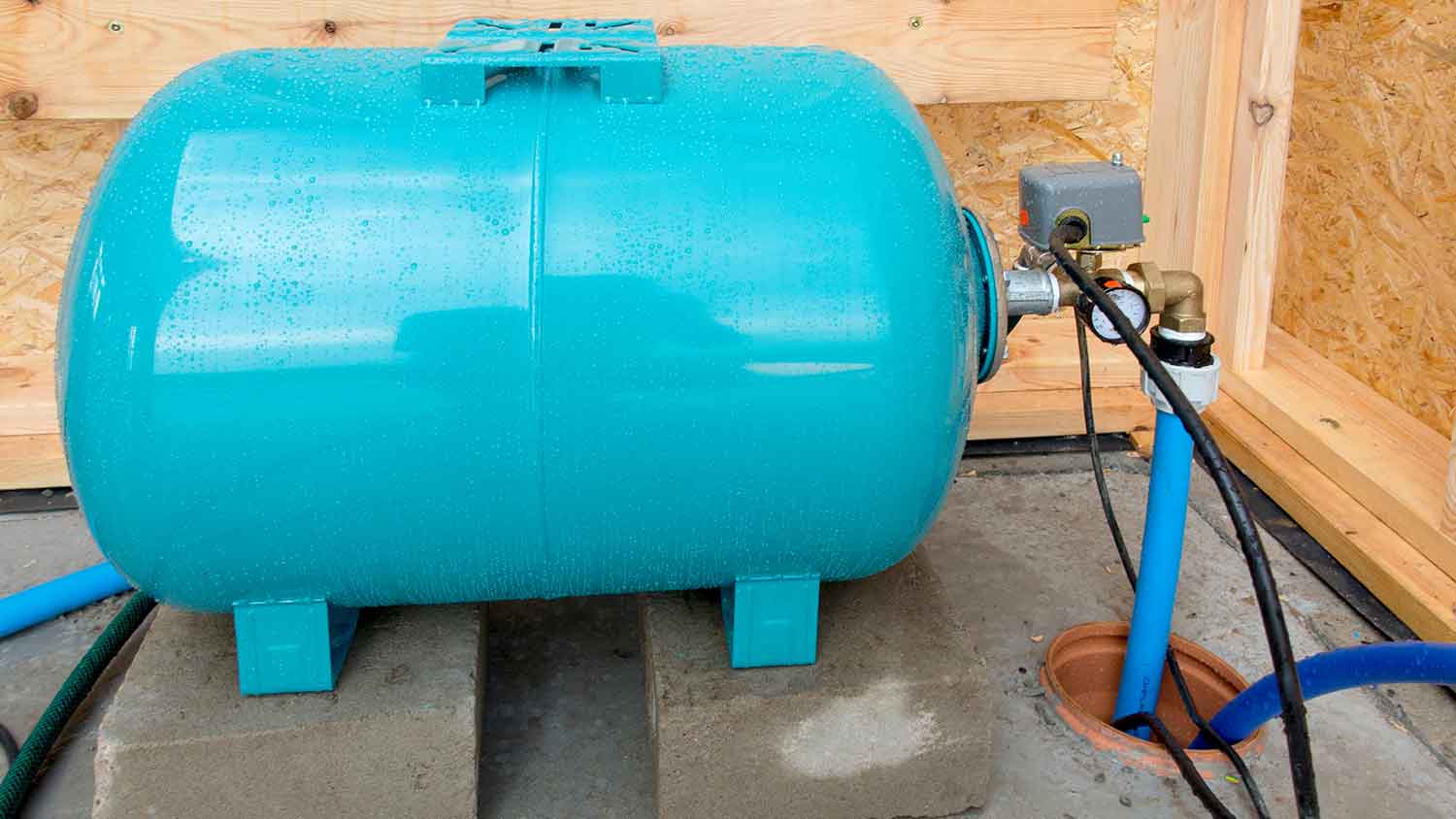

Step 2: Install the Pressure Tank
Place the tank on a stable, level surface near the well head or in the basement. Most tanks require ¼” of space around them for airflow and maintenance.
- Mount vertically with the air valve (Schrader valve) facing up.
- Use a tank tee (also called a 4-way or 5-way valve) to connect the pump, pressure switch, gauge, and house plumbing in one compact unit.
Step 3: Connect the Well Pump to the Tank
- Run the drop pipe (for submersible pumps) or suction line (for jet pumps) from the well to the tank inlet.
- Install a check valve within 25 feet of the pump outlet to prevent backflow and water hammer.
- Use thread sealant on all threaded connections—never rely on Teflon tape alone for high-pressure lines.
⚠️ Critical Detail: The first check valve must be installed above the pump, not at the tank. Multiple check valves can cause pressure surges and premature pump failure (per Water Systems Council guidelines).
Step 4: Install the Pressure Switch and Gauge
- Wire the pressure switch to the pump control box (hire an electrician if unsure).
- Set the cut-in/cut-out pressure (e.g., 30 psi on, 50 psi off). Most residential systems use a 20-psi differential.
- Mount the pressure gauge next to the switch for easy monitoring.
Step 5: Connect to the House Plumbing
- Use a ball valve between the tank tee and the main house line for easy shutoff.
- Install a drain valve at the lowest point to winterize or flush the system.
- Flush all lines thoroughly before restoring power.
Step 6: Charge the Pressure Tank
- With the system empty, check the air pre-charge in the tank using a tire gauge.
- It should be 2 psi below the pump’s cut-in pressure (e.g., 28 psi for a 30/50 switch).
- Adjust using a standard air compressor if needed.
Learn more about how pressure tanks work on Wikipedia’s water pressure tank page.
Common Mistakes to Avoid When Plumbing a Well System
Even experienced DIYers make these errors:
| Mistake | Consequence | Fix |
|---|---|---|
| Skipping the check valve | Water drains back into well, causing pump burnout | Install one check valve near pump |
| Incorrect tank pre-charge | Short cycling (pump turns on/off too often) | Recharge to 2 psi below cut-in |
| Using undersized piping | Low water pressure, noise | Use minimum 1″ pipe for main line |
| Ignoring local codes | Failed inspection, voided warranties | Check with county health department |
Jet Pump vs. Submersible Pump: Which Is Right for Your Well?
Your plumbing approach depends on your pump type:
- Jet Pumps: Used for shallow wells (<25 feet). Require priming and a foot valve. Easier to access but noisier.
- Submersible Pumps: Installed inside the well (up to 400+ feet deep). Quieter, more efficient, and self-priming.
📊 Data Insight: The National Ground Water Association reports that over 60% of new residential wells use submersible pumps due to reliability and energy efficiency.
How to Test Your System After Installation
Don’t skip this validation phase!
- Turn on power and listen for smooth pump operation (no grinding or knocking).
- Open a faucet and let water run until clear.
- Monitor pressure: The gauge should rise steadily to cut-out pressure, then hold steady when faucets are off.
- Check for leaks at all joints—especially under pressure.
If the pump cycles rapidly (less than 1 minute between starts), your tank may be waterlogged—time to replace the bladder or check the air charge.
FAQ: How to Plumb a Well Pump and Tank
Q1: Can I plumb a well pump and tank myself?
A: Yes—if you’re comfortable with basic plumbing and electrical work. However, electrical connections and deep-well installations often require a licensed professional due to safety and code compliance.
Q2: How far should the pressure tank be from the well pump?
A: Ideally, within 10–20 feet. Greater distances increase friction loss and can reduce system efficiency. In basement installations, this isn’t always avoidable—but keep piping as straight and short as possible.
Q3: Why is my pressure tank losing air?
A: A ruptured bladder or faulty Schrader valve is likely. Test by pressing the valve—if water comes out, the bladder is broken and the tank needs replacement.
Q4: What size pressure tank do I need?
A: It depends on your pump’s flow rate (GPM). Rule of thumb:
- 10 GPM → 20-gallon tank
- 20 GPM → 80-gallon tank
Larger tanks reduce pump cycling, extending motor life.
Q5: Do I need a constant pressure system?
A: Not necessarily. Traditional setups (pump + tank + switch) work well for most homes. Constant pressure systems (with variable frequency drives) offer smoother flow but cost 2–3x more.
Q6: How often should I maintain my well plumbing system?
A: Inspect annually:
- Check tank air pressure
- Test water for bacteria/nitrates
- Clean sediment filters
- Verify pressure switch operation
Conclusion
Mastering how to plumb a well pump and tank empowers you to maintain a reliable, efficient water supply for your home. With the right tools, precise steps, and attention to safety, you’ll avoid costly repairs and enjoy clean, consistent water year-round.
If this guide helped you, share it on Facebook or Pinterest to help other homeowners tackle their well projects with confidence! Got questions? Drop them in the comments—we’re here to help.
Remember: When in doubt, consult a certified well contractor. Your health and home depend on clean, properly pressurized water.
