How To Plumb Air Compressor In Shop Pipe Diameter Guide

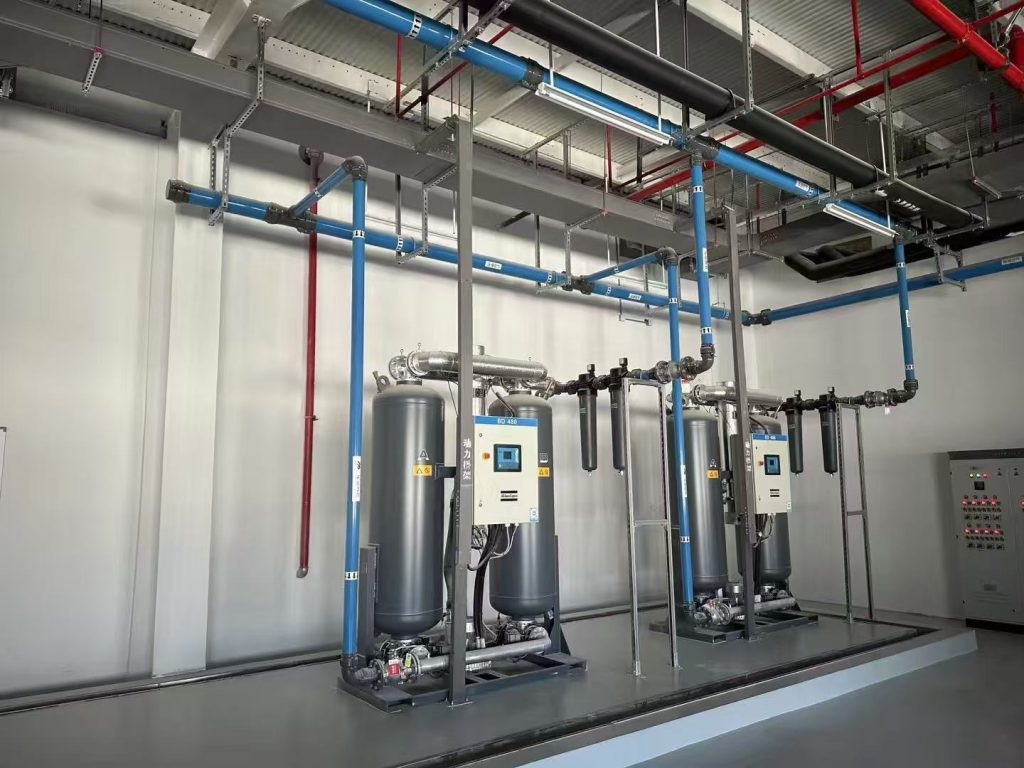

Setting up a new workshop is exciting, but few things are as frustrating as an air tool that sputters and dies because it isn’t getting enough power. Many DIYers and professional mechanics alike struggle with this invisible bottleneck: incorrect piping size. If you are wondering how to plumb air compressor in shop pipe diameter specifications to ensure maximum efficiency, you are not alone. Getting this wrong can cost you money in wasted energy and ruined projects. This guide will walk you through the exact steps to design a system that delivers consistent, powerful air to every corner of your shop.

Why Pipe Diameter Matters More Than You Think

Before we dive into the tools and materials, it is crucial to understand why diameter is the critical variable in your air system. It is not just about fitting the pieces together; it is about physics.

When air travels through a pipe, it encounters friction against the walls. This friction causes pressure drop. If your pipe is too narrow, the air slows down, and the pressure at the tool end decreases significantly compared to the tank pressure.

Expert Insight: According to fluid dynamics principles, doubling the length of the pipe doubles the pressure drop, but doubling the diameter reduces the pressure drop by a factor of roughly 32. This means a small increase in pipe size yields a massive improvement in performance.

The Cost of Undersized Piping

• Reduced Tool Efficiency: Impact wrenches and sanders require specific CFM (Cubic Feet per Minute) at a specific PSI. Undersized pipes starve them.
• Compressor Overwork: Your compressor has to run longer and harder to maintain pressure, leading to premature wear and higher electricity bills.
• Moisture Accumulation: Slower air movement allows more condensation to settle in the lines, leading to rust and water in your tools.

Determining the Right Pipe Size for Your Shop

So, what is the magic number? There is no single “one-size-fits-all” answer, but there are industry standards based on your compressor’s output and your shop’s layout.

Step 1: Calculate Your Total CFM Requirement

List every air tool you plan to use simultaneously. Check their nameplates for CFM requirements at 90 PSI. Add these numbers together.

• Example: If you have an impact wrench (4 CFM) and a die grinder (3 CFM), and you might use them together, you need a system capable of delivering at least 7 CFM continuously.

Step 2: Measure the Distance

Measure the total length of the pipe run from the compressor to the furthest tool outlet. Include vertical rises and drops. Longer runs require larger diameters to compensate for friction loss.

Recommended Pipe Diameters by Shop Size

Note: These are general guidelines. Always consult your compressor manufacturer’s manual for specific recommendations.

Choosing the Right Material: Copper, Aluminum, or Black Iron?

Once you know the diameter, you must choose the material. This decision impacts safety, cost, and longevity.

1. Copper (Type L or K)

Copper has been the gold standard for decades. It is durable, resists corrosion, and handles heat well.

• Pros: Long lifespan, easy to solder, widely available.
• Cons: Expensive, requires skilled soldering, can be stolen from unsecured shops.

2. Aluminum Piping Systems

Modern compressed air systems often use specialized aluminum piping with push-to-connect fittings.

• Pros: Lightweight, no corrosion, incredibly fast installation, smooth interior (less friction).
• Cons: Higher upfront material cost, requires specific fittings.

3. Black Iron Pipe

Traditional and very strong, but falling out of favor for new installations.

• Pros: Very cheap, extremely durable.
• Cons: Heavy, difficult to install (threading required), prone to internal rust which can flake off and damage tools.

⚠️ A Critical Warning About PVC

Never use standard white PVC pipe for compressed air. Standard PVC becomes brittle over time and can shatter explosively under pressure, sending shrapnel across your shop. While some schedule 80 PVC is rated for air, most safety experts and insurance companies prohibit it due to the risk of catastrophic failure. For more details on material safety standards, you can refer to general industrial piping guidelines on Wikipedia.

Step-by-Step: How to Install Your Air Piping System

Now that you have your plan and materials, here is how to execute the installation.

Phase 1: Layout and Preparation

1. Draw a Map: Sketch your shop. Mark the compressor location and where you want drop-downs for tools.
2. Plan the Loop: Ideally, create a “loop” system rather than a dead-end line. A loop allows air to flow from both directions, reducing pressure drop and ensuring consistent supply even if one section is blocked.
3. Slope the Pipes: This is vital. Slope all horizontal pipes slightly downward (about 1/4 inch per 10 feet) away from the compressor. This ensures condensation flows toward drain points, not into your tools.

Phase 2: Installation

1. Install the Main Line: Start from the compressor outlet. Use the largest diameter pipe here (e.g., 3/4 inch). Secure it to wall studs or ceiling joists using proper pipe hangers every 6–8 feet.
2. Add Shut-Off Valves: Install ball valves at regular intervals. This allows you to isolate sections for maintenance without shutting down the entire shop.
3. Create Drop Downs: At each tool station, bring the pipe down from the main line.
   • Pro Tip: Use a “U” shape or a drip leg before the hose connection. This traps moisture and oil, preventing them from entering your air hose.
4. Connect Branch Lines: Connect your smaller diameter branch lines (e.g., 1/2 inch) to the main loop using appropriate tees and reducers.

Phase 3: Testing and Finishing

1. Pressure Test: Before connecting tools, close all outlets and turn on the compressor. Listen for hissing. Use a soapy water solution on joints; bubbles indicate leaks.
2. Insulate if Necessary: If pipes run through unheated areas, insulate them to prevent excessive condensation.
3. Label Everything: Label shut-off valves and drop points. Future you will thank present you.

Common Mistakes to Avoid

Even experienced DIYers make these errors. Avoid them to save time and money.

• Using Too Many Elbows: Every 90-degree elbow adds significant resistance. Use two 45-degree elbows instead of one 90-degree elbow whenever possible to maintain airflow.
• Ignoring Moisture Traps: Failing to install drip legs at drop-downs will result in water spraying out of your air gun eventually.
• Oversizing the Hose, Not the Pipe: Remember, the rigid pipe is the backbone. A large pipe with a tiny hose at the end will still restrict flow. Match your hose diameter to your tool’s requirement.

FAQ Section

Q1: Can I use existing water pipes for my air compressor?

A: No. Water pipes are designed for liquid, not gas. They may not handle the pressure spikes of a compressor, and residues inside old water pipes can contaminate your air tools. Always use new piping rated for compressed air.

Q2: What is the maximum distance I can run air pipe without losing pressure?

A: It depends on the diameter and CFM. Generally, with a 3/4-inch pipe, you can run up to 100 feet with minimal pressure drop for a standard 5 HP compressor. Beyond that, consider increasing the diameter to 1 inch or adding a secondary receiver tank near the point of use.

Q3: Do I need a filter after plumbing the pipes?

A: Yes. Even with perfect plumbing, compressors introduce oil and moisture. Install a high-quality inline filter and regulator at each drop-down point to protect sensitive tools like paint sprayers.

Q4: Is it better to have a loop system or a straight line?

A: A loop system is superior for shops with multiple tools. It balances pressure throughout the system and reduces the velocity of air needed to deliver the same CFM, which minimizes pressure drop.

Q5: How often should I drain the moisture from my system?

A: If you have automatic drains, they handle it for you. If you have manual drains on your drip legs, drain them daily or after every heavy use session. Accumulated water is the enemy of your tools.

Q6: Can I mix different pipe materials in one system?

A: Yes, but you must use proper transition fittings. For example, you can use black iron for the main underground run and copper for the shop interior. Ensure all connections are sealed with Teflon tape or pipe dope rated for compressed air.

Conclusion

Learning how to plumb air compressor in shop pipe diameter specifications correctly is one of the best investments you can make in your workshop. By choosing the right diameter—typically 3/4 inch for the main line in medium shops—and using safe materials like copper or aluminum, you ensure that every tool performs at its peak. You eliminate the frustration of weak air pressure and extend the life of your expensive equipment.

Don’t let poor planning bottleneck your productivity. Take the time to measure, plan your loop, and install those drip legs. Your future self will appreciate the smooth, powerful airflow every time you pull the trigger.

Found this guide helpful? Share it with your fellow mechanics and DIY enthusiasts on Facebook or Twitter to help them build better shops too!
