How to Plumb an Agitation Line for an Ag Sprayer (Step-by-Step Guide)

If you’ve ever struggled with uneven chemical mixing or nozzle clogs during spraying, your agitation system might be the culprit. Properly plumbing an agitation line for an ag sprayer isn’t just a technical detail—it’s essential for consistent application, equipment longevity, and maximizing ROI on crop inputs. In this guide, we’ll walk you through exactly how to plumb an agitation line for an ag sprayer, step by step, so you can spray with confidence.

Why Is Agitation Critical in Agricultural Sprayers?

Agitation keeps pesticides, herbicides, and liquid fertilizers uniformly suspended in the tank. Without it, active ingredients settle at the bottom, leading to:

• Under-dosing in early passes
• Over-application later (wasting chemicals and risking crop damage)
• Nozzle blockages and pump strain

According to a 2023 study by the University of Nebraska-Lincoln Extension, over 60% of spray application errors stem from poor tank mixing—often due to inadequate or improperly plumbed agitation systems.

“A well-designed agitation loop is as important as nozzle selection,” says Dr. Jason Norsworthy, weed scientist at the University of Arkansas. “It ensures every drop sprayed contains the correct concentration.”

For more on fluid dynamics in agricultural systems, see Wikipedia’s entry on agricultural spraying.

What Tools and Materials Do You Need?

Before you start, gather these essentials:

• Return line hose (typically ¾” or 1″ ID, chemical-resistant—e.g., polyethylene or reinforced PVC)
• T-fittings or cross fittings (stainless steel or high-density poly)
• Ball valves (for flow control and maintenance access)
• Clamps and hose barbs (rated for your system pressure)
• Drill & hole saw (if modifying tank)
• Pressure-rated pump (usually your existing sprayer pump)
• Safety gear: gloves, goggles, chemical apron

💡 Pro Tip: Always use hoses and fittings rated for agricultural chemicals—not just water. Many solvents degrade standard rubber over time.

Step-by-Step: How to Plumb an Agitation Line for an Ag Sprayer

Follow these precise steps to install or retrofit an effective agitation loop:

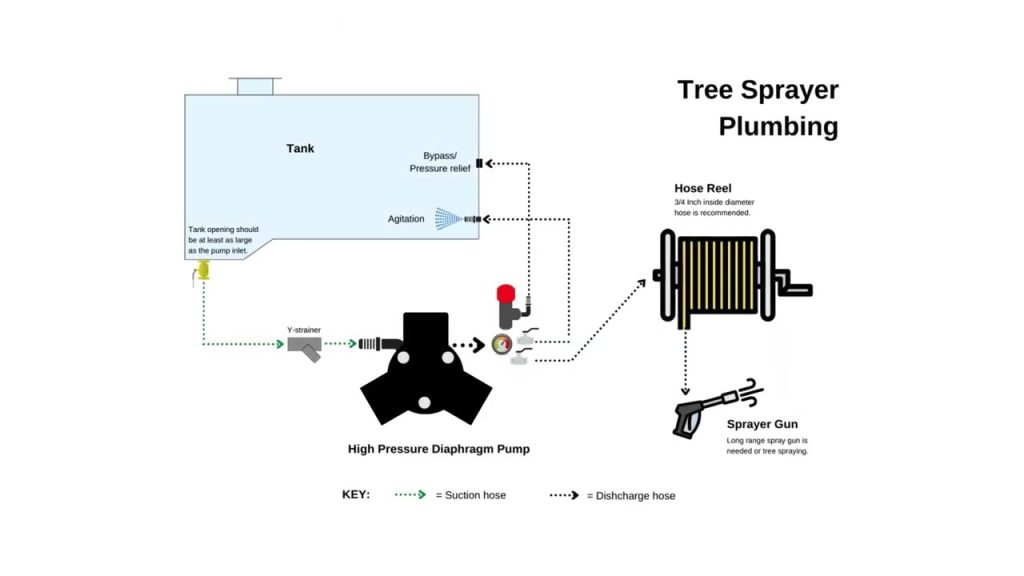

Step 1: Locate Your Pump Outlet and Tank Return Point

Most agitation lines tap into the main pump outlet after the pressure regulator but before the boom manifold. The return should enter the tank near the bottom, angled toward the center to create a swirling motion.

✅ Ideal placement: Return nozzle 4–6 inches above tank floor, pointed diagonally across the tank base.

Step 2: Install a T-Fitting on the Main Discharge Line

• Shut off the sprayer and relieve pressure.
• Cut into the main discharge line and install a T-fitting.
• Ensure the branch points downward to prevent air trapping.

⚠️ Never tee off before the pressure regulator—this can cause erratic agitation flow and pump cavitation.

Step 3: Run the Agitation Hose to the Tank

• Use continuous hose (no unnecessary joints) from the T-fitting to the tank wall.
• Keep the run as short and straight as possible—every elbow adds resistance.
• Secure with clamps every 18–24 inches to prevent vibration wear.

Step 4: Drill and Install the Return Nozzle

• Mark a spot on the tank wall near the bottom (avoid ribs or seams).
• Drill a hole matching your hose barb size (e.g., 1″ for ¾” hose).
• Insert a threaded bulkhead fitting from the inside, seal with chemical-resistant gasket.
• Attach the hose barb and secure tightly.

Step 5: Add a Ball Valve for Control

Install a ball valve between the T-fitting and the tank return. This lets you:

• Shut off agitation during filling or cleaning
• Adjust flow rate based on tank volume
• Isolate the line for maintenance

🔧 Recommended flow: 10–15% of total pump output. For a 20 GPM pump, that’s 2–3 GPM through agitation.

Step 6: Test the System

1. Fill the tank halfway with clean water.
2. Start the sprayer at low pressure (20–30 PSI).
3. Open the agitation valve fully.
4. Observe: You should see a vortex forming at the tank surface within 15–30 seconds.
5. If mixing is weak, increase flow slightly or re-angle the return nozzle.

🌊 Real-world example: A North Dakota custom applicator reduced drift complaints by 40% after upgrading to a dual-nozzle agitation system that created a stronger vortex—verified via dye tests.

Common Mistakes to Avoid

Agitation Line: Mechanical vs. Hydraulic Systems

While this guide focuses on hydraulic agitation (using pump pressure), some sprayers use mechanical agitators (paddles or propellers). Here’s how they compare:

For most growers, hydraulic agitation—when plumbed correctly—is sufficient, cost-effective, and reliable.

FAQ Section

Q1: Can I use my boom return for agitation?

A: Not recommended. Boom returns are designed for pressure relief, not mixing. They often enter the tank at the top and lack directional flow, resulting in poor suspension of heavy particles.

Q2: How much flow do I need for effective agitation?

A: Aim for 10–15% of your pump’s total capacity. For example, a 30 GPM pump should send 3–4.5 GPM through the agitation line. Too little = poor mixing; too much = wasted energy and heat buildup.

Q3: Should I run agitation while filling the tank?

A: Yes! Start agitation as soon as liquid covers the return nozzle. This prevents clumping when adding dry products or concentrated liquids.

Q4: My agitation line keeps clogging—what’s wrong?

A: Likely causes:

• No inline filter before the T-fitting
• Using degraded hose that sheds particles
• Adding undissolved powders directly into the tank
  Always pre-mix dry chemicals in a separate container before adding to the tank.

Q5: Can I add a second agitation nozzle?

A: Absolutely—and often advisable for tanks over 800 gallons. Place one on each side near the bottom, angled inward to create a cross-current. This eliminates dead zones.

Q6: Does agitation affect spray pressure?

A: Slightly—but modern pumps compensate. Just ensure your agitation flow doesn’t exceed 15% of total output. Monitor pressure gauge: if it drops more than 5 PSI when agitation is on, reduce flow with the ball valve.

Conclusion

Knowing how to plumb an agitation line for an ag sprayer correctly transforms your spraying operation—ensuring uniform chemical distribution, protecting your equipment, and saving money on inputs. With the right materials, smart placement, and a simple test, you’ll achieve professional-grade mixing every time.

Don’t let poor agitation undermine your hard work in the field. Share this guide with fellow farmers or your custom applicator—better spraying starts with better mixing!
