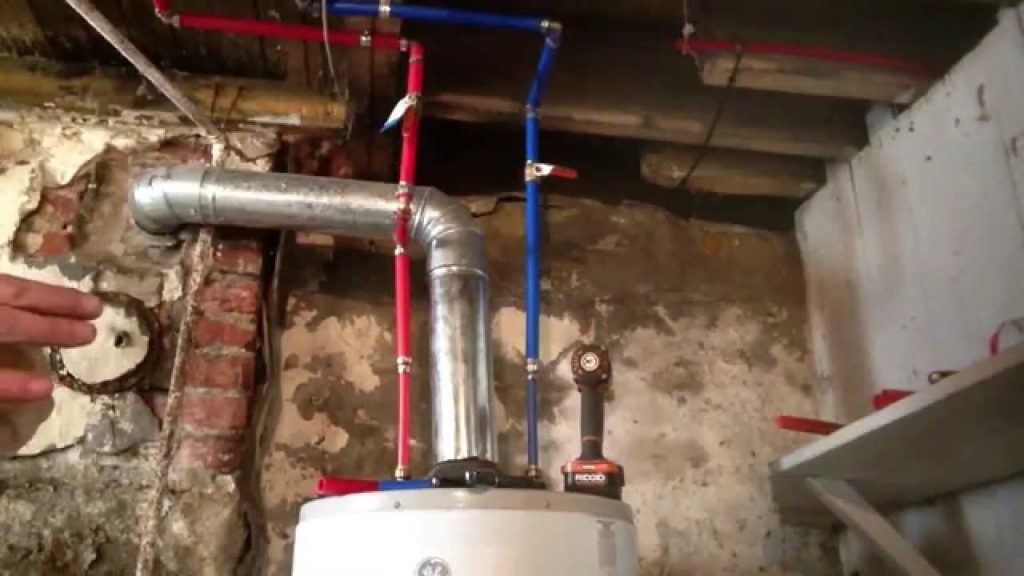

Have you ever stared at your old, corroded copper pipes and wondered if there was a faster, easier way to connect your new water heater? You are not alone. Many homeowners are switching to flexible piping because it saves time and reduces the risk of leaks. If you are ready to upgrade, learning how to plumb an electric water heater with Pex is a valuable skill that can save you hundreds in labor costs.
This guide will walk you through the process step-by-step. We will cover everything from safety precautions to the final pressure test, ensuring your installation meets code and stands the test of time.
Why Choose PEX Over Copper for Water Heaters?
Before we dive into the tools, it is essential to understand why PEX (Cross-linked Polyethylene) has become the gold standard for modern residential plumbing. Unlike rigid copper, PEX is flexible, resistant to scale and chlorine, and does not corrode.
According to industry data, PEX installations can be up to 50% faster than traditional copper soldering. This speed translates directly to cost savings if you hire a pro, or significant time savings if you are doing it yourself. Furthermore, PEX expands and contracts with temperature changes, making it less likely to burst in freezing conditions compared to rigid pipes.
| Feature | PEX Tubing | Copper Pipe |
|---|---|---|
| Installation Speed | Fast (No soldering) | Slow (Requires soldering) |
| Cost | Lower material cost | Higher material cost |
| Corrosion Resistance | High | Prone to pinhole leaks |
| Flexibility | High (Bends around corners) | Rigid (Needs fittings) |
| Noise Reduction | Quieter water flow | Can transmit water hammer |
What Tools and Materials Do You Need?
Gathering the right tools before you start is crucial for a smooth workflow. You do not need a professional plumber’s entire van, but you do need specific items for a secure connection.
Essential Tools
- PEX Crimping Tool: Ensure it matches your ring size (usually 3/4-inch or 1/2-inch).
- Pipe Cutter: A sharp PEX cutter ensures clean, square cuts. Avoid using saws, which leave burrs.
- Go/No-Go Gauge: This small tool verifies that your crimps are tight enough. Never skip this step.
- Adjustable Wrenches: Two wrenches are needed to tighten connections without twisting the heater nipples.
- Teflon Tape or Pipe Dope: For sealing threaded connections.
Materials List
- PEX Tubing: Red for hot, blue for cold (or white with markers). Use Type A or Type B PEX rated for hot water.
- Copper Crimp Rings: Match the diameter of your PEX tube.
- Brass Fittings: Elbows, couplings, and male/female adapters.
- Dielectric Unions: Critical for electric water heaters. These prevent galvanic corrosion between the steel tank and brass/copper fittings.
- Temperature and Pressure (T&P) Relief Valve: If not pre-installed.
Step-by-Step: How To Plumb An Electric Water Heater With Pex
Follow these instructions carefully. Safety is paramount when dealing with electricity and water.
Step 1: Safety First – Power and Water Shut Off
Before touching any pipes, turn off the power to the water heater at the circuit breaker box. Verify the power is off using a non-contact voltage tester. Next, shut off the cold water supply valve leading to the heater. Open a hot water faucet in your house to relieve pressure and drain any remaining water from the tank.
Step 2: Prepare the Connections
Remove the old piping. Clean the threads on the water heater’s inlet (cold) and outlet (hot) ports. Wrap Teflon tape clockwise around the threads of the dielectric unions. Screw the dielectric unions onto the water heater nipples by hand, then tighten them with a wrench. Do not overtighten, as this can crack the fitting.
Pro Tip: Dielectric unions are non-negotiable. Connecting brass or copper directly to the steel tank can cause electrolysis, leading to premature tank failure.
Step 3: Measure and Cut the PEX
Measure the distance from the dielectric union to your main water line or shut-off valve. Add about 1–2 inches of slack to allow for minor adjustments. Mark the PEX tubing and cut it using your PEX cutter. Ensure the cut is perfectly square; an angled cut will result in a weak crimp and potential leaks.
Step 4: Install the Crimp Rings and Fittings
Slide a copper crimp ring onto the end of the PEX tube. Insert the brass fitting (such as a male adapter) into the tube until it bottoms out against the internal stop. The ring should be positioned about 1/8 to 1/4 inch from the end of the tube.
Using your PEX crimping tool, compress the ring. You should hear a distinct click or feel the tool lock. Repeat this for both the hot and cold lines.
Step 5: Connect to the Water Lines
Attach the other end of the PEX lines to your home’s plumbing system using the appropriate fittings (elbows or couplings). If you are connecting to existing copper pipes, use transition fittings designed for PEX-to-Copper connections. Tighten all threaded connections securely.
Step 6: Pressure Test and Inspection
Before turning the power back on, you must check for leaks. Slowly open the cold water supply valve to fill the tank. Keep a hot water faucet open in the house to let air escape. Once water flows steadily from the faucet, close it.
Inspect every connection you made. Look for any drips or moisture. Use your Go/No-Go gauge on each crimp ring to ensure they meet manufacturer specifications. If a crimp fails the gauge test, cut the ring off and redo the connection.
For more detailed technical standards on plumbing materials, you can refer to general guidelines on Wikipedia’s PEX page.
Step 7: Restore Power and Final Check
Once you are confident there are no leaks, turn the circuit breaker back on. It is vital that the tank is full of water before restoring power; otherwise, you will burn out the heating elements immediately. Wait a few hours for the water to heat up, then check the temperature at a faucet. It should be around 120°F (49°C) for safety and efficiency.
Common Mistakes to Avoid When Using PEX
Even experienced DIYers can make errors. Here are the most common pitfalls:
- Exposing PEX to Sunlight: UV rays degrade PEX rapidly. Never store PEX tubes outside or install them in areas with direct sunlight unless covered.
- Overtightening Fittings: PEX does not require extreme force. Overtightening can strip threads or crack brass fittings.
- Ignoring Bend Radius: While flexible, PEX has a minimum bend radius. Kinking the tube restricts water flow and weakens the structure. Use elbow fittings for sharp turns.
- Skipping the Dielectric Union: As mentioned, this leads to corrosion. Do not skip this component to save a few dollars.
FAQ: Frequently Asked Questions
Can I use PEX for both hot and cold lines on an electric water heater?
Yes, absolutely. PEX is rated for high temperatures (up to 200°F at 80 psi), making it ideal for both hot and cold water applications. Just ensure you use the correct color coding (red for hot, blue for cold) to avoid confusion during future maintenance.
Do I need a permit to replace my water heater with PEX?
Regulations vary by location. In many US jurisdictions, replacing a water heater requires a permit and inspection to ensure compliance with local building codes. Always check with your local building department before starting work.
What size PEX should I use for a water heater?
Most residential electric water heaters have 3/4-inch NPT (National Pipe Thread) connections. Therefore, you should use 3/4-inch PEX tubing to maintain adequate water flow and pressure. Using 1/2-inch PEX may restrict flow, especially if multiple fixtures are used simultaneously.
How long does PEX last compared to copper?
PEX has an estimated lifespan of 40–50 years, similar to copper. However, PEX is less susceptible to pinhole leaks caused by acidic water or soil conditions, potentially offering better longevity in certain environments.
Can I connect PEX directly to the water heater nipples?
No. You should always use a short piece of copper pipe or a dielectric union between the heater and the PEX. Direct connection can expose the PEX to excessive heat from the metal nipple, potentially damaging the plastic over time.
Conclusion
Learning how to plumb an electric water heater with Pex is a rewarding project that combines practical skill with significant cost savings. By using flexible PEX tubing, you reduce installation time and minimize the risk of future leaks caused by corrosion. Remember, the key to success lies in proper preparation, using dielectric unions, and thoroughly testing for leaks before restoring power.
