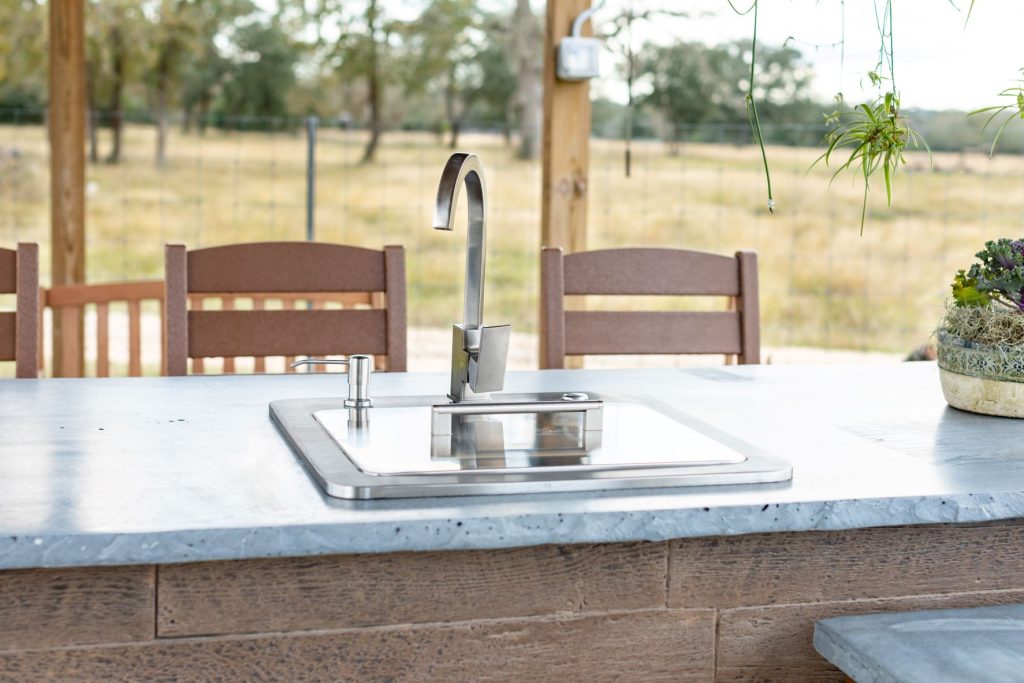

How To Plumb An Outdoor Kitchen Sink Without Drain

Dreaming of a luxurious outdoor cooking space but stuck because your patio lacks a sewer line? You are not alone. Many homeowners face this exact hurdle when trying to elevate their backyard entertainment areas. The good news is that you don’t need a direct connection to the main sewage system to enjoy the convenience of running water. In this guide, we will explore exactly how to plumb an outdoor kitchen sink without drain connections, offering practical, code-conscious, and budget-friendly solutions that keep your space functional and beautiful.

Why Go Drain-Less? Understanding the Challenge

Before diving into the “how,” it is crucial to understand the “why.” Traditional plumbing requires a complex network of pipes leading to a septic tank or municipal sewer. For many outdoor kitchens, especially those on concrete slabs, decks, or far from the house, trenching and breaking concrete is prohibitively expensive and often violates local zoning laws regarding distance from property lines.

However, leaving a sink without a drainage plan leads to standing water, mosquito breeding grounds, and unpleasant odors. Therefore, the goal isn’t just to install a faucet; it is to manage greywater (wastewater from sinks, excluding toilets) responsibly.

Key Considerations Before You Start

• Local Codes: Always check with your local building department. Some areas strictly prohibit greywater discharge onto the ground.
• Water Source: Ensure you have a dedicated hot/cold water line or a simple cold line if you prefer.
• Freeze Protection: If you live in a climate with freezing winters, your solution must be winterizable.

Solution 1: The Recirculating Pump System (Best for Decks & Patios)

If you cannot discharge water anywhere, the best solution is to not discharge it at all. A recirculating system captures the water, filters it, and pumps it back into the sink’s freshwater supply. This is ideal for washing vegetables, rinsing hands, or light cleaning tasks.

How It Works

This closed-loop system uses a submersible pump placed in a reservoir beneath the sink. The water drains into this hidden tank, passes through a filtration system, and is pumped back up to the faucet.

Step-by-Step Installation Guide

1. Prepare the Reservoir: Install a watertight plastic container (minimum 20–30 gallons) beneath the sink cabinet. Ensure it is level and secure.
2. Install the Pump: Place a small submersible utility pump inside the reservoir. Look for a pump with a flow rate of at least 300–500 gallons per hour (GPH).
3. Connect the Filtration: Attach a multi-stage filter to the pump’s output. A standard setup includes:
   • Stage 1: Sediment filter (removes food particles).
   • Stage 2: Carbon filter (removes odors and chemicals).
   • Stage 3: UV Sterilizer (optional, kills bacteria for higher hygiene).
4. Plumb the Return Line: Run a flexible hose from the filter output to the cold water inlet of your faucet. Note: This system typically only supports cold water unless you add an inline heater.
5. Drain Connection: Connect the sink’s P-trap directly to the top of the reservoir. Ensure the connection is airtight to prevent smells.

Pro Tip: Add a small amount of eco-friendly disinfectant to the reservoir weekly to keep the water fresh and prevent algae growth.

Solution 2: The Dry Well or French Drain (Best for Yards with Soil)

If local codes permit greywater discharge and you have soil that absorbs water well, a dry well is a classic, low-maintenance solution. This method allows water to percolate slowly into the ground, filtering naturally through soil layers.

What Is a Dry Well?

A dry well is an underground structure filled with gravel or rock that collects wastewater and allows it to soak into the surrounding earth. According to environmental studies, properly constructed dry wells can effectively treat mild greywater by removing suspended solids and reducing bacterial load through soil filtration Wikipedia: Greywater.

Installation Steps

1. Dig the Hole: Excavate a hole approximately 3 feet deep and 3 feet wide, located at least 10 feet away from your home’s foundation and any vegetable gardens.
2. Line with Landscape Fabric: Wrap the hole with heavy-duty landscape fabric to prevent soil from clogging the gravel.
3. Add Gravel Base: Pour 6 inches of crushed stone (size #57 or similar) into the bottom.
4. Install the Chamber: Place a perforated dry well chamber or a large bucket with holes drilled in the sides on top of the gravel.
5. Connect the Pipe: Run a solid PVC pipe (minimum 1.5 inches diameter) from the sink’s P-trap to the dry well. Ensure a slight downward slope (1/4 inch per foot) for gravity flow.
6. Fill and Cover: Fill the chamber and the remaining space with more gravel. Cover the top with soil and sod to blend it into your landscape.

Solution 3: The Bucket Method (Temporary & Budget-Friendly)

For renters or those on a tight budget, the manual bucket method is the simplest way to plumb an outdoor kitchen sink without drain infrastructure. While not automated, it offers total control over water disposal.

How to Set It Up

1. Modify the Drain: Instead of connecting the P-trap to a pipe, attach a flexible hose to the P-trap outlet.
2. Direct to Container: Place the end of the hose into a large, removable 5-gallon bucket or a specialized greywater container placed under the sink.
3. Manual Disposal: When the bucket is full, manually carry it to an approved disposal area, such as a designated garden bed (for non-soapy water) or a household drain.

Warning: Never let greywater sit for more than 24 hours, as it will begin to smell and breed bacteria.

Essential Tips for Success

Choose the Right Faucet

Since you may not have hot water in recirculating or bucket systems, consider a foot-operated or sensor faucet. These reduce cross-contamination and save water, which is crucial when managing limited greywater capacity.

Winterizing Your Setup

If you live in a zone with freezing temperatures:

• Recirculating Systems: Drain the reservoir and pump completely. Store the pump indoors.
• Dry Wells: Ensure the pipe has a cleanout plug so you can blow out any remaining water with compressed air.
• Bucket Systems: Simply bring the bucket and hoses inside.

Hygiene Matters

Always use biodegradable, phosphate-free soaps. Harsh chemicals can kill beneficial soil bacteria in dry wells or damage the filters in recirculating systems. Look for products labeled “Greywater Safe.”

FAQ Section

Q1: Is it legal to drain outdoor sink water on the ground?

A: It depends entirely on your local municipality. Some states like California and Arizona have specific greywater codes that allow it under certain conditions, while others prohibit it strictly. Always consult your local building department before installing a dry well.

Q2: Can I use hot water with a recirculating pump system?

A: Standard recirculating kits are cold-water only. To add hot water, you would need to install a small point-of-use electric water heater in the loop, which increases complexity and energy usage. Most users find cold water sufficient for rinsing produce and hands.

Q3: How often do I need to change the filters in a recirculating system?

A: For moderate use (weekend cooking), change the sediment filter every month and the carbon filter every 3–6 months. If you notice reduced water flow or odd tastes, replace them sooner.

Q4: Will a dry well smell bad?

A: Not if installed correctly. The key is ensuring the P-trap under the sink is always filled with water, which acts as a seal against sewer gases. Additionally, using eco-friendly soaps prevents rancid odors from developing in the soil.

Q5: Can I connect my outdoor sink to my home’s septic system?

A: Technically yes, but it is often impractical due to the distance and elevation changes. Trenching a line from an outdoor kitchen to a septic tank can cost thousands of dollars. The solutions above are generally more cost-effective for retrofits.

Q6: What size pump do I need for an outdoor sink?

A: A pump with a flow rate of 300–500 GPH (Gallons Per Hour) is typically sufficient for a single-basin outdoor sink. Ensure the pump head height (the vertical distance it can push water) exceeds the height of your faucet by at least 2 feet.

Conclusion

Learning how to plumb an outdoor kitchen sink without drain access opens up a world of possibilities for your backyard oasis. Whether you choose the high-tech efficiency of a recirculating pump system, the natural simplicity of a dry well, or the low-cost flexibility of the bucket method, you can enjoy the convenience of running water without major construction.

Remember, the best solution depends on your local codes, budget, and how you plan to use the sink. By following these steps, you ensure a clean, functional, and compliant outdoor kitchen that enhances your home’s value and your lifestyle.
