Upgrading your bathroom with a double vanity can transform your morning routine, but the prospect of connecting two sinks often feels daunting for DIY enthusiasts. You want a professional finish without the hefty plumber’s bill, yet you’re unsure where to start with the complex web of pipes and fittings. This guide simplifies the process, showing you exactly how to plumb Home Depot double sink vanity configurations safely and efficiently, ensuring a leak-free result that stands the test of time.
Understanding the Double Vanity Plumbing Layout
Before you buy a single pipe, it is crucial to visualize how water flows in a double sink setup. Unlike a single vanity, a double unit requires a symmetrical approach to drainage and supply lines. The goal is to connect two separate drain assemblies into a single waste line while maintaining proper venting to prevent sewer gases from entering your home.
Key Components You Will Need
To successfully complete this project, you need to gather specific materials. Most of these are readily available at your local Home Depot. Here is a checklist of essential items:
- Two Drain Assemblies: Typically 1-1/4 inch or 1-1/2 inch, depending on your sink specifications.
- P-Traps: One for each sink. These U-shaped pipes hold water to block odors.
- Tailpiece Extensions: If the distance between the sink drain and the wall pipe is significant.
- Double Fixture Fitting (Sanitary Tee): This connects both P-traps to the main drain line.
- Supply Lines: Braided stainless steel hoses are recommended for durability.
- Teflon Tape & Plumber’s Putty: Essential for creating watertight seals.
- Adjustable Wrenches & Basin Wrench: For tightening nuts in tight spaces.
Pro Tip: Always measure the distance between your two sink drains and the center of your wall drain pipe before heading to the store. This ensures you buy the correct length for your connecting pipes.
Step-by-Step Guide: Installing the Drain System
The drainage system is the most critical part of the installation. A mistake here leads to leaks and unpleasant odors. Follow these steps meticulously.
Step 1: Prepare the Sink Drains
Start by applying a rope of plumber’s putty around the underside of the drain flange. Insert the drain assembly into the sink hole from the top. From underneath, screw on the rubber gasket and the locking nut. Tighten it firmly with a basin wrench, but be careful not to overtighten and crack the ceramic or composite material. Wipe away any excess putty that squeezes out.
Step 2: Install the P-Traps
Attach the tailpiece to the bottom of the drain assembly. Next, connect the P-trap. The P-trap should align with the drain outlet coming from the wall. If your wall drain is centered between the two sinks, you will need a double fixture fitting.
- Connect the left sink’s P-trap to one side of the double fixture fitting.
- Connect the right sink’s P-trap to the other side.
- Ensure all slip-joint washers are facing the correct direction (tapered side toward the nut).
Step 3: Connect to the Wall Drain
Insert the outlet of the double fixture fitting into the wall drain pipe. Use a compression nut and washer to secure it. Hand-tighten first, then give it a quarter-turn with pliers. Do not over-tighten, as this can crush the plastic washer and cause leaks.
For more detailed technical standards on plumbing fixtures, you can refer to general guidelines on Wikipedia’s Plumbing page to understand the broader context of residential water systems.
Connecting the Water Supply Lines
Once the drains are secure, it’s time to bring the water in. This step is generally simpler than drainage but requires precision to avoid high-pressure leaks.
Choosing the Right Supply Lines
Home Depot offers various supply lines. For a double vanity, we recommend braided stainless steel supply lines. They are flexible, resistant to bursting, and easier to maneuver in tight cabinet spaces compared to rigid copper pipes.
Installation Process
- Turn Off the Water: Locate the shut-off valves under the sink or at the main house valve. Turn them clockwise to close. Open the faucet to release remaining pressure.
- Attach to Faucet: Connect one end of the supply line to the faucet’s inlet threads. Use Teflon tape if the connection does not have a built-in rubber gasket.
- Attach to Shut-Off Valve: Connect the other end to the angle stop valve on the wall. Hand-tighten the nut, then use an adjustable wrench to tighten it another half-turn.
- Repeat: Do this for both hot and cold lines for both sinks. That’s four connections per sink, eight total.
Safety Check: Ensure the supply lines are not kinked or twisted. A kinked line restricts water flow and can weaken the hose over time.
Common Mistakes to Avoid
Even experienced DIYers can stumble during a double vanity installation. Here are the most frequent errors and how to avoid them.
| Mistake | Consequence | Solution |
|---|---|---|
| Over-tightening Nuts | Cracked fittings or stripped threads | Hand-tighten first, then use tools sparingly. |
| Missing Washers | Immediate leaks at joints | Double-check every slip-joint connection for a rubber washer. |
| Ignoring Venting | Gurgling sounds and slow drains | Ensure your existing vent stack is clear and connected properly. |
| Wrong Pipe Diameter | Poor drainage flow | Match the pipe size to the sink drain (usually 1-1/2 inch). |
Testing for Leaks: The Final Crucial Step
Never assume the job is done until you’ve tested it. Water damage can be costly and hidden behind cabinets.
- Dry Everything: Use a rag to dry all connections thoroughly.
- Turn On Water: Slowly open the shut-off valves. Watch the supply line connections for any drips.
- Run the Faucets: Turn on both sinks. Let the water run for a minute.

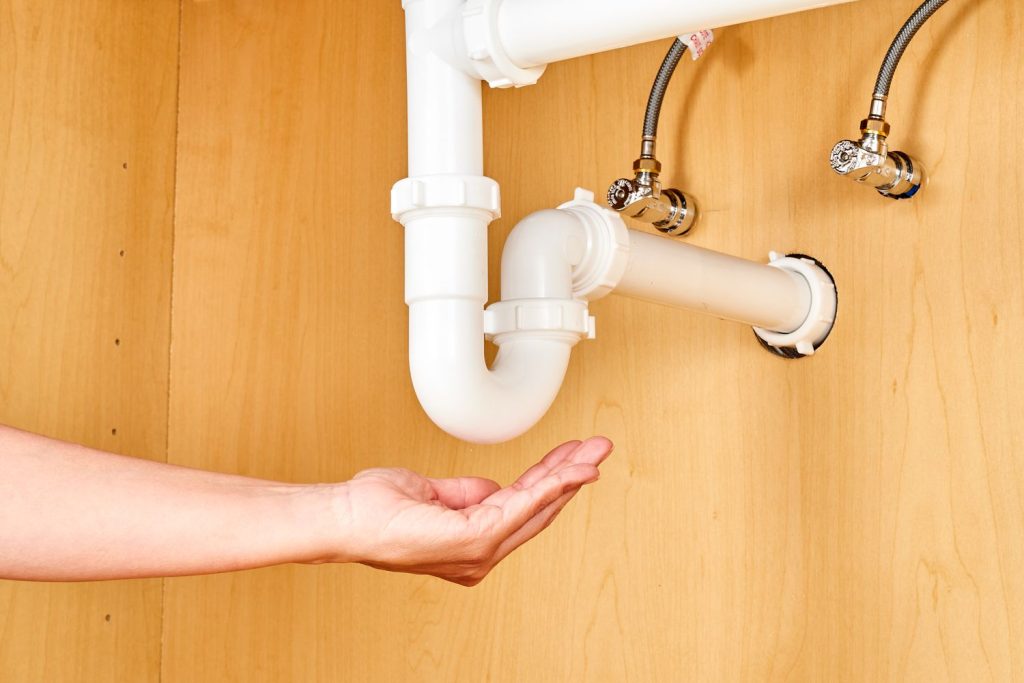

- Check Drains: Place a bucket under the P-traps. Look for any moisture forming on the slip-joint nuts.
- The Paper Towel Test: Wrap a dry paper towel around each connection. If it gets wet, you have a leak. Tighten slightly or reseat the washer.
If you find a leak at a slip-joint, disassemble it, check the washer for debris or misalignment, and reassemble. Often, the washer is just slightly crooked.
FAQ Section
Q1: Can I use the same drain hole for both sinks?
A: No, each sink must have its own independent drain assembly and P-trap. They only merge at the double fixture fitting before entering the wall. Sharing a single trap for two sinks is against code and causes severe drainage issues.
Q2: What size P-trap do I need for a double vanity?
A: Most modern bathroom sinks use a 1-1/4 inch or 1-1/2 inch drain. Check your sink’s specification sheet. If you are replacing an old vanity, measure the existing tailpiece. Home Depot sells universal kits that include adapters for both sizes.
Q3: Do I need a permit to install a double vanity?
A: In most US jurisdictions, replacing a vanity like-for-like (same location, same type) does not require a permit. However, if you are moving the plumbing lines or altering the venting, you may need a permit. Always check with your local building department.
Q4: Why is my double sink draining slowly?
A: Slow drainage usually indicates a blockage or improper venting. Check for hair or debris in the P-traps. If the traps are clear, the issue might be with the vent stack. Ensure the air admittance valve (if used) is functioning correctly.
Q5: Can I use PVC glue instead of slip-joint nuts?
A: It is not recommended for the connections under the sink. Slip-joint connections allow for future maintenance and adjustments. PVC glue is permanent and makes repairs difficult. Use glue only for fixed pipes inside the wall if you are extending the drain line.
Q6: How do I choose between chrome and white plastic P-traps?
A: Chrome traps are more durable and aesthetically pleasing if visible. White plastic (ABS or PVC) traps are cheaper and resistant to corrosion but can look less premium. For a high-end vanity, chrome is the better choice.
Conclusion
Learning how to plumb Home Depot double sink vanity setups is a rewarding DIY project that adds significant value and functionality to your home. By following these steps—preparing the drains, installing P-traps correctly, connecting supply lines with care, and rigorously testing for leaks—you can achieve a professional-grade result.
Remember, patience is key. Take your time with each connection, and don’t hesitate to double-check your work. A well-plumbed vanity not only looks great but also provides years of trouble-free service.
