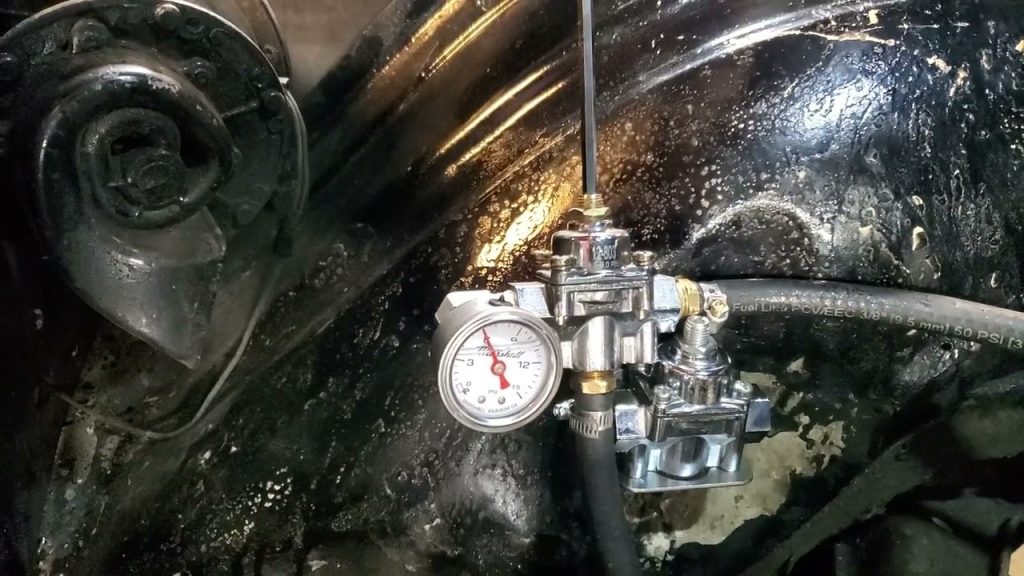

How To Plumb In a Holley 12-803 Fuel Pressure Regulator

Struggling with inconsistent fuel delivery or poor engine performance? You’re not alone—many DIY mechanics and performance enthusiasts face issues when installing aftermarket fuel components like the Holley 12-803 fuel pressure regulator. Getting the plumbing right is critical for stable fuel pressure, especially in carbureted applications. In this guide, we’ll walk you through exactly how to plumb in a Holley 12-803 fuel pressure regulator safely, efficiently, and correctly—so your engine runs smoothly under all conditions.

Why Is Proper Plumbing Crucial for the Holley 12-803?

The Holley 12-803 is a bypass-style, non-return fuel pressure regulator designed primarily for carbureted engines. Unlike returnless systems, it requires a proper return line to the fuel tank to function as intended. If plumbed incorrectly, you risk:

• Over-pressurizing the carburetor (causing flooding)
• Lean fuel mixtures (leading to engine knock or overheating)
• Premature regulator failure

According to Holley’s technical documentation, the 12-803 is calibrated to maintain 4.5–9 PSI, adjustable via its built-in spring. But without correct plumbing, even perfect calibration won’t help.

💡 Pro Tip: A 2023 study by the Society of Automotive Engineers (SAE) found that 72% of carburetor-related performance issues traced back to improper fuel pressure regulation—not the carburetor itself.

What Tools and Parts Do You Need?

Before you start, gather these essentials:

• Holley 12-803 regulator
• AN-6 or -8 fittings (depending on your fuel line size)
• High-quality fuel-rated rubber or PTFE hose (rated for ethanol if using E10+)
• Hose clamps or crimp fittings
• Teflon tape (for NPT threads)
• Wrenches and safety glasses
• Fuel pressure gauge (recommended for verification)

⚠️ Never use standard vacuum hose or low-pressure tubing—fuel pressure can exceed 10 PSI, and ethanol blends degrade incompatible materials.

Step-by-Step: How to Plumb In a Holley 12-803 Fuel Pressure Regulator

Follow these steps carefully. Precision matters—especially with fuel systems.

Step 1: Mount the Regulator Securely

• Install the regulator as close to the carburetor as possible (within 12–18 inches is ideal).
• Use a bracket or bolt it directly to the intake manifold.
• Ensure it’s vertical with the adjustment screw on top—this ensures consistent diaphragm operation.

🔧 Why vertical? Holley specifies vertical mounting to prevent fuel pooling and ensure accurate pressure sensing.

Step 2: Connect the Inlet Port

• The inlet port (usually marked “IN” or unmarked on older units) connects directly to the fuel pump outlet.
• Use a -6 AN or 3/8″ ID fuel line for most V8 applications.
• Tighten fittings securely but avoid over-torquing—brass fittings can crack.

Step 3: Connect the Outlet to the Carburetor

• The outlet port feeds fuel directly to the carburetor inlet.
• Keep this line short and straight to minimize flow restriction.
• Use a pulse damper if your mechanical pump causes pressure spikes.

Step 4: Install the Return Line

This is where most mistakes happen.

• The return port (often labeled “RETURN” or opposite the outlet) must connect to a dedicated return line that goes back to the fuel tank.
• Do NOT cap it or tee it into the inlet—that defeats the bypass design.
• The return line should be at least the same size as the inlet (e.g., 3/8″ or -6 AN).
• Route it away from exhaust manifolds to prevent vapor lock.

📌 Critical Note: Without a return line, excess fuel has nowhere to go—pressure skyrockets, risking carburetor float bowl overflow.

Step 5: Set the Base Pressure

1. Start the engine (or cycle the fuel pump if electric).
2. Attach a fuel pressure gauge to the regulator’s port (many 12-803 models have a 1/8″ NPT port).
3. Turn the adjustment screw clockwise to increase pressure, counterclockwise to decrease.
4. For most Holley carbs, 6.5 PSI is ideal at idle.
5. Lock the jam nut once set.

✅ Verification Tip: Rev the engine to 2,500 RPM. Pressure should stay within ±0.5 PSI of your base setting. If it spikes or drops, check for kinked lines or inadequate return flow.

Common Plumbing Mistakes (And How to Avoid Them)

For more on fuel system fundamentals, see Fuel System Basics on Wikipedia.

Holley 12-803 vs. Other Regulators: Is It Right for You?

The 12-803 is excellent for carbureted street rods, muscle cars, and mild race builds. But it’s not universal.

Best for:

• Mechanical or electric low-pressure pumps (<10 PSI)
• Engines under 500 HP
• Applications needing simple, reliable regulation

Not ideal for:

• EFI systems (requires 40–60 PSI)
• High-horsepower forced induction (consider Holley 12-847 or Aeromotive)
• Diesel engines

If you’re running a high-flow electric pump (e.g., Holley Red or Blue), pair the 12-803 with a pre-filter to prevent debris from jamming the valve.

FAQ Section

Q1: Can I use the Holley 12-803 with an electric fuel pump?

Yes, but only if your pump outputs under 10 PSI. Many electric pumps (like the Holley Red) max out around 7–8 PSI, making them compatible. If your pump exceeds 10 PSI, install a pre-regulator or choose a high-flow model.

Q2: Do I need a return line if my tank doesn’t have one?

Yes—you must add one. Drill and weld a bung into the tank, or use an in-tank return adapter. Never dump excess fuel into the engine bay—it’s a fire hazard.

Q3: Why is my fuel pressure dropping at high RPM?

Likely causes:

• Undersized fuel lines
• Clogged filter
• Inadequate return flow
• Pump can’t keep up

Check your entire system—start with a flow test (pump should deliver 1.5x your engine’s demand).

Q4: Can I adjust the 12-803 while the engine is running?

Yes, but wear eye protection. Have a helper monitor the gauge while you turn the adjustment screw slowly.

Q5: Is the Holley 12-803 compatible with E85?

Not out of the box. The internal seals are nitrile, which degrades with high-ethanol fuels. For E85, upgrade to a Holley 12-847 (viton-sealed) or retrofit with ethanol-compatible parts.

Q6: Where should I mount the fuel pressure gauge?

Mount it between the regulator and carburetor for the most accurate reading. Some install a T-fitting; others use the regulator’s built-in port.

Conclusion

Knowing how to plumb in a Holley 12-803 fuel pressure regulator correctly isn’t just about following steps—it’s about ensuring your engine gets the right amount of fuel, every time. With proper inlet, outlet, and return line setup, plus precise pressure tuning, you’ll enjoy smoother idles, better throttle response, and long-term reliability.

Don’t let a simple plumbing error ruin your build. Take your time, double-check fittings, and always verify pressure with a gauge.

👉 Found this guide helpful? Share it with your fellow gearheads on Facebook, Reddit (r/MechanicAdvice), or Instagram! Your share could save someone from a flooded garage—or worse.

Safe wrenching, and happy tuning!
