How to Plumb In a Pressure Switch in a Well – Step-by-Step Guide

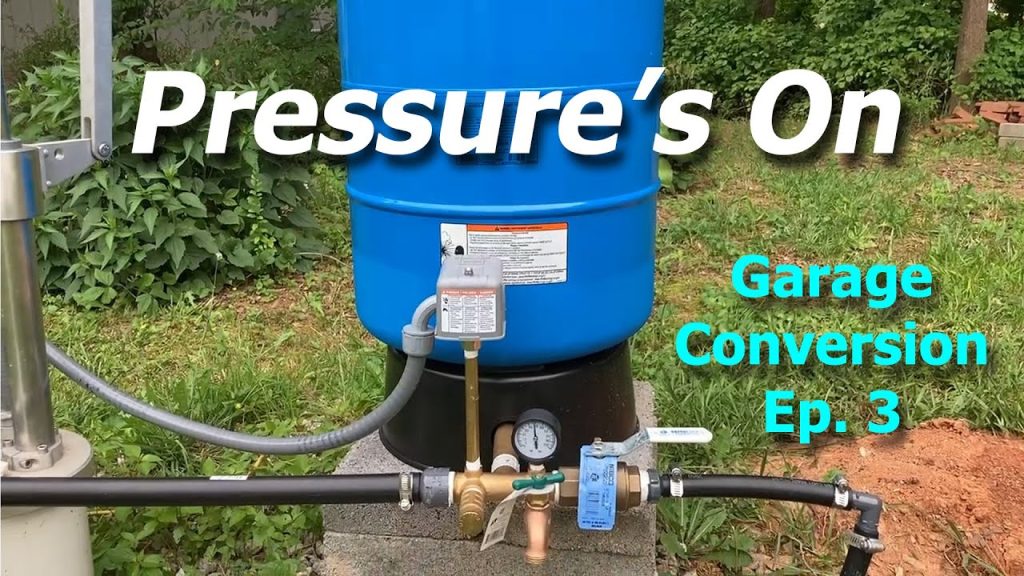

If your well pump keeps turning on and off erratically—or worse, won’t turn on at all—it might be time to check or install a pressure switch. Knowing how to plumb in a pressure switch in a well is a crucial skill for homeowners relying on private water systems. Done right, it ensures consistent water pressure, protects your pump from damage, and saves you costly repairs down the line. Don’t worry—you don’t need to be a plumber to get this right. We’ll walk you through it clearly, step by step.

What Is a Pressure Switch and Why Does It Matter?

A pressure switch is a small but vital component in your well water system. It automatically turns the pump on when water pressure drops (e.g., when you open a faucet) and shuts it off once pressure reaches a preset level—typically between 40–60 psi for residential systems.

According to the U.S. Department of Energy, properly maintained well systems can reduce energy consumption by up to 20%. A correctly installed pressure switch plays a big role in that efficiency.

💡 Fun Fact: The average American household uses about 300 gallons of water per day. Your pressure switch helps manage that demand without overworking your pump.

For more background on how pressure regulation works in fluid systems, see Wikipedia’s entry on pressure switches.

Do You Really Need to Install a New Pressure Switch?

Not every issue requires a full replacement. First, troubleshoot:

• Symptom: Pump runs continuously → Could indicate a faulty switch stuck in the “on” position.
• Symptom: No water pressure → Switch may not be sensing low pressure or has failed electrically.
• Symptom: Rapid cycling (short cycling) → Often due to a waterlogged pressure tank, but a misadjusted or failing switch can contribute.

If you’ve ruled out the pressure tank and electrical issues, installing or replacing the pressure switch is likely your next step.

Tools and Materials You’ll Need

Before you begin, gather these essentials:

• Adjustable wrench
• Pipe thread sealant (Teflon tape or pipe dope)
• Screwdriver (flathead and Phillips)
• Voltage tester
• New pressure switch (standard models: 30/50 or 40/60 psi)
• 1/4″ NPT nipple (brass or stainless steel)
• Safety gloves and goggles

⚠️ Safety First: Always turn off power to the well pump at the circuit breaker before starting. Verify with a voltage tester.

Step-by-Step: How to Plumb In a Pressure Switch in a Well

Follow these precise steps to ensure a safe, leak-free, and code-compliant installation.

Step 1: Turn Off Power and Water Supply

• Shut off electricity to the pump at the main panel.
• Open a faucet to relieve pressure in the system (this prevents water spray when disconnecting pipes).

Step 2: Remove the Old Pressure Switch (If Applicable)

• Unscrew the electrical cover and disconnect wires (take a photo for reference).
• Use a wrench to unscrew the old switch from the pressure tank tee or manifold.

Step 3: Prepare the Mounting Point

Most pressure switches attach to a 1/4″ NPT port on the pressure tank or a dedicated manifold. If no port exists:

• Install a 1/4″ brass nipple into a tee fitting on the main water line near the tank.
• Apply Teflon tape (3–4 wraps clockwise) to the threads to prevent leaks.

✅ Pro Tip: Avoid plastic fittings—they can crack under pressure or vibration. Use brass or stainless steel.

Step 4: Install the New Pressure Switch

• Screw the new switch onto the nipple by hand, then tighten with a wrench (do not overtighten—1/4 turn past hand-tight is enough).
• Reconnect the wires exactly as they were (typically Line, Load, and Ground). Most residential switches are 230V single-phase.

Step 5: Adjust the Cut-In and Cut-Out Pressures

Standard settings:

• Cut-in (turns pump ON): 30 or 40 psi
• Cut-out (turns pump OFF): 50 or 60 psi

To adjust:

• Remove the switch cover.
• Use a flathead screwdriver to turn the large nut (main spring) to raise or lower both pressures.
• Turn the small nut to adjust the differential (usually 20 psi; e.g., 40 psi on, 60 psi off).

📏 Precision Matters: A 2023 study by the National Ground Water Association found that 68% of premature pump failures were linked to incorrect pressure switch settings.

Step 6: Restore Power and Test

• Close faucets.
• Turn power back on.
• Listen for the pump to start, then monitor pressure build-up.
• Check for leaks at the switch connection.
• Verify the pump cycles correctly: turns on at cut-in, off at cut-out.

Common Mistakes to Avoid

Pressure Switch vs. Other Well Components: What’s the Difference?

Many confuse the pressure switch with the pressure tank or pump controller. Here’s a quick breakdown:

• Pressure Tank: Stores water under air pressure to reduce pump cycling.
• Pressure Switch: The “brain” that tells the pump when to run.
• Pump Controller (Advanced Systems): Electronic alternative with soft-start and diagnostics (e.g., Franklin Electric’s MonoDrive).

For most residential wells, a standard mechanical pressure switch is sufficient, reliable, and cost-effective.

FAQ Section

Q1: Can I install a pressure switch myself, or do I need a professional?

A: Yes, most DIYers can install one safely if they follow electrical and plumbing precautions. However, if you’re uncomfortable working with 230V circuits or local codes require permits, hire a licensed well contractor.

Q2: How do I know what pressure setting to use?

A: Match your switch to your pressure tank’s air precharge. Standard is 40/60 psi with a 38 psi tank precharge. Check your tank’s label or use a tire gauge on the air valve.

Q3: Why is my new pressure switch leaking?

A: Likely causes: insufficient thread sealant, cross-threading, or overtightening. Turn off water, dry the area, and reapply Teflon tape before reinstalling.

Q4: How often should I replace a pressure switch?

A: There’s no fixed lifespan, but most last 10–15 years. Signs of failure include erratic cycling, burning smells, or visible corrosion.

Q5: Can I use a pressure switch with a variable frequency drive (VFD) pump?

A: No—VFD systems use electronic pressure sensors and controllers, not mechanical switches. Installing a traditional switch can damage the system.

Q6: What’s the difference between a 30/50 and 40/60 pressure switch?

A: The numbers refer to cut-in/cut-out pressures. 40/60 provides stronger household pressure (better for multi-story homes), while 30/50 is gentler on older plumbing.

Conclusion

Learning how to plumb in a pressure switch in a well empowers you to maintain reliable water pressure and extend your pump’s life—all while avoiding expensive service calls. With the right tools, clear instructions, and attention to safety, this is a manageable weekend project for most homeowners.

✅ You’ve just saved time, money, and stress—and ensured your family’s water flows smoothly.
